Parkside 382543 2110 Manual de usuario

IAN 382543_2110

UNIVERSAL DOWEL JIG / UNIVERSAL-DÜBELHILFE/

GABARIT DE PERÇAGE UNIVERSEL PUD 30 A1

GABARIT DE PERÇAGE

UNIVERSEL

Mode d’emploi

UNIVERSAL DOWEL JIG

Operating instructions

UNIVERSEEL DEUVELHULPSTUK

Gebruiksaanwijzing

UNIVERZÁLNÍ POMŮCKA

PRO HMOŽDINKY

Návod k obsluze

UNIVERSEL DYVELHJÆLP

Betjeningsvejledning

UNIVERZÁLNA POMÔCKA

NA KOLÍKY

Návod na obsluhu

UNIVERSAL-DÜBELHILFE

Bedienungsanleitung

UNIWERSALNY PRZYRZĄD

DO POŁĄCZEŃ KOŁKOWYCH

Instrukcja obsługi

MAESTRO ESPIGADOR

UNIVERSAL

Instrucciones de uso

GUIDA UNIVERSALE

PER SPINATURA

Istruzioni per l'uso

UNIVERZÁLIS TIPLI

SEGÉDESZKÖZ

Használati utasítás

UNIVERZALNI PRIPOMOČEK

ZA ZIDNI VLOŽEK

Navodila za uporabo

GB/ IE Operating instructions Page 1

DE/AT/CH Bedienungsanleitung Seite 11

FR/BE Mode d’emploi Page 21

NL/BE Gebruiksaanwijzing Pagina 31

CZ Návod k obsluze Strana 41

PL Instrukcja obsługi Strona 51

SK Návod na obsluhu Strana 61

ES Instrucciones de uso Página 71

DK Betjeningsvejledning Side 81

IT Istruzioni per l‘uso Pagina 91

HU Használati utasítás Oldal 101

SI Navodila za uporabo Stran 111

6 mm

10 mm

8 mm

10 6

10 mm

max.

30 mm

10 6

max.

18 mm

8 mm

10 6

6 mm

max.

14 mm

DDEE

GGHH

PUD 30 A1 GB│IE │ 1 ■

Contents

Introduction...................................2

Information about these operating instructions.................2

Proper use ............................................2

Safety .......................................3

Package contents ..............................4

Use ..........................................4

Make preparations......................................4

Processing wooden workpiece 1 ...........................5

Corner joints...........................................6

Face joints ............................................7

T-joints................................................8

Maintenance and storage .......................8

Disposal......................................9

Service ......................................10

Importer ....................................10

IB_382543_PUD30A1_LB8.indb 1IB_382543_PUD30A1_LB8.indb 1 23.02.2022 09:21:5923.02.2022 09:21:59

PUD 30 A1

■ 2 │ GB│IE

Introduction

Information about these operating instructions

Congratulations!

You have purchased a high-quality product. Familiarise

yourself with the product before using it for the ﬁrst time. To

do this, read the following operating instructions thoroughly. Use the

product only as described and for the range of applications speciﬁed.

Keep these operating instructions in a safe place. Please also pass

these operating instructions on to any future owner(s).

Proper use

This product is used exclusively for making dowel connections.

Three drill bushes in sizes 6, 8 and 10 mm are provided for this

purpose. You can use the product to create corner, T and face joints.

The product is suitable for wooden workpieces from 12 to 30 mm.

Commercial or industrial use is not permitted. No liability will be

assumed in cases of improper use. No liability will be assumed for

damage caused by misuse or improper handling, the use of force or

unauthorised modiﬁcation. The risk is borne solely by the user.

IB_382543_PUD30A1_LB8.indb 2IB_382543_PUD30A1_LB8.indb 2 23.02.2022 09:22:0023.02.2022 09:22:00

PUD 30 A1 GB│IE │ 3 ■

Safety

■ Check the product before every use to make sure it is in perfect

condition. Do not use the product if it is damaged in any way.

■ Do not allow children to use the product unless they are being

supervised. Children are not always able to correctly recognise

potential dangers. This product is not a toy.

■ This product is not intended for use by individuals (including

children) with reduced physical, sensory, or mental capabilities. It

may also not be used by individuals who lack experience and/or

knowledge unless they are supervised by a person responsible for

their safety or have received instructions on how to use the product

from such a person.

■ Please observe the operating instructions for the drill/

cordless screwdriver when using the product.

■ Unplug the appliance before ﬁtting or changing parts.

■ All parts must be properly ﬁtted before use, otherwise there is

a risk of serious injury!

■ Never remove the ﬁtted protective devices.

■ Firmly clamp the wooden workpiece you are working on.

■ Ensure that you are standing ﬁrmly and the wooden workpiece is

stable.

IB_382543_PUD30A1_LB8.indb 3IB_382543_PUD30A1_LB8.indb 3 23.02.2022 09:22:0023.02.2022 09:22:00

PUD 30 A1

■ 4 │ GB│IE

Package contents

▯ Universal Dowel Jig

▯ Adjustable stop

▯ Locking screw

▯ These operating instructions

NOTE

► Check the package for completeness and signs of visible

damage.

► If the delivery is incomplete or damage has occurred as a result

of defective packaging or during transport, contact the customer

service hotline (see section Service).

Use

Make preparations

NOTE

► In addition to the package contents, you will need a drill or

cordless drill driver and a drill bit with a depth stop to use the

product.

♦ Use the following table to select the correct drill bush or dowels

for your wooden workpiece.

IB_382543_PUD30A1_LB8.indb 4IB_382543_PUD30A1_LB8.indb 4 23.02.2022 09:22:0023.02.2022 09:22:00

PUD 30 A1 GB│IE │ 5 ■

Wood thickness ∅ Drill bush/dowel

12–14 mm 6 mm

15–18 mm 8 mm

19–30 mm 10 mm

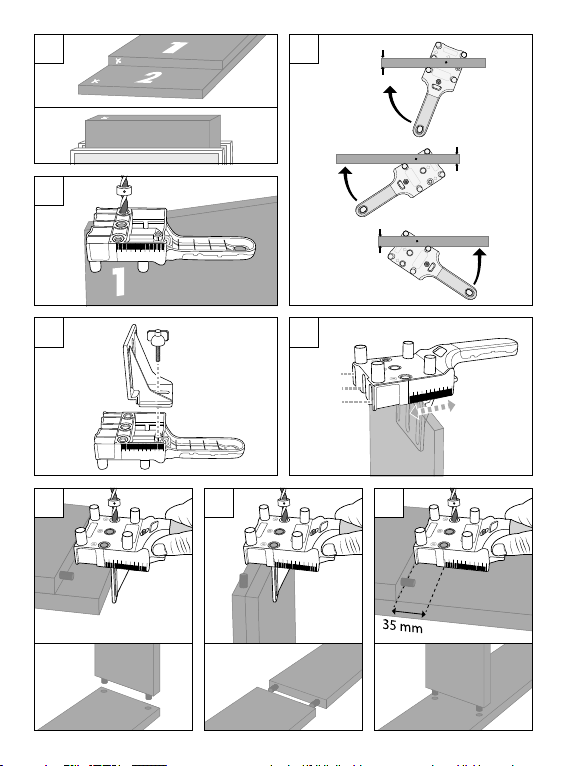

♦ Mark your wooden workpieces, e.g. with and , so you can tell

them apart (see Fig. A).

♦ Mark the places on the wooden workpieces that you want to join,

e.g. with a (see Fig. A).

Processing wooden workpiece 1

♦ Clamp the wooden workpiece , e.g. to a work table (see Fig. A).

♦ Set the drilling depth for wooden workpiece . Use a drill with a

depth stop. Measure the dowel length. For face joints, set half the

dowel length plus 1 mm plus 26 mm for the thickness of the product

itself. For corner and T-joints, set the dowel length plus 6 mm plus

26 mm for the thickness of the product itself and minus the thickness

of wooden workpiece .

♦ Place the product on the front edge of wooden workpiece and

clamp it between the guide bolts. Depending on which drill bush

you are using, the product must be applied accordingly (see Fig. B).

♦ Secure the product to the wooden workpiece by pressing from

the side.

♦ Insert the drill into the drill bush and drill a hole (see Fig. C).

♦ Fill the drill holes with wood glue.

♦ Insert the dowels into the drill holes.

IB_382543_PUD30A1_LB8.indb 5IB_382543_PUD30A1_LB8.indb 5 23.02.2022 09:22:0023.02.2022 09:22:00

PUD 30 A1

■ 6 │ GB│IE

Corner joints

♦ Attach the adjustable stop to the underside of the product and

screw in the locking screw loosely (see Fig. D).

♦ Place the drill bush onto a dowel on wooden workpiece .

Push the adjustable stop against wooden workpiece , tighten the

locking screw and remove the product (see Fig. E). This determines

the correct spacing for the drill holes in wooden workpiece .

♦ Place wooden workpiece parallel onto wooden workpiece

(see Fig. F).

♦ Push the product up to the stop on wooden workpiece (see Fig. F).

♦ Clamp both wooden workpieces ﬁrmly into place.

♦ Readjust the drilling depth to minus 6 mm of the thickness of

wooden workpiece plus 26 mm for the thickness of the product

itself.

♦ Slide the product with the matching guide groove to the drill bush

over the dowel until it stops (see Fig. F).

♦ Insert the drill into the drill bush and drill a hole (see Fig. F).

♦ Fill the drill holes with wood glue.

♦ Join the two wooden workpieces.

IB_382543_PUD30A1_LB8.indb 6IB_382543_PUD30A1_LB8.indb 6 23.02.2022 09:22:0023.02.2022 09:22:00

PUD 30 A1 GB│IE │ 7 ■

Face joints

♦ Attach the adjustable stop to the underside of the product and

screw in the locking screw loosely (see Fig. D).

♦ Place the drill bush onto a dowel on wooden workpiece .

Push the adjustable stop against wooden workpiece , tighten the

locking screw and remove the product (see Fig. E). This determines

the correct spacing for the drill holes in wooden workpiece .

♦ Clamp both wooden workpieces ﬂush together, e.g. on a work-

bench (see Fig. G).

♦ Leave the drilling depth as for wooden workpiece .

♦ Slide the product with the matching guide groove to the drill bush

over the dowel until it stops (see Fig. G).

♦ Insert the drill into the drill bush and drill a hole (see Fig. G).

♦ Fill the drill holes with wood glue.

♦ Join the two wooden workpieces.

IB_382543_PUD30A1_LB8.indb 7IB_382543_PUD30A1_LB8.indb 7 23.02.2022 09:22:0023.02.2022 09:22:00
