Parker V16 Series Manual de usuario

MSG30-5526-M1/UK

Service/

Spare Parts Manual

Series V16

Eective: February, 2023

Supersedes: December, 2022

Visit our homepage for additional

support parker.com/pmde

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

2Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

List of contents Page

General Information/New features V16.......................................................................................................3

Cross section / Speciﬁcations................................................................................................................... 4

M and T version / Valves segment orientation............................................................................................ 5

Displacement limiter......................................................................................................................... 6 – 10

Ordering code........................................................................................................................................ 11

Installation information.....................................................................................................................12 – 13

Controls and gauge ports.................................................................................................................14 – 21

Disassembling....................................................................................................... .........................22 – 33

Assembling.................................................................................................................................... 34 – 45

Disassembling / Assembling................................................................................................................... 46

Split Views / Spare parts V16-220/270.............................................................................................. 47 - 58

Test procedure.......................................................................................................................................59

Conversion factors

1 kg = 2.2046 lb

1 N = 0.22481 lbf

1 bar = 14.504 psi

1 l = 0.21997 UK gallon

1 l = 0.26417 US gallon

1 cm3= 0.061024 in3

1 m = 3.2808 feet

1 mm = 0.03937 in

1 °C = 1.8 °F + 32

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

3Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

General information

Series V16 is a new generation of variable displace-

ment, bent-axis motors. A further development of our

well known V12 and V14 motor series.

The new motor series is available in sizes 220 cc/rev

and 270 cc/rev.

It is designed for both open and closed circuit transmis-

sions with focus on high performance machines.

New features:

• Zero displacement capability

• Increased operating pressure, up to 550 bar

• Accurate control response

• Easy installation

...mainly thanks to:

• New motor design

• New design and simulation tools

• Best in class displacement range - 5.5:1

• Position sensor and plug in speed sensor available

together with a a ﬂexible main port design

Important features carried over from

previous motors:

• High speeds, thanks to low weight pistons with lami-

nated piston rings and a very compact design of

the rotating parts.

• High overall eciency throughout the entire

displacement range

• 9 pistons provide high start-up torque and smooth

operation

• Small envelope size and high power-to-weight ratio

• Low noise levels due to the compact, sturdy design

and smooth ﬂuid passages

• Positive piston locking, strong synchronizing shaft,

heavy-duty bearings and a small number of parts

add up to a very robust motor with long service life

and proven reliability.

General Information

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

4Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Speciﬁcations

V16 cross section

1. Control cover

2. End cap

3. Setting piston

4. Main pressure ports

(axial and radial ports)

5. Connecting arm

6. Displacement sensor

7. Cover

8. Valve segment

9. Spherical piston with

laminated piston ring

10. Synchronizing shaft

11. Inner tap. rol. bearing

12. Outer tap. rol. bearing

13. Bearing housing

14. Shaft seal

15. Output shaft

16. Plug in speed sensor

17. Cylinder barrel

1) Max 6 seconds in any one minute.

V16 frame size 220 270

Displacement [cm3/rev]

- max, at 35° 220 270

- min, at 6° 40 49

Operating pressure [bar]

- max intermittent 1) 550 550

- max continuous 450 450

Operating speed [rpm]

- at 35°, max continuous 2950 2750

- at 6° – 20°, max continuous 4950 4600

- at 0° , max continuous 5550 5000

- min continuous 50 50

V16 frame size 220 270

Flow [l/min]

- max continuous 648 743

Torque (theor.) at 100 bar [Nm] 350 430

Max otput power1) [kW] 486 557

Corner power [kW]

- intermittent 1) 997 113 9

- continuous 816 932

Mass moment of inertia

(x10-3) [kg m2] 20 21

Weight [kg] 95 97

1RWLFH7KLVGRFXPHQWFRQWDLQVSURSULHWDU\LQIRUPDWLRQDQGVKDOOQRWEHXVHGRULWVFRQWHQWVGLVFORVHG

LQZKROHRULQSDUWZLWKRXWWKHSULRUZULWWHQFRQVHQWRI3DUNHU+DQQLILQ0DQXIDFWXULQJ6ZHGHQ$%

PN



BNDWDORJ







3URMHFWLRQ (

6\PEROHUEHWHFNQLQJDURFK DOOPlQWULWVlWW

6\PEROVGHVLJQDWLRQVDQGJHQHUDOGUDZLQJPH WKRGV

71

6NDOD6FDOH

5LWQLQJQXPPHU'UDZLQJQXP EHU$UWQU3DUWQR %ODG6KW8WJ(GLWLRQ

'DWXP'DWH

$UWLNHOQDPQ

3DUW7LWOH 8WI|UGDY,VVXHGE\

3URGXFW



3DUNHU+DQQLILQ0DQXIDFWXULQJ

6ZHGHQ$% 30'7UROOKlWWDQ

'RNXPHQWW\S'RFXPHQW7\SH*LOWLJKHW9DO LGLW\

352727<3,1*21/<

 































Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

5Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

M and T version

M version, negative control characteristics

Motor starts in max displacement, standard for EO, EOA,

EOB, EP, EPA, EPB, HO, HOC, HP and HPC.

T version, positive control characteristics

Motor starts in min displacement, standard for AC;

optional for EO, EOA, EOB, EP, EPA, EPB, HO, HOC, HP

and HPC.

Max sideMin sideMax side Min side

1. See page 46 for disassembly/assembly information

2. See page 46 for assembly information

The groove in the valve segment against the cover for

motor assembled as M-version

The groove in the valve segment against the control

cover for motor assembled as T-version

Cover

Control Cover

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

6Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

V16 Displacement limiter

Max and min displacement limiter consists of a hex

socket screw and stop washers or spacers, see ﬁg. 1.

Suitable screw lengths for a particular max or min dis-

placement range are shown on page 7-10. What length

the max or min displacement spacer should have to ob-

tain a chosen displacement is shown on pages 7-10.

The displacement spacers are available in ﬁve dierent

lengths: 1; 1.5; 2; 5 and 10 mm. To obtain the right dis-

placement, the spacers can be combined with each

other’s. The thinnest spacer has to be mounted closest

to the setting piston, and the others in increasing length

order.

Displacement limiter

Displacement spacer changing

procedure:

1. Disassemble the max and/or min end cover/control

cover by loosening the screws for the chosen cover.

2. Loosen the socket head cap screw from setting pis-

ton.

Note: This must be done when the end cap is as-

sembled on the motor, otherwise the feedback arm

could be damaged.

3. Choose spacer (s) to obtain right displacement, see

page 7 - 10, and place them on the socket head cap

screw.

4. Tighten the socket head cap screw in the setting pis-

ton. The tightening torque is 114 ± 10 Nm.

5. Assembly the end cover / control cover. The tighte-

ning torque is 114 ± 10 Nm for the screws.

Displacement screw

Stop washer

Fig. 1 (M-version shown)

End cap

Note! See page 5 for M and T version

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

7Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

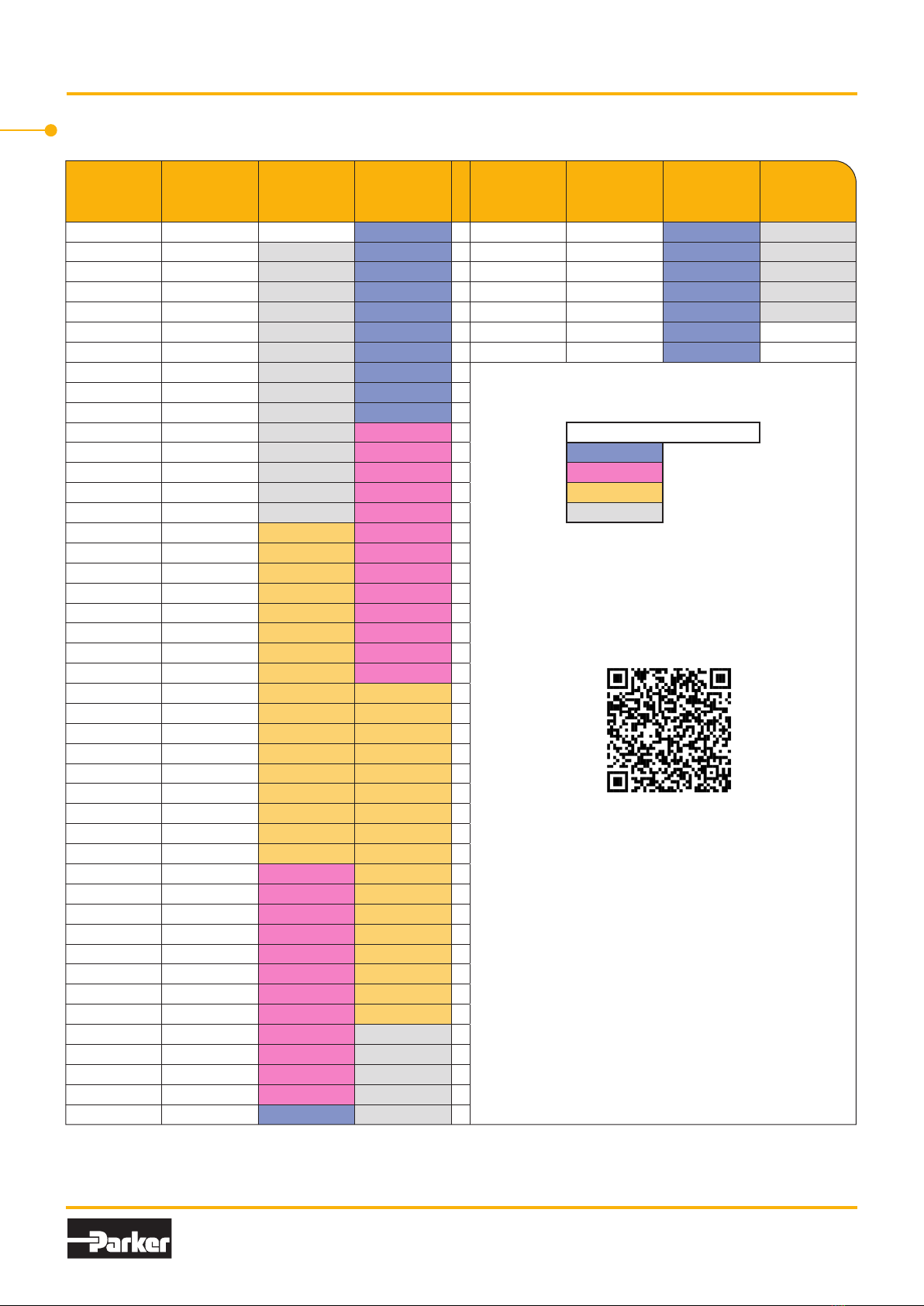

Displacement limiter

Internal/external displacement limiter V16-220, M version (negative control)

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

0.0 0 82.0 0.0 29.0 186 14.6 67.4

6.0 40 6 7.4 14.6 30.0 192 12.2 69.8

6.5 43 66.2 15.8 31.0 197 9.8 72.2

7.0 47 6 5 .1 16.9 32.0 203 7.4 74.6

7.5 50 63.9 18.1 33.0 209 5.0 77.0

8.0 53 62.7 19.3 34.0 214 2.5 79.5

8.5 57 61.6 20.4 35.0 220 0.0 82.0

9.0 60 60.4 21.6

9.5 63 59.2 22.8

10.0 67 5 8.1 23.9

10.5 70 56.9 25.1 Displacement screw

11 . 0 73 55.8 26.2 M12x45

11.5 76 54.6 2 7. 4 M12x60

12.0 80 53.5 28.5 M12x80

12.5 83 52.4 29.6 M12x100

13.0 86 51.2 30.8

13.5 89 5 0 .1 31.9

14.0 93 48.9 3 3 .1

14.5 96 47. 8 34.2

15.0 99 46.7 35.3

15.5 102 45.5 36.5

16.0 106 44.4 37.6

16.5 109 43.3 38.7

17.0 112 4 2.1 39.9

17.5 115 41.0 41.0

18.0 118 39.9 4 2 .1

18.5 122 38.7 43.3

19.0 125 37.6 44.4

19.5 128 36.5 45.5

20.0 131 35.3 46.7

20.5 134 34.2 47. 8

21.0 137 33.0 49.0

21.5 140 31.9 5 0 .1

22.0 144 30.8 51.2

22.5 147 29.6 52.4

23.0 150 28.5 53.5

23.5 153 2 7. 3 54.7

24.0 156 26.2 55.8

24.5 159 25.0 57.0

25.0 162 23.9 5 8.1

25.5 165 22.7 59.3

26.0 168 21.6 60.4

26.5 171 20.4 61.6

27.0 174 19.2 62.8

28.0 180 16.9 6 5 .1

External displacement limiter

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

8Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Internal/external displacement limiter V16-220, T version (positive control)

Displacement limiter

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

0.0 0 82.0 0.0 29.0 186 14.6 67.4

6.0 40 6 7.4 14.6 30.0 192 12.2 69.8

6.5 43 66.2 15.8 31.0 197 9.8 72.2

7.0 47 6 5 .1 16.9 32.0 203 7.4 74.6

7.5 50 63.9 18.1 33.0 209 5.0 77.0

8.0 53 62.7 19,3 34.0 214 2.5 79.5

8.5 57 61.6 20.4 35.0 220 0.0 82.0

9.0 60 60.4 21.6

9.5 63 59.2 22.8

10.0 67 5 8.1 23.9

10.5 70 56.9 25.1 Displacement screw

11 . 0 73 55.8 26.2 M12x45

11.5 76 54.6 2 7. 4 M12x60

12.0 80 53.5 28.5 M12x80

12.5 83 52.4 29.6 M12x100

13.0 86 51.2 30.8

13.5 89 5 0 .1 31.9

14.0 93 48.9 3 3 .1

14.5 96 47. 8 34.2

15.0 99 46.7 35.3

15.5 102 45.5 36.5

16.0 106 44.4 37.6

16.5 109 43.3 38.7

17.0 112 4 2.1 39.9

17.5 115 41.0 41.0

18.0 118 39.9 4 2 .1

18.5 122 38.7 43.3

19.0 125 37.6 44.4

19.5 128 36.5 45.5

20.0 131 35.3 46.7

20,5 134 34.2 47. 8

21.0 137 33.0 49.0

21.5 140 31.9 5 0 .1

22.0 144 30.8 51.2

22.5 147 29.6 52.4

23.0 150 28.5 53.5

23.5 153 2 7. 3 54.7

24.0 156 26.2 55.8

24.5 159 25.0 57.0

25.0 162 23.9 5 8.1

25.5 165 22.7 59.3

26.0 168 21.6 60.4

26.5 171 20.4 61.6

27.0 174 19.2 62.8

28.0 180 16.9 6 5 .1

External displacement limiter

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

9Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Internal/external displacement limiter V16-270, M version (negative control)

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

0.0 0 82.0 0.0 29.0 228.3 14.6 67.4

6.0 49.2 67.4 14.6 30.0 235.5 12.2 69.8

6.5 53.3 66.2 15.8 31.0 242.6 9.8 72.2

7.0 57.4 6 5 .1 16.9 32.0 249.6 7.4 74.6

7.5 61.5 63.9 18.1 33.0 256.5 5.0 77.0

8.0 65.5 62.7 19.3 34.0 263.4 2.5 79.5

8.5 69.6 61.6 20.4 35.0 270.1 0.0 82.0

9.0 73.7 60.4 21.6

9.5 7 7.7 59.2 22.8

10.0 81.8 5 8.1 23.9

10.5 85.8 56.9 25 .1 Displacement screw

11 . 0 89.9 55.8 26.2 M12x45

11.5 93.9 54.6 2 7.4 M12x60

12.0 9 7.9 53.5 28.5 M12x80

12.5 101.9 52.4 29,6 M12x100

13.0 105.9 51.2 30.8

13.5 109.9 5 0 .1 31.9

14.0 113.9 48.9 3 3 .1

14.5 117.9 47.8 34.2

15.0 121.9 46.7 35.3

15.5 125.9 45.5 36.5

16.0 129.8 44.4 37. 6

16.5 133.8 43.3 38.7

17.0 13 7.7 4 2 .1 39.9

17.5 141.6 41.0 41.0

18.0 145.5 39.9 4 2.1

18.5 149.4 38.7 43.3

19.0 153.3 3 7.6 44.4

19.5 157. 2 36.5 45.5

20.0 161.1 35.3 46.7

20.5 164.9 34.2 47. 8

21.0 168.8 33.0 49.0

21.5 172.6 31.9 5 0 .1

22.0 176.4 30.8 51.2

22.5 180.2 29.6 52.4

23.0 184.0 28.5 53.5

23.5 18 7. 8 2 7. 3 54.7

24.0 191.6 26.2 55.8

24.5 195.3 25.0 57.0

25.0 199.0 23.9 5 8.1

25.5 202.8 22.7 59.3

26.0 206.5 21.6 60.4

26.5 210.1 20.4 61.6

27.0 213.8 19.2 62.8

28.0 221.1 16.9 6 5 .1

Displacement limiter

External displacement limiter

Service/Spare Parts Manual

Series V16

MSG30-5526-M1/UK

10 Parker Hanniﬁn

Pump & Motor Division Europe

Trollhättan, Sweden

Internal/external displacement limiter V16-270, T version (positive control)

Displacement limiter

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

Setting

angle

[degree]

Displace-

ment

[cm³/rev]

Shim

maximum

side [mm]

Shim mini-

mum side

[mm]

0.0 0 82.0 0.0 29.0 228.3 14.6 67.4

6.0 49.2 67.4 14.6 30.0 235.5 12.2 69.8

6.5 53.3 66.2 15.8 31.0 242.6 9.8 72.2

7.0 57.4 6 5 .1 16.9 32.0 249.6 7.4 74.6

7.5 61.5 63.9 18.1 33.0 256.5 5.0 77.0

8.0 65.5 62.7 19.3 34.0 263.4 2.5 79.5

8.5 69.6 61.6 20.4 35.0 270.1 0.0 82.0

9.0 73.7 60.4 21.6

9.5 7 7.7 59.2 22.8

10.0 81.8 5 8.1 23.9

10.5 85.8 56.9 25 .1 Displacement screw

11 . 0 89.9 55.8 26.2 M12x45

11.5 93.9 54.6 2 7.4 M12x60

12.0 9 7.9 53.5 28.5 M12x80

12.5 101.9 52.4 29.6 M12x100

13.0 105.9 51.2 30.8

13.5 109.9 5 0 .1 31.9

14.0 113.9 48.9 3 3 .1

14.5 117.9 47.8 34.2

15.0 121.9 46.7 35.3

15.5 125.9 45.5 36.5

16.0 129.8 44.4 37. 6

16.5 133.8 43.3 38.7

17.0 13 7.7 4 2 .1 39.9

17.5 141.6 41.0 41.0

18.0 145.5 39.9 4 2.1

18.5 149.4 38.7 43.3

19.0 153.3 3 7.6 44.4

19.5 157. 2 36.5 45.5

20.0 161.1 35.3 46.7

20.5 164.9 34.2 47. 8

21.0 168.8 33.0 49.0

21.5 172.6 31.9 5 0 .1

22.0 176.4 30.8 51.2

22.5 180.2 29.6 52.4

23.0 184.0 28.5 53.5

23.5 18 7. 8 2 7. 3 54.7

24.0 191.6 26.2 55.8

24.5 195.3 25.0 57.0

25.0 199.0 23.9 5 8.1

25.5 202.8 22.7 59.3

26.0 206.5 21.6 60.4

26.5 210.1 20.4 61.6

27.0 213.8 19.2 62.8

28.0 221.1 16.9 6 5 .1

External displacement limiter

Tabla de contenidos

Otros manuales de Motor de Parker

Parker

Parker NX Series Manual de usuario

Parker

Parker ECL E Series Manual de usuario

Parker

Parker QDC 007 Hoja de datos

Parker

Parker M5ASF Manual de usuario

Parker

Parker P1V-M Series Manual

Parker

Parker F11 series Manual de instalación y operación

Parker

Parker MGV Series Manual de usuario

Parker

Parker EY Series Manual de usuario

Parker

Parker P1D Series Manual de usuario

Parker

Parker 716 Series Manual de usuario

Parker

Parker F11 series Manual de usuario

Parker

Parker V12 Series Manual de usuario

Parker

Parker GVM Series Manual de usuario

Parker

Parker MDC Series Manual de usuario

Parker

Parker P1V-S002A0130 Manual de usuario

Parker

Parker F11 series Manual de usuario

Parker

Parker LHC Hoja de datos

Parker

Parker 892 Series Manual de usuario

Parker

Parker Calzoni MR Series Manual

Parker

Parker F11iP Series Guía del usuario

Parker

Parker Torqmotor TF Series Manual

Parker

Parker F11 series Manual de instalación y operación

Parker

Parker BAYSIDE GM Series Manual de usuario

Parker

Parker P1VAS Series Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
