Paradyne Hotwire 5216 Manual de usuario

Hotwire5216 RTU Customer Premises

Installation Instructions

Document Number 5216-A2-GN10-30

August 2000

Contents

What Does the Hotwire 5216 RTU Do? 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the DSL Access Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Hotwire 5216 RTU 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Status LEDs 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cables & Connectors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Important Safety Instructions 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Does the Hotwire 5216 RTU Do?

The Hotwire5216 RTU (Remote Termination Unit) is a component in the Hotwire

RADSL Access System and interoperates with the Hotwire 8540 DSL Card in the

DSLAM (Digital Subscriber Line Access Multiplexer) system. This system provides

high-speed Internet or corporate LAN access over traditional twisted-pair copper

telephone wiring.

Copper pairs run from the central office (CO) to the customer premises (CP) to create

the local loop. The local loop terminates on the customer premises at the demarcation

point in a punchdown block or network interface device (NID).

Optional POTS Splitter

An optional POTS (plain old telephone service) splitter can be installed to block out the

DSL signal and allow the POTS frequencies to pass through. At the customer

premises, the 5216 RTU and a telephone can function simultaneously over the same

pair of copper wires when either:

A Hotwire 5030 or 5038 POTS Splitter is installed near the demarcation point for all

telephones on the same POTS line as DSL,

A Hotwire 5038 Distributed POTS Filter is installed on each telephone on the same

POTS line as DSL.

NOTES:

In this document:

— End-user system is used to represent any host with an Ethernet connection.

— Service provider is used to represent any Internet Service Provider (ISP) or

remote LAN access provider.

DSL Access without a POTS Splitter

When the Hotwire 5216 RTU is installed without a POTS splitter, the DSL line is used

for data only and does not provide telephone services.

00-15609-02

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

DSL

Ethernet

Crossover

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

End-user

System

DSL – Digital Subscriber Line RTU – Remote Termination Unit

NID – Network Interface Device New Wiring Connections

Service

Provider

DSL Access with a Hotwire 5030 or 5038 POTS Splitter

When a Hotwire POTS splitter is used at both ends of the local loop, wiring is

connected:

From the demarcation point to the CP POTS splitter, and

From the demarcation point to the DSL jack.

The Hotwire 5030 POTS splitter is designed for outdoor or indoor installation. The

Hotwire 5038 Distributed POTS Splitter is designed for indoor use only.

00-15608-02

Punchdown

Block or NID

DSL

Jack RTU

New Wiring Connections Existing Wiring (POTS)

Customer Premises (CP)

POTS/DSL

Ethernet

Crossover

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

POTS

Splitter

POTS

End-user

System

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

Service

Provider

DSL Access with a Hotwire 5038 Distributed POTS Splitter

When a Hotwire 5038 Distributed POTS Splitter is used, one 5038 Distributed POTS

Splitter is installed as a phone filter for each telephone on the same POTS line as DSL.

98-15815-01

RTU

Customer Premises (CP)

Central

Office

(CO)

Local Loop

POTS

Splitter To End-user

Systems

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

POTS

Splitter

POTS

Splitter

Network

Service

Provider

(NSP)

Demarcation

Point

Punchdown

Block or NID

POTS/DSL

Optional

Product-Related Documents

To install a POTS splitter, refer to the appropriate POTS splitter document:

Document Number Document Title

5030-A2-GN10

Hotwire 5030 POTS Splitter Customer Premises

Installation Instructions

5038-A2-GN10

Hotwire 5038 Distributed POTS Splitter Customer

Premises Installation Instructions

Contact your sales or service representative to order additional product documentation.

Paradyne documents are available on the World Wide Web at www.paradyne.com.

Select

Library

→

Technical Manuals

→

Hotwire DSL & MVL Systems.

Package Checklist

Verify that your package contains the following:

Model 5216 Remote Termination Unit (RTU)

DSL interface cable with RJ11 modular plugs

Power cord with power transformer

Wiring and Cables You Need

The following wiring and standard connectors are used with this product:

Standard RJ11 wall jack for the DSL cabling.

DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better). The

CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or

26 AWG (.4 mm).

Ethernet cabling: Standard Ethernet crossover cable with an 8-pin, non-keyed

modular plug for a PC or workstation. Refer to

Installing the Hotwire 5216 RTU

page 8 for Ethernet cable details.

Refer to

Cables & Connectors

on page 12 for standard pin numbers.

Installing the DSL Access Wiring

The local loop terminates at the punchdown block or NID. Wiring must be connected

from the customer premises side of the punchdown block or the NID to an RJ11 jack.

Typically, the punchdown block is installed in commercial locations and the NID is

installed in residential locations.

Procedure

1. Access the punchdown block or NID.

2. Disconnect the DSL access pair from the local loop.

!WARNING:

Do not continue unless the DSL access line from the local loop has been

disconnected at the NID or punchdown block. Refer to

Important Safety

Instructions

on page 16.

A punchdown block is used without a POTS splitter in the following example.

ABCD

DSL

Access

from Local

Loop

Wiring to

DSL Jack

Bridge Clip

Punchdown Block

97-15348

Demarcation Point

Customer Premises

3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the

NID or punchdown block. Attach the wiring that will be connected to the DSL jack.

In the following example, a NID is used without a POTS splitter. It includes an

existing POTS line and a second pair installed for DSL access.

DSL/POTS

Access from

Local Loop

Wiring to

DSL Jack

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

Ring

(Red)

97-15438-01

Existing POTS

Wiring to

Telephone

Demarcation Point

Customer Premises

DSL Pair

POTS Pair

97-15300a

RJ11 Wall Jack

Connecting to the DSL Access Wiring

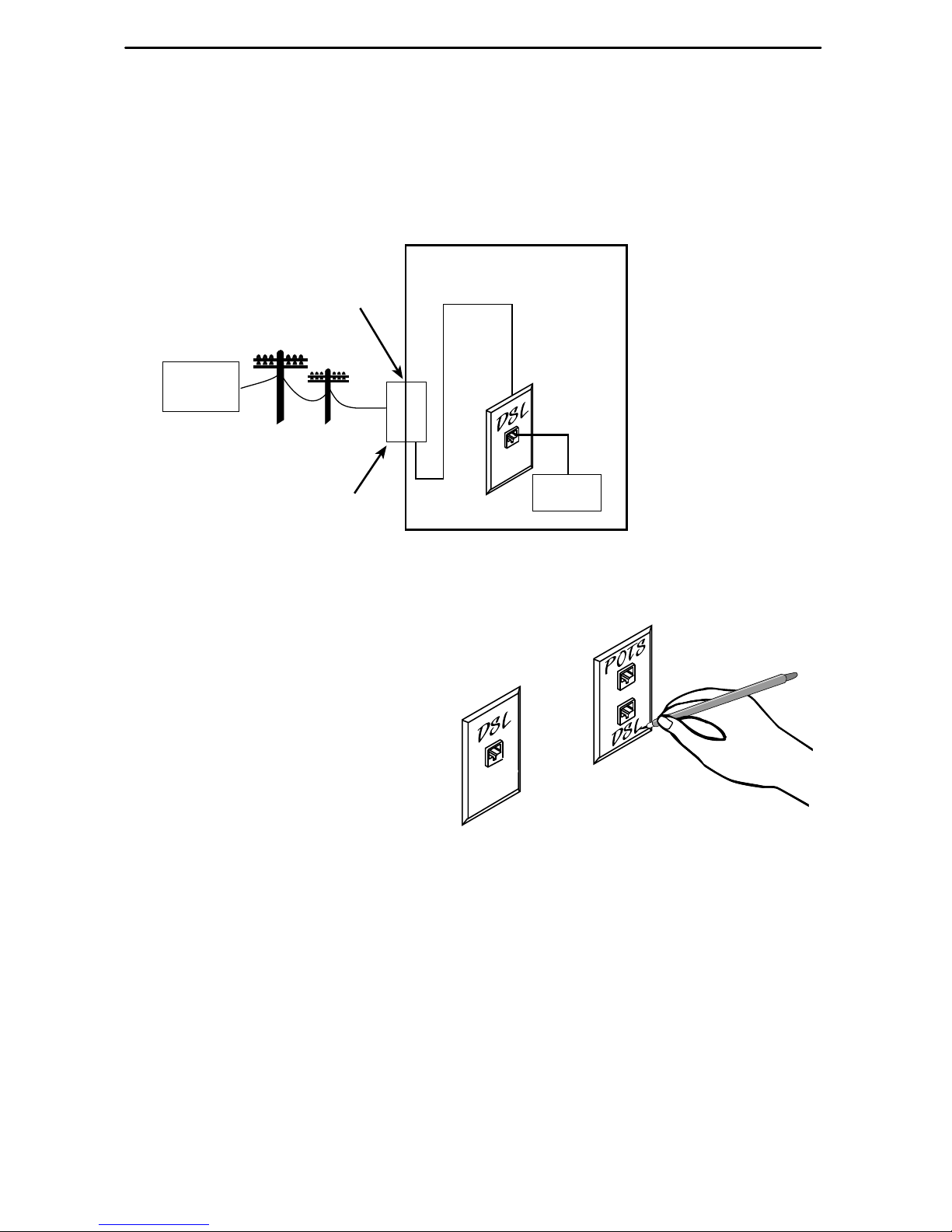

The Hotwire 5216 RTU connects to the local loop via wiring from the demarcation point

to an RJ11 wall jack. The DSL twisted-pair wiring from the local loop terminates at a

new or existing wall jack. It may be necessary to install a standard single RJ11 jack or

replace a single jack with a double RJ11 jack.

97-15343-02

DSL

RJ11

Jack

Central

Office

Punchdown

Block or NID

Customer Premises

POTS/DSL

Local Loop

Demarcation Point DSL

Twisted-pair

Wiring

RTU

Procedure

1. Wiring can be run from the

punchdown block or NID to a

new or existing wall jack. Match

the pair colors on both ends.

2. Label the DSL jack.

3. Reconnect the DSL access pair

at the punchdown block or NID.

Refer to

Installing the DSL Access

Wiring

on page 5. Tighten both

terminal screws with a flat-blade

screwdriver.

The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to

Cables &

Connectors

on page 12.

Installing the Hotwire 5216 RTU

Place the Hotwire 5216 RTU on a flat surface with clearance for the rear connectors.

Procedure

1. Use the supplied RJ11 6-pin interface cable for the DSL connection. Insert one end

of the cable into the jack labeled DSL. Insert the other end into the wall jack

labeled DSL.

97-15300-01

DSL

Jack

POWER ETHERNET

DSL

Hotwire RTU

If the Hotwire 5216 RTU is installed on the same line as POTS, a Hotwire 5038

Distributed POTS Splitter can be used as a phone filter. One 5038 Distributed

POTS splitter is installed as a phone filter for each telephone on the POTS/DSL

line, as shown below. To install the Hotwire 5038 Distributed POTS splitter, refer to

the

Hotwire 5038 Distributed POTS Splitter Customer Premises Installation

Instructions.

98-15813

Distributed

POTS Splitter

Line from

RJ11 Wall Jack

PHONE

LINE DSL

PHONE

LINE DSL

PHONE

LINE DSL

Line from

RJ11 Wall Jack

Distributed

POTS Splitter

Distributed

POTS Splitter

Customer

Premises (CP)

Hotwire

RTU

2. Use an 8-pin Ethernet crossover cable for the Ethernet connection. Insert one end

of the cable into the jack labeled ETHERNET. Connect the other end to the

Ethernet Network Interface Card (NIC) installed in the PC.

00-15303b-01

PC with Ethernet

Network Interface

Card

Ethernet

Line

POWER ETHERNET DSL

Hotwire RTU

Ethernet

Crossover

Cable

For RTU cable pin assignments, refer to

Cables & Connectors

on page 12.

3. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the

transformer into an AC outlet.

98-15837

POWER ETHERNET DSL

Hotwire RTU

Power

Jack

Transformer

The RTU hardware installation is now complete. When the power cord is installed, the

RTU goes through a power-on self-test.

Power-On

When power is applied, the RTU performs self-diagnostics and the PWR LED is on.

The self-diagnostics includes a power-on self-test. During the power-on self-test, all of

the LEDs turn on for one second.

TST DSL ETHERNET

ALMPWR

97-15607

Power – green

Alarm – red

Test – yellow

Digital Subscriber Line – green

Ethernet Link – green

5216

Refer to

Troubleshooting

on page 11 for LED indications requiring action.

Status LEDs

All of the LEDs turn on and off during the power-on self-test. After a successful

self-test, the LEDs should appear as indicated in BOLD in the Condition column below.

LED Condition Status

PWR ON The RTU has power.

ALM OFF

No active alarms.

An alarm condition exists.

TST OFF

No active tests.

The TST LED is on during the power-on self-test and

during a test initiated by the service provider.

DSL Blinking

OFF

RTU is establishing the active DSL link. The LED blinks

on and off about five times per second.

The DSL link is now active and ready to transmit and

receive data.

The DSL link has not been established.

ETHERNET ON

OFF

The Ethernet connection is active.

No Ethernet device is detected.

Otros manuales para Hotwire 5216

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Paradyne

Paradyne

Paradyne HotWire 7924 Manual de usuario

Paradyne

Paradyne ACCULINK 3161 CSU Manual de usuario

Paradyne

Paradyne 5030 Manual de usuario

Paradyne

Paradyne ACCULINK 336x E1 Manual

Paradyne

Paradyne 3151 Manual técnico

Paradyne

Paradyne COMSPHERE 3610 Manual de operación y mantenimiento

Paradyne

Paradyne 4929 DSLAM Manual de usuario

Paradyne

Paradyne COMSPHERE 3800PLUS Manual de instrucciones

Paradyne

Paradyne Hotwire 6210 Instrucciones de funcionamiento originales

Paradyne

Paradyne 8540 Manual de usuario

Paradyne

Paradyne FrameSaver 9120 Manual del propietario

Paradyne

Paradyne 24-Port SHDSL Mini DSLAM SMD2000-24T Manual de usuario

Paradyne

Paradyne COMSPHERE 3810 Manual de usuario

Paradyne

Paradyne Hotwire 7995 Manual de usuario

Paradyne

Paradyne 4000E Manual de usuario

Paradyne

Paradyne 3160-A4 Manual

Paradyne

Paradyne SLV Manual de usuario

Paradyne

Paradyne COMSPHERE 3610 Manual de usuario

Paradyne

Paradyne iMarc DSL 9720 CSU/DSU Manual de usuario

Paradyne

Paradyne 3160-A3 Manual

Paradyne

Paradyne Single T1 Network Access Module (NAM)... Manual de usuario

Paradyne

Paradyne Hotwire 5620 Manual de usuario

Paradyne

Paradyne COMSPHERE 3550 Series Manual de usuario

Paradyne

Paradyne Hotwire 8784 Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
