User's Manual

Entrust

Series UPS

1. Introduction 2

2. Controls and Indicators 6

3. Installation 7

4. Operation 10

5. Troubleshooting 12

6. Replacing the Battery 13

7. Obtaining Service 16

8. Specifications 17

9. Limited Product Warranty 19

A1. Declaration of Conformity 20

English

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS !

English

Thankyouforpurchasingthispowerprotectionproduct. Ithasbeendesigned

andmanufacturedtoprovidemanyyearsof trouble freeservice.

Please read this manual before installing your Entrust Series UPS, models

ETR500, ETR700, ETR1000, ETR1500, ETR700p15, ETR1500p15 as it pro-

videsimportantinformationthatshouldbefollowedduringinstallationandmain-

tenanceofthe UPS and batteries allowing you to correctlysetup your system

forthe maximumsafetyand performance. Includedisinformation oncustomer

supportandfactoryserviceifit isrequired. Ifyouexperienceaproblemwith the

UPS please refer to the Troubleshooting guide in this manual to correct the

problem or collect enough information so that the Technical Support Depart-

ment can rapidly assist you.

Thissymbol indicates "ATTENTION"

This symbol indicates "Risk of Electrical Shock"

This symbol indicates "Alternating Current Supply"

This symbol indicates "Alternating Current Supply Phase"

WARNING: Risk of Electrical Shock. Hazardous live partsinside

these power supplies are energized from the battery even when the

AC input is disconnected.

CAUTION! To de-energize the outputsof the UPS:

1. If the UPS is on press and release the On/Off Button.

2. Disconnect the UPS from theAC wall outlet.

3. To de-energize the UPS completely, disconnect the battery.

CAUTION! To reduce the risk of electrical shock in conditions

where the load equipment grounding cannot be verified, disconnect

theUPS fromtheACwall outletbeforeinstallingacomputer interface

cable. Reconnectthe power cordonlyafterall signaling connections

aremade.

CAUTION! Connect the UPS to a two pole, three wire grounding

ACwall outlet. The receptacle must beconnectedtotheappropriate

branch protection (circuit breaker or fuse). Connection to any other

type of receptacle may result in a shock hazard and violate local

electricalcodes. Do notuseextension cords,adapterplugs, orsurge

strips.

English

CAUTION! To reduce therisk of electrical shock with theinstalla-

tion of this UPS equipment and the connected equipment, the user

must ensure that the combined sum of the AC leakage current does

not exceed 3.5mA.

This symbol indicates "Direct Current Supply"

This symbol indicates "Equipment Grounding Conductor"

WARNING: ThisUninterruptiblePowerSupplycontainspotentially

hazardousvoltages. Do not attempt todisassembletheUPS beyond

the battery replacement procedure. This UPS contains no user ser-

viceableparts. RepairsandBatteryreplacementmustbeperformed

byQUALIFIED SERVICEPERSONNELONLY.

CAUTION! To reduce the risk of fire, connect only to a circuit

providedwith20amperesmaximumbranchcircuitover-currentpro-

tection in accordance with the National Electric Code, ANSI/NFPA

70.

English

AfterremovingyourUPS fromitscarton, itshouldbeinspectedfor damagethat

may have occurred in shipping. Immediately notify the carrier and place of

purchase if any damage is found. Warranty claims for damage caused by the

carrierwillnotbe honored. The packing materials that your UPS was shipped

in are carefully designed to minimize any shipping damage. In the unlikely

case that the UPS needs to be returned to the manufacturer, please use the

original packing material. Since the manufacturer is not responsible for ship-

pingdamageincurredwhenthesystemis returned, the original packing mate-

rialis inexpensive insurance. PLEASE SAVE THE PACKING MATERIALS!

Receiving Inspection

NOTICE: Thisequipment has been tested and found to comply with the limits

for a Class B computing device in accordance with the specifications in Sub-

partJof Part 15 of FCC Rules and theClassB limits for radio noise emissions

fromdigital apparatussetoutintheRadioInterferenceoftheCanadianDepart-

ment of Communications. These limits are designed to provide reasonable

protection against such interference in a residential installation. This equip-

mentgeneratesandusesradiofrequencyandifnotinstalledand usedproperly,

that is, in strict accordance with the manufacturer's instructions, this equip-

ment may cause interference to radio and television reception. If this equip-

ment does cause interference to radio or television reception, which can be

determinedbyturningtheequipmentoff andon,theuseris encouragedto tryto

correcttheinterferencebyoneormoreofthefollowingmeasures:

Re-orientthereceivingantenna.

Relocatethecomputerwithrespect to the receiver.

Movethe computerawayfromthe receiver.

Plugthecomputerintoadifferent outlet so that the computer and receiver

areondifferent branch circuits.

Shieldedcommunications interface cables mustbeusedwith this product.

WARNING: Changes or modifications to this unit not expressly ap-

proved by the party responsible for compliance could void the user's

authoritytooperatetheequipment.

NOTE: TheseUPSsareshippedwiththebatteriesdisconnected. Thebatter-

ies must be connected before putting these UPSs into service. Refer to Sec-

tion 3 "Installation" for connecting the batteries.

English

Life Support Policy

Asa general policy, wedonotrecommendtheuseofany of our productsin life

supportapplications where failureormalfunction of theproductcanbe reason-

ablyexpected to cause failure of thelifesupportdeviceor to significantly affect

its safety or effectiveness. We do not recommend the use of any of our prod-

ucts in direct patient care. We will not knowingly sell our products for use in

such applications unless it receives in writing assurances satisfactory to us

that (a) the risks of injury or damage have been minimized, (b) the customer

assumes all such risks, and (c) our liability is adequately protected under the

circumstances.

Examplesofdevicesconsidered tobelife supportdevicesare neonataloxygen

analyzers,nerve stimulators (whether used for anesthesia, pain relief,orother

purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia

detectorsandalarms,pacemakers,hemodialysissystems,peritonealdialysis

systems,neonatal ventilator incubators, ventilators for both adultsandinfants,

anesthesiaventilators, and infusion pumpsaswellasany other devices desig-

nated as “critical” by the United States FDA.

Hospitalgrade wiring devices and leakage current may be ordered as options

onmanyof our UPS systems. We do not claim that units with this modification

arecertified orlistedasHospital Grade byusor any otherorganization. There-

fore, these units do not meet the requirements for use in direct patient care.

English

1. On/Off Button.

2. ACMode (Green) LED.

3. On Battery (Yellow) LED.

4. BadBattery/Overload/Fault (Red) LED.

5. Inputpower cord.

6. Surge Only output power receptacles.

7. The USB communications port is for UPS monitoring and control.

8. TheRJ11/45 are used forphone/fax/modemandnetworkprotection.

9. Battery Backup and Surge output power receptacles.

10.Inputcircuitbreaker.

Output Power Receptacles

ETR500

NEMA5-15PW/6 ft cord

Model #

ETR700 4-NEMA 5-15R Surge Only

4-NEMA 5-15R Battery Backup & Surge

Input Power Plug

ETR1000

ETR1500

ETR700p15

ETR1500p15 NEMA 5-15P W/15 ft cord

English

INSTALLATION PLACEMENT

This UPS series is intended to be install in a temperature controlled environment

that is free of conductive contaminants. Avoid locations near heating devices, water

or excessive humidity, or where the UPS is exposed to direct sunlight. Select a

location which will provide good air circulation for the UPS at all times. Route power

cords so they cannot be walked on or damaged.

INSTALLATION

Be sure to read the installation placement and all the cautions before installing the

UPS. Place the UPS in the final desired location and complete the rest of the

installation procedure. These UPSs are shipped with the internal batteries discon-

nected. The batteries must be connected before putting these UPSs into service.

See the Connecting The Batteries procedure to connect the batteries.

Low Battery

Green LED

Short/FaultMode

Overload

ACMode

Over-Bat/Bat Fault

Off

Overload

Normal

Self low Battery

Buck

Boost

Normal

Self-Test

UPS Status

Status LED and Alarm Table

BatteryMode

Yellow LED Red LED Alarm

Off

OffOff

Off

Off Off

Off

Off Off

Off

On Continuous

1-Beep/5-sec

1-Blink/1.5sec

2-Blinks/sec

1-Beep/5-sec

3-Beeps/30-sec

2-Beeps/sec

2-Beeps/5-sec

2-Beeps/sec

3-Beeps/5-sec

All LEDs cycle (each LED Blinks 1/1.5seconds)

English

CONNECTINGTHEBATTERIES

(QUALIFIEDSERVICEPERSONNELONLY)

Please read all of the WARNINGS and CAUTIONS before attempting to connect the

batteries.

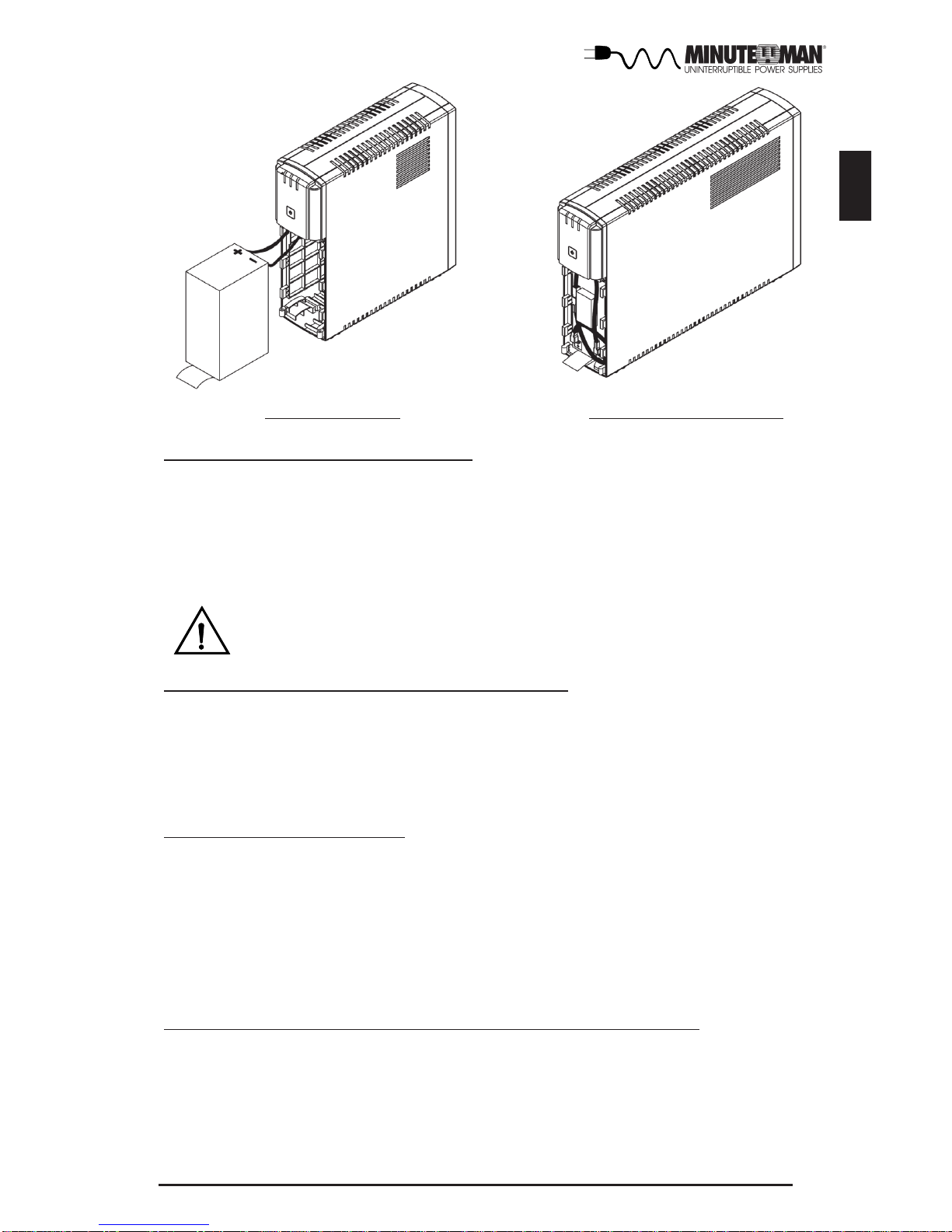

1. Remove the UPS from the shipping box and set on a table or a bench top.

2. Remove the retaining screws from the bottom of the front panel of the UPS.

(FIG. 1)

3. Gently push the top of the battery compartment cover inward and then slide the

battery compartment cover off the UPS. (FIG. 2)

4. For the ETR500/700: Grasp the battery pull tab and gently pull the battery out far

enough to connect the battery positive (Red) wire. (FIG. 3)

NOTE: The ETR1000/1500 have Red Anderson connectors to connect the battery.

5. Verify proper polarity. For the ETR500/700: Connect the battery positive (Red)

wire to the battery positive (Red) terminal. For the ETR1000/1500: Connect the

two Red Anderson connectors together. (FIG. 3)

NOTE: Some sparking might occur, this is normal.

6. Re-install the battery compartment cover onto the UPS.

WARNING: DO NOT pinch the battery wires with battery compartment cover.

7. Re-install the battery compartment cover retaining screws.

8. Continue with the rest of the Installation.

FIG. 3: ETR500

FIG. 1 FIG. 2

English

CHARGING THE BATTERY

The UPS will charge the internal batteries whenever the UPS is connected to

an AC source and there is an acceptable AC voltage present (90 - 150VAC). It

is recommended that the UPS's batteries be charged for a minimum of 4 hours

before use. The UPS may be used immediately, however, the “On Battery”

runtime maybe less than normally expected. NOTE: If the UPS is going to be

out of service or stored for a prolonged period of time, the batteries must be

recharged for at least twenty-four hours every ninety days.

USB COMMUNICATIONS PORT CONNECTION (OPTIONAL)

The Power Monitoring Software can be used with the UPS. Use the interface

cable that comes with the UPS. Connect one end of the USB cable to the USB

communications port on the rear panel of the UPS. Connect the other end of

the USB cable to the device that will be monitoring/controlling the UPS. NOTE:

Connecting to the communications port is optional. The UPS works properly

without this connection.

CONNECTING THE UPS TO AN AC SOURCE

CAUTION - To reduce the risk of fire, connect only to a circuit provided with 20

amperes maximum branch circuit over-current protection in accordance with

the National Electric Code, ANSI/NFPA 70. Plug the UPS into a two pole, three

wire, grounded receptacle only. Do not use extension cords, adapter plugs, or

surge strips.

CONNECTING YOUR EQUIPMENT

Plug the mission critical equipment into the Battery Backup & Surge output

receptacles on the rear panel of the UPS. Plug the non-critical equipment into

the Surge Only output receptacles on the rear panel of the UPS. Do not use

extension cords, adapter plugs or surge strips on the output of the UPS. En-

sure that you do not exceed the maximum output rating of the UPS (refer to the

information label or the electrical specifications in this manual).

CAUTION! DO NOT connect a laser printer to the output recep-

tacles on the UPS.

FIG. 3: ETR700 FIG.3: ETR1000/1500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de Para systems

Para systems

Para systems Minuteman ED10000T Manual de usuario

Para systems

Para systems E750RT2U Manual de usuario

Para systems

Para systems E750RTXL2U Manual de usuario

Para systems

Para systems EN400 Manual de usuario

Para systems

Para systems Minuteman Enspire Series Manual de usuario

Para systems

Para systems Minuteman Encompass EC1000RT2U Manual de usuario

Para systems

Para systems PRO500LCD Manual de usuario

Para systems

Para systems MM450 Manual de usuario

Para systems

Para systems Minuteman On-Line RT Series Manual de usuario

Para systems

Para systems Minuteman PRO-RT 2U Series Manual de usuario

Para systems

Para systems ED1000RM2U Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
