Papalook PA552 PRO Manual de usuario
1080P WebCam
User’s Manual
MODEL: PA552 PRO
1.Package Contents
-1 x WebCam
-1 x User’s Manual
-1 x Lightweight Tripod
2.System Requirements
- IBM PC or compatible PC or laptop with USB port
- Pentium 1G or higher CPU
- Over 500MB free hard-disc space
- 256MB memory
- Support DirectX 9.0 VGA card
3.Product Overview
EN-1
Foldable
Flexible Clip
USB Connection Cable
1080P Camera lens
Touch Sensitive Button:
Adjust Brightness Level
Use a universal tripod to rotate the hole in the bottom of the
item, then you can place the item where you want.
Place the WebCam where you want it on a computer
monitor or a flat surface desktop. For a computer monitor
deployment, unfold the flexible clip and place the
WebCam on your computer monitor to grip the edge of the
screen with the foldable flexible clip. After fixing the
WebCam, connect the USB cable to your PC’s USB port.
4.Mounting and Connecting the Camera
EN-2
On a Desk
Or
On a PC Monitor
5.How to use the camera?
Plug and play: you can use it to make video calls on chat
application with your friends. Or you can take pictures or
record videos by the camera. To take photos/record videos:
5-1.On Windows XP/Vista/7/8
Please download AMCAP Webcam Software to check
whether it works, and use this software to record a video. Only
download and open it easily, no need to install. Available from
www.papalook.com .
EN-3
Using AMCAP Software Steps:
Please connect the webcam to your computer and wait till
computer recognizes the webcam before opening the
AMCAP software.
AMCAP
File Devices Options Capture photo help
AMCAP
File Devices Options Capture photo help
Preview
Video capture filter...
Video capture pin...
A.If the window is blank, please click the “Options”and select
“preview”. And make sure you tick the webcam under
“device”.
B.You can adjust settings like video/phone format/window
size, Choosing “Video Capture Pin…”under “options”.
AMCAP
File Devices Options Capture photo help
Preview
Video capture filter...
Video capture pin...
EN-4
C.If you want to disable microphone, the setting steps are as
follows:
My computer → Press“right-handbutton” → Manage →
Device manager → Sound, Game, Video controller → USB
Audio device → Press “right-hand” button → Stop
D. To adjust microphone volume:
-XP system:right click the voice icon in the lower right
corner,open the volume controller → Option → Attribute →
Audio mixer → Choose”USB Audio Device” or “USB
Microphone” → Sure → Adjust volume as your need.
- Win7/8/Vista system: Control panel → Sound → Record →
Double click USB Audio Device or USB Microphone →
Microphone attribute → level → Adjust volume as your need.
-Record videos:Capture
→
Start Capture
→
Select OK to start
capture of video sequence to save the files . You can select a
directory for saving captured videos before Starting to Capture,File
→
Set Capture Directory.
-Take photos: Photo
→
Start photo
E.To record videos/take photos:
AMCAP
File Devices Options Capture photo help
Set Capture Directory...
Set Photo Directory...
Set Captured Video AS...
Exit
EN-5
A.
Please connect the webcam to your computer and wait till
computer recognizes the webcam.
5-2.On Windows 10
B.
Select
Start
button, and select “Camera” in the list of
apps.
Camera
EN-6

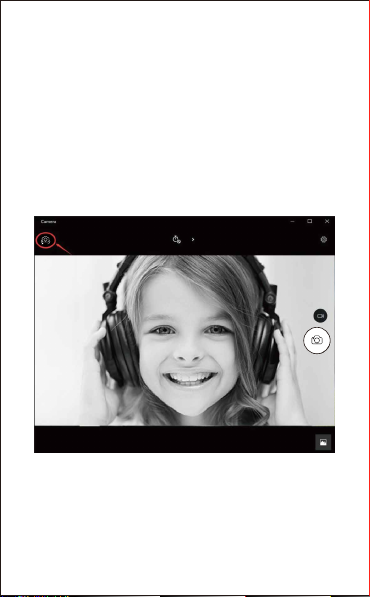

C.On the right side of the app, you’ll find two buttons: one for
taking photos and one for recording videos. The bigger button
shows you the mode that’s currently on. To switch the mode,
just click or tap the other video or photo button. To take
photos/record videos:
-Take photos: in photo mode
→
click or tap photo button.
-Record videos: in video mode
→
click or tap video button to
start
→
click or tap video button again to stop.
D.To switch from built-in camera to papalook camera, please
click “camera switch” at the top-left corner.
EN-7
5-3.On Mac
A.Please connect the webcam to your computer. Find out
“Photo Booth” in Apple system, and open it.
Photo Booth
B.Choose papalook camera under “Camera” in menu bar..
FaceTime HD Camera
Enable Screen Flash
Full HD webcam
Camera
EN-8
6.Warranty
The PA552 PRO is covered by a 1-year manufacturer
warranty. For more information, visit www.papalook.com
7.Specifications
Note: Features and technical specifications are subject to change
without notice, we apologize for any inconvenience.
Lens Spec.
Microphone
Spec.
Lens Material Glass
Viewing Angle Horizontal: 75°
Focus
Frames
Autofocus
60 FPS
F/No.
MIC.
S.P.L
Directivity
Interface
Support OS
Built-in stereo and noise cancelling
-36±2dB
Omni-directional
USB2.0 (Free Driver)
Windows XP/7/8/10 or later, Mac
OS 10.6 or later, Chrome OSTM,
Android v5.0 or above.
2.0
1.Paketinhalt
-1xWebCam
-1xBedienungsanleitung
-1xLeichtes Stativ
2.Systemvoraussetzungen
- IBM PC oder kompatibler PC oder Laptop mit
USB-Anschluss
- Pentium 1G oder höhere CPU
- Mehr als 500MB freier Festplattenplatz
- 256MB Speicher
- DirectX 9.0 VGA-Kartenunterstützung
3.Produktübersicht
DE-1
Faltbar
Flexibler Clip
USB-Anschlusskabel
1080P Kameraobjektiv Berührungssensitive Taste:
Helligkeit anpassen
