INSTALLATION INSTRUCTIONS FS006
© Panduit Corp. 2008
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
Page 1 of 11
OPTICOM QUICKNET Rack Mount Fiber Cassette Enclosures
Part Numbers: FCE1U, FCE1UA, FCE2U
1 ENCLOSURE
2 (3) TAK-TYTa p e ( 6 "pcs.)
2 (3) ADHESIVE MOUNTS
2 SLACK SPOOLS
1 (2) #10-32 x 3/8"SCREW
3 (4) #10-32 HEX NUTS
WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. DO NOT LOOK DIRECTLY INTO THE END OF THE
CONNECTOR. DO NOT INSPECT WITH MAGNIFYING DEVICES. MAINTAIN DUST CAPS ON UNMATED CONNECTORS.
CAUTION:
Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. Consult the manufacturer’s cable specification sheet for the
specific cable in use.
Follow TIA/EIA-568-A, 569, 606, and 607 installation guidelines where applicable.
Care should be taken when opening or closing a fully loaded drawer in order to protect the fiber components.
Contents
1 (2) FIBER GROMMETS
4 #M6 x 1 SCREWS
1 (2) STRAIN RELIEF BRACKET
4 CABLE TIES (PLT2S-M0)
2 (4) PLUNGERS AND GROMMETS
2 (4) BEND RADIUS CLIPS
4 #12-24 x 1/2"SCREWS
1 CAUTION LABEL
1 LASER WARNING LABEL
3 BEVELED ENTRY CLIPS
Enclosure
Trunk or Interconnect
Cable Entry Grommet
ASSEMBLY VIEW OPTICOM Fiber Adapter Panel (FAP) Installation (FAPs not included).
FCE1U
Strain Relief
Bracket
Cover (field removable)
Bend Radius
Control Clip
Door Assembly
(shown in open
position)
FCE1UA (FCE2U)
Figure 1
Plunger and
Grommet
Enclosure Sliding Drawer
Fiber Adapter Panels (FAPs):
Up to 4 for FCE1U, FCE1UA.
Up to 8 for FCE2U.
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 2 of 11
Enclosure Mounting Brackets
Figure 4
Determine where the cable will enter the enclosure.
Carefully remove the knock-out at that entry location
of the fiber tray so as not to damage surrounding
sheet metal. DO NOT Install grommet at this stage,
grommet will be installed after enclosure is mounted
to rack.
Note: Cover removal is not required for proper
fiber optic cabling installation.
To remove the cover if desired, unscrew the four
#4-40 screws and lift cover up and off.
#4-40 screws
Use (2) #12-24 X 1/2"
screws (provided). Repeat
for other side.
Place enclosure mounting brackets at desired
position on the rack. Mount the enclosure to the
rack using (4) #12-24 x 12"screws. Use (4)
M6 x 1 screws if mounting to a metric rack.
Figure 2
Figure 3
Figure 4A
Preparation and Rack Mounting
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 3 of 11
After the enclosure is mounted to the rack, determine
the size of the innerduct that will be used to bring the
cable into the enclosure. Install grommet following the
proper cutting diagram.
Cut the small circle
for 1"diameter
innerduct.
Cut the large circle
for 1-1/2"diameter
innerduct.
Cut the straight
lines when not
using any
innerduct.
Place the strain relief bracket adjacent to the knocked
out enclosure entry point. Fasten with #10-32 x 3/8"
screw and hex nut.
Strain Relief
Bracket
#10-32 x 3/8"
Screw
#10-32 Hex
Nut
Figure 5
Figure 5A
Figure 6
Note: Cover not shown for clarity.
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 4 of 11

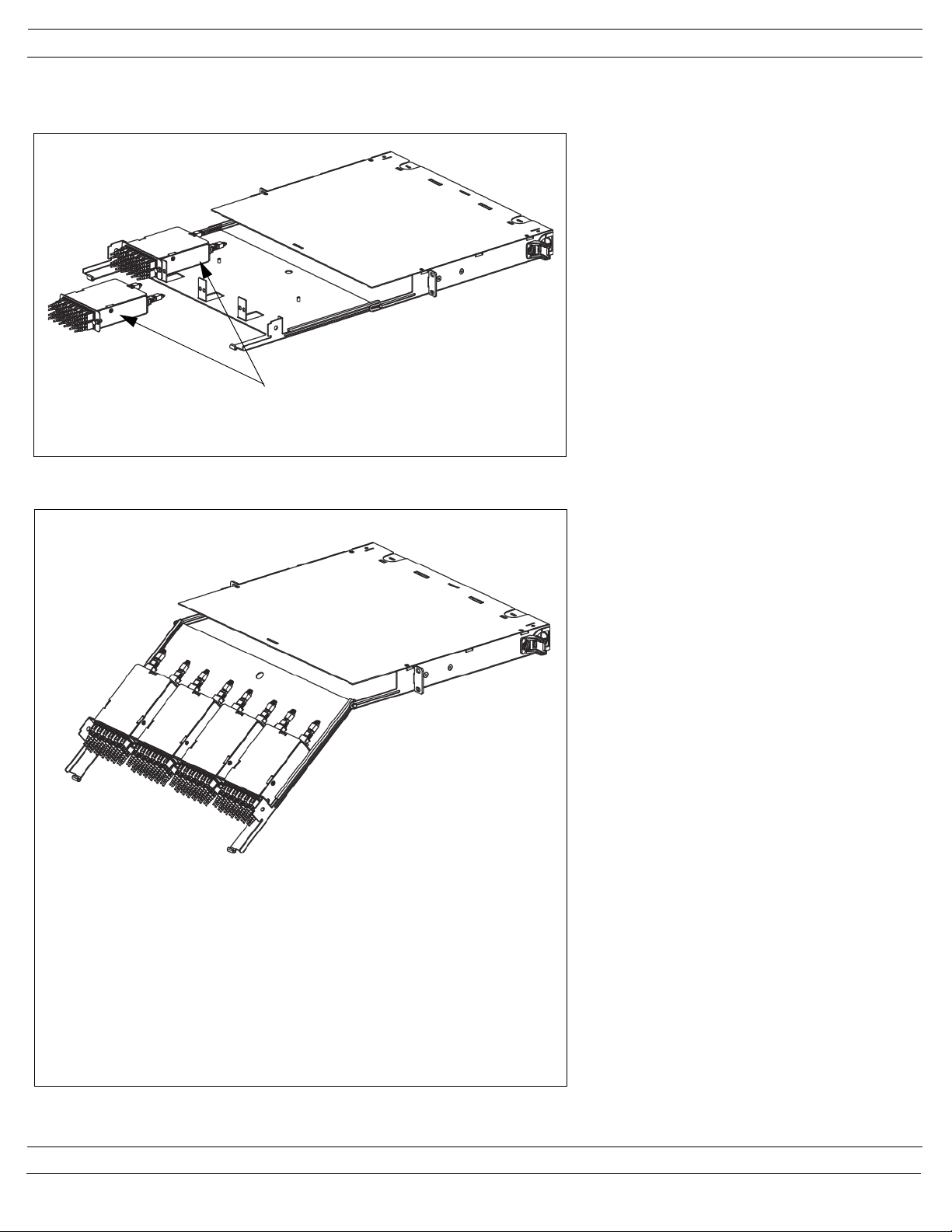

Insert QUICKNET Pre-Terminated Fiber Optic
Cassettes into the enclosure as shown. Once
mounted, fully seat NyLatch fasteners to
secure the cassette.
Figure 7
Figure 7A
Cassettes: Up to 4 for FEC1U, FCE1UA.
Up to 8 for FCE2U.
Fully extend drawer to ensure proper amount of
slack is used.
Isometric view showing drawer
fully extended and tilted down
(cables omitted for clarity).
QUICKNET Cassette Installation (cassettes not included)
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 5 of 11
Route fiber through grommet to fiber
cassettes as shown. Leave enough
slack so that when the drawer is fully
extended, cables are not put under
tension. However, do not use so
much slack that drawer cannot be
returned to the home position. (See
Fig 7C)
Use TAK-TYTape to secure fiber
cords at cable entry location and
other points as shown.
Drawer in extended position Figure 7B
Figure 7C
Free Floating
TAK-TYTape
Adhesive
Bevel Entry
Clips. Note
location and
position of
clips.
Drawer in home position
Grommet
Fixed
TAK-TY
Tape
USE TAK-TYTape to fasten
cable to fence outer slots.
Cable length
between point “A”
and point “B” is
approx. 34"
[.864m].
“A”
“B”
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 6 of 11
Place slack spools over #10-32 studs on sliding
tray. Secure with #10-32 hex nuts and/or adhesive
mounts (be sure to punch hole into adhesive
mounts). Note spool orientation.
Position FAPs between upright flanges as shown.
Once mounted, fully seat NyLatch fasteners to
secure FAPs.
Slack Spools
Field Termination or Pre-Terminated Trunk Installation
Figure 8
Figure 8A
Isometric view showing drawer
fully extended and tilted down
(cables omitted for clarity).
Fully extend drawer to ensure proper amount of
slack is used.
Top view with cover removed.
Please note orientation of spools.
Fiber Adapter Panels (FAPs):
Up to 4 for FEC1U, FCE1UA.
Up to 8 for FCE2U.
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
UseTAK-TYTape to fasten
cable to fence.
Page 7 of 11
Drawer in home position
Figure 8B
Figure 8C
Drawer in extended position.
Free floating
TAK-TY.
Grommet
Fixed TAK-TY
Tape
Individual
fiber breakout
point.
(See Detail at
right).

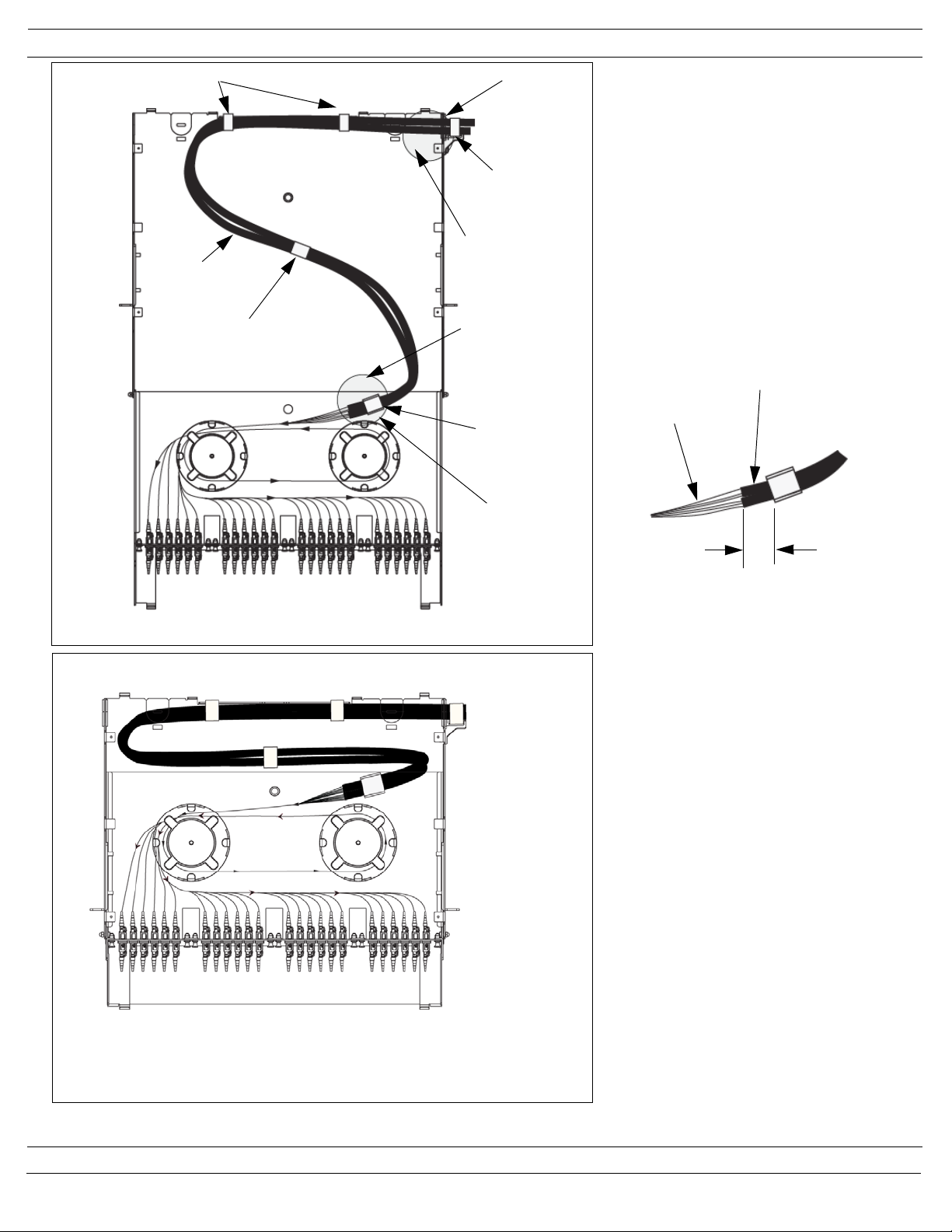

Route fiber through grommet as shown.
Use enough cable length to ensure one
complete loop (approx. 52" [1.32m]) of
individual fibers around slack spools.
Leave enough jacketed slack so when
the drawer is fully extended the cables
are not put under tension. However, do
not use so much slack that drawer
cannot be returned to its home position.
(See Figure 8C)
Use TAK-TYTape to secure fiber cords at
cable entry location and other points as
shown.
Adhesive
Mount
w/TAK-TYTape
cable jacket
individual fiber
Fiber Breakout Detail
Be sure adhesive mount secures jacketed
Trunk cable. DO NOT clip individual
900µm buffered fibers.
Sub-unit
tubes.
1.0"
“A”
“B”
Cable length
between point “A”
and point “B” is
approx. 36"
[.914m].
[25.4m]
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Fiber Adapter Panels (FAPs):
Up to 4 for FEC1U, FCE1UA. Up to 8 for FCE2U.
FOSM Fiber Optic Splice Module Installation
Place “L”shape support brackets over
#10-32 studs on sliding tray, note orientation.
Place first FOSMH1U (FOSMH2U) on top of
“L”shape support brackets, note orientation
and secure with #10-32 hex nuts. Remaining
FOSMs are stacked on top of each other and
snap in place.
If 4 FOSMs are to be installed in the FCE1U
or FCE1UA, side latches on top module must
be broken off to close enclosure drawer.
Position FAPs between upright flanges as
shown. Once mounted, fully seat NyLatch
fasteners to secure FAPs.
Page 8 of 11
Figure 9
Break off FOSM latch
on top module only.
Isometric view showing drawer
fully extended and tilted down
(cables omitted for clarity).
Figure 9A
Fully extend drawer to ensure proper amount of slack
is used.
Finish splicing in each FOSM before adding/stacking
subsequent FOSMs.
FOSM: Up to 4 for FEC1U, FCE1UA.
Up to 8 for FCE2U.
FOSMH1U
(FOSMH2U)
Support
Brackets
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Drawer in home position
Page 9 of 11
Figure 9C
Drawer in extended position Figure 9B
Fixed TAK-TY
Tape
Grommet
Route fiber through grommet as shown.
Use enough cable length to ensure one
complete loop (approx. 45" [1.15m]) of
individual fibers around FOSM slack
spools.
Route 900µm buffered fiber from the
trunk cable and splice to pigtail per
instructions in FS001, “OPTICOM Fiber
Optic Splice Module Installation
Instructions.”
Leave enough jacketed slack so when
the drawer is fully extended the cables
are not put under tension. However, do
not use so much slack that the drawer
cannot be returned to its home position.
(See Figure 9C)
Use TAK-TYTape to secure fiber cords at
cable entry location and other points as
shown.
Individual
fiber
breakout
point (See
Fiber
Breakout
Detail on
page 7).
Free-floating
TAK-TYTape
Use TAK-TYTape to
fasten cable to fence.
Sub-unit
tubes
“A”
“B”
Cable length
between point
“A” and point
“B” is approx.
36" [.914m].
INSTALLATION INSTRUCTIONS FS006
For Technical Support: www.panduit.com/resources/install_maintain.asp
Plunger
and
Grommet
Bend Radius
Control Clip
Grommet
Plunger.
Install plunger into grommet, but do not fully
seat. Slide bend radius clips over sliding tray
flange as shown. Push grommet/plunger
through bend radius clip and sliding tray flange
holes. Finally fully seat plunger into grommet
securing bend radius clip.
Bend Radius
Control Clips
Plunger and
Grommet
Page 10 of 11
Figure 10
Figure 10A
Sliding Tray
Flange
Figure 11
Patch Cord Bend Radius Clip Installation
Install patch cords into FAPs/cassettes routing
through bend radius control clips and
maintaining proper patch cord bend radius.
