Panduit PBTMT Manual de usuario

PBTMT and PBTMT/E

PA26091A01

Rev. 00 9-2009

ENGLISH Pg. 1

DEUTSCH Pg. 7

FRANÇAISE Pg. 9

ITALIANA Pg. 11

ESPAÑOL Pg. 13

ÈESKÝPg. 15

NEDERLANDSE Pg. 17

DANSKE Pg. 19

SVENSKA Pg. 21

SUOMEN Pg. 23

NORSK Pg. 25

Website: www.panduit.com

Email: [email protected]

EU Website:

www.panduit.com/emea

EU Email: EMEA-

[email protected]

Panduit Corp. •USA Headquarters •Tinley Park, IL

Tel: 888-506-5400, ext. 3255 •Fax: 630-759-7532

Panduit Europe •EMEA Headquarters

Tel: +31 (0) 546 580 452 •Fax: +31 (0) 546 580 441

PBTMT and PBTMT/E ENGLISH

PBTMT & PBTMT/E_ENGL PA26091A01_00 Page: 1 of 26 9-2009

SYSTEM SPECIFICATIONS .................................................................................................................. 1

PRECAUTIONS AND GENERAL GUIDELINES ................................................................................... 2

TOOL OPERATION................................................................................................................................ 3

SYSTEM SPECIFICATIONS

Motor: 12 V DC motor

3.7 lbs. / 1.8 kg ( + )

PANDUIT Pan-Steel MLT SERIES TIES ONLY

MLTH (Heavy)

5/16”W

(7.9mm)

MLTEH (Extra-Heavy)

1/2”W

(12.7mm)

MLTSH (Super Heavy)

5/8”W

(15.9mm)

English NOTE: In the interest of higher quality and value, PANDUIT products are continually being

improved and updated. Consequently, pictures may vary from the enclosed product.

PBTMT and PBTMT/E ENGLISH

PBTMT & PBTMT/E_ENGL PA26091A01_00 Page: 2 of 26 9-2009

Replacement Milwaukee®Batteries and Battery Chargers are available for purchase from local Milwaukee®

products distributors or resellers.

Milwaukee® is a registered trademark of Milwaukee Electric Tool Corporation

The information contained in this literature is based on our experience to date and is believed to be reliable. It is intended

as a guide for use by persons having technical skill at their own discretion and risk. We do not guarantee favorable results

or assume any liability in connection with its use. Dimensions contained herein are for reference purposes only. For

specific dimensional requirements consult the factory. This publication is not to be taken as a license to operate under, or

a recommendation to infringe any existing patents. This supersedes and voids all previous literature, etc.

PRECAUTIONS AND GENERAL GUIDELINES

This symbol is used to call your attention to hazards or unsafe practices which could result in an

injury or property damage. The signal word, defined below, indicates the severity of the hazard.

The message after the signal word provides information for preventing or avoiding the hazard.

WARNING Hazards which, if not avoided, COULD result in severe injury or death.

CAUTION Hazards or unsafe practices which, if not avoided, MAY result in injury or

property damage.

WARNING

Read and understand all of the instructions and safety information in this manual before

operating or servicing this tool.

WARNING

Wear eye protection when operating or servicing this tool.

Failure to wear eye protection can result in serious eye injury from flying debris.

WARNING

•Inspect tool before use. A worn or damaged tool may result in breakage striking the operator or nearby

personnel.

CAUTION

•Do not perform any service or maintenance other than as described in this manual.

Injury or damage to the tool may result.

•This tool is not designed for continuous use.

•The tool is designed for hand-held operation.

•Protect the tool from rain and moisture. Water will damage the tool and battery.

•Electric tools should not be operated in pouring rain or under water.

•Use this tool for the manufacturer’s intended purpose only.

PBTMT and PBTMT/E

PBTMT & PBTMT/E PA26091A01_00 Page: 3 of 26 9-2009

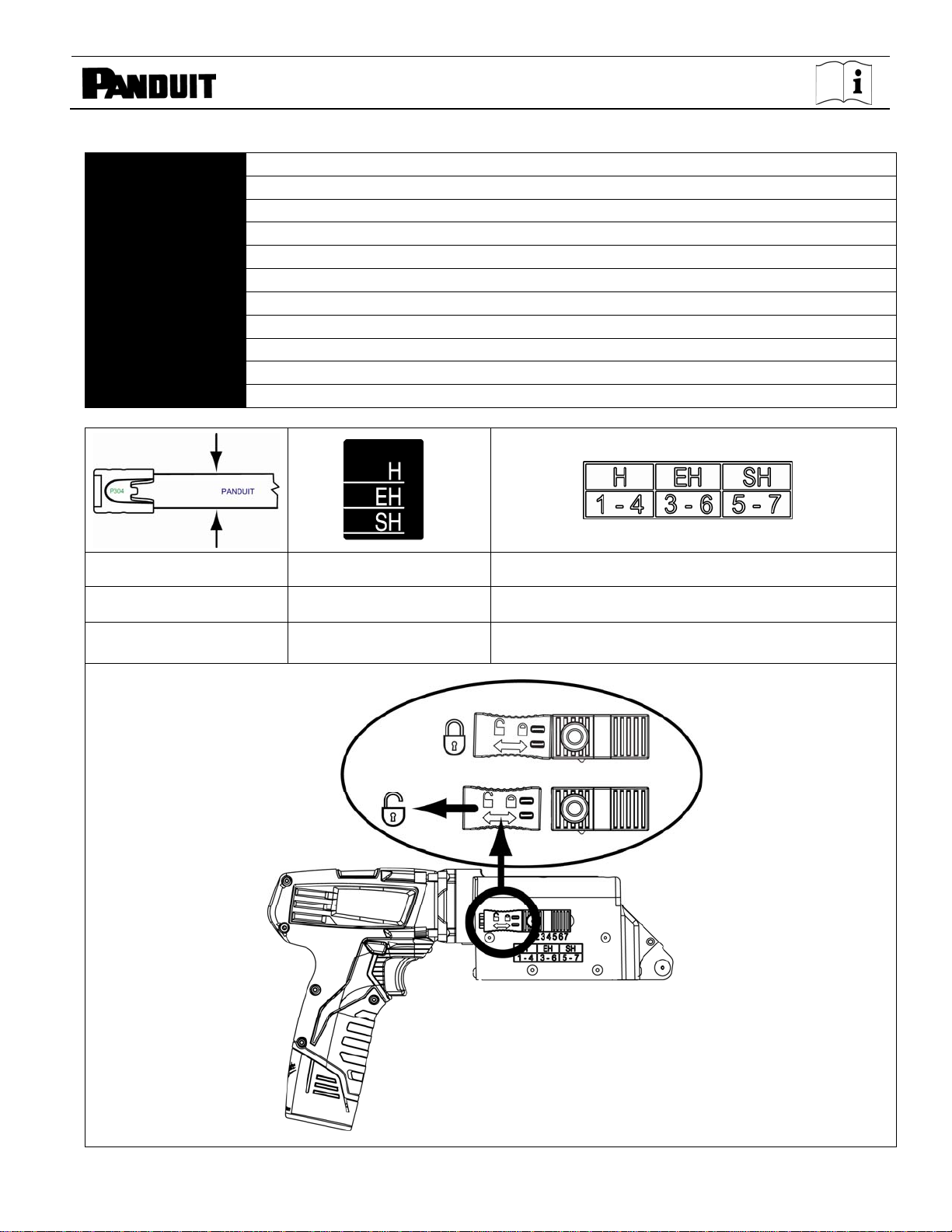

ENGLISH TOOL OPERATION

DEUTSCH BEDIENUNG DES WERKZEUGS

FRANÇAISE FONCTIONNEMENT DE L’OUTIL

ITALIANA AVVIAMENTO DELL'ATTREZZO

ESPAÑOL OPERACIÓN DE LA HERRAMIENTA

ÈESKÝ OBSLUHA NÁSTROJE

NEDERLANDSE GEBRUIK VAN HET GEREEDSCHAP

DANSKE BETJENING AF VÆRKTØJET

SVENSKA VERKTYG MANÖVRERING

SUOMEN TYÖKALUN KÄYTTÖ

NORSK BETJENING AV MASKINEN

5/16" (7.9mm) H 1 – 4

½” (12.7mm) EH 3 – 6

5/8” (15.9mm) SH 5 – 7

PBTMT and PBTMT/E

PBTMT & PBTMT/E PA26091A01_00 Page: 4 of 26 9-2009

PBTMT and PBTMT/E

PBTMT & PBTMT/E PA26091A01_00 Page: 5 of 26 9-2009

PBTMT and PBTMT/E

PBTMT & PBTMT/E PA26091A01_00 Page: 6 of 26 9-2009
