ORDERNo. AD9810180A3

ICRECORDER

RR-DR60

(S).........Silver

GC........Asia, LatinAmerica,

MiddleEast and Africa

SPECIFICATIONS

Specification

Power requirement: DC3V(twoR03/LR03,AAA,UM-4

batteries)

__MemoryBack-up; DC3V(Built-inLithiumbattery)

About 3minutes

Recording system: CELP Type(CodeExcited

LinearPredictive)

__Sampling frequency; 6kHz

__Datatransfer rate; 4kbit/s

__Digital filter; 8bit -law

__Memorysize; 16 Mbit(Flash)

Recording capacity: 60 minutes / 99 items

Power output: 110 mWRMS (max)

Speaker: 2.8cm 8

Output jack: Earphone2.5mm(diam.) 16

Dimensions(WxHxD): 55.8x91.5x13.7mm

Weight:

__withbatteries; About 69g

__without batteries; About 46g

Batterylife:

__Batteries; Panasonicalkalinebattery

__Playback; About 8hours

__Recording; About 10 hours

[Whenusedat 25°C(77°F) temperature and on aflat and stable

surface]

Unauthorized copying and distribution isaviolation of law.

1. Simplement Guide

This manual mention the revision of RR-DR60P-S.

-Operating Instruction (Addition "The operation tone")

-SchematicDiagram (Original)

-Printed CircuitBoard Diagram (Original)

-Replacement Parts List (Original)

-Packaging (Original)

The otheritems are referedservice manual forRR-DR60P-S.

2. Operating Instruction Addition

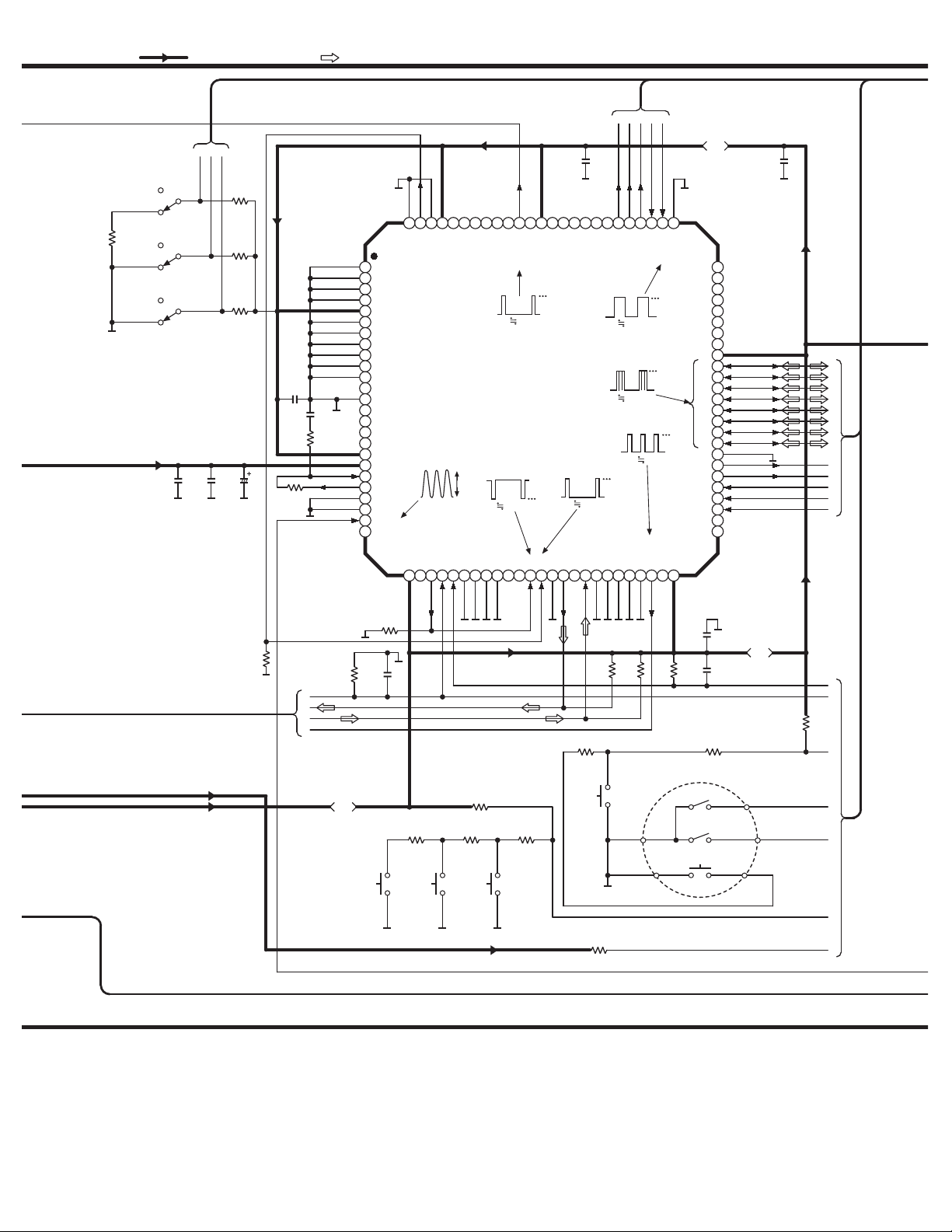

3. Schematic Diagram

3.1. MAINCIRCUIT

3.2. MAINCIRCUIT

3.3. MAINCIRCUIT

4. Printed Circuit Board Diagram

4.1. MAINP.C.B.

4.2. MAINP.C.B.

5. Replacement Parts List

Note:

Important safetynotice:

Components identifiedby mark have special characteristics important forsafety.

Furthermore, special parts whichhave purposes of fire-retardant (resistors), high-qualitysound

(capacitors), low-noise (resistors), etc. are used.

Whenreplacing anyof components, Be sure touse onlymanufacturer~s specifiedparts shown

inthe parts list.

The parenthesizedindications inthe Remarks columns specifythe areas. (Refertothe cover

page forarea.)

Parts without these indications canbe usedforall areas.

Capacityvalues are inmicrofarads (uF) unless specifiedotherwise, P=Pico-farads(pF) F=

Farads(F)

Resistance values are inohms, unless specifiedotherwise, 1k=1,000(ohm), 1M=1,000k(ohm)

The "<IA>,<IB>,<IC>" marks inRemarks indicate language of instruction manual.

<IA>:English, Spanish, Japanese, Chinese, Arabic

<IB>:English, <IC>:CanadianFrench

Ref.No. PartNo. PartName& Description Pcs Remarks

1RGV0230-K KNOB,PLAY/SEL/STOP 1

2 RGV0231-K KNOB,HOLD 1

3 RHQ0051-K SCREW 3

4RGL0420-Q PANEL,LIGHT 1

5 RGU1673-K BUTTON,10 SEC REVIEW 1

6RGV0232-K KNOB,SPEED CONTROL 1

7 RKK0115-S BATT.COVER 1

8RKS0290B-1S REAR CABINET 1

9RFKDRDR60P-S JOG SW ASS~Y,PLAY/STOP 1

10 RJM0016 MICROPHONE 1

11 RMG0496-H ZEBRAGUM 1

13 RSL5213-T LCD(LCD101) 1

14 RAS3P13-U SPEAKER 1

16 RGU1669-1S BUTTON,MODE 1

17 RGU1670-R BUTTON,REC START/STOP 1

18 RGU1671-K BUTTON,ERASE 1

19 RJC40015 BATT.TERMINAL(+) 1

20 RJC80017 BATT.TERMINAL(-) 1

21 RJC94013-2 BATT.TERMINAL 1

22 RMZ0466 SHEET 1

23 RYK0859-S FRONTCABINETASS~Y 1

24 XQN2+CQ3 SCREW 2

25 XTNR2+5CFN SCREW 2

A1 RQT4801-G INSTRUCTION MANUAL 1 <IA>

A2 RQCB0169> SERVICECENTER LIST 1

C1 ECUV1C154KBN 16V0.15U 1

C2 ECST0GY226RR 4V22U 1

C4 ECUZNC104ZFV 16V0.1U 1

C5 ECUVNA105ZFV 10V1U 1

C6 ECUVNA105KBN 10V1U 1

C7,C8 ECUZNC104ZFV 16V0.1U 2

C9 RCST0GA106RE 4V10 1

C10 ECUV1H151KBV 50V150P 1

C13 ECST1CY105RR 16V1U 1

C14 ECUZNC104ZFV 16V0.1U 1

C16 ECUV1H100DCV 50V10P 1

C17 ECST0GX476R 4V47U 1

C19 ECUV1H332KBV 50V3300P 1

C20 ECST0GY226RR 4V22U 1

C21 ECUZNC104ZFV 16V0.1U 1

C22 ECST0GY106RR 4V10U 1

C23 ECUVNC473KBV 16V0.047U 1

C24 RCSX0GC157RE 4V150U 1

C25 ECUZNC104ZFV 16V0.1U 1

C27 ECUZNC104ZFV 16V0.1U 1

C28 ECUV1C105ZFN 16V1U 1

C29 ECUZNC104ZFV 16V0.1U 1

C30,31 ECUV1H102KBV 50V1000P 2

C32 ECUZNC104ZFV 16V0.1U 1

C37 ECUV1E103KBV 25V0.01U 1

C38 ECUV1H220KCV 50V22P 1

C39 ECUV1H120KCV 50V12P 1

Ref.No. PartNo. PartName& Description Pcs Remarks

C40 ECST0GY226RR 4V22U 1

C41 ECUZNC104ZFV 16V0.1U 1

C42,43 ECUV1H101KCN 50V100P 2

C44 ECUVNC224KBN 16V0.22U 1

C45 ECUVNA154KBV 10V0.15U 1

C46-48 ECUV1E154ZFN 25V0.15U 3

C49,50 ECUZNC104ZFV 16V0.1U 2

C60 ECUZNC104ZFV 16V0.1U 1

C61 ECST0GY106RR 4V10U 1

C63-65 ECUZNC104ZFV 16V0.1U 3

C69 ECUV1C104KBV 16V0.1U 1

C77 ECUVNJ105KBV 63V1U 1

C81 RCSX0GC157RE 4V150U 1

CN1 RJT120C02T CONECTOR(2P) 1

D1 LNJ210C6RRA LED 1

D2 MA735TX DIODE 1

D4 MA728TX DIODE 1

D5 MA735TX DIODE 1

D6 MA729TX DIODE 1

IC1 MSM7702-02MS IC 1

IC2 MN1931712BB IC 1

IC3 TC7WU04FUT2L IC 1

IC4 MN101C16ACA3 IC 1

IC5 TC7W126FUT2L IC 1

IC6 XC61AN2002MR IC 1

IC7 SDTB-16A IC 1

IC8 XC6372D331PR IC 1

IC9 NJM2113VTE1 IC 1

JK1 RJJ23TK01-1H JACK,EARPHONE 1

L1 RL09U028T-T COIL 1

L100-02 ERJ3GEY0R00V CHIPJUMPER 3

P1 RPK1124 PACKING CASE> 1

P2 RPF0208 PROTECTION COVER 1

Q1 2SD1819ASTX TRANSISTOR 1

Q2 2SB1218ASTX TRANSISTOR 1

Q3 2SD1819ASTX TRANSISTOR 1

Q4 2SD1328STX TRANSISTOR 1

Q5 2SD1819ASTX TRANSISTOR 1

Q6 2SB1218ASTX TRANSISTOR 1

Q8 2SD1119RTX TRANSISTOR 1

Q9,10 2SB1295-6-TB TRANSISTOR 2

Q11 2SD1819ASTX TRANSISTOR 1

Q13,14 2SD1819ASTX TRANSISTOR 2

Q16 2SB1295-6-TB TRANSISTOR 1

Q17,18 2SK1958T1 TRANSISTOR 2

Q20 2SB1218ASTX TRANSISTOR 1

Ref.No. PartNo. PartName& Description Pcs Remarks

R1 ERJ3GEYJ152V 1/16W1.5K 1

R2 ERJ3GEYJ102Z 1/16W1K 1

R3 ERJ3GEYJ104Z 1/16W100K 1

R4 ERJ3GEYJ393V 1/16W39K 1

R5 ERJ3GEYJ103Z 1/16W10K 1

R6 ERJ3GEYJ104Z 1/16W100K 1

R7 ERJ3GEYJ223V 1/16W22K 1

R8 ERJ3GEYJ101V 1/16W100 1

R10 ERJ3GEYJ102Z 1/16W1K 1

R11 ERJ3GEYK106V 1/16W10M 1

R12 ERJ3GEYJ391V 1/16W390 1

R13 ERJ3GEYJ104Z 1/16W100K 1

R15 ERJ3GEYJ823V 1/16W82K 1

R16 ERJ3GEYJ103Z 1/16W10K 1

R17 ERJ3GEYJ334V 1/16W330K 1

R18 ERJ3GEYJ683V 1/16W68K 1

R19 ERJ3GEYJ224V 1/16W220K 1

R20 ERJ3GEYJ102Z 1/16W1K 1

R21 ERJ3GEYJ333V 1/16W33K 1

R22 ERJ3GEYJ560V 1/16W56 1

R23 MCR03PZHJ561 1/16W560 1

R24,25 ERJ3GEYJ105V 1/16W1M 2

R26 ERJ3GEYJ332V 1/16W3.3K 1

R27 ERJ3GEYJ472V 1/16W4.7K 1

R28,29 ERJ3GEYJ105V 1/16W1M 2

R31 ERJ3GEYJ394V 1/16W390K 1

R32,33 ERJ3GEYJ124V 1/16W120K 2

R34-37 ERJ3GEYJ105V 1/16W1M 4

R40 ERJ3GEYJ104Z 1/16W100K 1

R41,42 ERJ3GEYJ184V 1/16W180K 2

R43,44 ERJ3GEYJ104Z 1/16W100K 2

R46-48 ERJ3GEYJ474V 1/16W470K 3

R49 ERJ3GEYJ333V 1/16W33K 1

R63 ERJ3GEYJ334V 1/16W330K 1

R64 ERJ3GEYJ333V 1/16W33K 1

R65 ERJ3GEYJ103Z 1/16W10K 1

R66 ERJ3GEYJ471V 1/16W470 1

R67 ERJ3GEYJ394V 1/16W390K 1

R69 ERJ3GEYJ681V 1/16W680 1

R71,72 ERJ3GEYJ473V 1/16W47K 2

R81 ERJ3GEYJ181V 1/16W180 1

R82 ERJ3GEYJ394V 1/16W390K 1

R83 ERJ3GEYJ103Z 1/16W10K 1

R84 ERJ3GEYJ394V 1/16W390K 1

R85,86 ERJ3GEYJ274V 1/16W270K 2

R87 ERJ3GEYJ103Z 1/16W10K 1

R89 ERJ3GEYJ154V 1/16W150K 1

R90 ERJ3GEYJ473V 1/16W47K 1

R91 ERJ3GEYJ563V 1/16W56K 1

R93 ERJ3GEYJ100V 1/16W10 1

R98 ERJ3GEYJ102Z 1/16W1K 1

S2 RSG0022-A SW,ERASE 1

S3 RFKDRDR60P-S JOG SW ASS~Y,PLAY/STOP 1

Ref.No. PartNo. PartName& Description Pcs Remarks

S4 EVQPLMA15 SW,REC START/STOP 1

S5-S7 RSS2A009-1A SW,SELECT 3

S9 EVQPLMA15 SW,MODE 1

S11 EVQPLMA15 SW,10 SEC REVIEW/BEEP 1

VR1 EVUT2KA20B54 VR,VOL 1

X1 RSXY8M00M07T CERAMIC OSC 1

X2 RSXC32K7L04T XTAL,32K 1

6. Packaging

Printed inJapan. K981000700 AM/YH

ABCDEF

(SIDE : B)

VR1

VOL S3

(PLAY/SEL/STOP)

CON

OFF S6

R48

R31

R67

R40

L100

L102L101

R90R71R72

R36

C65

C37

C43

C42

C47

C46

C48

C41

C44

Q11

OFF

ERASE SPEED

CONTROL

HOLD

REC START/

STOP

MODE

JK1 1

EARPHONE

1234567891011121314151617181920

LCD101

IC7

J2 J1

BATTERIES, 3V

( Two R03/LR03,

AAA, UM-4 ) D5

C32

IC5

R84

R28

R49

R63

R26

R29

R20

R23 R87

R93

R22

C64

C30

C23

C29

C27

C31

C19

C25

C28

Q17

EQ13

Q20

C81

BQ8

IC8

IC5

IC7

IC8

Q11

Q13

Q17

Q20

VR1

L100

L101

L102

LCD101

JK1

R20

R22

R23

R26

R28

R29

R31

R36

R40

R48

R49

R63

R67

R71

R72

R84

R87

R90

R93

C19

C23

C25

C27

C28

C29

C30

C31

C32

C37

C41

C42

C43

C44

C46

C47

C48

C64

C65

C81

ELECTRICAL PARTS LOCATION

Ref. No. Lo. No. Ref. No. Lo. No.

12345678910

20 19 18 17 16 15 14 13 12 11

A IN+

AIN

GSX

(ALAW)

BCLK

X SYNC

PCM OUTPCM IN

R SYNC

PDN

VDD

A OUT

SGC

100K

0.1 R7

22K

100

R12

390

R11

10M

39K

4V22

C17

4V47

R87

10K

R26

3.3K

C20

4V22

R91

56K

R18

68K

CN1

C60

0.1

R65

10K

R16

10K C8

0.1

R64

33K

C50

0.1

C14

0.1

VR1

50K(B)

(VOL)

R89

150K

R13

100K

R17

330K

R15

82K

C10

150P

R10

100K

10K

R66

470

C61

4V10

1.5K

R93

LNJ210C6RRA

(REC)

R63

330K

R27

4.7K

R81

180

R82

390K

R83

10K

C77

R84

390K

C69

0.1

R86

270K

R85

270K

MA735TX

0.1

4V10

L1 D2

MA735TX

R20 1K

C19 3300P

C24

4V150

C81

4V150

R67

390K

C13

16V1

BATTERIES,3V

(TWOR03/LR03,

AAA,UM 4)

BACKUP

BATTERY

SPEAKER

2.8cm(1332")

8ohm

MIC

GQ13

2SD1819ASTX

POWERSUPPLY

CONTROL

Q10,16

2SB1295-6-TB

POWERSUPPLY

Q10

Q16

Q17,18

2SK1958T1

SWITCHING

(BACKUP)

Q17

Q18

2SD1119RTX

SWITCHING

IC8

XC6372D331PR

DC-DCCONVERTER

2SB1295-6-TB

POWERSUPPLY

IC9

NJM2113VTE1

POWERAMP

Q20

2SB1218ASTX

POWERSUPPLY

2SD1819ASTX

AGC

2SD1328STX

AGC

Q14

2SD1819ASTX

BUFFERAMP

2SB1218ASTX

AGC

Q11

2SD1819ASTX

MICAMP

Q1 Q3

2SB1218ASTX

MICAMP

IC1

MSM7702-02MS

CODEC

0.15

4CE

NC Vss

VOUT

EXT

Q1,3

2SD1819ASTX

MICAMP

4321

8765

3.2V

3.3V

L102

0 ohm

L101

0 ohm

L100

0 ohm

R19

220K C16

10P

JK1

EARPHONE

16ohm(2.5)

MA729TX

3.2V

3.3V

2.8V

2.6V

3.3V3.3V3.3V3.3V

3.1V

0V 3V

1.4V

3.3V 0V

3.3V

0V1.4V

3V 2.8V

1.8V

2.8V0V 0V

0V 2.1V1V

3.2V

3.1V

2.5V

3.2V 3.3V

2.7V

0.6V

3.3V

3.2V

1.6V

1.5V

1.6V

3.2V

1.6V

0V 3.2V

0V 0V 0V

1.6V

1.7V

3.1V

2.6V 1.6V

1.1V

1.7V

3.2V

1.1V

1.7V

3.2V2.7V

3.2V

1.7V

2.6V

:POSITIVEVOLTAGELINE :VOICESIGNAL(ANALOG)LINE :VOICESIGNAL(DIGITAL)LINE

767778798081828384858687888990919293949596979899

50494847464544434241403938373635343332313029282726

100

MEMI/O0

MEMI/O1

MEMI/O2

MEMI/O3

VDD

MEMI/O4

MEMI/O5

MEMI/O6

MEMI/O7

MEMR/B

RXDI

MEMCLE

Vss

/MEMRE

/MEMWE

/MEMALE

/SYNCO

VDD

AVDD

VCO IN

PC OUT

AVss

Vss

OSCF0

OSCF1

VDD

PLLSLEEP

/ FRSYNC

/ACFL

/RST

MODE0

MODE1

MODE2

MODE3

LMUTE

PSACK

GI0

GI1

Vss

TXD0

TXD1

RXD0

MEM MODE

EX CLK

EXSH CLK

ADPCM IN

HWYSYNC

BCLOCK

ADPCM OUT

VDD

PRACK

/GO1

PCS

/PWE

/PRE

PIBE

POBF

Vss

VDD

P10

P11

P12

P13

P14

P15

Vss

/ACDWN

/PMUTE

GO2

GO3

GO4

GO5

GO6

GO7

GO8

GO9

GO10

VDD

RXSYNC1

RXSYNC2

RXSYNC3

RXSYNC4

RXSYNC5

RXSYNC6

/MEMCE0

MEMCE1

/DTMFCS

HWY CLK

/BPSYNC

Vss

R31

390K R33

120K R42

180K

R44

100K

(MODE)

(REC START/STOP)

(ERASE)

R40

100K D

R32

120K

S11

(10SEC REVIEW

/BEEP)

(PLAY/SEL/STOP)

R41

180K

R43

100K

R24

C28

R25

C27

0.1

R21

33K

R49

33K

R28

C31

1000P

C32

0.1

HGFTP

C29

0.1

CON

R34

R35

R36

(HOLD)

(MODE SELECT)

(SPEED CONTROL)

C25

0.1

C23

0.047

R22

R23

560

IC2

MN1931712BB

DSP

C21

0.1

C22

4V10

OFF

ON C

F.LOCK

CLOCK/

MIC SET

OFF

(SET)

(DOWN)

(UP)

R29

C30

1000P

3.3V

R98

3.3V

0.8V

1.6V

1.3V

3.3V

0.5V(0.3V)

3.3V

1.7V

2.7V

1.3V

0.6V

3.1V

3.3V

2.7V

3.3V

3.2V

P-P

F=8MHz 0V

3.3V

T 27ms.

3.3V

T 180us.

3.3V

T 2us.

:POSITIVE VOLTAGE LINE :VOICE SIGNAL (DIGITAL)LINE

3.3V

T 27.4ms.

3.3V

T 25.6ms.

3.3V

T 170us.

Otros manuales para RR-DR60

Tabla de contenidos

Otros manuales de Grabadora de voz de Panasonic

Panasonic

Panasonic WJHD100 - DIGITAL DISC RECORDE Manual de usuario

Panasonic

Panasonic RRXR320 - IC RECORDER Manual de usuario

Panasonic

Panasonic RR-US361 Manual de usuario

Panasonic

Panasonic AG-UMR20P Especificaciones técnicas

Panasonic

Panasonic AG-HPD24PJ Manual de usuario

Panasonic

Panasonic CJ-HDR104A Manual de usuario

Panasonic

Panasonic RRQR240 - IC RECORDER Manual de usuario

Panasonic

Panasonic RRQR240 - IC RECORDER Manual de usuario

Panasonic

Panasonic RR-US510 Manual de usuario

Panasonic

Panasonic RR-US310 Manual de usuario

Panasonic

Panasonic RRQR80 - IC RECORDER Manual de usuario

Panasonic

Panasonic RR-US395PC Manual de usuario

Panasonic

Panasonic AJD440 - DVCPRO PLAYER Manual de usuario

Panasonic

Panasonic WJ-HDE400 Manual de usuario

Panasonic

Panasonic POVCAM AG-MDR25P Manual de usuario

Panasonic

Panasonic CJ-HDR104 Manual de usuario

Panasonic

Panasonic RR-US006 Manual de usuario

Panasonic

Panasonic POVCAM AG-MDR25E Especificaciones técnicas

Panasonic

Panasonic RR-QR170 Manual de usuario

Panasonic

Panasonic DMR-BCT765 Manual de usuario

Panasonic

Panasonic RR-US500 Manual de usuario

Panasonic

Panasonic WJ-NX100/2E Manual de funcionamiento

Panasonic

Panasonic AJ-HPM200 Manual de usuario

Panasonic

Panasonic RRQR240 - IC RECORDER Manual de usuario

Manuales populares de Grabadora de voz de otras marcas

Sony

Sony ICD-UX533F Manual de usuario

RCA

RCA VR5230 Manual de usuario

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Guía del usuario

Sony

Sony TCM-400DV Manual de usuario

LogTag

LogTag TREL30-16 Manual de usuario

SVAT

SVAT CVP800 Manual de usuario

Marantz

Marantz PMD620 Manual de usuario

Zoom

Zoom H4next Manual de usuario

Roland

Roland BR-900CD Manual de usuario

JVC

JVC ProHD GY-HMZ1U Manual de operación y mantenimiento

Sanyo

Sanyo TRC-6400 Manual de usuario

Tascam

Tascam DR-07 Manual de usuario

Olympus

Olympus DW-90 Manual de usuario

Sanyo

Sanyo ICR-B150 Manual de usuario

Korg

Korg D4 Manual de usuario

Sony

Sony ICD-SX46 - Ic Recorder Manual de usuario

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Instrucciones de montaje

Philips

Philips VOICE TRACER VTR5810 Manual de usuario
