Panasonic NV-HS830EG Manual de usuario

ORDERNO. VRD0204017C2

VideoCassette Recorder

NV-HS830EG / NV-HS830B / NV-HS830EC/ NV-HS830EE

Z-MECHANISM

SPECIFICATIONS

1. INTRODUCTION

Thisservice manual containstechnical information whichwill allowservice personnel to

understand and service thismodel.

Ifthecircuitischangedor modified, thisinformation will befollowedbysupplementaryservice

manual tobefiledwithoriginal service manual.

Note:

1. Adjustmentprocedures, DisassemblyProcedures and Assembly

Procedures forMechanismChassisareseparate volumefromthis

service manual. / Please refertotheservice manual forZ-

MechanismChassis. (OrderNo. VRD9802005C2)

2. TheModel No. isindicatedon theSchematicDiagramand Circuit

BoardDiagramsas follows.

Model No. Indication Mark

NV-HS830EG (EG)

NV-HS830B (B)

NV-HS830EC (EC)

NV-HS830EE (EE)

2. GENERALDESCRIPTIONS

2.1. SERVICECAUTION

2.1.1. REPLACINGIC6002/EEPROM

WhentheEEPROM:IC6002 isreplaced, applicablemodel code, option code, tuning channel data

and electrical adjustmentdatawill notbeavailable.

Therefore, enterand/or adjustthenecessarydataafterreplacing IC6002 byreferring following

procedure.

STEP1.REPLACE THE IC6002

1. Take anote that storedTVbroadcast channels.

2. RemovetheC.B.A. withMechanismunitbyreferring the

Disassemblyprocedure.

3. Disconnect theACplug and replace theIC6002.

STEP2.INPUTTHE MODEL&OPTIONCODE

1. Set up theapplicablemodel codeand option codebyordering the

following table.

PROCEDURE F.I.P. DISPLAY

Turn on theService Mode

1.Press theFF key and the

EJECTkey simultaneouslyfor

morethan3seconds.

ActivatetheService Mode2

2.Whilekeeppressing FF key,

press theEJECTkey intwice.

ActivatetheEntering Mode.

3.Press theEJECTkey for more

than3seconds.

SettheMode2.

4.Press theCH UP key intwice.

Display theSetting Code.

5.Press thePOWERButton to

turn thepoweron.

(Colon starts

flashing)

EntertheModel and Option Code.

6.Service Screenisdisplayedon themonitor.

7.SettheapplicableModel and Option codeby

using REW, PLAY, STOP and FF keys on theRemote

Controller. (See Fig.S1&S2)

Exitfrom Service Mode.

8.Press thePOWERButton to

turn thepoweroff.

9. Press FF and EJECTkeys

simultaneouslyin6times.

(Normal

Indication)

Fig.S1Service Secreen(sample)

Model No. Model

Code Option

Code1 Option

Code2 Option

Code3

NV-HS830EG 129

(81h) 8

(08h) 208

(D0h) 0

(00h)

NV-HS830B 131

(83h) 40

(28h) 208

(D0h) 0

(00h)

NV-HS830EC 130

(82h) 8

(08h) 208

(D0h) 0

(00h)

NV-HS830EE 166

(A6h) 8

(08h) 210

(D2h) 0

(00h)

Fig. S2Model Code&Option Code

NOTE:

1. TunetheTVBroadcasting channelsbyreferring thememo.

2. Since all electrical adjustmentdata isstill notavailable, perform

theElectrical Adjustmentcontinuously.

WHENREPLACINGTHE MAINC.B.A.

Since theuser's TapeLibrarydataisstoredinIC6002;EEPROM, swaptheEEPROMtaking from

Original MainC.B.A. and mountitontotheNewMainC.B.A. tokeepmaintaintheuser's Library

Databyordering thefollowing procedure.

1. Take theIC6002;EEPROMfromthenew MainC.B.A. (tobeused

as replacement.)and keepitaside.

2. Take theIC6002;EEPROMfromtheoriginal MainC.B.A. (tobe

replaced).

3. MounttheEEPROMbeing takenfromoriginal C.B.A. tothenew

MainC.B.A.(tobeusedas replacement.)

4. Install thenew MainC.B.A. totheVCR.

Whenordering theabove procedure, setting ofthemodel code, option code, tuning channel can

beskipped. / However, all electrical adjustmentdataisuniquevalueinaccordance withadeck,

perform theElectrical Adjustmentcontinuously.

2.1.2. CYLINDERUNITREPLACEMENT

1. CYLINDERUNITREPLACEMENT

A. RemovethemechanismunitfromMAINC.B.A./Chassisby

referring “SECTION2. DisassemblyProcedure”.

B. Removethe3screws(A)oftheCYLINDERUNITwithascrew

driver.

C. Unlock the4locking tabs(B)and disconnect theCylinder

fiexiblecardfromtheFPCHolder.

D. RemovetheCYLINDERUNIT.

CAUTION:

HandletheCylinderfiexiblecardwithcare. Whenitdamaged, you

shouldreplace wholeCylinderunit.

Fig. S3

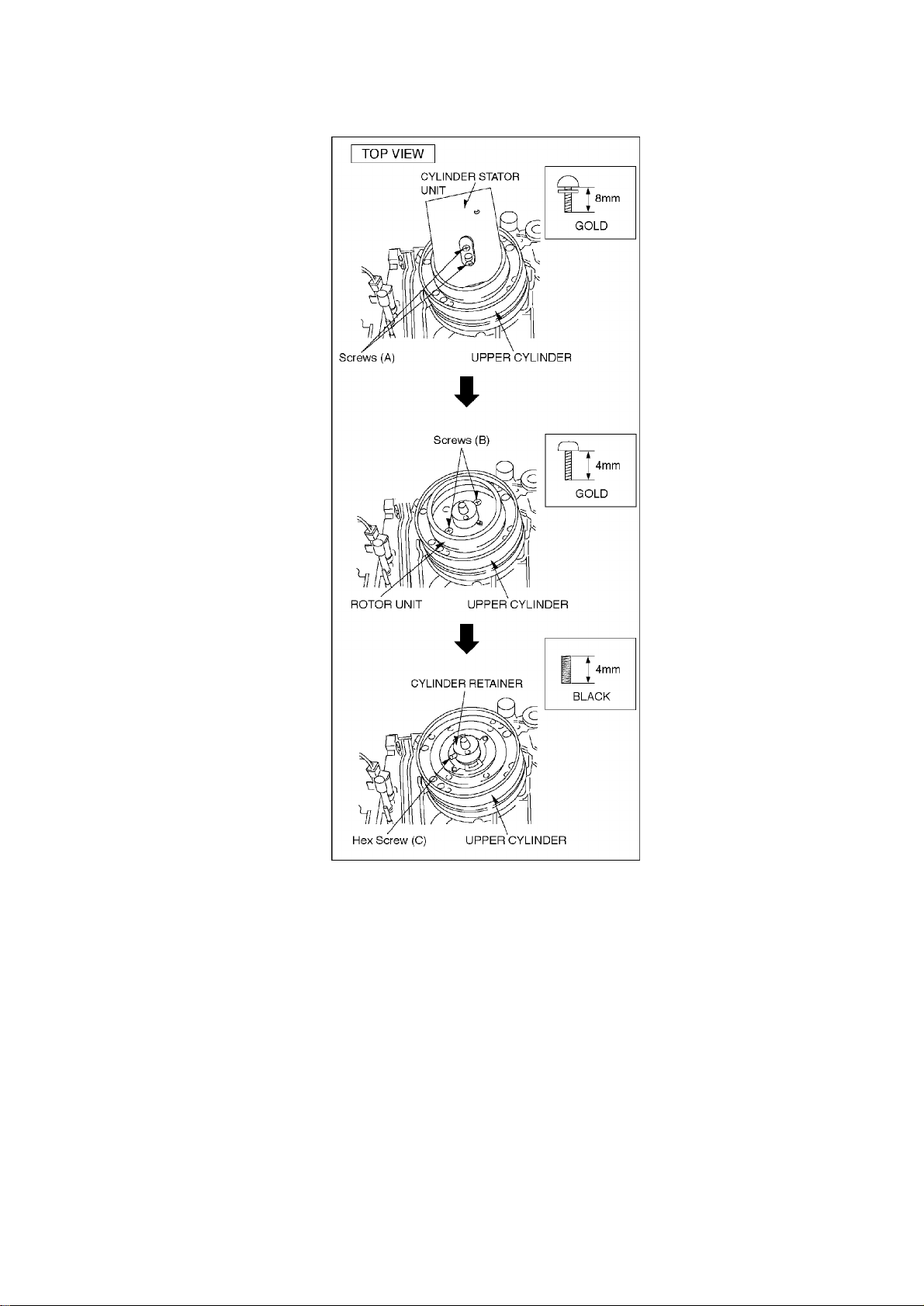

2. UPPERCYLINDERDISASSEMBLY

A. Remove2screws(A).

B. RemovetheCylinderStatorUnit.

C. Remove2screws(B).

D. RemovetheCylinderRotorUnit.

E. Loose Hex screw (C)(1.5mm)and removetheCYLINDER

RETAINER.

F. RemovetheUpperCylinder. Fig. S4

3. UPPERCYLINDERASSEMBLY

Whenreassembling, perform thestepsinthereverse order.

Notes:

1. Install theCylinderRetainersothat the2holes on top ofthe

CylinderRetainerareat rightangles withtheP3502 Connection.

2. TightentheHex screw (C)(1.5mm)whilepressing downon top of

theCylinderRetainer. Fig. S5

3. Install theCylinderRotorUnitsothat theinnerholeoftheCylinder

RotorUnitfits tothesmall projection (D)on top oftheUpper

Cylinder.

4. Tighten2screws(B). Fig. S6

5. install theCylinderStatorUnit.

6. Tighten2screws(A). Fig. S7

7. Confirm thePG SHIFTERADJUSTMENTwiththealignmenttape

(PAL:VFJ8125H3F)and adjust itifnecessary.

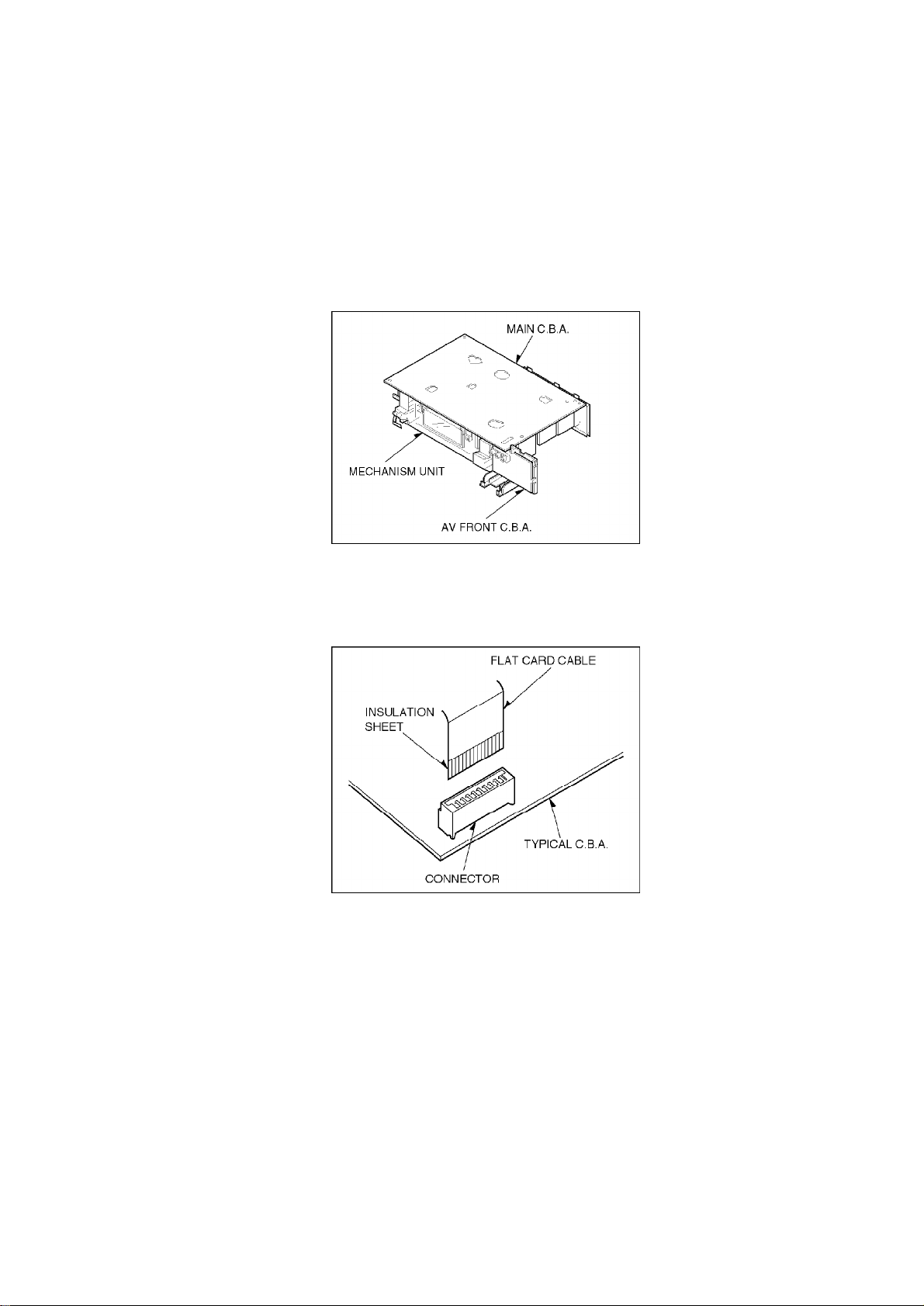

2.1.3. CHECKINGOFMAINC.B.A.

Whenservicing theMAINC.B.A., take outtheMAINC.B.A. and mechanism from theframeand

turn over.

Fig. S8

2.1.4. FLATCARD CABLE INSTALLATION

Wheninstalling theFlatCard Cableon theconnector, install theFlatCard Cablewiththecable

contactsfacing theconnector contacts.

Fig. S9

2.2. REMOVALOFCASSETTETAPE

Thereare2ways toremove acassettetape.

1. Service Information DisplayOperation

A. Press theFF and EJECTkeyssimultaneoslyfor3secondsand

set theService Mode7.

B. Press STOPkeyinordertorotate theLoading Motorfor

unloading operation. (Payanattention oftapeslack)

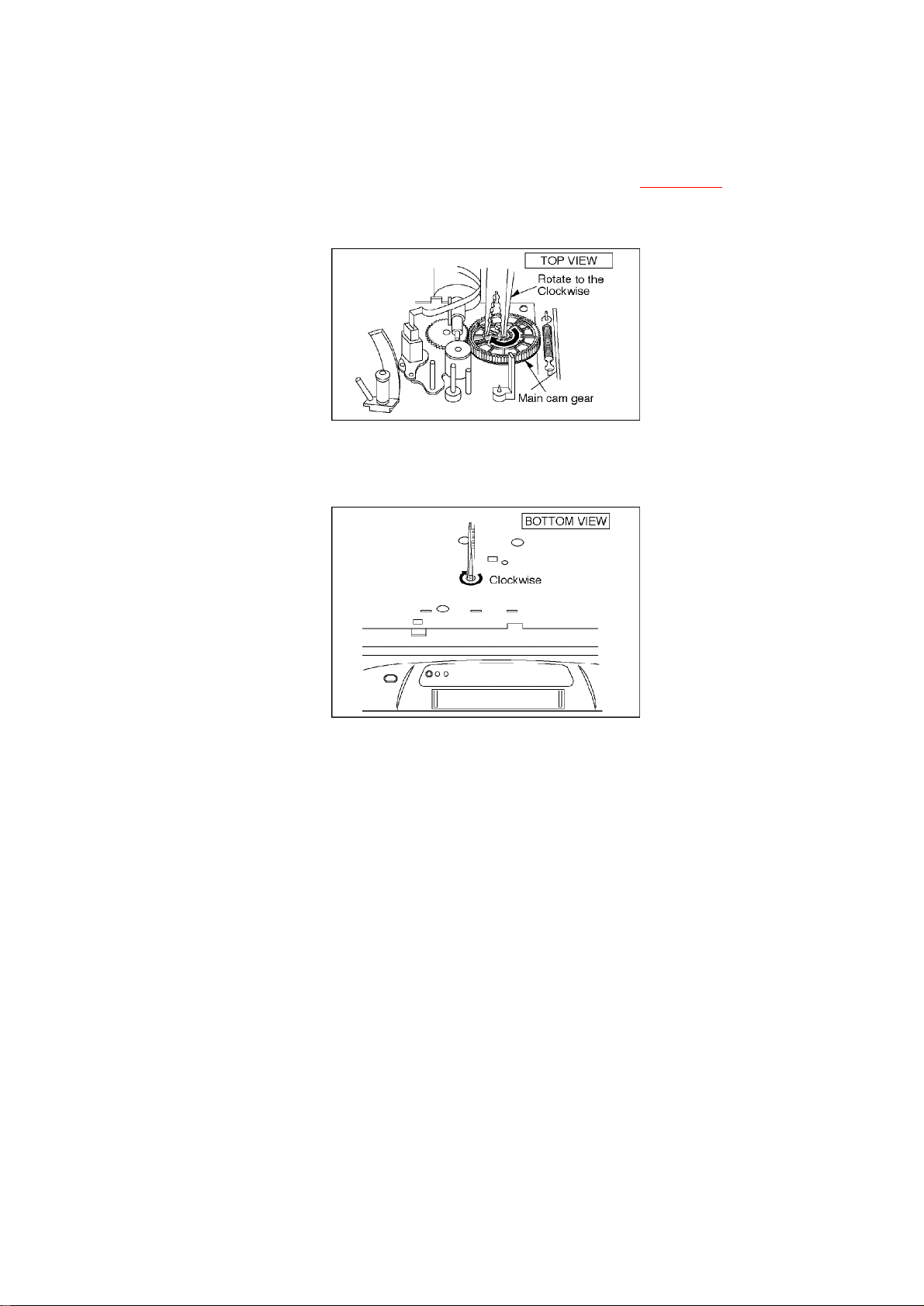

2. Manual Operation

A. Disconnect theACMainsLeadand removetheTop Panel.

B. Rotate theMainCamGearclockwise until theLoading Posts

movetofullyunloadedposition as shownin Fig. S10 . (Tapeis

remaining) Fig. S10

C. Rotate theCapstanMotorclockwise fromthebottomsideto

take up thetape. Fig. S11

D. Rotate theMainCamGearclockwise until thecassette tapeis

ejected.

2.3. INTRODUCTIONOFVIDEO HEADCLEANING CASSETTE/

(POLISHING TYPE)

1. Wearepleasedtointroduce PanasonicVideoHeadCleaning

Cassette, VFK0923FT [forservice purposes] and VFK0923FSE [for

end users] forall VHS/SVHSVCPand VCR.

2. These cleaning cassettes areexclusiveremoving thehardand

stickyclogging on videoheads.

3. These improvetheefficiencyofvideoheadcleaning service and

shortening cleaning timeforend users.

VFK0923FT

(For Service usage)

TypeofCassette Full VHS Cassette

Cleaning Time 10 Seconds/Time

TapeLength 20 m

UsabilityinaPath 180 Times

VFK0823FSE

(For end users)

TypeofCassette Full VHS Cassette

Cleaning Time 10 Seconds/Time

TapeLength 3.34 m

UsabilityinaPath 30 Times
