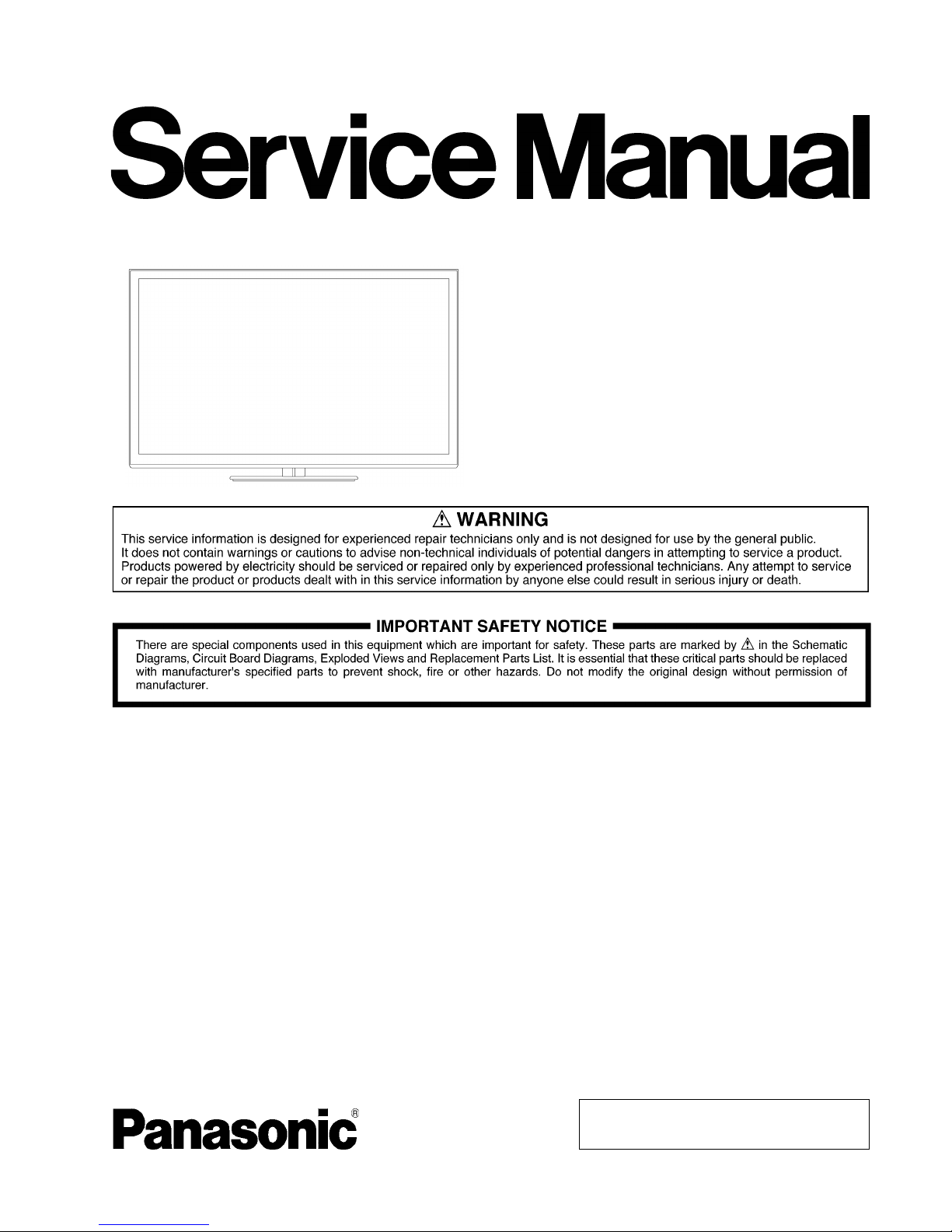

ORDER NO. MTNC130104CE

B32 Canada: B61

42 Inch Class 1080p LCD HDTV

Model No. TC-L42E60

LA41 Chassis

TABLE OF CONTENTS

PAGE

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

4 Specifications ------------------------------------------------------7

5 Technical Descriptions------------------------------------------8

5.1. Specification of KEY for DTCP-IP, WMDRM

and Widevine------------------------------------------------8

6 Service Mode -------------------------------------------------------9

6.1. How to enter into Service Mode ------------------------9

6.2. SRV-TOOL------------------------------------------------- 10

6.3. Hotel mode------------------------------------------------- 11

6.4. Data Copy by USB Memory --------------------------- 12

7 Troubleshooting Guide---------------------------------------- 15

7.1. Check of the IIC bus lines------------------------------ 15

7.2. Power LED Blinking timing chart --------------------- 16

7.3. LCD Panel test mode ----------------------------------- 16

8 Disassembly and Assembly Instructions --------------- 17

8.1. Disassembly Flow Chart for the Unit ---------------- 17

8.2. Disassembly Procedure for the Unit----------------- 17

9 Measurements and Adjustments -------------------------- 30

9.1. Voltage chart of P-board-------------------------------- 30

9.2. Voltage chart of A-board------------------------------- 30

10 Block Diagram --------------------------------------------------- 31

10.1. Main Block Diagram ------------------------------------- 31

10.2. Block (1/2) Diagram.------------------------------------- 32

10.3. Block (2/2) Diagram.------------------------------------- 33

11 Wiring Connection Diagram --------------------------------- 34

11.1. Caution statement.--------------------------------------- 34

11.2. Wiring 1----------------------------------------------------- 34

11.3. Wiring 2----------------------------------------------------- 35

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the

wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

6. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight

out.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the

two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,

between the jumpered AC plug and each exposed metal-

lic cabinet part on the equipment such as screwheads,

connectors, control shafts, etc. When the exposed metal-

lic part has a return path to the chassis, the reading

should be 100 Mohm and over.

When the exposed metal does not have a return path to

the chassis, the reading must be .

1.1.2. Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use

an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15F capacitors, between each exposed metallic part

on the set and a good earth ground such as a water pipe,

as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of

the above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should

be repaired and rechecked before it is returned to the

customer.

Figure 1

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or

comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. PCB Layout

Board Name Main Device

A-Board TUN, OFDM, ADV, LD4, STBY EEP

P-Board Power Supply

GK-Board Function SW for LGD panel

K-Board LED/RM/CATS

4 Specifications

5 Technical Descriptions

5.1. Specification of KEY for DTCP-IP, WMDRM and Widevine

5.1.1. General information:

1. NAND FLASH (IC8900) for spare parts has the seed of KEY for each DTCP-IP for DLNA, WMDRM for Netflix and Widevine for

CinemaNow.

2. The final KEY data will be generated by Main IC (IC8000) when SELF CHECK was done and are stored in both Main IC

(IC8000) and NAND FLASH (IC8900).

5.1.2. Replacement of ICs:

When Main IC is replaced, NAND FLASH should be also replaced with new one the same time.

When NAND FLASH is replaced, Main IC is not necessary to be replaced the same time.

After the replacement of IC, SELF CHECK should be done to generate the final KEY data.

How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for

more than 3 seconds.

TV will be forced to the factory shipment setting after this SELF CHECK.

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

6.1.2. Key command

[1] button...Main items Selection in forward direction

[2] button...Main items Selection in reverse direction

[3] button...Sub items Selection in forward direction

[4] button...Sub items Selection in reverse direction

[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 000

COLOR 3A

TINT 00

SUB-BRT 800

BACKLGT FFF

B-Y-G 40

R-Y-A 00

V COM 000

WB-ADJ R-GAIN D6

G-GAIN C7

B-GAIN FF

R-CENT 89

G-CENT 80

B-CENT AB

OPTION Boot NO Factory Preset.

STBY-SET 00

EMERGENCY ON

CLK MODE 01

CLOCK FFF

EDID-CLK HIGH

SRV-TOOL 00 See next.

6.2. SRV-TOOL

6.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.2.2. Display of SOS History

SOS History (Number of LED blinking) indication.

From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.

This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory

shipment setting].

6.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.

Time : Cumulative power on time, indicated hour : minute by decimal

Count : Number of ON times by decimal

Note : This indication will not be cleared by either of the self-checks or any other command.

6.2.4. Exit

1. Disconnect the AC cord from wall outlet or press the [POWER] button on the main unit for 3 seconds to turn off and then turn

on automatically.

Otros manuales para Viera TC-L42E60

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic TC-21S3M Manual de usuario

Panasonic

Panasonic Viera TX-26LE8F Manual de usuario

Panasonic

Panasonic CT25G6E - 25" COLOR TV Manual de usuario

Panasonic

Panasonic Viera TH-L32XV6A Instrucciones de montaje

Panasonic

Panasonic Quintrix TX--25LD4C/Z Manual de usuario

Panasonic

Panasonic Viera TX-L32E30E Manual de usuario

Panasonic

Panasonic TX-32DTDS3 Manual de usuario

Panasonic

Panasonic PV-M2738 Operating Manual de usuario

Panasonic

Panasonic TX-29P190T Manual de usuario

Panasonic

Panasonic CT-24SX11E AP367 Manual de usuario

Panasonic

Panasonic Viera TX-PF37X20 Manual de usuario

Panasonic

Panasonic Viera TX-L19D35ES Manual de usuario

Panasonic

Panasonic TX-25AS10D/M Manual de usuario

Panasonic

Panasonic TX-28PX10DM Manual de usuario

Panasonic

Panasonic GP 31 Guía de inicio rápido

Panasonic

Panasonic TX-W28R4DP Manual de usuario

Panasonic

Panasonic TX-28LB10F Manual de usuario

Panasonic

Panasonic TX-14ST15M Manual de usuario

Panasonic

Panasonic CT-F2136LP Manual de usuario

Panasonic

Panasonic TC-59R62 Manual de usuario

Panasonic

Panasonic TX-W28R4DP Manual de usuario

Panasonic

Panasonic TX*LXD6 Series Manual de usuario

Panasonic

Panasonic Gaoo TX-29AD2DP Manual de usuario

Panasonic

Panasonic TC-21S3M Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
