Operating Instructions

Colour Television

with

Integrated Digital Terrestrial

Decoder

and

Integrated Digital Satellite

Decoder

TX--32DTS3

(U.K. Standard)

TX--28DTS3

ALL MODES

Dear Panasonic Customer,

We hope that you have many years of en oyment from your new TV. The

Quick Start Guide

section at the beginning of this instruction

book will allow you to use the TV as quickly as possible. We recommend that you then read both instruction books, and keepthem torefer

to as you explore the range of advanced features that this TV offers. For detailed instructions on using the Digital Satellite (DSAT) mode,

please refer to the operating instructions marked

DSAT MODE

These instruction books are produced using recycled paper.

Page Page

Warnings and Precautions 3........................

Accessories 4.....................................

Inserting the Remote Control Batteries 4............

Basic Controls ..................................

Quick Start Guide 6................................

Using the On Screen Displays 12...................

Aspect Control 13.................................

Main Menu 1.....................................

Sound Menu 16...................................

Setup Menu 17....................................

Tuning Menu

overview 18.........................

Tuning Menu

Auto setup 19.......................

Tuning Menu

Analogue Manual Tuning 20..........

Tuning Menu

Install satellite 21...................

Tuning Menu

Shipping condition 22...............

Tuning Menu

Owner I.D. 23.......................

Analogue Manual tuning --- front panel controls 24....

DTT Setup Menu 2...............................

Common Interface Module Menu 27.................

Favourites Setup Menu 29..........................

Information Banner 30.............................

System Update Menu 31...........................

PC Connection and Modem Menus 32...............

DTTTVGuide 33..................................

AV Select and Setup 3............................

Link 36........................................

VCR Installation 38................................

VCR/DVD Operation 39............................

Teletext Operation 40..............................

Audio / Video (AV) Connections 43..................

Via the front AV3 4 pin S---Video, RCA Audio / Video

and Headphone Sockets 43..........................

Scart and S

Video Terminal Information 43..............

ViatherearAV1/AV221Pin(Scart)

and RCA Audio Out terminals 44.......................

Troubleshooting 4................................

DTT Troubleshooting 46............................

For your guidance 47..............................

Specifications 47..................................

WELCOME

CONTENTS

Example 2

Example 1

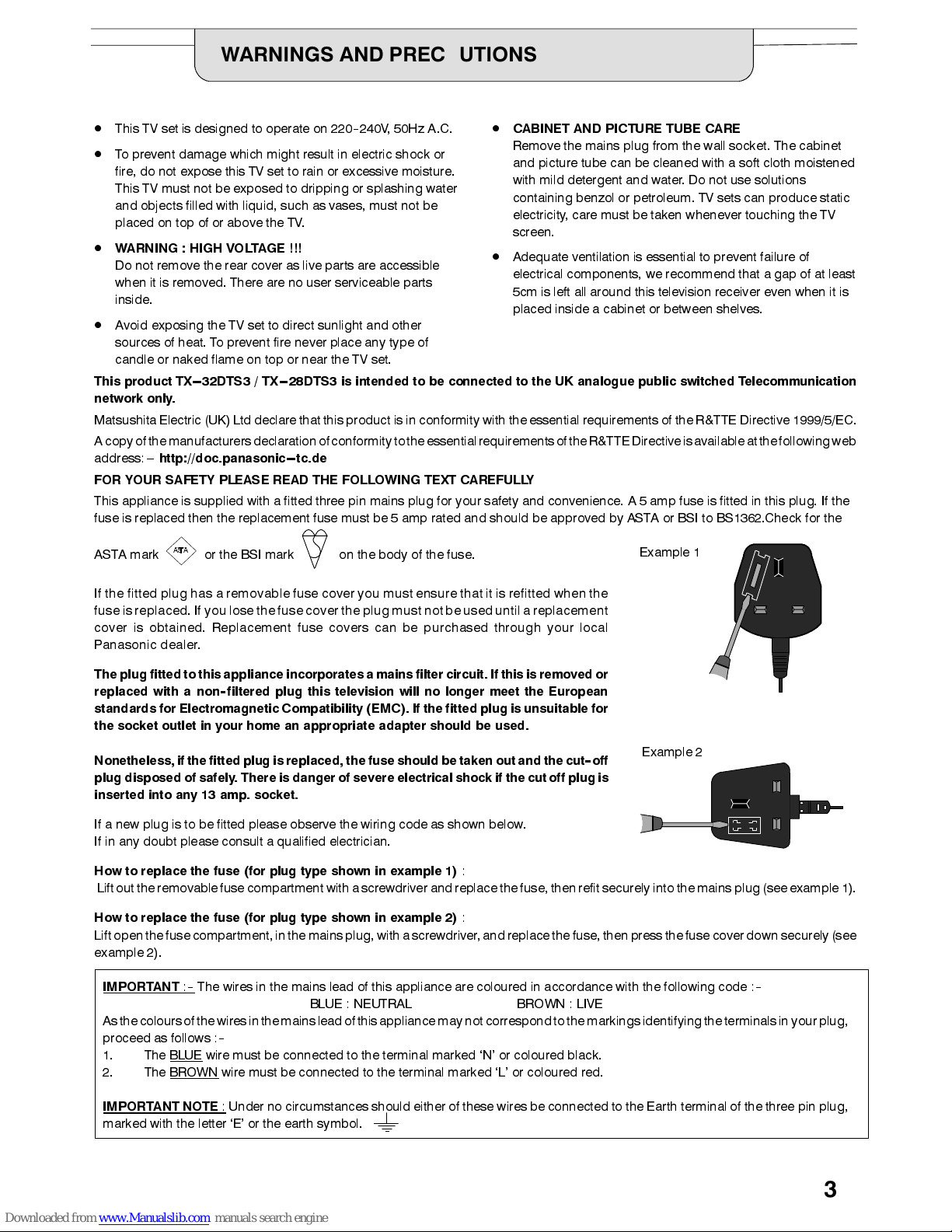

This TV set is designed to operate on 220

240V, 50Hz A.C.

To prevent damage which might result in electric shock or

fire, do not expose this TV set to rain or excessive moisture.

This TV must not be exposed to dripping or splashing water

and ob ects filled with liquid, such as vases, must not be

placed on top of or above the TV.

WARNING : HIGH VOLTAGE !!!

Do not remove the rear cover as live parts are accessible

when it is removed. There are no user serviceable parts

inside.

Avoid exposing the TV set to direct sunlight and other

sources of heat. To prevent fire never place any type of

candle or naked flame on top or near the TV set.

CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet

and picture tube can be cleaned with a soft cloth moistened

with mild detergent and water. Do not use solutions

containing benzol or petroleum. TV sets can produce static

electricity, care must be taken whenever touching the TV

screen.

Adequate ventilation is essential to prevent failure of

electrical components, we recommend that a gap of at least

5cm is left all around this television receiver even when it is

placed inside a cabinet or between shelves.

This product TX---32DTS3 / TX---28DTS3 is intended to be connected to the UK analogue public switched Telecommunication

network only.

Matsushita Electric (UK) Ltd declare that this product is in conformity with the essential requirements of the R&TTE Directive 1999/5/EC.

A copyof the manufacturersdeclarationofconformitytothe essentialrequirementsoftheR&TTEDirective isavailable atthe followingweb

address:---

http://doc.panasonic---tc.de

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the

fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.Check for the

ASTA mark

ASA

or the BSI mark on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the

fuse is replaced. If you lose the fuse cover the plug mustnotbe used until areplacement

cover is obtained. Replacement fuse covers can be purchased through your local

Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or

replaced with a non

filtered plug this television will no longer meet the European

standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for

the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut

off

plug disposed of safely. There is danger of severe electrical shock if the cut off plug is

inserted into any 13 amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1)

Lift outthe removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

How to replace the fuse (for plug type shown in example 2)

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse coverdown securely (see

example 2).

IMPORTANT

The wires in the mains lead of this appliance are coloured in accordance with the following code :

BLUE : NEUTRAL BROWN : LIVE

As the coloursofthe wiresin themains lead of thisappliance may not correspondto themarkings identifyingthe terminalsin yourplug,

proceed as follows :

1. The BLUE wire must be connected to the terminal marked ‘N’ or coloured black.

2. The BROWN wire must be connected to the terminal marked ‘L’ or coloured red.

IMPORTANT NOTE

:Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug,

marked with the letter ‘E’ or the earth symbol.

WARNINGS AND PRECAUTIONS

Remote Control Transmitter

EUR511240 Batteries for the Remote Control

Transmitter.

(2 x R6 (UM3) size)

Check that you have the accessories and items shown

Operating Instruction book

TQB8E3620

TV Guarantee

CRT Guarantee

Questionnaire

TX -- 32DTS3

TX -- 28DTS3

VS---32PL / VS---28PL

(Video cabinet)

Telephone cable

PA N --- 0 0 1 --- 0 2

Use only this cable

Replace the cover

1 2 3

Slide off the battery cover Insert batteries

note correct polarity

(+ and

)

Notes:

Make sure that the batteries are fitted the correct way round.

Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni

Cad) batteries.

ACCESSORIES

INSERTING THE REMOTE CONTROL BATTERIES

Aspect control button

(see page 13)

Switch between viewing TV or AV input,

(see page 35), select DTT or Analogue

television (see page 10) or access the DTT

guide

(see page 33)

Standby n/ ff switch

Switches TV n or ff standby

Switches DTT system on or off

standby if tuner lock is not set

Programme / channel change buttons ---

press the K button after selecting

programme positions 1---19 to avoid delay;

Teletext page buttons (see page 40); when

in Standby mode, switches TV on

Sound mute n/ ff

Direct channel access

During normal TV viewing or when in the

Tuning menu, press and then enter

channel number using the numeric

buttons

Teletext button (see page 40)

Multi function buttons used for

Teletext functions (see page 40)

AV selection (see page 35)

The N button will recall settings

stored with K

Cursor buttons to make selections and

adjustments. Scroll through status

information for each available digital

channel.

The Help button provides advice on using

the Sky Guide system

Ambience on/off

Direct TV Record button

(see page 37)

VCR / DVD buttons

(see page 39)

Press here and open flap to expose TV controls, front AV3 and headphone terminals

MAINS Power

n/ ff switch

STR (BACKUP) (Normalisation store)

Used to store tuning and other function settings.

Also Exits or navigates the menu system

F (Function select)

Displays the n Screen Display functions, use

repeatedly to select from the available functions

--- Volume, Contrast, Brightness, Colour,

Sharpness, Tint (in NTSC mode), Bass, Treble,

Balance, Tuning mode

(only when viewing analogue transmissions)

and Geomagnetic Correction

Increases or decreases the programme position by one. When a function is

already displayed, press to increase or decrease the selected function

TV/AV switch (see page 35)

Headphone socket (see page 43)

RCA Audio/Video

sockets (page 43)

Indicator LED’s:

Red indicates

Standby mode; flashes red

when receiving a command

from the remote control

S---VHS socket (see page 43)

Exits or navigates the menu system

K button to confirm selections and

choices.

Press after selecting programme positions

1---19 to avoid delay

Displays Favourite page (see page 41)

Displays DTT subtitles (if available)

Shows status information for the current

Programme position

Freezes the current teletext page

(see page 40)

Selects the nearest teletext index page

(see page 41)

Volume increase / decrease (see page 11)

Channel number up and down, Teletext

page selection (see page 11)

The SKY button provides access the

Digital satellite system

The Sky Guide buttons. When in Digital

satellite mode, press to access the Sky

Guide system

When in Sky mode,

press the TV button

immediately before the text button to

access analogue text where available.

Can also be used to exit digital text

Access the Main menu

(see page 12)

Green when on---line (using

the telephone line)

Yellow when message is waiting (full

operation subject to Sky services

Insert your Sky

viewing card here

Insert your Interactive card here

when using interactive services,

and only when an instruction to

do so appears on screen

BASIC CONTROLS :

FRONT PANEL AND REMOTE CONTROL

Connection and setting up options

1. If connecting the TV using RF cables only, proceed to option 1.

2. If connecting the TV using Scart and RF cables, proceed to option 2.

3. If connecting the TV to a Q

Link (or Q

Link compatible) VCR, proceed to option 3 on page 7.

Mains

Socket

RF Connection

Connect the RF cable to the

TV Aeria

l socket ( ).

Connect the RF cable from your Satellite dish to the

Dish

input

socket.

1. Connection of TV using an RF cable only

If you experience reception problems,

especially when viewing Digital

Terrestrial Television (DTT) services, see

page 46 for alternative methods of

aerial connection.

Dish Input socket

TV Aerial

socket

Mains

Socket

Scart Connection

The VCR must be connected to the AV2 Scart socket of this TV using a

“

fully wired

”

Scart cable.

Note :

If using a

“Q

Link”

VCR then the AV2 Scart of the TV must be connected to the AV1 socket of the VCR. If your VCR is not

“Q

Link”

VCR, please consult your VCR operating instruction book.

RF Connection

Connect the RF cable to the

Aerial Input

socket of the VCR and an RF cable from the VCR

Aerial Output

socket to

the

TV Aerial

socket ( ).

Connect the RF cable from your Satellite dish to the

Dish input

socket.

2. Connection of TV and VCR using Scart and RF cables

VCR

Mains

Socket

Aerial

Output

socket

TV Aerial

socket

AV2

Scart socket

Aerial

Input

socket

AV1

Scart socket

Dish input socket

If you experience reception problems,

especially when viewing Digital

Terrestrial Television (DTT) services, see

page 46 for alternative methods of

aerial connection.

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/ Video connections can be found on pages 43 and 44.

Further information for VCR installation with this TV can be found on page 38.

QUICK START GUIDE

What is Q-- Link ?

Link allows direct communication between the TV and a Q

Link (or Q

Link compatible) VCR, this will enable features such as

downloading of tuning information from the TV to the VCR.

When using a

“Q

ink”

VCR the main features possible are

he follo

ing :

reset Download

Downloading of tuning information from the TV to the VCR.

Direct TV Record

For immediate recording of the current program (What You See Is What You Record).

TV/VCR Auto ower On

When the VCR plays a tape the TV will automatically switch On and select the AV2 input.

VCR Auto ower Standby

When the TV is switched into Standby, the VCR will also switch into Standby.

VCR Image view On

If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen

(e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

When using a “

NEXTVIEWLINK

”

VCR the main features possible are the following :

reset Download

Downloading of tuning information from the TV to the VCR.

Direct TV Record

For immediate recording of the current program (What You See Is What You Record).

This TV will also communicate with other VCR’s that bear the following logos :

“DATA LOGIC” (a trademark of Metz Corporation).

“Easy Link” (a trademark of Philips Corporation).

“Megalogic” (a trademark of Grundig Corporation).

“SMARTLINK” (a trademark of Sony Corporation).

These VCR’s may support some or all of the above functions. Refer to the VCR operating instruction book.

Further information on Q

Link can be found on page 36.

In order for Q

Link to function correctly, the Scart cables must be connected correctly. Please see page 6, option 2

It is advised, that if you wish to use your VCR in a recording capacity, it must be connected to the AV2 SCARTsocket of your TV.

AV2 out

offers you a choice of signals to send to the AV2 SCART socket. You can choose from the signals currently tuned on the

Analogue

Digital

tuners, or

Monitor

--- the picture displayed on screen.

Using this recording method, you can record a DTT programme whilst watching an analogue programme or vice versa. Similarly,

you can record a DSAT programme whilst watching an analogue programme or vice versa.

NOTE :

You cannot record a DSAT programme whilst watching a DTT programme, or indeed record a DTT programme whilst watching a

DSAT programme.

From the Main menu,

access the Setup menu

Move to AV2 out

Choose the signal you wish

to send to the AV2 SCART socket

If you choose

Analogue

, the TV will send the analogue signal to the AV2 SCART socket.

If you choose

Digita

l, the TV will send the active digital signal (DTT or DSAT) to the AV2 SCART socket.

If you choose

Monitor

, the TV will send whichever program you are currently viewing to the AV2 SCART socket.

NOTES :

If you choose

Digital

, only the active digital signal will be sent. If you switch between digital signals on your TV, the signal sent to your

AV2 SCART socket will also be switched.

Remember to set your VCR to the correct programme position before you start recording. If you have followed the Scart connection

guide on page 6, your programmes will appear on position AV1.

To record a programme using AV2 OUT

QUICK START GUIDE

Programmes will appear immediately if your dealer

has programmed the TV for you.

First, the TV will search for analogue stations.

When the search for analogue stations is complete, the

TV will continue to search for DTT stations.

TV stations will be located, sorted into order and stored

ready for use.

Ensure that the

VCRisinStandbymode

Plug the TV into mains socket and switch ON.

Mains

Socket

DTT Stations

: Are sorted by their logical channel number.

Analogue Stations

: All analogue stations, sorted into channel order.

Stations are sorted into the following order:

The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions.

DTT

BACK UP

This will take about 6 mins.

If both connections are available, you may select

“Aerial and Dish”. See

If you have not connected your dish, select “Aerial

only”. A dish may be installed at a later date. See

Aerial and Dish

The TV set will switch to Sky mode and

automatically detect and store all available

channels. The TV will then tune to the Sky

welcome channel. If you have inserted your Sky

viewing card you will be able to view a

demonstration of how your Sky system works.

Press the

TV/AV

button followed by the

Green

multi function button to switch to DTT mode.

Aerial only

Programmes will appear immediately if your dealer

has programmed the TV for you.

First, the TV will search for analogue stations.

When the search for analogue stations is complete, the

TV will continue to search for DTT stations.

TV stations will be located, sorted into order and stored

ready for use.

QUICK START GUIDE

TV > VCR DOWNLOAD IN PROGRESS

PLEASE WAIT

PROGRAMME : 48

REMOTE CONTROL UNAVAILABLE

TV to VCR Download

If a “Q

Link”, “

NEXTVIEWLINK”

or compatible VCR

has been connected to the AV2 socket before

starting Step 1, programme information will be

downloaded to the VCR.

Only the analogue programme positions will be

downloaded to the VCR, in the correct order.

See page 36.

Not all VCRs support this download of

programme information, some may require to be

started manually.

Refer to the VCR operating instruction book.

If a VCR other than those described above has

been connected, then there will be no download

operation. The TV is now ready for use:

BBC1

Notes :

If the VCR has not accepted download data from the TV,

you may need to select the Download option from the

VCR’s menu system.

Refer to the VCR operating instruction book.

If Q

Link is not operating correctly, check the following :

The Scart cable is connected to the TV’s AV2 Scart

socket.

The Scart cable is connected to the VCR’s compatible (Q

Link,

NEXTVIEWLINK

or similar technology) Scart socket.

The Scart cable is a “fully wired” type.

For further information on Q

Link and connecting equipment, see pages 36, 43 and 44.

Owner ID

As an added feature, this TV has the option of adding a security code (Owner ID) and personal details into its memory,

so that in the unfortunate event of theft it will help the Police to trace the owner.

Enter required 4 digit Owner ID

PIN NUMBER

(using 0 to 9 on the remote control).

QUICK START GUIDE

Enter

NAME, HOUSE NUMBER

and

POSTCODE.

If a 4 digit

PIN NUMBER

was entered

above, you will be taken automatically to

the

NAME

line.

If not, move to the

NAME

line.

Change character.

Select character position.

Repeat above until

NAME, HOUSE

NUMBER

and

POSTCODE

are entered.

Press

to store the details.

Press

again, when you are asked

“Are you sure ?”

For further information on Owner I.D., see page 23.

A space is provided on page 23 to write down the

NUMBER

for future reference

To select the DTT mode, press the

TV/AV

button followed by the

Green

multi function button.

To select the Analogue mode, press the

TV/AV

button followed by the

Blue

multi

function button.

To view a list of the DTT stations that

have been found, press the

TV/AV

button followed by the

Yellow

multi

function button on the remote control

(see page 33).

DTT stations are shown with a

in the

DTT column.

Use the cursor buttons to move the

cursor bar up and down the list.

To view the selected programme press

the

button.

The TV/AV button on the front panel

can also be used for source selection.

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
