Panasonic TX-29P300K Manual de usuario

ColourTelevision

Operating Instructions

Model No.

TQB4G0896

[ tau ]

FLA

DIGI

ThisisacombinedOperatingInstructionmanualforallthe above

series of models.

Please read these instructions before operating your set and

retain them for future reference.

TX-29P300X

TX-29P300K TX-34P300X

TX-34P300K

Warnings and Cautions 4~5

Before OperatingThis Set 6~7

Battery Installation ............................................................................................................................................................... 6

Connecting the Aerial cable to the RF In Terminal .............................................................................................................. 7

Connecting the Plug to the Wall outlet ................................................................................................................................. 7

How to turn the Power On.................................................................................................................................................... 7

Location of Controls 8~9

Remote Control.................................................................................................................................................................... 8

Controls and Terminals on the TV........................................................................................................................................ 9

Connections 10~15

How to connect the “AV1, 2, 3 or 4”Input Terminals .......................................................................................................... 10

How to connect the DVD Input Terminals .......................................................................................................................... 11

How to connect the AV Monitor Output Terminals to other equipment .............................................................................. 11

How to connect the AUDIO-OUT terminals ....................................................................................................................... 12

How to connect the DIGITAL AUDIO INPUT ..................................................................................................................... 12

How to connect External Speakers.................................................................................................................................... 13

How to connect the RGB InputTerminals .......................................................................................................................... 14

Connecting Headphones ................................................................................................................................................... 15

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will

have many years of enjoyment from your new colour television set.

To obtain maximum benefit from your set, please read these Instructions

before making any adjustments, and retain them for future reference.

Retain your purchase receipt also, and note down the Model Number and

Serial Number of your set in the space provided on the rear cover of

these Instructions.

Table of Contents

General Operation 16~17

How to switch the power ON or OFF/STANDBY mode...................................................................................................... 16

Programme Number Selection .......................................................................................................................................... 16

Direct Programme Number Selection ................................................................................................................................ 16

Volume Adjustment ............................................................................................................................................................ 17

TV/AV Mode Selection....................................................................................................................................................... 17

Mute Button ....................................................................................................................................................................... 17

Recall Button ..................................................................................................................................................................... 17

STR.................................................................................................................................................................................... 17

Function selection.............................................................................................................................................................. 17

Geomagnetic Correction 18

Using the On Screen Displays 19

Picture Menu 20~21

Sound Menu 22~23

Setup Menu 24~25

Tuning Menu 26~29

Channel Selection.............................................................................................................................................................. 26

Tuning Menu ...................................................................................................................................................................... 27

Auto tune ........................................................................................................................................................................... 28

Auto tune (via front panel) ................................................................................................................................................. 28

Manual tune ....................................................................................................................................................................... 29

Manual tune (via front panel) ............................................................................................................................................. 29

Aspect Controls 30

Menu Operation 31~32

Multi PIP ............................................................................................................................................................................ 31

Channel search.................................................................................................................................................................. 32

Surround Sound 33~35

Surround Sound Systems.................................................................................................................................................. 34

DTS / Dolby Digital and Pro Logic modes ......................................................................................................................... 35

Simulated mode................................................................................................................................................................. 35

Speaker level setup ........................................................................................................................................................... 35

Advanced Remote Control Operation 36~39

Stereo Reception ............................................................................................................................................................... 36

VCR / LD / DVD ................................................................................................................................................................. 37

TELE TEXT........................................................................................................................................................................ 38

Channel Allocation 40

Troubleshooting 41

Specifications 42~43

Table of Contents

Warnings and Cautions

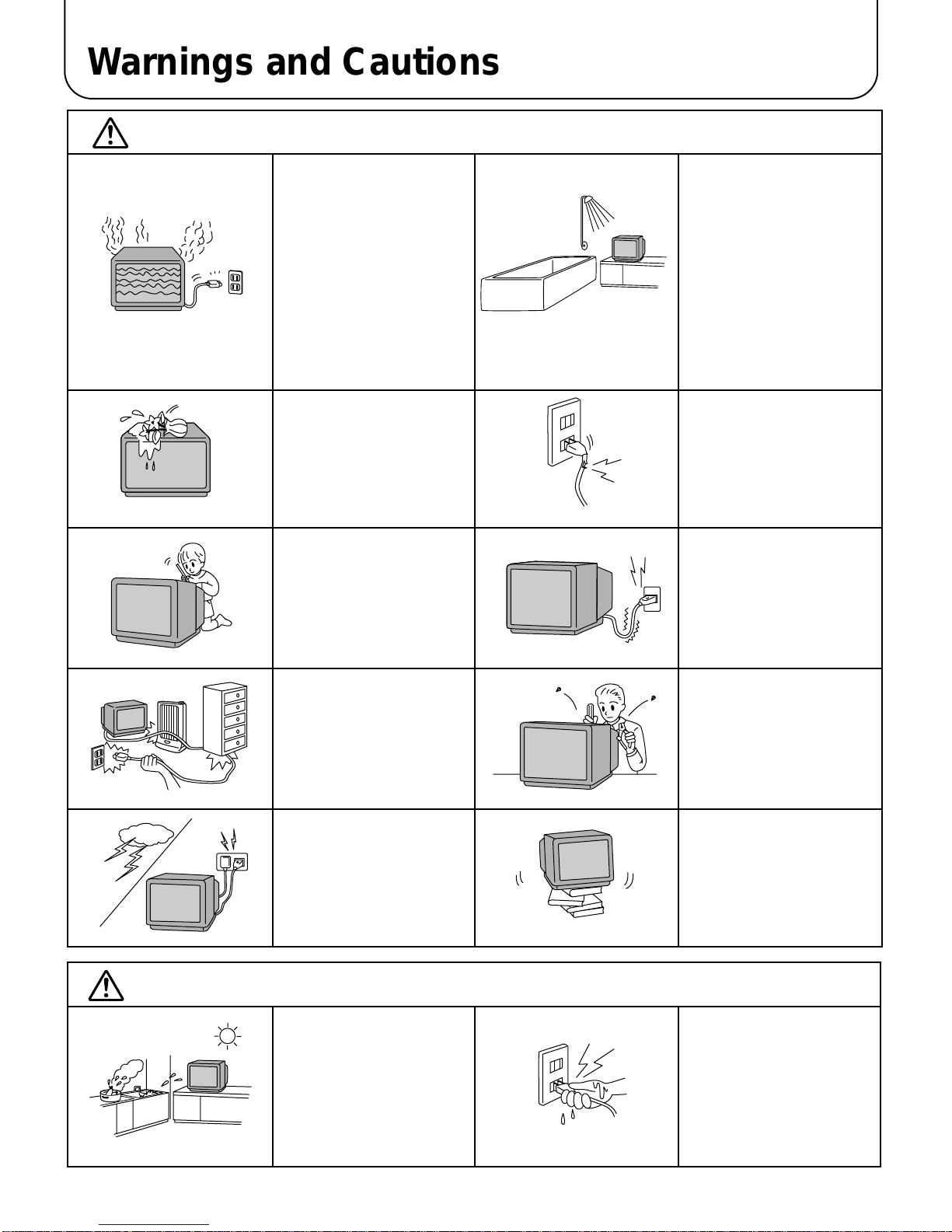

Warnings Unplug the power cord in the

event of any malfunction

(screen goes blank, no sound,

oddsounds,smokeorunusual

odours coming from the unit).

Unplug the power cord if

foreign matter or water falls

into the unit, or if the unit is

dropped or the cabinet is

damaged.

DO NOT place any of the

following on the unit:

Flower vases, flower pots,

cups, small metal objects, or

cosmetics containers,

chemicals or water.

DO NOT insert foreign objects

(metal or easily flammable

objects).

TAKE CARE NOT to damage

the power cord.

DONOTtouch the aerial cable

and this unit when there is

lightning.

DO NOT place in humid or

dusty location, or areas

exposedto smokeorsteam.

DO NOT place in direct

sunlight and other sources

of direct heat.

DO NOT use this unit near

water. (near a bath tub, etc.)

DO NOT use if the power cord

or power plug is damaged, or

if the plug does not fit tightly

into the socket.

DO NOT remove the rear

cover as live parts and High

Voltage components are

accessible when the rear

cover is removed.

DO NOT place in an unstable

location.

DO NOT touch the power plug

if your hands are wet.

DONOTuseat a voltage other

than indicated.

Cautions

DONOTstand, orplace heavy

objects on the unit.

Particular careshouldbetaken

by families with small children.

Adequate ventilation is

essential to prevent failure of

electrical components, we

recommend that a gap of at

least 10cm( ) is left all

around this unit even when it

is placed inside a cabinet or

between shelves.

Before cleaning, unplug the

power plug from the socket.

Unplugthepowerplug fromthe

socket if you are not going to

use the unit for an extended

period.

The unit contains many plastic

parts.For this reason DO NOT

use benzine, thinner or other

chemicals to clean the unit.

DONOTbringinto contactwith

insecticide or other volatile

substances.

DONOTallowthe unitto come

into contact for extended

periods with rubber or vinyl

products.

Placein a safelocation.

Turn the power “Off” before

connecting other electrical

equipment.

DO NOT jolt the unit.

Ask your sales outlet to install

the aerial.

Dust will accumulate on the

picture screen. Please wipe

with a soft cloth from time to

time. If you use a chemically

treatedcloth, please becareful

to follow the instructions that

come with the cloth.

Remove dirt and soiling by

wiping with a light cloth.

Evenif theunitis heavilysoiled,

donotapply cleaner directly to

the unit. Soak a cloth in a

solution of neutral cleanser

thinned with water.Then wring

out the cloth, wipe the unit

clean,and finishbywiping with

a dry cloth.

Cleaning

Caution

Warnings and Cautions

Before OperatingThis Set

Battery Installation

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the

batteries to burst.

Old Batteries New Batteries

Replace both batteries at the same time. Don't mix battery types

(alkaline with carbon zinc, etc.) Don't Recharge.

Do not use rechargeable (Ni-Cd) batteries.

They are different in shape and performance and may fail to ensure correct operation.

Replace the cover, and slide in reverse until the lock

snaps.

Two “R6 (AA)”size

Batteries: Use two “R6 (AA)”size batteries.

Insert the batteries ensuring correct polarity.

Thisisidentifiablebythe“+”and“−”symbolsonboththebatteries

and inside the battery compartment.

Open the cover.

Applyslightdownwardpressurewhilepullingtowardsthebottom.

Battery cautions

Before Operating This Set

Connecting the Aerial cable to the RF In Terminal

To obtain optimum quality picture and sound, an Aerial, the correct cable (75

Ohm coaxial) and the correct terminating plug are required.

If a communal Aerial system is used, you may require the correct connection

cable and plug between the wall Aerial socket and your television receiver.

Your local Television Service Centre or Dealer may be able to assist you in

obtaining the correct Aerial system for your particular area and accessories

required.

Any matters regarding Aerial installation, upgrading of existing systems or

accessories required, and the costs incurred, are the responsibility of you, the

Customer.

UHF Aerial

RF In Terminal

Coaxial Aerial Plug

VHF Aerial

Mixer

75 Ohm

Coaxial Cable

AV1

IN AV2

IN AV4

MONITOR

OUT

AUDIO-OUT

FRONT

CENTRE SUBWOOFER

REAR

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-Pa-P

]

DVD

[Y-Pa-P

]

OPTICAL

COAXIAL

FRONT

REAR

PCM/AC-3

DIGITAL AUDIO INPUT

EXT.

RF in

Terminal

Coaxial aerial plug

75 Ohm Coaxial Cable

Press the Power switch on Television to turn the set on. (See page 16)

How to turn the Power On

Note:

•Mains plug types vary between countries.The mains plug shown at left

may therefore not be the type fitted to your set.

Connecting the Plug to the Wall outlet

100Hz PROGR

Location of Controls

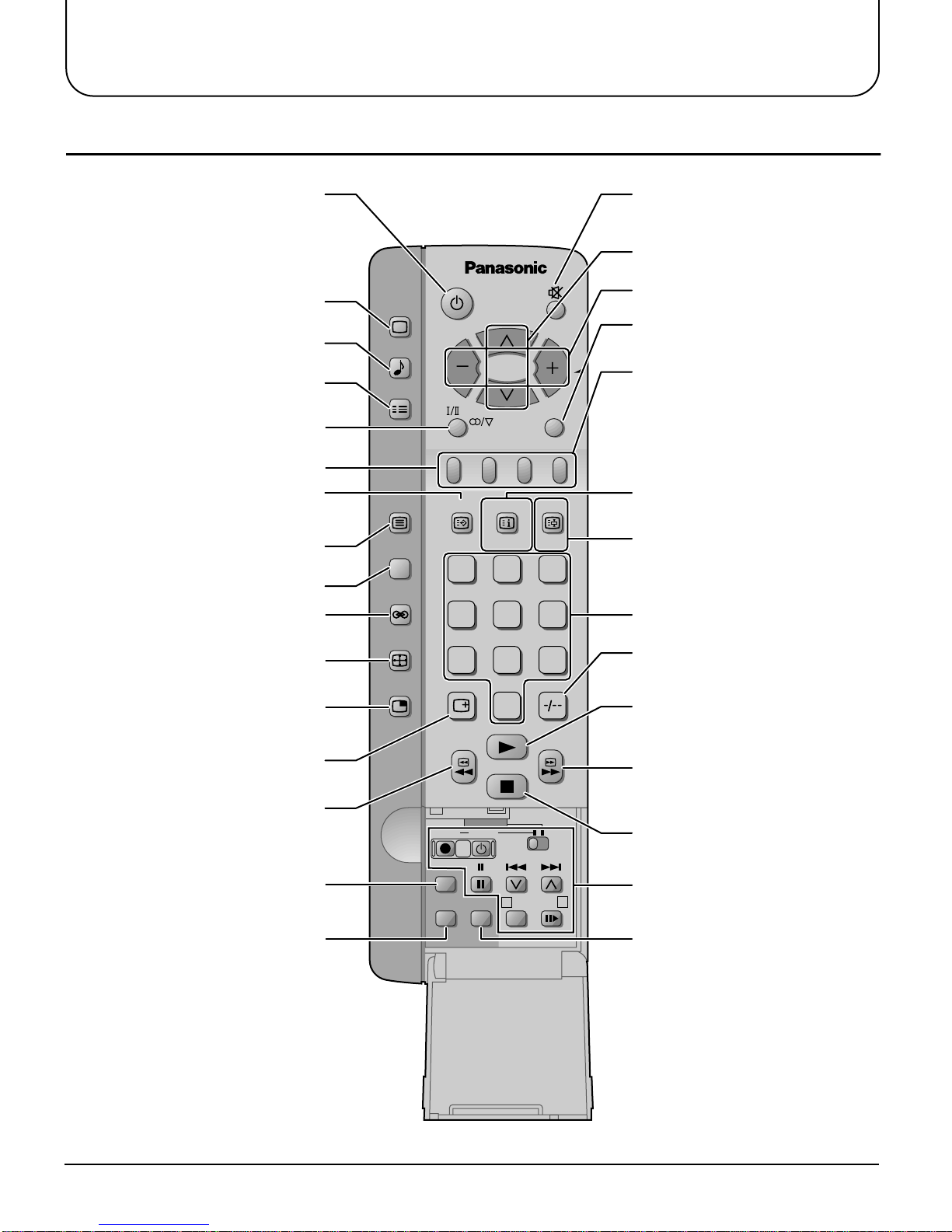

Remote Control

REC VCR

STR HELP

DISC SIDE

LD/DVD


SOUND

SET UP

TV/TEXT

F.P. INDEX

STILL

HOLD

100Hz/

PROGRE

SURROUND

ASPECT

123

456

789

MULTI

PIP

CH SEARCH

TV/AV

Sound Mute (see page 17)Power (Stand-by) (see page 16)

Picture Menu (see page 20)

Sound Menu (see page 22)

Set up Menu (see page 24)

Stereo/Bilingual Sound Selection

(see page 36)

TELE TEXT (see page 38)

TV/TEXT Selection (see page 32)

TEXT Favourite Page Selection

(see page 39)

100Hz/PROGRE (see page 21)

Surround (see page 22)

Aspect (see page 30)

Picture in Picture Selection

(see page 31)

Recall (see page 17)

VCR/LD/DVD Rewind/Review

(see page 37)

Normalization (see page 21)

Store (see page 17)

Programme Number Up and Down

(see page 16)

Volume Up and Down (see page 17)

TV/AV Mode Selection (see page 17)

Direct programme Number

Two Digit-programme Number

Selection (see page 16)

VCR/LD/DVD Play (see page 37)

TEXT hold (see page 32)

/Still (see page 32)

TEXT Index (see page 39)

/Channel Search (see page 32)

Coloured buttons used for

Aspect functions (see page 30)

Teletext functions (see page 38)

AV selection (see page 17)

VCR/LD/DVD Fast Forward/Cue

(see page 37)

VCR/LD/DVD Stop (see page 37)

VCR/LD/DVD Control (see page 37)

Help (see page 19)

Location of Controls

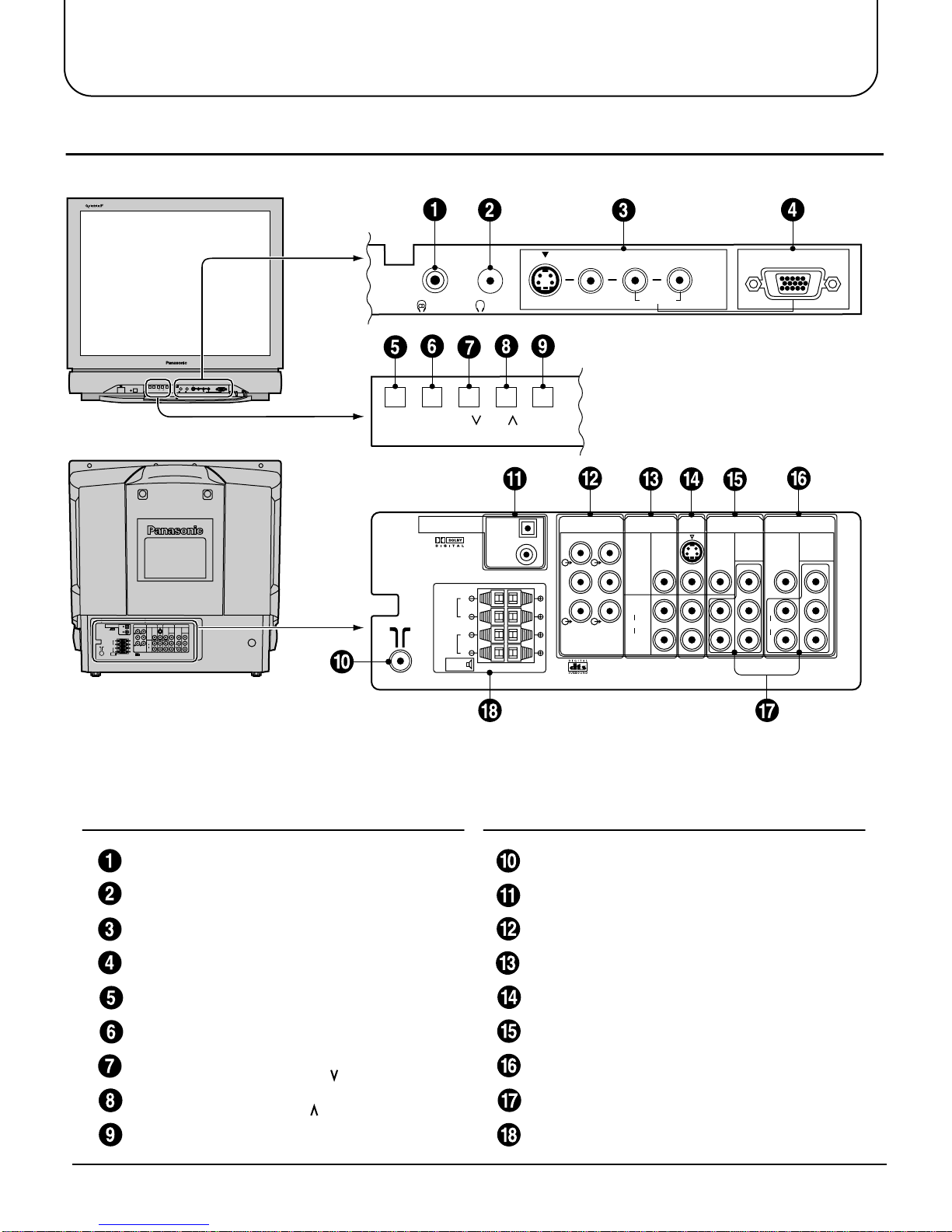

Controls and Terminals on the TV

STR F–/ +/ TV/AV

AV1

IN AV2

IN AV4

MONITOR

OUT

AUDIO-OUT

FRONT

CENTRE SUBWOOFER

REAR

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-Pa-PR]

DVD

[Y-Pa-PR]

OPTICAL

COAXIAL

FRONT

REAR

PCM/AC-3

DIGITAL AUDIO INPUT

EXT.

AV1

IN AV2

IN AV4

MONITOR

OUT

AUDIO-OUT

FRONT

CENTRE SUB WOOFER

REAR

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

OPTICAL

COAXIAL

FRONT

REAR

PCM/AC-3

DIGITAL AUDIO INPUT

EXT.

Main Sub. S-VIDEO VIDEO

AUDIO

RL/MONO RGB (31.5kHz)

AV3

Main Sub. S-VIDEO VIDEO

AUDIO

RL/MONO RGB(31.5kHz)

AV3

STR F–/ +/ TV/AV

Item

No. Function Refer to

Page Item

No. Function Refer to

Page

Main Headphones Jack 15

Sub Headphones Jack 15

AV3 Input Terminals 10

RGB Input Terminal 14

STR 17

Function 17

Volume Down (−) /

Volume Up (+) / 16

TV/AV Selection 17

Aerial Terminal (RF In Terminal) 7

Digital Audio Input Terminals 12

Audio Output Terminals 12

Monitor Output Terminals 11

AV1 Input Terminals 10

AV2 Input Terminals 10

AV4 Input Terminals 10

DVD (Y

•

PR) Input 11

Speaker Output 13

Programme Number

Down ( )

Programme Number

Up ( )

How to connect the “AV1, 2, 3 or 4” Input Terminals

AV1

VIDEO

AUDIO

(Super-VHS VCR)

Audio

OUT Video

OUT S-Video

OUT

(VHS VCR)

VIDEO

AUDIO

Audio

OUT Video

OUT

AV1

MONO

S Video

input

( )

MONO

AV1

IN AV2

IN AV4

MONITOR

OUT

AUDIO-OUT

FRONT

CENTRE SUB WOOFER

REAR

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

AV1

IN AV2

IN AV4

MONITOR

OUT

AUDIO-OUT

FRONT

CENTRE SUB WOOFER

REAR

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

Connect VCRs and other peripheral equipment

Notes:

• When an S-Video cable is connected to the S-Video terminal, the Video input will be automatically switched off for that

AV mode.

• When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.

• Select the desired AV input position by pressing the TV/AV button. (Refer to page 17)

• Input 3 is located on the front of the unit.

• The AV2 and AV4 audio input terminals serve as the audio input terminal for both theVideo input and for the DVD input

AV2.

Connections

Otros manuales para TX-29P300K

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic Viera TH-42PZ77 Manual de usuario

Panasonic

Panasonic TX-28PL1 Manual de usuario

Panasonic

Panasonic TX-48CX300E Manual de usuario

Panasonic

Panasonic TX-76PW05A Manual de usuario

Panasonic

Panasonic CT27E33 - 27" TV Manual de usuario

Panasonic

Panasonic Viera TH-42PH11 Guía del usuario

Panasonic

Panasonic TH-37PA30E Manual de usuario

Panasonic

Panasonic TX-P54Z11E Manual de usuario

Panasonic

Panasonic TX-28LD1 Manual de usuario

Panasonic

Panasonic Viera TH-42PZ700 Guía de configuración

Panasonic

Panasonic QuintrixF TX-32PS10D Manual de usuario

Panasonic

Panasonic PT-50LC13 - 50" Rear Projection TV Manual de usuario

Panasonic

Panasonic CT27E33 - 27" TV Manual de usuario

Panasonic

Panasonic TX-24C300E Manual de usuario

Panasonic

Panasonic TC-14S2R Manual de usuario

Panasonic

Panasonic TX-32PM1F Manual de usuario

Panasonic

Panasonic TX-79P25Z Manual de usuario

Panasonic

Panasonic TX-28MD4P Manual de usuario

Panasonic

Panasonic Viera TH-50PE700 Manual de usuario

Panasonic

Panasonic TX-21AT1L Manual de usuario

Panasonic

Panasonic CT2005SB - 20" COLOR TV Manual de usuario

Panasonic

Panasonic Viera TC-P42UT50 Manual de usuario

Panasonic

Panasonic TH-42PX80U Guía de inicio rápido

Panasonic

Panasonic QuintrixF TX-29AL1F Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
