TQB0E0016eng---M

TX---29N22D

Colour television

Operating Instructions

English

This is an unapproved issue for your information only

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment

from your new colour television. This is a very advanced television; however, the Quick Start Guide will

tell you how to have the TV operating quickly. You can then read the instructions completely and retain

them for future reference.

Warnings and Precautions 3..........

Accessories 4.......................

Quick Start Guide 5..................

Basic Controls 8.....................

Using the On Screen Displays 9.......

Aspect controls 10...................

Still Control 11.......................

Picture and Text 11...................

Picture Menu 12.....................

Sound Menu 13......................

Setup Menu 14.......................

Tuning Menu 15......................

Tuning Menu -- Programme edit 16....

Tuning Menu -- Auto Setup 20.........

Tuning Menu -- Manual tuning 21.....

Q-- Link 22...........................

OSD Language 23...................

VCR/DVD Operation 24...............

Te l e te x t Op e ra ti o n 2 5................

Audio / Video (AV) Connections 27....

AV Select and Setup 27...............

Front sockets 27......................

SCART and S-- Video Socket

information 28........................

Rear sockets 29......................

Troubleshooting 30..................

Foryourguidance 31................

Specifications 31....................

WELCOME

CONTENTS

DThis TV set is designed to operate on A.C.

220 -- 240V, 50Hz.

DTo prevent damage which might result in

electric shock or fire, do not expose this TV

set to rain or excessive moisture. This TV

must not be exposed to dripping or splashing

water and objects filled with liquid, such as

vases, must not be placed on top of or above

the TV.

DWARNING : HIGH VOLTAGE !!!

Do not remove the rear cover as live parts are

accessible when it is removed. There are no

user serviceable parts inside.

DAvoid exposing the TV set to direct sunlight

and other sources of heat. To prevent fire,

never place any type of candle or naked flame

on top of, or near the TV set.

DThe On/Off switch on this model does not fully

disconnect the TV from the mains supply.

Remove the mains plug from the wall socket

when the TV set is not used for a prolonged

period of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket.

The cabinet and picture tube can be cleaned

with a soft cloth moistened with mild

detergentandwater.Donotusesolutions

containing benzol or petroleum. TV sets can

produce static electricity, care must be taken

whenever touching the TV screen.

DAdequate ventilation is essential to prevent

failure of electrical components, we

recommend that a gap of at least 5cm is left all

around this television receiver even when it is

placed inside a cabinet or between shelves.

HTV GAMES / HOME COMPUTERS

Extended use of TV games or home computers

with any television set can cause a permanent

‘shadow’ on the screen. This type of irreversible

picture tube damage, can be limited by observ-

ing the following points:

DReduce the brightness and contrast levels

to a minimum viewing level.

DDo not operate the television set for a

continuous period of time while using TV

games or home computers.

DThistypeofpicturetubedamage,isnotan

operating defect, and as such is not

covered by the Panasonic warranty.

HSLEEP FEATURE

If the set is not switched off when the TV station

stops transmitting , it will automatically go to

standby mode after 30 minutes. This function

will not operate when the TV is in AV mode.

WARNINGS AND PRECAUTIONS

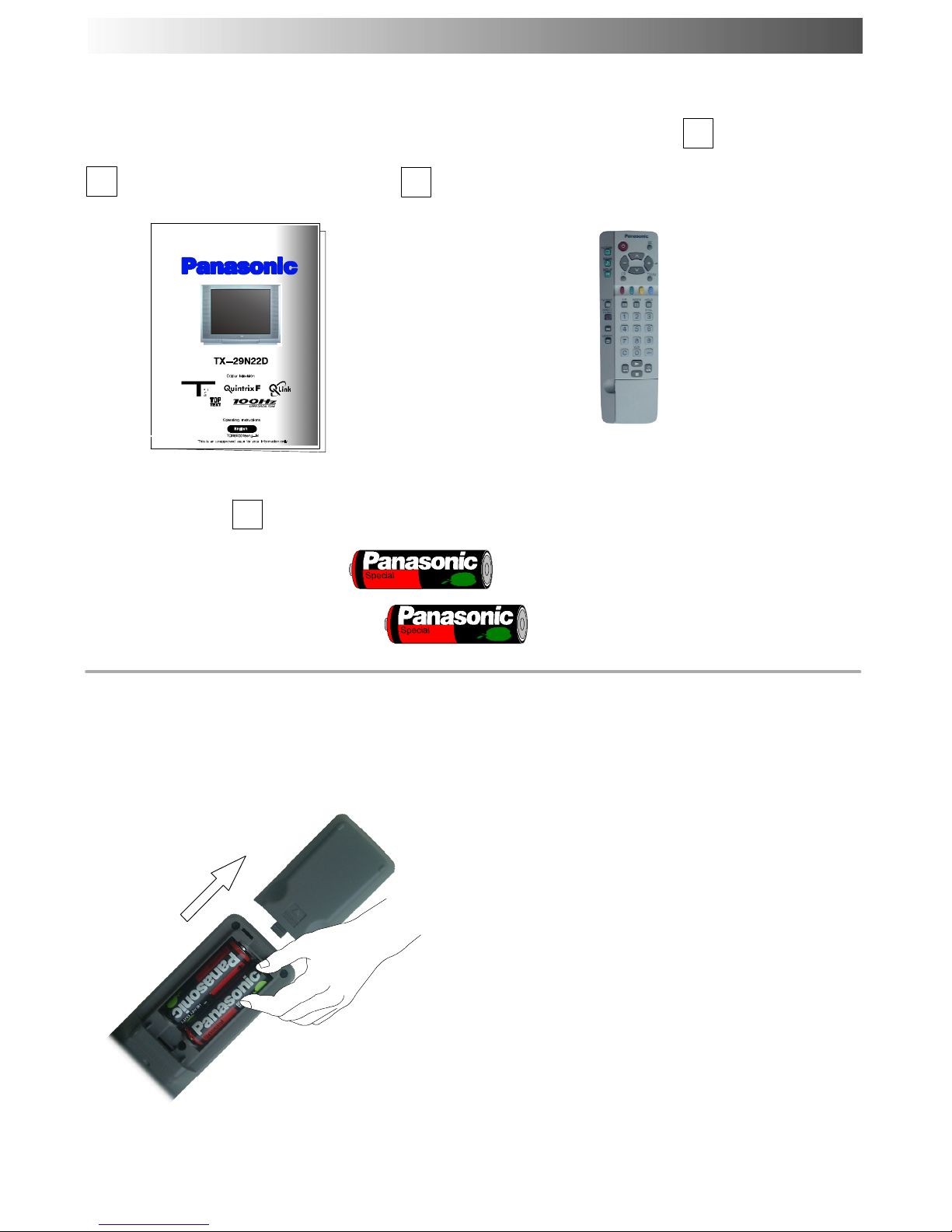

Batteries for the Remote Control Transmitter.

(2 x R6 (UM3) size)

Check that you have the accessories and items shown

Operating Instruction book

DMake sure that the batteries are fitted the

correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted batteries

immediately.

DDonotmixdifferentbatterytypes,i.e.

Alkaline and Manganese or use

r e ch a r g ea b le ( N i --- C d , N i --- M H ) b a t te r i es .

Remote control batteries

Remote Control Transmitter EUR511212A

ACCESSORIES

VCR/DVD

AV2

AV1

AV2

AV1

Plug in aerial and connect ancillary equipment.

SATELLITE RECEIVER

First, ensure that the VCR is in Standby

mode.

Plug in TV and switch on.

QUICK START GUIDE

DIf the VCR has not accepted download data from the TV, you may need to select the Download

option from the VCR’s menu.

DIf Q---Link is not operating correctly, check it is connected to the television’s AV2 socket, the

SCART lead is a “full function” type, and the VCR is compatible with Q---Link, NEXTVIEWLINK or

similar technologies. Ask your dealer for further details.

DFor further information on Q---Link and connecting equipment, see pages 22, 23, 27 and 29.

5If you are installing a new Q---Link compatible VCR, you can now switch it ON. Downloaded

tuning data will match the television’s.

If you are installing a new NEXTVIEWLINK compatible VCR, you will need to initiate download

manually.

See the VCR handbook for details.

Select your country.

Auto setup will begin, your stations will

be located and stored.

Use the Programme Edit menu to

delete unwanted stations

(see page 16).

Press the TV/AV button to exit.

Press the red button.

TV/AV

6WerecommendthatassoonastheAuto setup feature is completed, the picture controls

are reset to normal viewing levels. To do this, press the ”N” button, found under the remote

control’s pull down flap.

QUICK START GUIDE

Pressandreleaseheretoopenflap

Slight tilting of the picture may be noticeable or coloured patches may sometimes appear

at the corners of the screen (colour purity). The Geomagnetic Correction feature can be

used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete. The screen should

not be showing any On---Screen Display menus.

Press the Fbutton repeatedly until the Geomagnetic Correction feature

is displayed.

Press the +or --- buttons repeatedly until the picture appears to be level.

Press the Fbutton again to return to normal viewing. Close the flap to

prevent damage.

Adjust Volume

Change Programme

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

Using the remote control keys indicated, access the Geomagnetic Correction menu

option and follow the procedure below (for a full explanation of the On Screen Display

menu system see page 9) :

Press the SETUP menu button

Move to the Geomagnetic menu option

Access the Geomagnetic menu

Adjust the picture tilt as necessary

Press the TV/AV button to exit the SETUP menu

The function ’geomagnetic correction’ is also accessible from the front panel.

SET UP

TV/AV

--- / v

QUICK START GUIDE

Switch between viewing TV or

AVinput(seepage27)

Standby ON/OFF switch

Switches TV On or Off standby

Programme position for selec-

tion of two digit programmes

(10-- 99) using numeric buttons.

P r e s s t h e “ C ” a n d “ --- / --- --- ”

buttons for Direct Channel Ac-

cess in hyperband.

Programme / channel change

buttons (0-- 9) and Teletext page

buttons (see page 25)

Menu buttons

Press to access the Picture,

Sound

and Setup menus (see page 9).

Sound mute On/Off

Direct Channel Access

During normal TV viewing or

when in the Tuning,

Programme edit or Manual

tuning menus, press and then

enter channel number using

the numeric buttons.

Teletext buttons (see page 25)

Coloured buttons used for

Programme Edit functions (see

page 16)

Teletextfunctions(seepage25)

AV selection (see page 27)

MAINS

Power On/Off

switch

STR (Normalisation store)

Used to store tuning and other function set-

tings

F(Functionselect)

Displays the On Screen Display functions, use

repeatedly to select from the available

functions -- Volume, Contrast, Brightness,

Colour, Sharpness, Tint (in NTSC mode), Bass,

Treble, Balance, Tuning mode and

Geomagnetic Correction.

Increases or decreases the programme

position by one. When a function is already

displayed, press to increase or decrease the

selected function.

TV/AVswitch(seepage27)

Headphonesocket(seepage27)

RCA Audio/Video sockets

(page 27)

Red light indicates Standby mode.

The N button will recall settings

stored with STR.

STR (Normalisation store)

Cursor buttons to make

selections and adjustments.

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 22)

Status button

Press to display programme

position, programme name,

channel number, TV system,

time stereo mode

and programme table.

VCR / DVD buttons

(see page 24)

S --- V H S s o c k e t ( s e e p a g e 2 7 )

Aspect control button

(see page 10)

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to

increase or decrease their level.

Some selections, for example, Off timer,allowachoicetobemade.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are used to open the

main menus and also to return to the previous menu.

The up and down cursor buttons are used to move the cursor up and

down the menus.

The left and right cursor buttons are used to access menus, adjust levels

or to select from a range of options.

The STR button is used to store settings after adjustments have been

made or options have been set.

The TV/AV button is used to exit the menu system and return to the

normal viewing screen.

PICTURE SOUND SET UP

STR

TV/AV

An On Screen Help box is displayed whenever a menu is displayed on the TV. This Help box indicates

which keys on the remote control are used to navigate the menu shown, see above for descriptions

of button functions.

Note:

DIf the HELP button is pressed while a

menu is displayed, the ’Instructions’ box

will be hidden from view. Press the HELP

button again to show the ’Instructions’

box.

DTheHelpboxisnotshowninthemenu

pictures in this instruction book due to

space limitations.

The HELP button runs a demonstration of

the menus available.

Press ∧∨buttons and select one of the

options

Last Position Memory

Certain functions have a last position

memory,i.e.thesettingatthetimeof

switch-- off will be the setting used when the

receiver is switched on again:

USING THE ON SCREEN DISPLAYS

ON SCREEN HELP

’Instructions’ box

MENU TV/AV

HOW TO USE THE MENUS

Press the MENU keys to

open or close the menus

Use the ∨∧ keys on the

remote to move between

menu options

Usethe+-keysto

adjust the chosen option or

to access the chosen menu

Press the TV/AV key to

go back to watching TV

Help menu

External Connection

Menu demonstration Access

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-NR Off

AI On

Select

Change

Exit

TV/AV

HELP

Press the ASPECT button to move through the four aspect options: Auto, 4:3, 16:9 and

S --- Z o o m .

Auto

Selecting AUTO mode of this TV will

automatically cause the TV to display any

incoming picture at its correct format, i.e. 16:9 or

4:3.

4:3

4:3 will display a 4:3 picture at its standard 4:3

size and can be selected if you wish to view in this

format.

16:9

16:9 will diplay a 16:9 picture at its standard 16:9

size and can be selected if you wish to view in this

format.

ASPECT CONTROLS

Auto

4:3

16:9

4:3

16:9

ASPECT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic Viera TH-L32X15M Manual de usuario

Panasonic

Panasonic TX-21S1T Manual de usuario

Panasonic

Panasonic TC-21Z99M Manual de usuario

Panasonic

Panasonic TX-25MD1P Manual de usuario

Panasonic

Panasonic TX-36PG50 Manual de usuario

Panasonic

Panasonic Viera TH-P50X20K Manual de usuario

Panasonic

Panasonic TC-14Z99R Manual de usuario

Panasonic

Panasonic TC-20KL04A Manual de usuario

Panasonic

Panasonic TX-14JT1CV Manual de usuario

Panasonic

Panasonic TX-28LK1F Manual de usuario

Panasonic

Panasonic TX-40CXW704 Instrucciones de montaje

Panasonic

Panasonic Viera TH-40CS610A Manual de usuario

Panasonic

Panasonic TX-21JT2P Manual de usuario

Panasonic

Panasonic TX-28SK10F Manual de usuario

Panasonic

Panasonic TX-36PF10 Manual de usuario

Panasonic

Panasonic TC-51PM10ZQ Manual de usuario

Panasonic

Panasonic CT36HL43G - 36" COLOR TV Manual de usuario

Panasonic

Panasonic TX-21PM30T Manual de usuario

Panasonic

Panasonic Viera TH-L32XM5Z Manual de usuario

Panasonic

Panasonic Viera TH-60AS640A Manual de usuario

Panasonic

Panasonic TX-48CX350B Manual de usuario

Panasonic

Panasonic TC-21FG20M-MALAYSIA Manual de usuario

Panasonic

Panasonic CT-31XF43U Manual de usuario

Panasonic

Panasonic Viera TC-50PX34 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
