TQB8E3013---eng

TX---21JT1C/V

TX---14JT1C/V

Contrast Auto Tracking System

Please read these instructions completely before use and retain them for future reference.

English

Operating Instructions

Colour television

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your new colour television.

The best way to understand the features of this television is to read this book thoroughly, before operating the set.

This television has a low power consumption making it very cost effective to run.

To this end, the standby power consumption is merely 1 watt.

CONTENTS

DWarnings and Precautions 3...................

DGeneral Information 3.........................

DAccessories 4................................

DFitting Remote Control Batteries 4..............

DInstallation and Set---up 5......................

DLocation of Controls 7.........................

DMenu Operation 8............................

DTeletext Operation 10..........................

DAudio / Video Connections 11...................

DVCR Operation 12.............................

DTrouble---shooting 13..........................

DScart Terminal Information 13...................

DSpecifications 14.............................

WARNINGS AND PRECAUTIONS

DThis T.V. is designed to operate on A.C. 220 --- 240V, 50Hz.

DDo not expose this TV set to rain or excessive moisture.

DWARNING: HIGH VOLTAGE !

Do not remove the rear cover, there are no user

serviceable parts inside.

DAvoid exposing the TV set to direct sunlight or other

sources of heat.

DRemove the mains plug from the wall socket when the TV

set is not to be used for a prolonged period of time. Do not

pull the power cable to remove the mains plug from the

socket, always remove it by the plug.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet

and picture tube can be cleaned with a soft cloth

moistened with mild detergent and water. Do not use

solutions containing benzol or petroleum. TV sets can

produce static electricity, care must be taken whenever

touching the TV screen.

DAdequate ventilation is essential to prevent failure of

electrical components. We recommend that a gap of at

least 5cm is left all around this TV even when it is placed

inside a cabinet or between shelves.

GENERAL INFORMATION

Sleep Feature

If the set is not switched off when the TV station stops transmitting , it will automatically go to standby mode after 30 minutes. This

function will not operate when in AV mode.

Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch off will be the setting used when the receiver is

switched on again:

Programme position Colour Volume

Contrast Brightness Standby

S h a r p n e s s S t a t u s C --- A --- T --- S

ACCESSORIES

Batteries for the

Remote Control Transmitter.

(2 x R6 (UM3) size)

Remote Control Transmitter

EUR511300

Operating Instruction

book

Check that you have the accessories and items shown

Telescopic Antenna

(TX---14JT1C/V)

TSA---120026

FITTING REMOTE CONTROL BATTERIES

Replace the coverSlide off the battery cover Insert batteries --- note correct polarity

12 3

DMake sure that the batteries are fitted the correct way round.

DDo not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

DDo not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni---Cad) batteries.

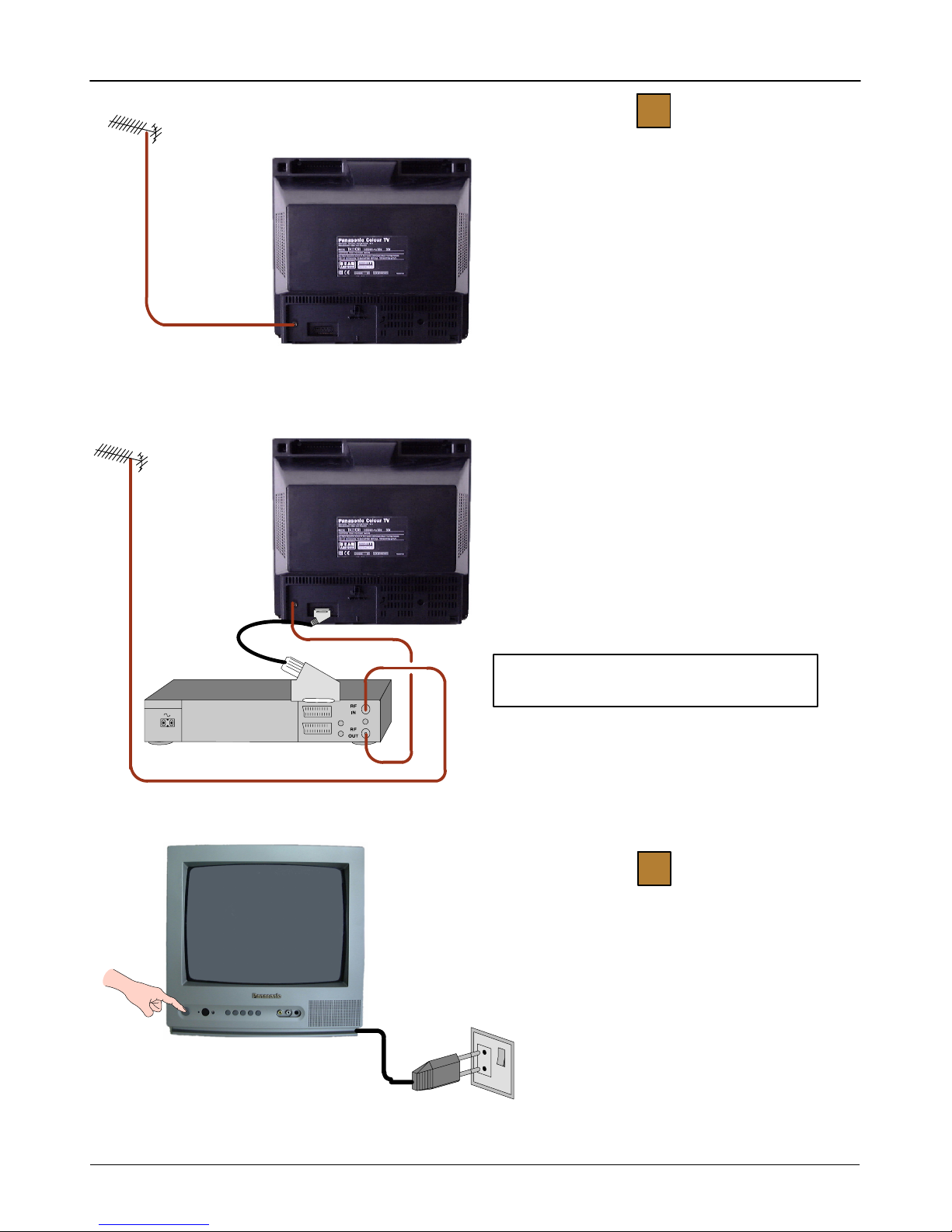

INSTALLATION AND SET---UP

Further details of Audio/ Video connections

can be found on page 11.

Connect Aerial co---axial cable direct

to TV RF IN socket.

Connect aerial co---axial cable to RF Input socket of

VCR and a RF co---axial cable from VCR RF Out

socket to TV RF IN socket.

TheVCRcanalsobeconnectedtotheTVusinga

SCART to SCART lead.

Ancillary equipment and leads are not supplied.

USING A VCR

TV only

Switch ON your VCR. *1

Plug the TV into a mains socket and switch ON.

Programmes will appear immediately if your dealer

has programmed the TV for you.

VCR

*1 We recommend that you switch ON the VCR’s test signal --- refer to your VCR instruction book.

INSTALLATION AND SET---UP

The first available channel will be

displayed.

Switch the VCR test signal ’Off’.

Programme change

Volume adjust

Choose the desired language from the

OSD language selection.

Press TV/AV button to start ATP.

3TV stations will be located, sorted into

order and stored ready for use. *1

OSD Language

DGB FIE

SNL

--- / + : A d j u s t

TV/AV : Start ATP

N:Exit

ATP

02 99 : 21

CH02

CH41

TELETEXT

*1 The sorting order depends upon the TV signal, the broadcasting system, and reception conditions. If the order is not to your

preference it can be rearranged. Refer to the Tuning menu Swap feature --- see page 9 for details.

*2 It is important that you only use TV programme position ‘0’ to view your VCR. If your VCR picture does not appear on programme

position ‘0’ (the VCR position), it will be necessary to either adjust the RF channel of the VCR or to adjust the tuning of the TV’s

programme position ’0’ until the RF output of the VCR is received.

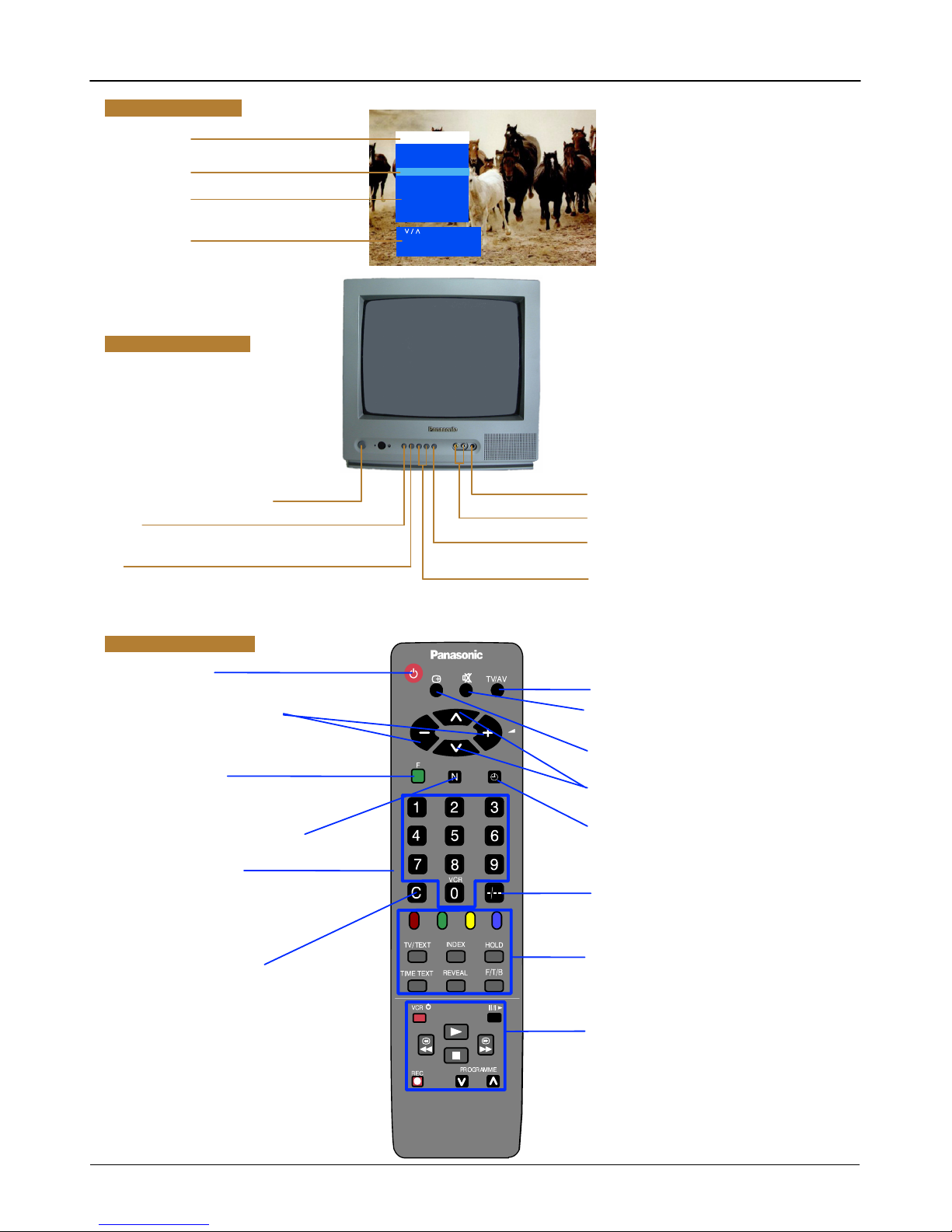

LOCATION OF CONTROLS

: Select

--- / + : A d j u s t

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

OSD Language

English

VCR keys (Page 12)

Mains Power On/Off switch

STR

Stores tuning and other function settings

Selects a function from : Volume, Contrast,

Brightness, Colour, Sharpness, C ---A ---T---S and

Manual Tuning.

TV / AV

Switches between TV and AV modes

RCA Audio/Video sockets

Headphone socket

Teletext keys (Page 10)

Off timer

Direct channel access

Press and enter channel

number using numeric keys

Numeric keys for :

Programme change

Direct channel access

Telete x t o p e r a tion

Standby On/Off

Status : Displays programme position,

channel number, time and teletext station

name

Sound mute On/Off

Switches between TV and AV modes

(Page 11)

Channel up/down and Menu option select

Adjusts currently selected

function. Adjusts the volume

if no function is selected

Selection of programmes 10---60 using

numeric keys

Function Select

Press to display the On

Screen Menus (Page 8)

Restores the levels previously

set with STR (TV front panel)

On Screen Displays

Menu Title

Cursor Bar

Sub Menu

Commands

Front Panel Controls

Remote Control keys

/ --- , /+

Programme up / down.

When a function is already displayed,

allows adjustment of the function.

Select

Adjust/Access

Display Menu /

Previous Menu

Exit Menu

ATP start

Manual Tuning store

Programme Swap

Store in Tuning menu

: Select

---/+ : Adjust

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

OSD Language

English

Brightness

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

OSD Language

English

: Select

---/+ : Adjust

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

OSD Language

English

MENU OPERATION

Main Menu

Contrast

Brightness

Colour

Sharpness

The Contrast, Brightness, Colour and Sharpness may be altered

to suit the viewing conditions and personal preferences.

C --- A --- T --- S : C o n t r a s t A u t o Tr a c k i n g S y s t e m

Automatically adjusts the contrast setting to compensate for

any changes in the ambient lighting of the surroundings.

To obtain best results first set the Contrast to maximum, to

a l l o w a g r e a t e r o p e r a t i n g r a n g e f o r C --- A --- T --- S , t h e n s e l e c t

one of the 3 settings as desired.

C --- A --- T --- S

Off

C --- A --- T --- S

Medium Sensitivity

C --- A --- T --- S

High Sensitivity

OSD language

The OSD language menu will allow you to change the language

used for all on screen menus.

D --- G e r m a n

G B --- E n g l i s h

F --- F r e n c h

I --- I t a l i a n

E --- S p a n i s h

S --- S w e d i s h

N L --- D u t c h

: Select

--- / + : A c c e s s

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

OSD Language

English

: Select

--- / + : A c c e s s

TV/AV: Store

F : Previous Menu

N:Exit

Tuning Menu

ATP

Manual Tuning

Fine Tuning

Swap

CH21

ATP

TV/AV : Start ATP

F : Previous Menu

N:Exit

Function select /

Exit

Store

Change programme position

Manual Tuning

TV/AV : Prog.

--- / + : S t a r t S e a r c h

STR : Store

F, N : E x i t

02 41

99 : 21

CH21

MENU OPERATION

Tuning Menu

The Tuning menu provides access to both manual and automatic

tuning menus.

ATP

The ATP menu allows you to automatically retune the TV,

particularly useful if you move to an area that is served by a

different transmitter.

Manual Tuning

The Manual tuning menu allows individual programme positions

to be tuned manually.

Fine Tuning

Stations can be finely tuned using the Fine tuning adjustment.

Swap

If the programme order after Auto Setup is not to your preference

you can swap programmes between positions.

: Select

---/+ : Adjust

TV/AV : Swap

F : Previous Menu

N:Exit

Swap

Position 01 CH44

with

Position 07 CH58

CH21

TELETEXT

Manual Tuning (front panel of the television)

The stations may also be manually tuned using the controls on

the front of the television.

Press the F key (Front panel) until “Manual Tuning” is reached.

Press --- or + to access “Manual Tuning”.

TELETEXT OPERATION

DTeletext functions may vary depending on the broadcasting companies and are only available if the selected channel is

transmitting Teletext.

DIf button “F” is pressed in the Teletext mode the blue contrast scale will appear; press buttons “+” and “ --- ” to change the

settings.

DWhen in Teletext mode, the volume may still be adjusted by pressing buttons “+” or “ --- ” .

What is FLOF (FASTEXT)?

In the FASTEXT mode four differently coloured subjects are shown at the bottom of the screen matching the colour of the

buttons on your remote control unit. To access more information about one of these subjects, press the appropriately

coloured button. This function allows quick access to information on the subject shown.

Press button TV/TEXT. The Teletext title page will be displayed on the screen. Press again to return to the TV mode.

TV/Teletext Mode

Pages can be selected in two ways:

a) press the Up/Down buttons to increase or decrease the page number by one;

b) enter the page number using 0 --- 9 on the remote control unit.

Page Selection

In the FASTEXT mode, these correspond to the differently coloured subjects.

Red/Green/Yellow/Blue Buttons

TV/TEXT

Index

INDEX

REVEAL

F/T/B

Hold

HOLD

Reveal

Press to reveal hidden words, e.g. crossword or quiz---page answers, can also display VPS/PDC codes.

Full/Top/Bottom

Teletext information viewing on the screen.

Press to hold the current page. Press again to cancel the hold.

Press this button to return to the main index page. Depending on the status you may have to press a few times

to return to the main index page.

Presstoexpandthetophalfofthepage.

Press again to expand the bottom half.

Press again to return to normal (full) size.

Time/Text

Normalisation

Press button “N” to return to the TV mode.

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the

sub pages to reach the sub page you require.

Press the TIME TEXT button; **** will be displayed at the top left of the screen. Enter the desired sub---page

number. To select sub---page 5, enter 0, 0, 0 and 5. The TV is now searching for the correct sub page.

You can continue watching the TV programme by pressing the TV/TEXT button. If you switch back to Teletext and

if the entered page is already available, the sub page will be displayed until a new page or programme position

is entered.

To clear the sub page perform one of the following:

DPress the INDEX button.

DSelect a new page number.

DChange the programme position.

TIME TEXT

TV/TEXT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic TH32LRU20 - HOSPITALITY LCD HDTV Guía de inicio rápido

Panasonic

Panasonic TX-21AD3F Manual de usuario

Panasonic

Panasonic E60 Series Instrucciones de montaje

Panasonic

Panasonic Viera TC-50PX34 Manual de instrucciones

Panasonic

Panasonic TX-39DW304 Manual de usuario

Panasonic

Panasonic TX-76PW05A Manual de usuario

Panasonic

Panasonic TC-21Z80PQ Manual de usuario

Panasonic

Panasonic QuintrixF TX-28PK25 Manual de usuario

Panasonic

Panasonic Viera TH-37PX80E Manual de usuario

Panasonic

Panasonic Viera TH-42PX600 Manual de instrucciones

Panasonic

Panasonic Viera TH-L65WT600Z Instrucciones de montaje

Panasonic

Panasonic TC-14JR1L Manual de usuario

Panasonic

Panasonic QuintrixF TX-28PK20D Manual de usuario

Panasonic

Panasonic TX-28MK1C/M Manual de usuario

Panasonic

Panasonic CT-Z1425 Manual de usuario

Panasonic

Panasonic TX-14B3T Manual de usuario

Panasonic

Panasonic TC-21FG20R Manual de usuario

Panasonic

Panasonic TX-28LD4P Manual de usuario

Panasonic

Panasonic PT-61SX60 Manual de usuario

Panasonic

Panasonic TX-50AX802B Instrucciones de montaje

Panasonic

Panasonic CT-27XF36C Manual de usuario

Panasonic

Panasonic CT-20G7DF-1 Manual de usuario

Panasonic

Panasonic TX-40CSW524S Instrucciones de montaje

Panasonic

Panasonic Viera TX-26LX600F Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
