TQB8E3102U---1

T X --- 2 9 A S 1 P

Colour television

Operating Instructions

English

TX---29AS1P/B

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your

new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to

have the TV operating quickly. You can then read the instructions completely and retain them for future

reference.

Warnings and Precautions 2.......................

Accessories 3....................................

Quick Start Guide 4...............................

Basic Controls 6..................................

Using the On Screen Displays 7....................

Picture Menu 8...................................

Sound Menu 9....................................

Setup Menu 10...................................

Tuning Menu 11..................................

Tuning Menu -- Programme edit 12.................

Tuning Menu -- Auto Setup 16......................

Tuning Menu -- Manual tuning 17...................

OSD Language 18................................

Q-- Link 19.......................................

AV Select and Setup 20...........................

VCR/DVD Operation 21...........................

Te l e t e x t O p e r a t i o n 2 2.............................

Audio / Video (AV) Connections 24.................

Via the front AV3 Audio / Video (RCA)

and Headphone Sockets 24........................

SCART and S-- Video Terminal Information 24..........

ViatherearAV1/AV221Pin(SCART)

and RCA Audio Out terminals 25.....................

Troubleshooting 26...............................

Foryourguidance 26.............................

Specifications 27.................................

DThis TV set is designed to operate on A.C. 220 -- 240V, 50Hz.

DTo prevent damage which might result in electric shock orfire,

do not expose this TV set to rain or excessive moisture.

DWARNING : HIGH VOLTAGE !!!

Donotremovetherearcoveraslivepartsareaccessiblewhen

it is removed. There are no user serviceable parts inside.

DAvoid exposing the TV set todirect sunlightand othersources

of heat.

DThe On/Off switch on this model does not fully disconnect the

TV from the mains supply. Remove the mains plug from the

wall socket when the TV set is not used for a prolonged period

of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and

picture tube can be cleaned with a soft cloth moistened with

mild detergent and water. Do not use solutions containing

benzol or petroleum. TV sets can produce static electricity,

care must be taken whenever touching the TV screen.

DAdequate ventilation is essential to prevent failure of electrical

components, we recommend that a gap of at least 5cm is left

all around this television receiver even when it is placed inside

a cabinet or between shelves.

WELCOME

CONTENTS

WARNINGS AND PRECAUTIONS

Batteries for the Remote Control

Transmitter.

(2 x R6 (UM3) size)

Check that you have the accessories and items shown

Operating Instruction book

DMake sure that the batteries are fitted

the correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted

batteries immediately.

DDo not mix different battery types, i.e.

Alkaline and Manganese or use

rechargeable (Ni---Cad) batteries.

Remote control batteries

Remote Control Transmitter

EUR511200

ACCESSORIES

Plug in aerial and connect ancillary equipment.

First, ensure that the VCR is in Standby mode.

Plug in TV and switch on.

Select your country.

Auto setup will begin, your stations will be located and stored.

Use the Programme Edit menu to delete unwanted stations

(see page 12).

Press the TV/AV button to exit.

Press the red button.

If you are installing a new Q---Link compatible VCR, you can now

switch it ON. Downloaded tuning data will match the television’s.

If you are installing a new NEXTVIEWLINK compatible VCR, you will

need to initiate download manually.

See the VCR handbook for details.

DIf the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.

DIf Q---Link is not operating correctly, check it is connected to the television’s AV2 socket, the SCART lead is a “full function” type, and

the VCR is compatible with Q---Link, NEXTVIEWLINK or similar technologies. Ask your dealer for further details.

DFor further information on Q---Link and connecting equipment, see pages 19, 24 and 25.

5CH41

TV/AV

English Magyar Hrvatski

Čeština Russkij Bulgarian

RomânăSlovenskySlovensko

Polski Nemački

Select

Exit

TV/AV

OSD language

Start ATP Manual tune

Prog. Chan. Name Lock Sys

1: CH41 XYZ Off SC2

2: -- Off SC2

3: -- Off SC2

4: -- Off SC2

5: -- Off SC2

Delete Add Move TV > VCR

Return --

Change

programme

Select

option

Exit

Store

TV/AV

STR

Programme edit

VCR

SATELLITE RECEIVER

AV2

AV1

AV2

AV1

QUICK START GUIDE

Press and release here to open flap

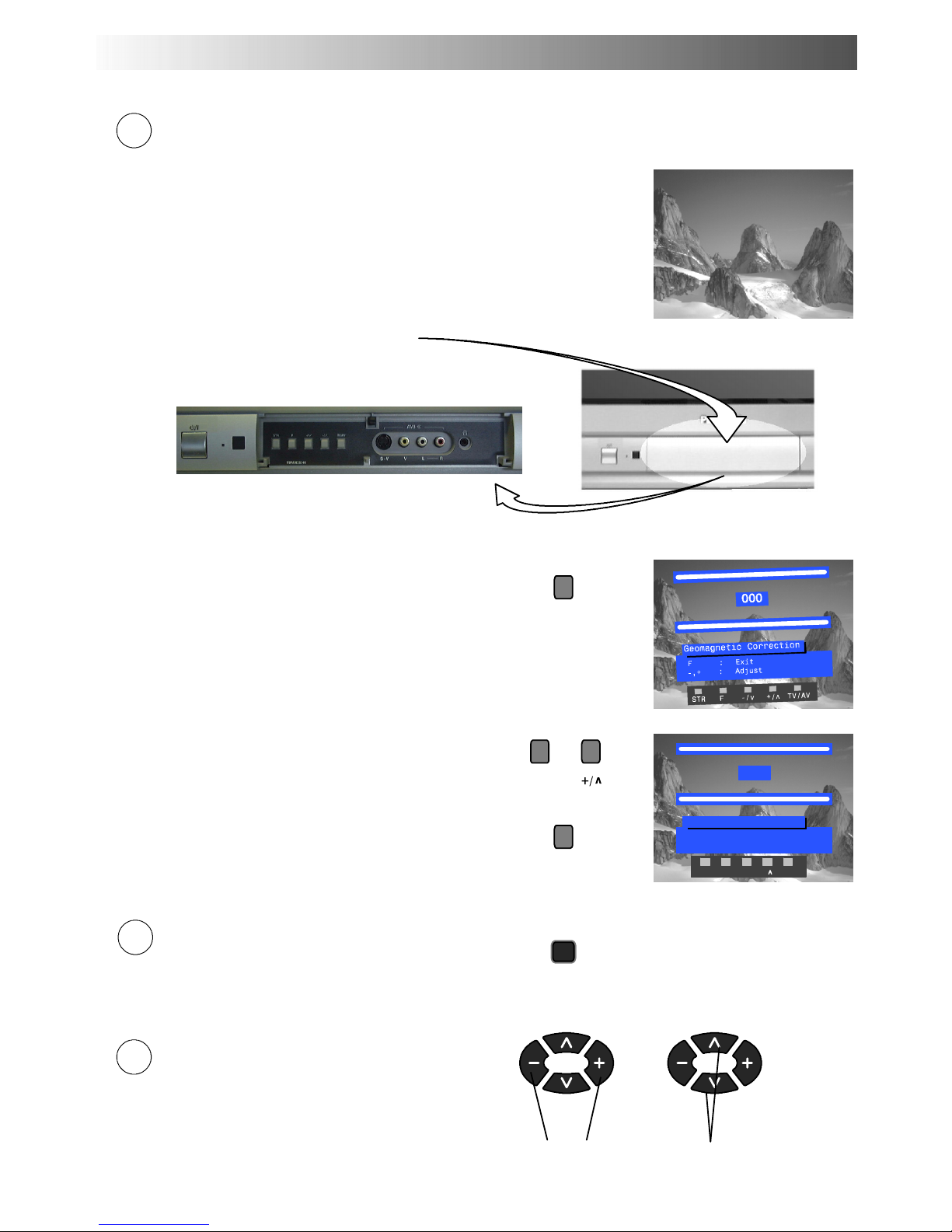

6Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners of the

screen (colour purity). The Geomagnetic Correction feature can be used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete.

The screen should not be showing any On---Screen Display menus.

Press the Fbutton repeatedly until the Geomagnetic

Correction feature is displayed

Press the +or --- buttons repeatedly until the picture

appears to be level

--- / v

Press the Fbutton again to return to normal viewing.

Close the flap to prevent damage

Adjust Volume Change Programme

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

002

STR F --/v +/ TV/AV

Geomagnetic correction

F : Exit

--,+ : Adjust

7We recommend that as soon as the ATP feature is

completed, the picture controls are reset to normal

viewing levels. To do this, press the ”N” button, found

under the remote control’s pull down flap.

QUICK START GUIDE

Switch between viewing TV or AV input

(see page 20)

Standby ON/OFF switch

Switches TV On or Off standby.

Programme position for selection of

two digit programmes (10-99) using

numeric buttons

Programme / channel change

buttons (0-9) and Teletext page

buttons (see page 22)

Menu buttons

Press to access the Picture, Sound

and Setup menus (see page 7)

Sound mute On/Off

Direct Channel Access

During normal TV viewing or when

in the Tuning, Programme edit or

Manual tuning menus, press and

then enter channel number using

the numeric buttons

Teletext buttons (see page 22)

Coloured buttons used for

Programme Edit functions (see page 12)

Teletext functions (see page 22)

AV selection (see page 20)

MAINS

Power

On/Off

switch

STR (Normalisation store)

Used to store tuning and other

function settings

F (Function select)

Displays the On Screen Display functions,

use repeatedly to select from the available

functions -Volume, Contrast, Brightness,

Colour, Sharpness, Tint (in NTSC mode),

Bass, Treble, Balance, Tuning mode and

Geomagnetic Correction.

Increases or decreases the programme

position by one. When a function is

already displayed, press to increase or

decrease the selected function.

TV/AV switch (see page 20)

Headphonesocket(seepage24)

RCA Audio/Video sockets (page 24)

Red light indicates Standby mode.

The N button will recall settings

stored with STR

STR (Normalisation store)

Cursor buttons to make selections and

adjustments

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 19)

Status button

Press to display programme position,

programme name, channel number,

TV system, time stereo mode

and programme table

VCR / DVD buttons

(see page 21)

S ---VHS socket (see page 24)

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

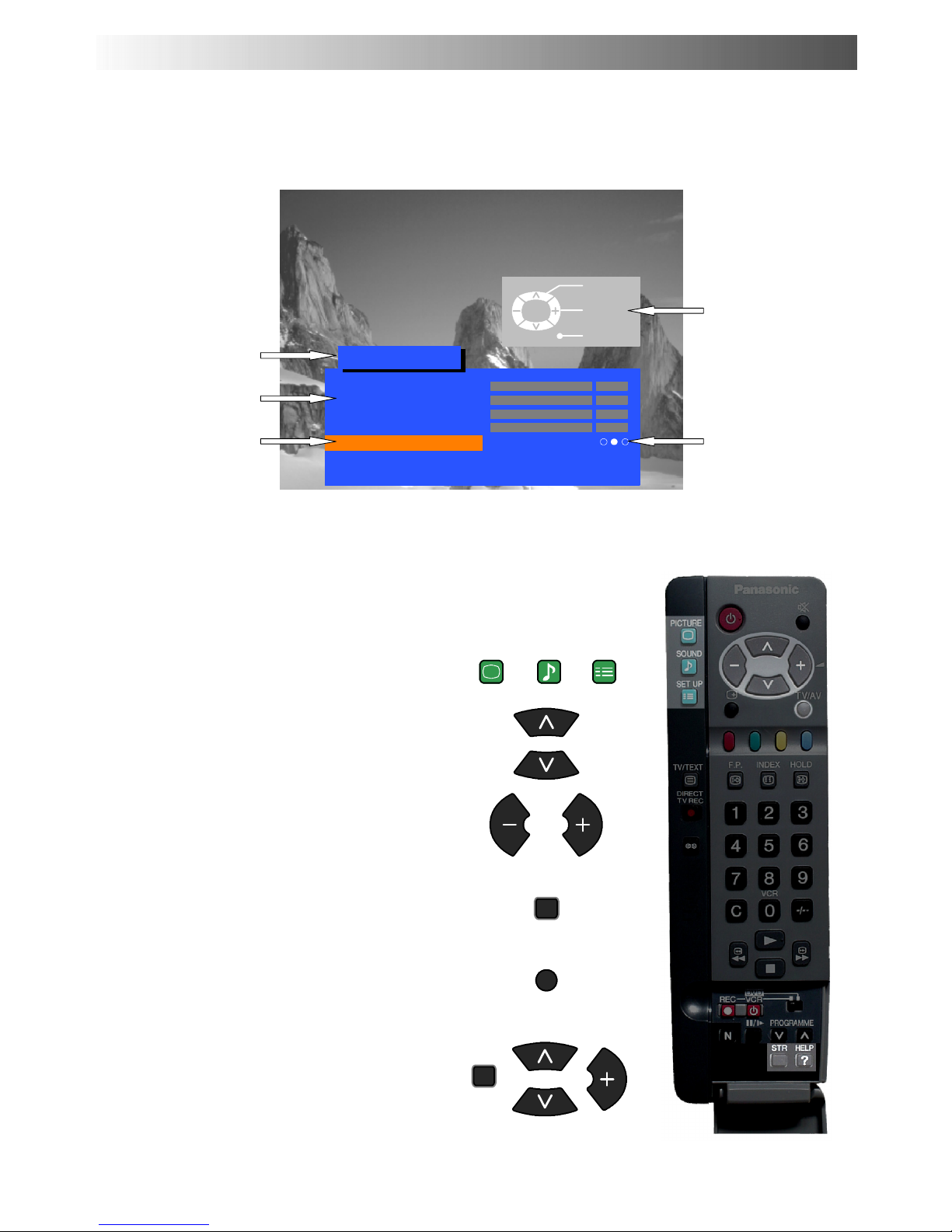

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Change

Exit

TV/AV

Some selections, for example, Contrast, Brightness, Colour and Sharpness

will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a choice to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are

used to open the main menus and also to return to

the previous menu.

The up and down cursor buttons are used to move

the cursor up and down the menus.

The left and right cursor buttons are used to access

menus, adjust levels or to select from a range of

options.

The STR button is used to store settings after

adjustments have been made or options have

been set.

The TV/AV button is used to exit the menu system

and return to the normal viewing screen.

The HELP button will run a demonstration of the

menus available. Press the HELP button and

select one of the options.

Menu Title

Selection bar

Sub-- menus

Indicator for options

Instructions

PICTURE SOUND SET UP

STR

HELP

TV/AV

If the HELP button is pressed whilst a menu is

displayed, the ’Instructions’ box will be hidden

from view. Press the HELP button again to show

the ’Instructions’ box.

USING THE ON SCREEN DISPLAYS

This menu allows you to make adjustments to the picture quality

Open the Picture menu

Move to your choice

Increase or decrease levels or

set options

Press the TV/AV button to exit

the Picture menu

The Contrast, Brightness, Colour and

Sharpness levels can be adjusted to suit

your own preferences and the viewing

conditions.

The Tint adjustment will only appear as

a menu item if you have an NTSC signal

source connected to the TV and will

allow adjustment of the hue.

The Colour balance settingallowsyou to

set the overall colour tone of the picture.

P-- NR will automatically reduce

unwanted picture interference.

The AI setting automatically analyses

the incoming picture and processes it to

give improved contrast, optimum depth

of field and vivid colour tones.

PICTURE MENU

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Sharpness

Contrast

Tint

Colour

Brightness

Sharpness

Colour balance

P-- NR

The Sound menu will allow you to set your personal preferences for all aspects of sound quality

Open the Sound menu

Move to your choice

Increase or decrease levels or

set options

Press the TV/AV button to exit

the Sound menu

The Volume adjustment sets the overall

output volume.

Bass adjustment will emphasise the

lower, deeper frequencies and can be

increased or decreased.

Treble adjustment will emphasise the

sharper, higher frequencies and can be

increased or decreased.

Balance affects the levels of sound

between the left and right speakers.

Adjustment can be made so that the

level from the speakers will suit your

listening position.

MPX will usually be set to Stereo to

provide the best reproduction, however

if reception deteriorates or if the service

is not available then it is advisable to

switch to Mono. Mono (M1) and (M2)

can also be selected if signals are being

transmitted.

The sound can be improved during

Music or Speech mode by selecting the

appropriate function.

Ambience provides a dynamic

enhancer to simulate improved spatial

effects.

SOUND MENU

TV/AV

SOUND

Sound menu

Volume

Bass

Treble

Balance

MPX Stereo

Mode Music

Ambience Off

Select

Adjust

Exit

TV/AV

Sound menu

Volume

Bass

Treble

Balance

MPX Stereo

Mode Music

Ambience Off

Select

Change

Exit

TV/AV

Sound menu

Volume

Bass

Treble

Balance

MPX Stereo

Mode Music

Ambience Off

Select

Change

Exit

TV/AV

Bass

Treble

MPX

Ambience

Balance

Mode

Volume

The Setup menu provides access to various advanced features and also to the Tuning menu

Open the Setup menu

Move to your choice

Increase or decrease levels, set

optionsoraccessfurthermenus

Press the TV/AV button to exit

the Setup menu

The Teletext option allows you to choose

between FLOF or LIST mode.

Seepage22.

Aspect allows you to view widescreen

programme material with the correct

aspect ratio (16:9).

Off timer will switch the TV off within a

preset time which you can choose from

between 0 to 90 minutes in 15 minute

intervals.

Q-- Link allows you to enable or disable

data communication with a compatible

VCR.Seepage19.

The Tuning menu provides an entry to

many other features including

Programme edit, ATP, Fine tuning,

Manual tuning, Colour system and

Volume correction. See page 11.

OSD language allows you to select the

language used for On Screen Displays.

Seepage18.

SETUP MENU

TV/AV

SET UP

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link On

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link On

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Aspect

Off timer

Te l e t e x t

Q-- Link

Tuning menu

OSD language

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic TX-55CRW454 Manual de usuario

Panasonic

Panasonic TX-21GV1C Manual de usuario

Panasonic

Panasonic CT-36HX40 Manual de usuario

Panasonic

Panasonic ST60 Series Instrucciones de montaje

Panasonic

Panasonic Viera TX-26LMD70F Manual de usuario

Panasonic

Panasonic Viera TC-P42UT50 Manual de usuario

Panasonic

Panasonic CT3696VY1 - 36" COLOR MONITOR Manual de usuario

Panasonic

Panasonic TX-W32D4DP Manual de usuario

Panasonic

Panasonic Viera TH-50PZ77U Manual de usuario

Panasonic

Panasonic TH32LRU20 - HOSPITALITY LCD HDTV Guía de inicio rápido

Panasonic

Panasonic TX-32PF10 Manual de usuario

Panasonic

Panasonic TCL32X34 Guía de inicio rápido

Panasonic

Panasonic TH-37PX60U Manual de usuario

Panasonic

Panasonic TX-21FG20R Manual de usuario

Panasonic

Panasonic Viera TX-32LX80L Manual de usuario

Panasonic

Panasonic TX-29F150B Manual de usuario

Panasonic

Panasonic TX-29AD1D Manual de usuario

Panasonic

Panasonic Viera TX-PF42S10 Manual de usuario

Panasonic

Panasonic TX-39DW304 Manual de usuario

Panasonic

Panasonic TC-21S70M2 Manual de usuario

Panasonic

Panasonic CT20SX11E - 20" COLOR TV Manual de usuario

Panasonic

Panasonic TX-40CW304 Manual de usuario

Panasonic

Panasonic CT 32SL15 Manual de usuario

Panasonic

Panasonic GAOO CT-32XF56 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
