Panasonic Quintrix TX--25LD4C/Z Manual de usuario

TQB8E2629---eng

Operating

Instructions

Colour Television

TX-- 25LD4C/Z

This is an unapproved issue --- for information only.

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your

new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to

have the TV operating quickly. You can then read the instructions completely and retain them for future

reference.

Warnings and Precautions 2.......................

Quick Start Guide 3...............................

Basic Controls 4..................................

Using the On Screen Displays 5....................

Picture Menu 6...................................

Sound Menu 7....................................

Setup Menu 8....................................

Tuning Menu 9...................................

Tuning Menu -- Programme edit 10.................

Tuning Menu -- Auto Setup 14......................

Tuning Menu -- Manual tuning 15...................

OSD Language 16................................

Q-- Link 17.......................................

AV Select and Setup 18...........................

VCR/DVD Operation 19...........................

Te l e t e x t O p e r a t i o n 2 0.............................

Audio / Video (AV) Connections 22.................

Via the front AV3 Audio / Video (RCA)

and Headphone Sockets 22........................

SCART and S-- Video Terminal Information 22..........

ViatherearAV1/AV221Pin(SCART)

and RCA Audio Out terminals 23.....................

Troubleshooting 24...............................

Foryourguidance 25.............................

Specifications 25.................................

DThis TV set is designed to operate on A.C. 220 -- 240V,

50Hz.

DTo prevent damage which might result in electric shock or

fire, do not expose this TV set to rain or excessive moisture.

DWARNING : HIGH VOLTAGE !!!

Do not remove the rear cover as live parts are accessible

when it is removed. There are no user serviceable parts

inside.

DAvoid exposing the TV set to direct sunlight and other

sources of heat.

DThe On/Off switch on this model does not fully disconnect

the TV from the mains supply. Remove the mains plug

from the wall socket when the TV set is not used for a

prolonged period of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet

and picture tube can be cleaned with a soft cloth moistened

with mild detergent and water. Do not use solutions

containing benzol or petroleum. TV sets can produce static

electricity, care must be taken whenever touching the TV

screen.

DAdequate ventilation is essential to prevent failure of

electrical components, we recommend that a gap of at least

5cm is left all around this television receiver even when it is

placed inside a cabinet or between shelves.

WELCOME

CONTENTS

WARNINGS AND PRECAUTIONS

Batteries for

the Remote Control Transmitter.

(2 x R6 (UM3) size)

Remote Control Transmitter

(EUR511200)

Check that you have the accessories and items shown

Operating Instruction book

TV Guarantee

DMake sure that the batteries are fitted

the correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted

batteries immediately.

DDo not mix different battery types, i.e.

Alkaline and Manganese or use

rechargeable (Ni-- Cad) batteries.

Plug in aerial and connect ancillary equipment

First, ensure that the VCR is in Standby mode

Plug in T.V. and switch on

Select your country

Auto setup will begin,

your stations will be

located and stored.

If a compatible VCR is

connected to the AV2

socket, programme data

will be downloaded to the

VCR via Q-- Link.

Seepage17.

Quick Start Guide

Remote control batteries

Adjust

Volume

Change Channel

Start ATP Suchlauf Abbruch

Land

ATP AKTIV

SUCHE LÄUFT : BITTE WARTEN

TV / AV : Abbruch

02 78:01 41

CH41

For Switzerland and Belgium,

select the desired language

Auswählen

Deutschland

Österreich

France

Italia

España

Portugal

Nederland

Danmark

Sverige

Norge

Suomi

Belgien

Schweiz

ELLADA

E.Eu

Press the red button

CH41 XYZ

If you are installing a new Q-- Link compatible VCR, you can now switch

it ON. Downloaded tuning data will match the television’s.

If you are installing a new NextViewLink compatible VCR, you will need

to initiate download manually. See the VCR handbook for details.

DIf the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.

DIf Q-- Link is not operating correctly, check it is connected to the television’s AV2 socket, the SCART lead is a “full function” type, and

the VCR is compatible with Q-- Link, NextViewLink or similar technologies. Ask your dealer for further details.

DForfurtherinformationonQ-- Link and connecting equipment, see pages 17, 22 and 23.

QUICK START GUIDE

Switch between viewing TV or AV input

(see page 18)

Standby ON/OFF switch

Switches TV On or Off standby.

Programme position for selection of

two digit programmes (10-99) using

numeric buttons

Programme / channel change

buttons (0-9) and Teletext page

buttons (see page 20)

Menu buttons

Press to access the Picture, Sound

and Setup menus (see page 5)

Sound mute On/Off

Direct Channel Access

During normal TV viewing or when

in the Tuning, Programme edit or

Manual tuning menus, press and

then enter channel number using

the numeric buttons

Teletext buttons (see page 20)

Coloured buttons used for

Programme Edit functions (see page 10)

Teletext functions (see page 20)

AV selection (see page 18)

MAINS Power On/Off switch

STR (Normalisation store)

Used to store tuning and

other function settings

F (Function select)

Displays the On Screen Display functions,

use repeatedly to select from the available

functions -Volume, Contrast, Brightness,

Colour, Sharpness, Tint (in NTSC mode),

Bass, Treble, Balance, and Tuning mode.

Increases or decreases the

programme position by one.

When a function is already

displayed, press to increase or

decrease the selected function.

TV/AV switch (see page 18)

Headphonesocket(seepage22)

RCA Audio/Video sockets (page 22)

Red light indicates Standby mode.

Use Standby switch, -,+or0-9

buttons to switch TV On

The N button will recall settings

stored with STR

STR (Normalisation store)

Cursor buttons to make selections and

adjustments

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 17)

Status button

Press to display programme position,

programme name, channel number,

TV system, time stereo mode

and programme table

VCR / DVD buttons

(see page 19)

BASIC CONTROLS :

FRONT PANEL AND REMOTE CONTROL

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Change

Exit

TV/AV

Some selections, for example, Contrast, Brightness, Colour and Sharpness

will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a choice to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are

used to open the main menus and also to return to

the previous menu.

The up and down cursor buttons are used to move

the cursor up and down the menus.

The left and right cursor buttons are used to access

menus, adjust levels or to select from a range of

options.

The STR button is used to store settings after

adjustments have been made or options have

been set.

The TV/AV button is used to exit the menu system

and return to the normal viewing screen.

The HELP button will run a demonstration of the

menus available. Press the HELP button and

select one of the options.

Menu Title

Selection bar

Sub-- menus

Indicator for options

Instructions

PICTURE SOUND SET UP

STR

HELP

TV/AV

USING THE ON SCREEN DISPLAYS

This menu allows you to make adjustments to the picture quality

Open the Picture menu

Move to your choice

Increase or decrease levels or

set options

Press the TV/AV button to exit

the Picture menu

The Contrast, Brightness, Colour and

Sharpness levels can be adjusted to suit

your own preferences and the viewing

conditions.

The Tint adjustment will only appear as

a menu item if you have an NTSC signal

source connected to the TV and will

allow adjustment of the hue.

The Colour balance setting allows you to

set the overall colour tone of the picture.

P-- NR will automatically reduce

unwanted picture interference.

The AI setting automatically analyses

the incoming picture and processes it to

give improved contrast, optimum depth

of field and vivid colour tones.

PICTURE MENU

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Sharpness

Contrast

Tint

Colour

Brightness

Sharpness

Colour balance

P-- NR

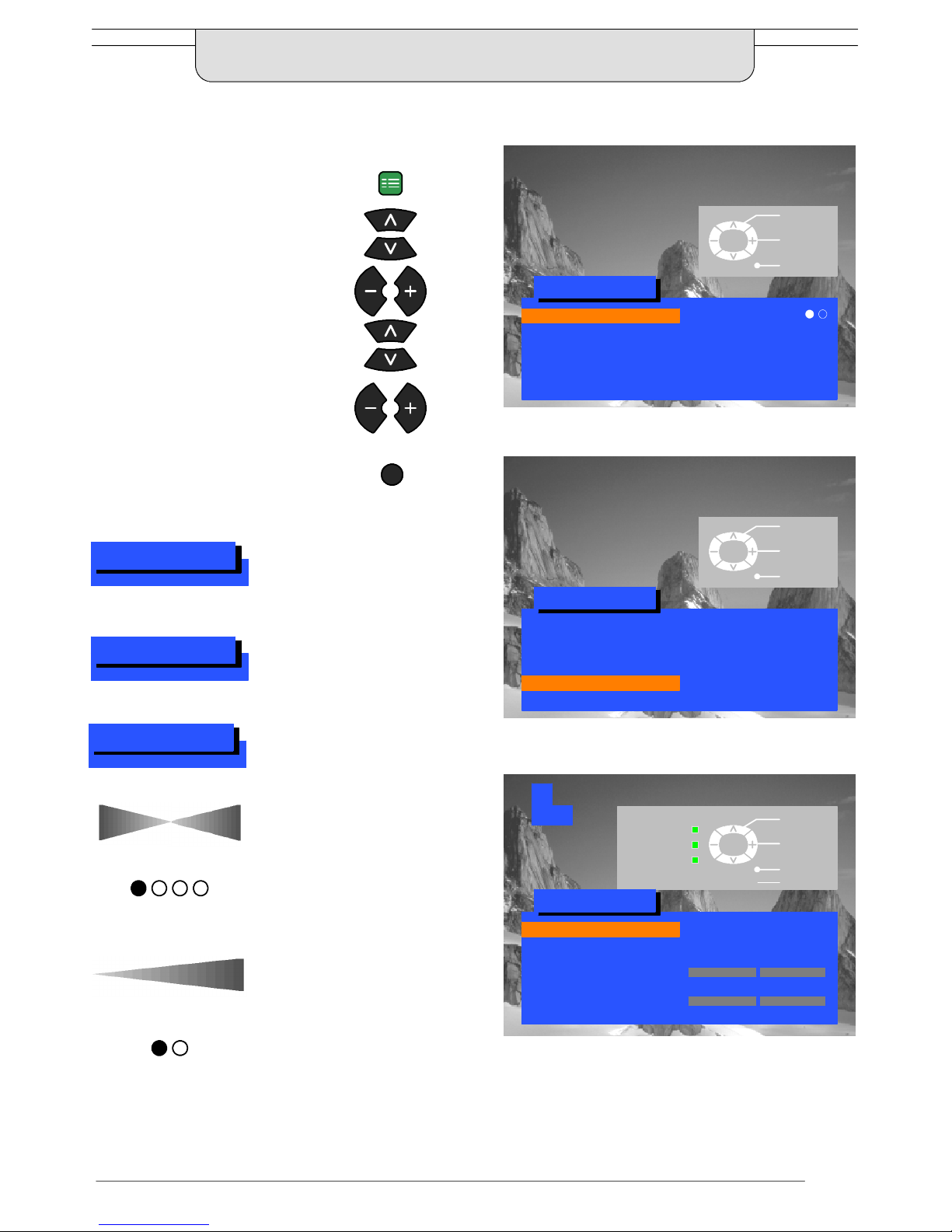

The Sound menu will allow you to set your personal preferences for all aspects of sound quality

Open the Sound menu

Move to your choice

Increase or decrease levels or

set options

Press the TV/AV button to exit

the Sound menu

The Volume adjustment sets the overall

output volume.

Bass adjustment will emphasise the

lower, deeper frequencies and can be

increased or decreased.

Treble adjustment will emphasise the

sharper, higher frequencies and can be

increased or decreased.

Balance affects the levels of sound

between the left and right speakers.

Adjustment can be made so that the

level from the speakers will suit your

listening position.

The AI setting automatically analyses

the incoming sound signal and

processes it to give lower noise and

optimum tone for the programme

material.

MPX will usually be set to Stereo to

provide the best reproduction, however

if reception deteriorates or if the service

is not available then it is advisable to

switch to Mono. Mono (M1) and (M2)

can also be selected if signals are being

transmitted.

The sound can be improved during

Music or Speech mode by selecting the

appropriate function.

Ambience provides a dynamic

enhancer to simulate improved spatial

effects.

SOUND MENU

TV/AV

SOUND

Sound menu

Volume

Bass

Treble

Balance

AI On

MPX Stereo

Mode Music

Ambience Off

Select

Adjust

Exit

TV/AV

Sound menu

Volume

Bass

Treble

Balance

AI On

MPX Stereo

Mode Music

Ambience Off

Select

Change

Exit

TV/AV

Sound menu

Volume

Bass

Treble

Balance

AI Off

MPX Stereo

Mode Music

Ambience Off

Select

Change

Exit

TV/AV

Bass

Treble

MPX

Ambience

Balance

Mode

Volume

The Setup menu provides access to various advanced features and also to the Tuning menu

Open the Setup menu

Move to your choice

Increase or decrease levels, set

optionsoraccessfurthermenus

Press the TV/AV button to exit

the Setup menu

The Teletext option allows you to choose

between TOP/FLOF or LIST mode.

Seepage20.

Aspect allows you to view widescreen

programme material with the correct

aspect ratio (16:9).

Off timer will switch the TV off within a

preset time which you can choose from

between 0 to 90 minutes in 15 minute

intervals.

Q-- Link allows you to enable or disable

data communication with a compatible

VCR.Seepage17.

The Tuning menu provides an entry to

many other features including

Programme edit, ATP, Fine tuning,

Manual tuning, Colour system and

Volume correction. See page 9.

OSD Language allows you to select the

language used for On Screen Displays.

Seepage16.

SETUP MENU

TV/AV

SET UP

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link On

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link On

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Aspect

Off timer

Te l e t e x t

Q-- Link

Tuning menu

OSD Language

The Tuning menu provides access to manual, automatic and fine tuning menus

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to your choice

Increase or decrease levels, set

optionsoraccessfurthermenus

Press the TV/AV button to exit

Accessing the Programme edit menu

will allow stations to be moved, added,

deleted, named or locked and provides

access to the TV -- system.

Seepage10.

The Auto setup menu allows you to

automatically retune the TV.

Seepage14.

The Manual tuning menu allows

individual programme positions to be

tuned manually. See page 15.

Stations can be finely tuned using the

Fine tuning adjustment.

The Colour system menu allows you to

decide the correct choice of

transmission standard.

Volume correction allows you to adjust

thevolumelevelofindividualstations.

This option is used when a decoder is

connected via AV2. Set to On if a

scrambled signal is to be processed by

the decoder. Set to Off after use.

TUNING MENU

TV/AV

SET UP

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu Access

OSD language

TV/AV

Select

Access

Exit

Programme edit Access

Auto setup

Manual tuning

Fine tuning

Colour system AUTO

Volume correc.

Decoder (AV2) Off

CH41

Return --

Select

Access

Exit

Store

TV/AV

STR

Tuning menu

Fine tuning

Colour system

Volume correction

Programme edit

Auto setup

Manual tuning

Decoder (AV2)

TV/AV

The Programme edit menu allows you to edit the programme position settings

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to Programme edit menu

Access Programme edit menu

Make required changes

(see sections below)

Press STR button to store

changes

If you have finished in the

Programme edit menu, press the

TV/AV button to exit

To delete an unwanted programme position

Choose the programme position

PresstheRedbuttononremote

control

Press the Red button again to

confirm

If you have finished in the

Programme edit menu, press the

TV/AV button to exit

TUNING MENU -- PROGRAMME EDIT

TV/AV

STR

SET UP

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu

OSD language

TV/AV

Select

Change

Exit

Setup menu

Teletext FLOF

Aspect 4:3

Off timer Off

Q-- Link Off

Tuning menu Access

OSD language

TV/AV

Select

Access

Exit

Prog. Chan. Name Lock Sys

1: CH41 XYZ Off SC1

2: -- Off SC1

3: -- Off SC1

4: -- Off SC1

5: -- Off SC1

Delete Add Move TV > VCR

Return --

Change

programme

Select

option

Exit

Store

TV/AV

STR

Programme edit

Programme edit Access

Auto setup

Manual tuning

Fine tuning

Colour system AUTO

Volume correc.

Decoder (AV2) Off

CH41

Return --

Select

Access

Exit

Store

TV/AV

STR

Tuning menu

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic QuintrixF TX-28PK10 Manual de usuario

Panasonic

Panasonic TC-21S1M Manual de usuario

Panasonic

Panasonic TX-39DW304 Manual de usuario

Panasonic

Panasonic TX-32PS12P Manual de usuario

Panasonic

Panasonic Viera TH-L65WT600Z Instrucciones de montaje

Panasonic

Panasonic TX-G10/C Manual de usuario

Panasonic

Panasonic TC-21S3M Manual de usuario

Panasonic

Panasonic CT-27HL15N Manual de usuario

Panasonic

Panasonic CT-27SL13MUG Manual de usuario

Panasonic

Panasonic TX-25LK10F Manual de usuario

Panasonic

Panasonic TX-21S3TC Manual de usuario

Panasonic

Panasonic TX-79P25Z Manual de usuario

Panasonic

Panasonic CT2005SB - 20" COLOR TV Manual de usuario

Panasonic

Panasonic VIERA TX-L19X10B Manual de usuario

Panasonic

Panasonic TX-28LB10F Manual de usuario

Panasonic

Panasonic CT-2010H Instrucciones de montaje

Panasonic

Panasonic Quintrix TX-24DX1 Manual de usuario

Panasonic

Panasonic TX-26LX52L Manual de usuario

Panasonic

Panasonic Viera TH-42PD60 Manual de instrucciones

Panasonic

Panasonic Viera TH-37PX70B Manual de usuario

Panasonic

Panasonic TX-24CSW504 Manual de usuario

Panasonic

Panasonic CT-32D10 Manual de usuario

Panasonic

Panasonic TX-28LK1F Manual de usuario

Panasonic

Panasonic TX-28MD3F Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
