anason/c o

Color Television

Operating Instructions

CT-20D12D

CT-20G7D CT-27G7D

CT-27G7DU

CT-27G7SD

CT-27G7SDU

CT-32G7D

CT-32G7DU

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: [email protected] (USA only) TQB2AA0431-2 22603

PRINTED IN USA

WARNING: To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow

/_ head within a triangle is

intended to tell the user that

parts inside the product are a

risk of electric shock to

persons.

The exclamation point within a

triangle is intended to tell the

user that important operating

and servicing instructions are

in the papers with the

appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

I[_] he double insulation symbol (a square within a square) is I

intended to alert qualified service personnel to use only Iidentical replacement parts in this apparatus.

FCC CAUTION:

ENVIRONMENTAL NOTICE:

ANY CHANGES OR MODIFICATIONS TO THIS TV

RECEIVER NOT EXPRESSLY APPROVED BY

MATSUSHITA ELECTRIC CORPORATION OF AMERICA

COULD CAUSE HARMFUL INTERFERENCE, WHICH

WOULD VOID THE USER'S AUTHORITY TO OPERATE

THIS EQUIPMENT.

THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND

OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE

MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO

ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING

INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE

ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>

TABLE OF CONTENTS

_ , _i_ _; :ii_

Customer Record ...................................................................... 2

Care and Cleaning ..................................................................... 2

Specifications ............................................................................ 2

Television Location .................................................................... 3

Optional Cable Connections ...................................................... 3

AC Power Supply Cord .............................................................. 3

Cable /Antenna Connection ...................................................... 3

©it-;€o"_-J Co" 7m;:_,l,o"D ........................... 7{7,

VCR ........................................................................................... 6

Amplifier (TO AUDIO AMP) ...................................................... 6

_tml_"oTm.:Co_'¢"o ©i_;@-_-,¢o_'

ilg';<;_7'_ 7;_;]:a_l O _k]]_,-;'_7 '-;" 7,)f 17) ......................................... !-i

Mode Operational Key Chart .................................................. 10

Programming the Remote ....................................................... 12

Programming With a Code ...................................................... 12

Programming Without a Code ................................................. 12

Component Codes ................................................................... 13

Icon Menus .............................................................................. 16

Set Up...................................................................................... 17

Picture ..................................................................................... 18

Timer ....................................................................................... 19

Audio ....................................................................................... 20

Channels ................................................................................. 21

Lock ......................................................................................... 21

U.S. TV Programs ................................................................... 22

U.S. Movies ............................................................................. 24

Rating Systems for Canada ..................................................... 25

tJ' ii :',cJ iiit 'ii I

i7 7 , . <1

z.......

Read these instructions completely before operating television,

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution isa violation of law.

CONGRA TULA TIONS

Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was

thoroughly tested and tuned at the factory for best performance.

The model and serial number of this product are located on the back of the television. You should note the model and serial

number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event

of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.

Model

Number

Serial

Number

Screen (Turn TV Off)

• Use a mildsoap solution or window cleaner with a soft cleancloth. DO NOT USE ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

Note: Donot spray any type of cleaningfluid directly on the screen.

Cabinet and Remote Control

[] For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and

wipe dry.

[] Donot use benzene, thinner or other petroleum based products.

Specifications are subject to change without notice or obligation.

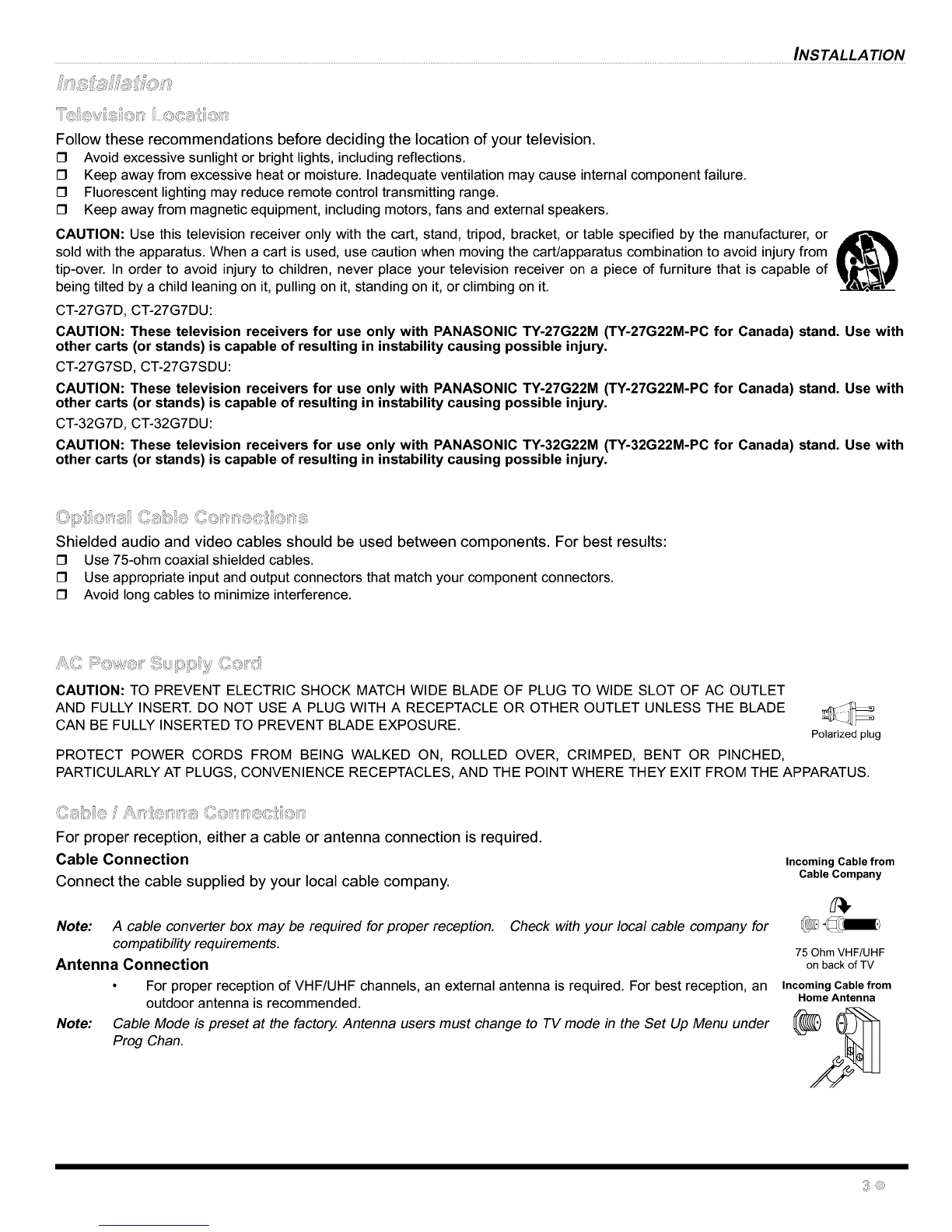

INSTALLATION

Follow these recommendations before deciding the location of your television.

[] Avoid excessive sunlight or bright lights, including reflections.

[] Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.

[] Fluorescent lighting may reduce remote control transmitting range.

[] Keep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from

tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of

being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.

CT-27G7D, CT-27G7DU:

CAUTION: These television receivers for use only with PANASONIC TY-27G22M (TY-27G22M-PC for Canada) stand. Use with

other carts (or stands) is capable of resulting in instability causing possible injury.

CT-27G7SD, CT-27G7SDU:

CAUTION: These television receivers for use only with PANASONIC TY-27G22M (TY-27G22M-PC for Canada) stand. Use with

other carts (or stands) is capable of resulting in instability causing possible injury.

CT-32G7D, CT-32G7DU:

CAUTION: These television receivers for use only with PANASONIC TY-32G22M (TY-32G22M-PC for Canada) stand. Use with

other carts (or stands) is capable of resulting in instability causing possible injury.

Shielded audio and video cables should be used between components. For best results:

[] Use 75-ohm coaxial shielded cables.

[] Use appropriate input and output connectors that match your component connectors.

[] Avoid long cables to minimize interference.

_ _, _f_ i!!____:!/

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET

AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE

CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. Polarized plug

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,

PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be required for proper reception. Check with your local cable company for

compatibility requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an

outdoor antenna is recommended.

Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under

Prog Chan.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Home Antenna

FEATURE COMPARISON CHART

MODELS

Featu res

!i!!i_ii_!;!ii!i_iiii_!i!ii_iiiiiiii!_!ii!i!;i_ii!ii!:i!:!i!i!:i

" !ii!ii! !i!iii!!!!i !i!! iiiiii!!!iii!ii!iiiii!iiii!i!i!ili!iiii ili i

_ii_!i_i_i_!_i_ii_i_i_!_!_!!_i_ii_!_i_!_!_i_i!_i_i_!i_i_ii!_!_!_!_!_iii_i_i_ii_

" !ii!ii! !i!iii!!!!i !i!! iiiiii!!!iii!ii!iiiii!iiii!i i!!ii !!i ii

¸i,iiiiili!!i

:!i_ii!ii!!!!!i!ii!i!i!i_ii_;:iiiili:;!_,!i;ii!!iii!i_i!iiiiii!

iiiiii_iii_i!iiiii_i!i_i_iii_ii!i_il_!_!!!_i_ili

iiiili!!ii!ii! ilili!i i i!i i!i!!iiii ili!i ili i!i!!ii!ii! i

iiiiii_iii_i!iiiiii_i!iiiiii_i!iiiiii_i!iiiiii_i!$i

ii!ii!!!iiiii!!!i!!!ii!i!iiiiiiiii!iii!i

:!iii!iil;iiiii!i_ii!!il;ii!i_iil;_i_i;!i!i!ii_!_i!i_!ii!i

i!iiii i ii!iiiiiii!i!i !i!ii!i!i!iii!ii!iiii!

:!iiiii_!iiiii::iliiiiii_iii_iiii:!iiii!ili!!_!i!i!i!i_il

IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR

OTHER FIXED IMAGE DISPLAYS.

WARNING: The marking or retained image on the picture tube resulting from viewing fixed

image is not an operating defect and as such is not covered by Warranty.

This television is designed to display constantly moving images on the screen. Continuous viewing

of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-

expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an

image), stock market report bars (ticker running at the bottom of the screen), video game patterns,

fixed scoreboards, bright station Iogos, on-line (internet) or repetitive computer style patterns should

be limited.

The extended use of fixed image program material can cause a permanent picture tube damage,

shown as a "shadow image" viewable on normal programs. This type of irreversible picture tube

deterioration can be limited by performing the following steps:

• Donot display the fixed image for extended periods of time.

• Turn the power offwhen not in use.

AUTO SET UP MENU

For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. Ifneeded,

follow the menus and procedures for setting up the features.

[] IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.

Press VOL_ to select English, Spanish or French.

[] MODE - To select TV (antenna) or CABLE mode depending on the signal source.

Press VOL_ to select TV or CABLE.

[] AUTO PROGRAM - To automatically program all channels with a signal.

Press VOL_ to start Auto Programming.

OPTIONAL EQUIPMENT CONNECTIONS

.... ..................

Follow this diagram when connecting your television to a VCR only.

TERMINALS ON BACK OF "rv

VCR

In comingCable

Note: The remote control must be programmed with the supplied codes to operate the VCR.

.....,_1__.;, i_:,, _ -,

, Z'"1 "177"_:, Z'"1 ._

(CT-20D12D only)

To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP outputs on back of

television.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select SPEAKERS ON located in the onscreen AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust television volume to desired level.

4. Adjust amplifier volume to match the television.

5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled through the television.

Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.

EXTERNALAMPLIFIER

CABLES NOT INCLUDED

3_:ib

TERMINALS ON BACK OF TV

FRONT CONTROL PANEL

_,,,f,,,; ....

Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks (some models) for

optional equipment.

TVNIDEO

Press O to select VIDEO input mode.

Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.

FRONT A/V JACKS

Jacks used for 1/_"

headphone plug.

CAMCORDER

A second VCR, a video disc player, video game equipment and DSS equipment can also be connected to the video inputs.

See the optional equipment manual for details.

Procedure

1. Connect equipment to front or rear Audio/Video inputjacks.

Note: Front and rear Audio/Video connections cannot be operated at the same time.

2. Operate optional equipment as instructed inequipment manual.

REMOTE CONTROL OPERATION

,7:, 7 S _ _, '

,?l,;,,,, big ,?l, ,i:_ _:};,'5'

(For models CT-20G7D, CT-27G7D, CT-27G7SD and CT-32G7D only)

,,_v t- :'

EUR501450

Use two AA batteries:

Remove battery cover by pushing in and up near arrow.

Install batteries matching (+) and (-) polarity signs.

Replace the battery cover.

Note: Incorrect installation can cause battery leakage and

corrosion that will damage the Remote Control

Precautions

•Replace batteries in pairs.

• Do not mix battery types (zinc carbon

with alkaline).

• Do not recharge, heat, short-circuit,

disassemble, or burn batteries.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic CT-24SX11 Manual de usuario

Panasonic

Panasonic TX-28MD4 Manual de usuario

Panasonic

Panasonic Viera TC-P50GT50 Instrucciones de montaje

Panasonic

Panasonic TX-25X1 Manual de usuario

Panasonic

Panasonic CT20SX11E - 20" COLOR TV Manual de usuario

Panasonic

Panasonic VIERA TH-43DS630H Manual de usuario

Panasonic

Panasonic CT-32SX12U Manual de usuario

Panasonic

Panasonic CT-13R18 Manual de usuario

Panasonic

Panasonic TX-21AT2P Manual de usuario

Panasonic

Panasonic TX-32T2 Manual de usuario

Panasonic

Panasonic TH-P50V20K Manual de usuario

Panasonic

Panasonic TX-29RX20M-MALAYSIA Manual de usuario

Panasonic

Panasonic TX-32DK2 Manual de usuario

Panasonic

Panasonic TX-25LK1P Manual de usuario

Panasonic

Panasonic TX-76PW05A Manual de usuario

Panasonic

Panasonic Viera TX-26LMD70A Manual de usuario

Panasonic

Panasonic Viera TH-58PF11 Manual de instrucciones

Panasonic

Panasonic TX-28PL1 Manual de usuario

Panasonic

Panasonic TX-28X1 Manual de usuario

Panasonic

Panasonic TX-29P180B Manual de usuario

Panasonic

Panasonic TX-28LD90F Manual de usuario

Panasonic

Panasonic TX-21AS1P Manual de usuario

Panasonic

Panasonic TX-W32D5F Manual de usuario

Panasonic

Panasonic TX-80V02A Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
