© Panasonic Electric Works Co., Ltd. 2009.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number PTD0908X52AE
Sealing Gun
Model No. EY3640
EY3641
Europe
Oceanina
TABLE OF CONTENTS
PAGE PAGE
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Exploded View and Replacement Parts List ------------ 3
Please file and use this manual together with the service manual for Model No. EY3653,Order No. MEW/
PTD 9702-36532.
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-
ing iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).
2 Specifications

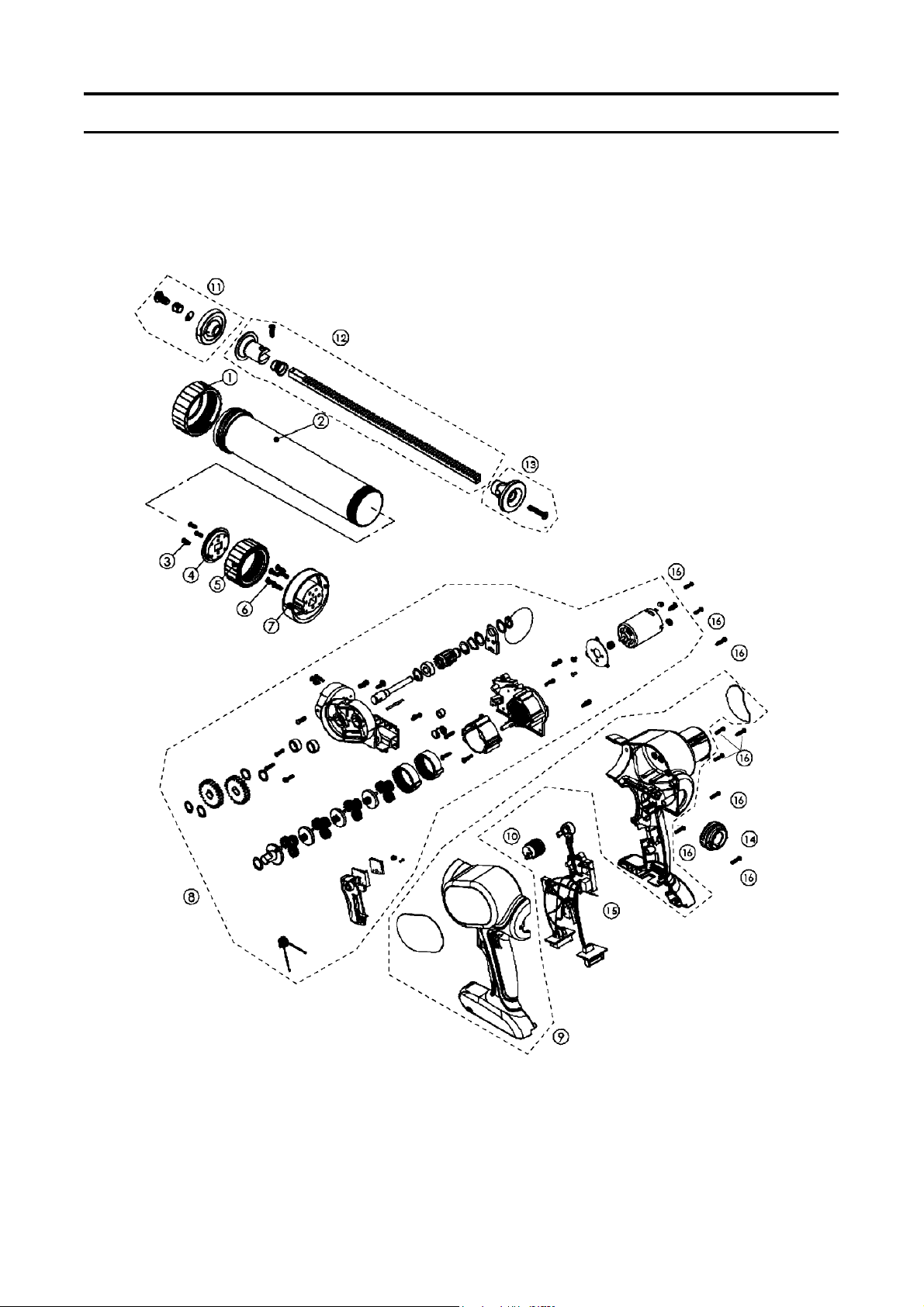

Model No. : EY3640 Exploded View for EY3640
3 Exploded View and Replacement Parts List
Model No. : EY3640 Parts List
Safety
Ref.
No. Part No. Part Name & Description Q'ty Remarks
EY3640
1 WEY3641S3228 FRONT CAP 1
2 WEY3640S3718 TUBE HOLDER 1 (300ml)
3 WEY3641K6808 SCREW 3 (M3.5*10)
4 WEY3641K3188 PROTECTION COVER 1
5 WEY3641S3238 HOLDER CAP 1
6 WEY3641K9088 TAPPING SCREW 7 (4*14)
7 WEY3641S0808 CONNECTING RING 1
8 WEY3641L1458 GEAR BOX BLOCK 1
9 WEY3640K3078 HOUSING AB SET 1 (for EUROPE)
9 WEY3640K3079 HOUSING AB SET 1 (for OCEANIA)
10 WEY3641H3288 SPEED CONTROL APPLICATION 1
11 WEY3641K0488 PISTON JOINT 1
12 WEY3640K1348 RACK 1 (353mm / 300ml, 9.5*9.5）
13 WEY3641K3538 RACK KNOB 1
14 WEY3641K3148 RUBBER 1
15 WEY3641L2128 MODULE 1
16 WEY3641K9078 TAPPING SCREW 9 (3*14)
- WEY3640K7018 TOOL CASE 1
- WEY3640K8008 INDIVIDUAL BOX 1 [SH]
- WEY3641K8108 OPERATING INSTRUCTIONS 1 [SH]
Model No. : EY3641 Exploded View for EY3641
Model No. : EY3641 Parts List
Safety
Ref.
No. Part No. Part Name & Description Q'ty Remarks
EY3641
1 WEY3641S3228 FRONT CAP 1
2 WEY3641S3718 TUBE HOLDER 1 (600ml)
3 WEY3641K6808 SCREW 1 (M3.5*10)
4 WEY3641K3188 PROTECTION COVER 1
5 WEY3641S3238 HOLDER CAP 1
6 WEY3641K9088 TAPPING SCREW 1 (4*14)
7 WEY3641S0808 CONNECTING RING 1
8 WEY3641L1458 GEAR BOX BLOCK 1
9 WEY3641K3078 HOUSING AB SET 1 (for EUROPE)
9 WEY3641K3079 HOUSING AB SET 1 (for OCEANIA)
10 WEY3641H3288 SPEED CONTROL APPLICATION 1
11 WEY3641K0488 PISTON JOINT 1
12 WEY3641K1348 RACK 1 (485mm / 600ml, 9.5*9.5）
13 WEY3641K3538 RACK KNOB 1
14 WEY3641K3148 RUBBER 1
15 WEY3641L2128 MODULE 1
16 WEY3641K9078 TAPPING SCREW 9 (3*14)
- WEY3641K7018 TOOL CASE 1
- WEY3641K8008 INDIVIDUAL BOX 1 [SH]
- WEY3641K8108 OPERATING INSTRUCTIONS 1 [SH]
