Panasonic KX-TD7590CE Instrucciones de instalación y funcionamiento

Digital Super Hybrid System

KX-TD816E

KX-TD1232E

User Manual Addendum

for

KX-TD7590CE

In this manual, the suffix “E” or “CE” of each model number is omitted.

Table of Contents

1 Operation ......................................................................................................................3

1.1 Operation Outline ...................................................................................................................... 3

1.2 Redial........................................................................................................................................ 4

2 Selecting the Feature Buttons on the Display...........................................................5

3 PS Programming..........................................................................................................6

4 PBX Programming......................................................................................................17

Note

This guide shows you the additional features for the DECT Portable Station (KX-TD7590)

Please refer to this guide in addition to the current User Manual.

1 Operation

1.1 Operation Outline

How to navigate through the LCD menu using keys

Using the FUNCTION button

PAUSE (KEY1)

INITIAL SETTING

LANGUAGE

RING PATTERN-CO

VIBRATION&RING

QUICK ANSWER

AUTO ANSWER

AUTO ANS DELAY

BACKLIGHT

LANGUAGE

STANDBY DISPLAY

DATE/TIME DISPLY

LCD CONTRAST

PS-DIALING

SHORTCUT

PBX-STA-DIALING

ANSWER SETTING

MODIFY BOOK

PS-PROGRAM

PBX-PROGRAM

FWD/DND (KEY2)

MESSAGE (KEY3)

CONF (KEY4)

TONE (KEY5)

FLASH/R (KEY6)

HOLD (KEY7)

REDIAL (KEY9)

PS-PROGRAM (KEY0)

DISPLAY SETTING

: Only displayed during a call.

: Displayed on Directories

(except the PBX Extension Dialling Directory)

or in pre-dialling.

: After registering PS, it is not displayed.

: For use by the dealer.

: Only displayed when "AUTO ANSWER" is assigned.

: Only displayed within cell range.

Operation Outline

RING PATTERN-INT

FKEY LIST (KEY8)

REGISTRATION *

F1 EDIT (F1)

F2 EDIT (F2)

F3 EDIT (F3)

EDIT MODE (KEY#)

WAVESEARCH (KEY )

PROGRAM (FNCT)

REGISTRATION

LANGUAGE DELETE

CANCEL DECT-SYS

DECT-SYS LOCK

ACCESS DECT-SYS

DIRECTORY LOCK

ALL PS-BOOK DEL

PS PASSWORD

DECT-SYS SETTING

SECURITY SETTING

KEY TONE

RANGE WARNING

BEEP SETTING

MEMORY CLEAR

: Only displayed when the PS is registered.

: Only displayed when handset is assigned to

more than one DECT system.

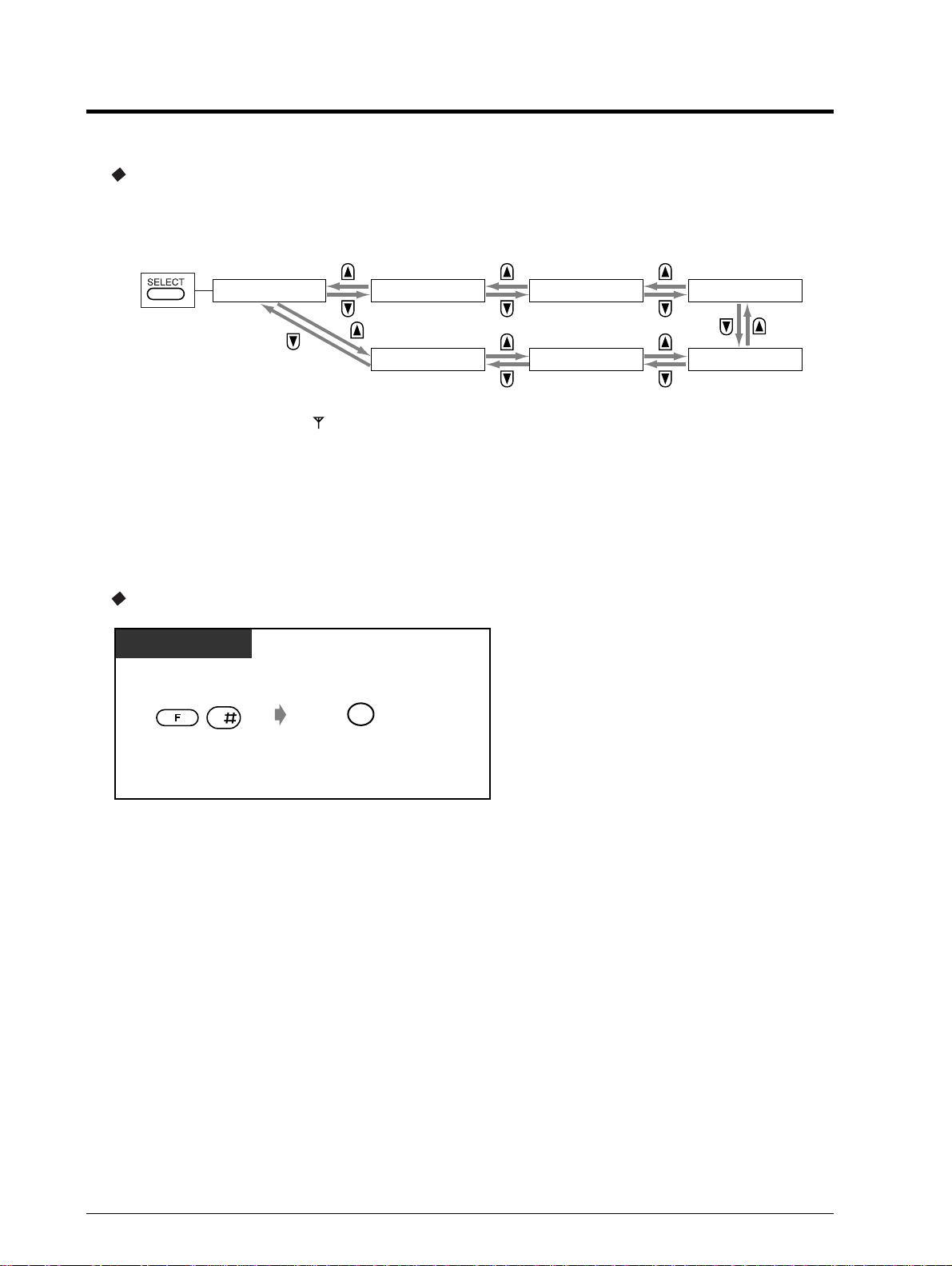

Using the SELECT button

1.2 Redial

To clear all numbers in the call log

PS-DIALING

(Directories)

OUTGOING LOG

PBX-SYS-DIALING

PBX-STA-DIALING PBX-EXT-DIALING

SHORTCUT

PS Dialling Directory Outgoing Log Directory PBX Station Speed

Dialling Directory PBX Extension

Dialling Directory

PBX System Speed

Dialling Directory

SHORTCUT Directory

for PBX Feature Number

and Setting Display of

PS Programming

Back Menu

6: It is displayed only when " " is displayed.

Press FUNCTION and then

# while the call log is displayed. Press F3.

2 Selecting the Feature Buttons on the Display

The following buttons can be activated using display operations when they are available.

PAUSE (KEY1) Button

FWD/DND (KEY2) Button

MESSAGE (KEY3) Button

CONF (Conference) (KEY4) Button

TONE (KEY5) Button

FLASH/RCL (KEY6) Button

HOLD (KEY7) Button

FKEY LIST (KEY8) Button

REDIAL (KEY9) Button

PS-PROGRAM (KEY0) Button

WAVESEARCH (KEY*) Button

EDIT MODE (KEY#) Button

PROGRAM (FNCT) Button

F1 EDIT (F1) Button

F2 EDIT (F2)Button

F3 EDIT (F3) Button

To cancel the Do Not Disturb feature

PAUSE (KEY1) FWD/DND (KEY2)

HOLD (KEY7)

MESSAGE (KEY3)

PAUSE Button FWD/DND Button

HOLD Button

TONE (KEY5)

TONE Button

MESSAGE Button

FLASH/R (KEY6)

FLASH/RCL Button

CONF (KEY4)

CONF Button

PROGRAM (FNCT)

F2 EDIT (F2)

F2 EDIT Button

PROGRAM Button

WAVESEARCH(KEY )

WAVESEARCH

Button

EDIT MODE (KEY#)

EDIT Button

F1 EDIT (F1)

F1 EDIT Button

FKEY

LIST

(KEY8)

F3 EDIT (F3)

F3 EDIT Button

FKEY LIST Button

PS-PROGRAM(KEY0)

PS-PROGRAM

Button

REDIAL (KEY9)

REDIAL Button

Press CANCEL.

Press

FUNCTION.Press SELECT.Press until

“ FWD/DND” is

displayed.

Press 0.

Press TALK.

3 Handset (PS) Programming

You may be required to enter a PS Programming password when entering the security setting

mode.

And you may be required to enter a DECT System Lock password when entering the DECT-SYS

Setting mode.

Once the password is entered you can proceed to the next step.

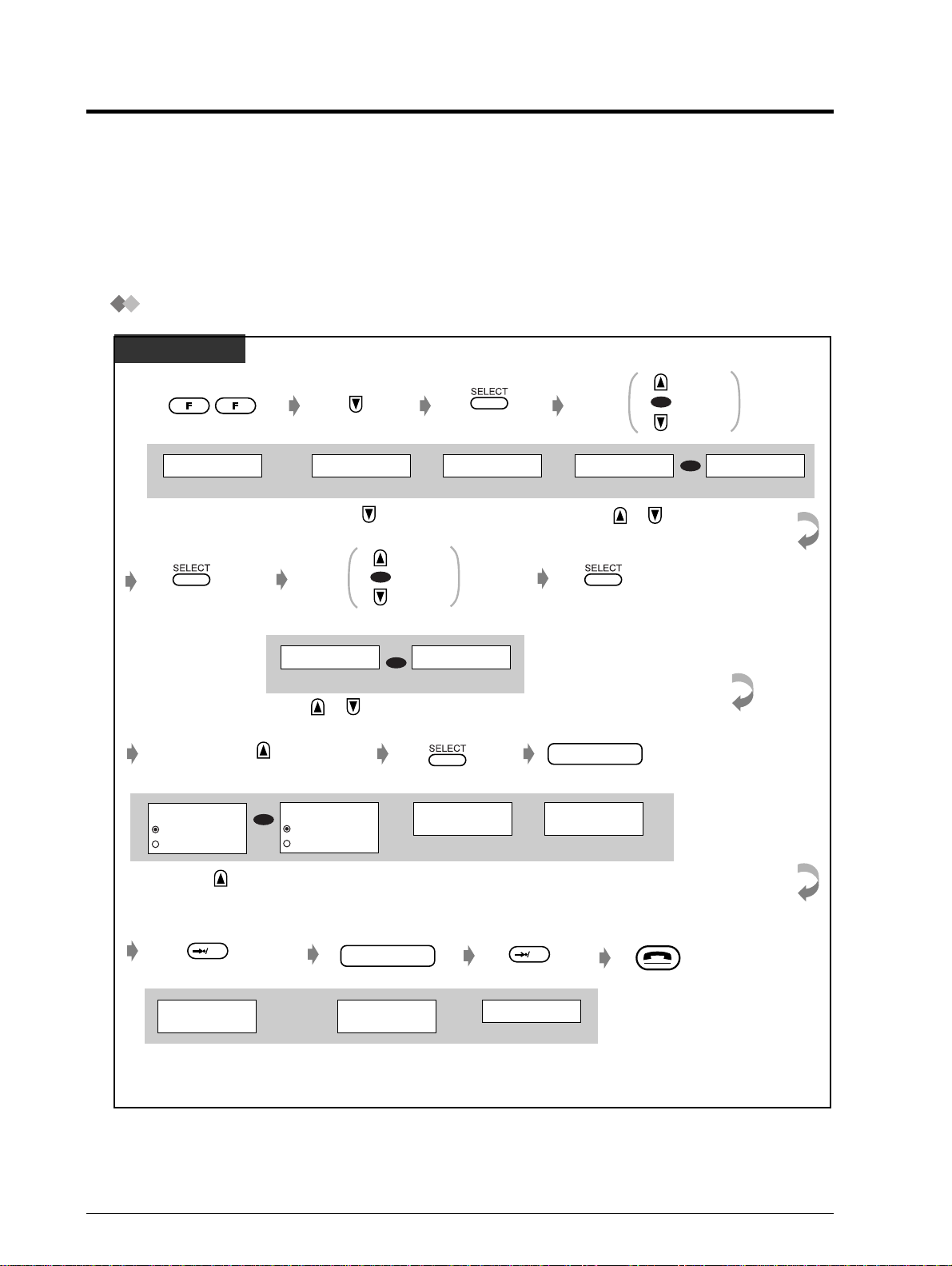

To set the PS Programming / DECT System Lock password

Press FUNCTION

twice. Press .

MODIFY BOOK

SECURITY SETTING

DECT-SYS SETTING

PS-PROGRAM

Press SELECT.

ANSWER SETTING

ENTER PASSWORD

= ____

Enter password

(4 digits).

ENTER PASSWORD

=* * * *

Press or until the display

above appears .

password

Press OK.

REENTER PASSWORD

= ____

Press CANCEL.

Press SELECT..

Press or until the display above appears.

Press SELECT.

PS PASSWORD DECT-SYS LOCK

Enter same

password again.

REENTER PASSWORD

=* * * *

password

Press OK.

PS PASSWORD

ENABLE

DISABLE

Press to select "ENABLE" .

DECT-SYS LOCK

ENABLE

DISABLE

Press SELECT..

LOCKED

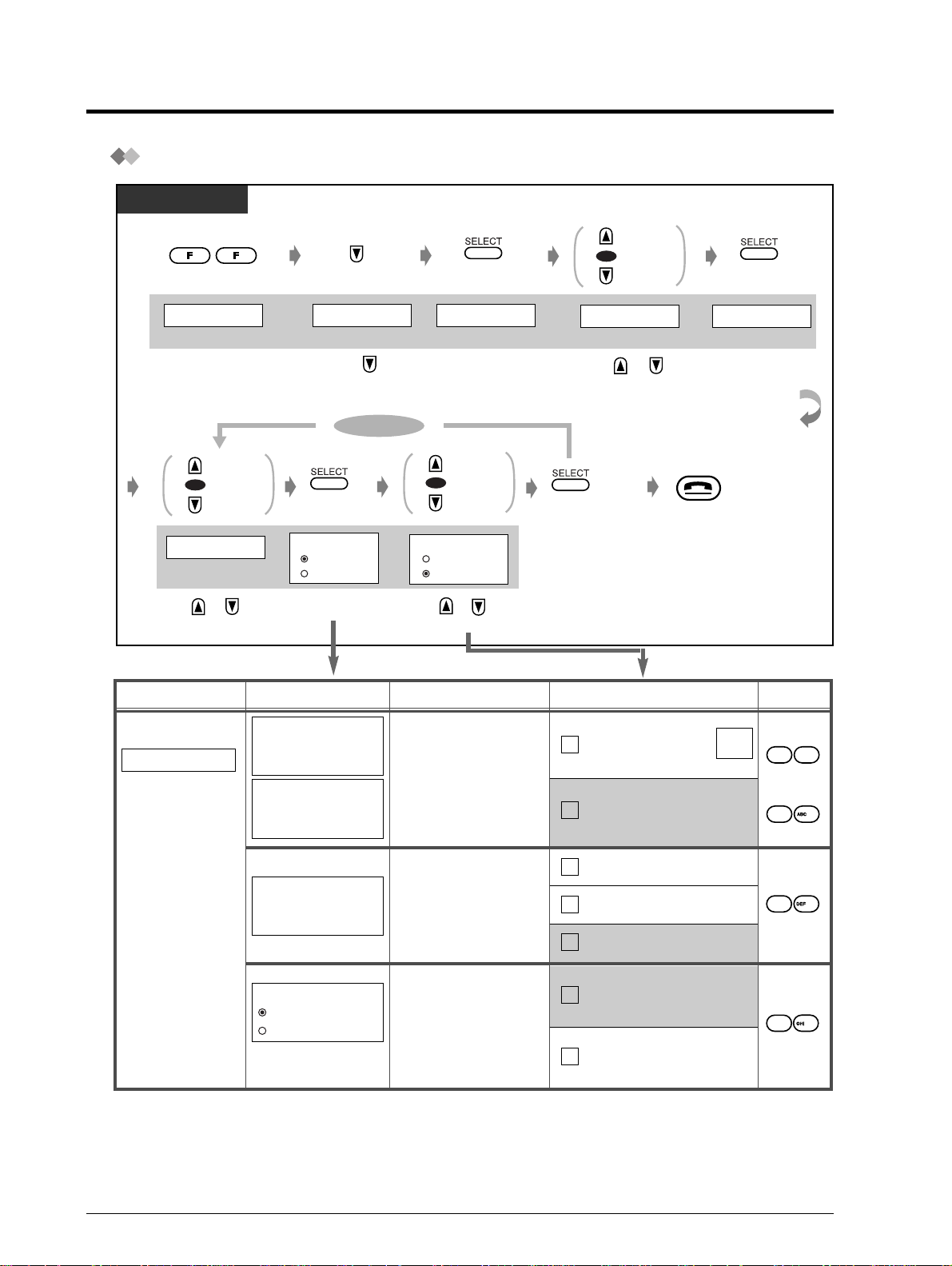

To cancel the PS Programming / DECT System Lock password

Press FUNCTION

twice. Press .

MODIFY BOOK

SECURITY SETTING

DECT-SYS SETTING

PS-PROGRAM

Press SELECT.

ANSWER SETTING

PS PASSWORD

= _ _ _ _

Press or until the display

above appears .

Enter password

(4 digits).

password

Press OK.

Press CANCEL.

Press or until the display above appears .

PS PASSWORD

ENABLE

DISABLE

Press to select "DISABLE" .

Press SELECT.

PS PASSWORD DECT-SYS LOCK

DECT-SYS LOCK

ENABLE

DISABLE

DECT-SYS LOCK

PASSWORD= _ _ _ _

Press SELECT.

PS PASSWORD

=* * * *

DECT-SYS LOCK

PASSWORD= * * * * DIRECTORY LOCK

REGISTRATION

To change the initial settings

RANGE WARNING

To continue

Item Selection*3

Menu no.

*14

Display

Ringer pattern no.

You may choose from

the 6 Ring Tones or

4 Melodies.

(Ringer Pattern

Selection)

Ring and vibrate at the

same time

(RING & VIB)

How you are alerted

to a call. *4

(Vibration and Ring

Type Selection)

Ringer pattern 1

(BELL1)

Not use the vibration

and ring mode (OFF)

Vibrate for 5 seconds

then ring

(VIB→RING)

Press FUNCTION

twice. Press .

MODIFY BOOK PS-PROGRAM

Press SELECT.

ANSWER SETTING

RANGE WARNING

@@@

OFF

Press or until

the desired item is

displayed. *2

Press CANCEL.

Press SELECT. Press SELECT.

Press or until

the desired item is

displayed.

RING PATTERN-INT

BELL1

CHANGE=SELECT

RING PATTERN-CO

BELL1

CHANGE=SELECT

VIBRATION & RING

OFF

CHANGE=SELECT

- INT

- CO

ANSWER SETTING

Categories*1

Do you prefer to answer

an incoming call by just

lifting your ringing PS

off the Charger?

(Quick Answering

Mode Set)

Yes (ON)

No (OFF)

QUICK ANSWER

OFF

144

BEEP SETTING

Press SELECT.

KEY TONE

Press or until

the desired item is

displayed. *1

RANGE WARNING

@@@

OFF

Item Selection*3

Menu no.

*14

Display

ANSWER SETTING

Categories*1

Do you prefer to answer

a call without pressing

CO, TALK or INT

buttons when using

the headset?

(Automatic Answer

Mode Set)

No (OFF)

Answer all calls.(INT/CO)

Answer only intercom calls.

(INT ONLY)

Select the number of

seconds before

answering a call

automatically

when using the headset.*

(Automatic Answer Delay

Selection)

seconds

6 s

AUTO ANSWER

OFF

CHANGE=SELECT

AUTO ANS DELAY

CHANGE=SELECT

DISPLAY SETTING

Do you prefer the

keypad backlight?

(Keypad Backlight

Mode Set) No (OFF)

Yes (ON)

BACKLIGHT

OFF

English

German (Deutsch)

French (FRANCAIS)

Italian (ITALIANO)

Spanish (ESPANOL)

Dutch (NEDERLANDS)

Auto (English)*6

LANGUAGE

AUTO

CHANGE=SELECT

Do you prefer to

change the display

language?

(Display Language

Selection)

Extension no. (EXTN)

DECT system no.

(SYS-NO.)

DECT system and extension

no. (SYS-NO.&EXTN )

None of these (OFF)

STANDBY DISPLAY

SYS-NO.&EXT

CHANGE=SELECT

Which standby display

do you prefer?

(Standby Display

Selection)

Date and time (TIME)

Date (DATE)

DATE/TIME DISPLY

TIME

DATE

Which display do you

prefer in the Standby

mode? *7

(Date / Time Display

Selection)

Item Selection*3

Menu no.

*14

Display

DISPLAY SETTING

Categories*1

Preferred contrast level from the 12 levels

available. (LCD Contrast Selection)

- default: Level 7

LCD CONTRAST

LIGHT

DARK

No (OFF)

Yes (ON)

KEY TONE

OFF

BEEP SETTING

Do you prefer to

hear the key tone?

(Key Tone Set)

Do you prefer an

audible warning when

out of range?(Range

Warning Setting)

Yes (ON)

No (OFF)

RANGE WARNING

OFF

DECT-SYS SETTING

Which DECT system

are you registering? *8

(Registration)

DECT-SYS1

DECT-SYS2

DECT-SYS3

DECT-SYS4

REGISTRATION

DECT-SYS1

DECT-SYS2

411

Do you prefer to delete

the language ? *

LANGUAGE DELETE

Deutsch

FRANCAIS

German (Deutsch)

French (FRANCAIS)

Italian (ITALIANO)

Spanish (ESPANOL)

Dutch (NEDERLANDS)

This programming is for dealer only.

This program cancels the PS registration.

Use this function only when the PBX program

(PS Termination) fails to cancel the registration *10

(PS Registration Cancellation)

CANCEL DECT-SYS

DECT-SYS1

DECT-SYS2

Yes (ENABLE)

Do you prefer to use the

DECT System Lock

Password?

(DECT System Lock

Password Set)

No (DISABLE)

DECT-SYS LOCK

ENABLE

DISABLE

ACCESS DECT-SYS

AUTO

CHANGE=SELECT

To access a different

DECT system(1 to 4)*11

(DECT System

Selection)

DECT System no.

AUTO (All connected

terminals)

Otros manuales para KX-TD7590CE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teléfono de Panasonic

Panasonic

Panasonic KX-TG2480S Manual de usuario

Panasonic

Panasonic KX-TS2365RUB Manual de usuario

Panasonic

Panasonic KX-T3155A Manual de usuario

Panasonic

Panasonic KX-TGF340B Manual de usuario

Panasonic

Panasonic KX-DT546 Manual de usuario

Panasonic

Panasonic KX-T7730 Manual de usuario

Panasonic

Panasonic KX TS208W Manual de usuario

Panasonic

Panasonic KX-T7030 Manual de usuario

Panasonic

Panasonic KX-TGF892 Manual de usuario

Panasonic

Panasonic TGP600 Manual de usuario

Panasonic

Panasonic KX-T2371MXW Manual de usuario

Panasonic

Panasonic KX-TGE220AZ Manual de usuario

Panasonic

Panasonic KX-T7420 Manual de usuario

Panasonic

Panasonic KX-T7565 Manual de usuario

Panasonic

Panasonic KX-T7531 Manual de usuario

Panasonic

Panasonic KX-TS3MXB Manual de usuario

Panasonic

Panasonic UTG 200B Manual de usuario

Panasonic

Panasonic NS700 Manual de instalación

Panasonic

Panasonic KX-TA1232 Instrucciones de funcionamiento

Panasonic

Panasonic KX-TC1711B - 900 MHz Cordless Phone Manual de usuario

Panasonic

Panasonic KX-FKN523 Manual de usuario

Panasonic

Panasonic DBS 576 Section 300 Manual de usuario

Panasonic

Panasonic KX-TG5100M Manual de usuario

Panasonic

Panasonic DBS 38 Manual de usuario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

BT Decor 425 Manual de usuario

NEC

NEC SV8500 Manual de usuario

Teledex

Teledex PEARL Manual de usuario

Ericsson

Ericsson Dialog 3213 Manual de usuario

Yealink

Yealink VP530 Manual de usuario
