Panasonic KX-T7565X Manual de usuario

ORDERNO. KMS0008517C3

DIGITALPROPRIETARYTELEPHONE

KX-T7565X / KX-T7565X-B

White Version

Black Version

(for Asia, MiddleEast Near, LatinAmerica and Africa)

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

1. CAUTION

Note:

Whenyou mention the serial number, write downall 11 digits. / The serial numbermaybe found

the label affixedtothe bottomof the unit.

2. FOR SERVICE TECHNICIANS

1. Note the following items when exchanging the LEDs(Ref. No.

D100-107) of MainBoard.

1) Donot reuse aLEDwhich isremoved from the P.C. Board. / 2)

Use asoldering iron (less than 15 W) for exchanging LED. / 3) Do

not heat the LEDfor more than 2seconds. / 4) Donot move the

LEDafter soldering.

3. LOCATION OF CONTROLS

4. DISASSEMBLY INSTRUCTION

4.1. HOWTO REMOVE THELOWERCABINET / (Procedure 1)

(1) Remove the 5 screws A. / (2) Remove the lower

cabinet.

4.2. HOWTO REMOVE THEHOOKBUTTON/ (Procedure 1 2)

(1) Remove the hook button.

4.3. HOWTO REMOVE THEMAINBOARDS/ (Procedure 1 2 3)

(1) Remove the 6 screws A. / (2) Remove the main

board, speaker, H/S jack and mic.

4.4. HOWTO REMOVE THELCD BLOCK / (Procedure 1 2 3 4)

(1) Pull out the flat cable. (See Fig. 1) / (2) Remove

the LCD block. (See Fig.2) /

5. IC DATA

5.1. IC1

Name Pin Dir. Pull Up Type Io Act. Block MHz

Descriptions

DB3 2 bidir --- TTL 8.0mA high PT5B03 2 Data Bus [3]

DB2 3 bidir --- TTL 8.0mA high PT5B03 2 Data Bus [2]

DB1 4 bidir --- TTL 8.0mA high PT5B03 2 Data Bus [1]

DB0 5 bidir --- TTL 8.0mA high PT5B03 2 Data Bus [0]

ADR1 6 input 12-38k TTL --- high PT5D01U 2 Address Bus [1]

ADR0 7 input 12-38k TTL --- high PT5D01U 2 Address Bus [0]

CSN 8 input --- TTL --- low PT5D01 1 ChipSelect

REN 10 input 12-38k TTL --- low PT5D01U 2 ReadEnable

Command

WEN 9 input 12-38k TTL --- low PT5D01U 2 Write Enable

Command

RST 63 input --- CMOS

schmidt --- high PC5D21 0.01 Asynchronous

Reset

INT0N 11 output --- CMOS 2.0mA low PC5O01 0.01 Interrupt Request

INT1N 12 output --- CMOS 2.0mA low PC5O01 0.01 Interrupt Request

DR0 38 input --- CMOS --- low PC5D01 0.6 Dpits Receive

Data

DR1 39 input --- CMOS --- low PC5D01 0.6 Dpits Receive

Data

DX0 40 output --- CMOS 4.0mA low PC5O02 0.6 Dpits Transmit

Data

DX1 41 output --- CMOS 4.0mA low PC5O02 0.6 Dpits Transmit

Data

CK512K 37 output --- CMOS 2.0mA high PC5O01 0.6 Dpits Bit Rate

Clock

SR0 19 input 12-38k TTL --- high PT5D01U 0.1 Serial Receive

Data

Stream[0]

SR1 20 input 12-38k TTL --- high PT5D01U 0.1 Serial Receive

Data

Stream[1]

SX 21 output --- CMOS 4.0mA high PC5O02 0.1 Serial Transmit

Data

Stream

CK2M 18 output --- CMOS 4.0mA high PC5O02 2.1 Serial Stream

Clock

EP0 13 output --- CMOS 2.0mA high PC5O01 0.01 not used

EP1 14 output --- CMOS 2.0mA high PC5O01 0.01 not used

EP2 15 output --- CMOS 2.0mA high PC5O01 0.01 External Channel

Pulse

EP3 16 output --- CMOS 2.0mA high PC5O01 0.01 not used

PI 61 input --- CMOS

schmidt --- high PC5D21 0.01 not used

NI 62 input --- CMOS

schmidt --- high PC5D21 0.01 not used

CLM0 43 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

CLM1 44 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

CLM2 45 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

CLM3 46 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

CLM4 47 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

CLM5 48 output --- CMOS 4.0mA high PC5O02 0.01 LED Column

Drive

NROW0 50 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW1 51 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW2 52 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW3 53 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW4 54 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW5 55 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW6 56 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW7 57 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW8 58 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

NROW9 59 output --- CMOS 4.0mA low PC5O02 0.01 LED RowDrive [

IP0 27 input 12-38k CMOS --- high PC5D01U 0.01 not used

IP1 28 input 12-38k CMOS --- high PC5D01U 0.01 not used

IP2 29 input 12-38k CMOS --- high PC5D01U 0.01 not used

IP3 30 input 12-38k CMOS --- high PC5D01U 0.01 not used

OP0 23 output --- CMOS 4.0mA high PC5O02 0.01 LCD Vol.control 1

OP1 24 output --- CMOS 4.0mA high PC5O02 0.01 LCD Vol.control 2

OP2 25 output --- CMOS 4.0mA high PC5O02 0.01 not used

OP3 26 output --- CMOS 4.0mA high PC5O02 0.01 not used

CK2K 22 output --- CMOS 4.0mA high PC5O02 0.2 not used

CK16M 36 output --- CMOS 2.0mA high PC5O01 16.4 MasterClock Out

OSI 33 input --- Analog --- --- PC5X02 16.4 X'tal In(XIN)

OSO 34 output --- Analog --- --- PC5X02 16.4 X'tal Out (XOUT)

N.C. 32 --- --- --- --- --- --- --- not used

N.C. 42 --- --- --- --- --- --- --- not used

N.C. 60 --- --- --- --- --- --- --- not used

VDD1 1 vdd --- --- --- --- --- --- Vdd (5V)

VDD2 31 vdd --- --- --- --- --- --- Vdd (5V)

VDD3 49 vdd --- --- --- --- --- --- Vdd (5V)

VSS1 17 vss --- --- --- --- --- --- Vss (GND)

VSS2 35 vss --- --- --- --- --- --- Vss (GND)

VSS3 64 vss --- --- --- --- --- --- Vss (GND)

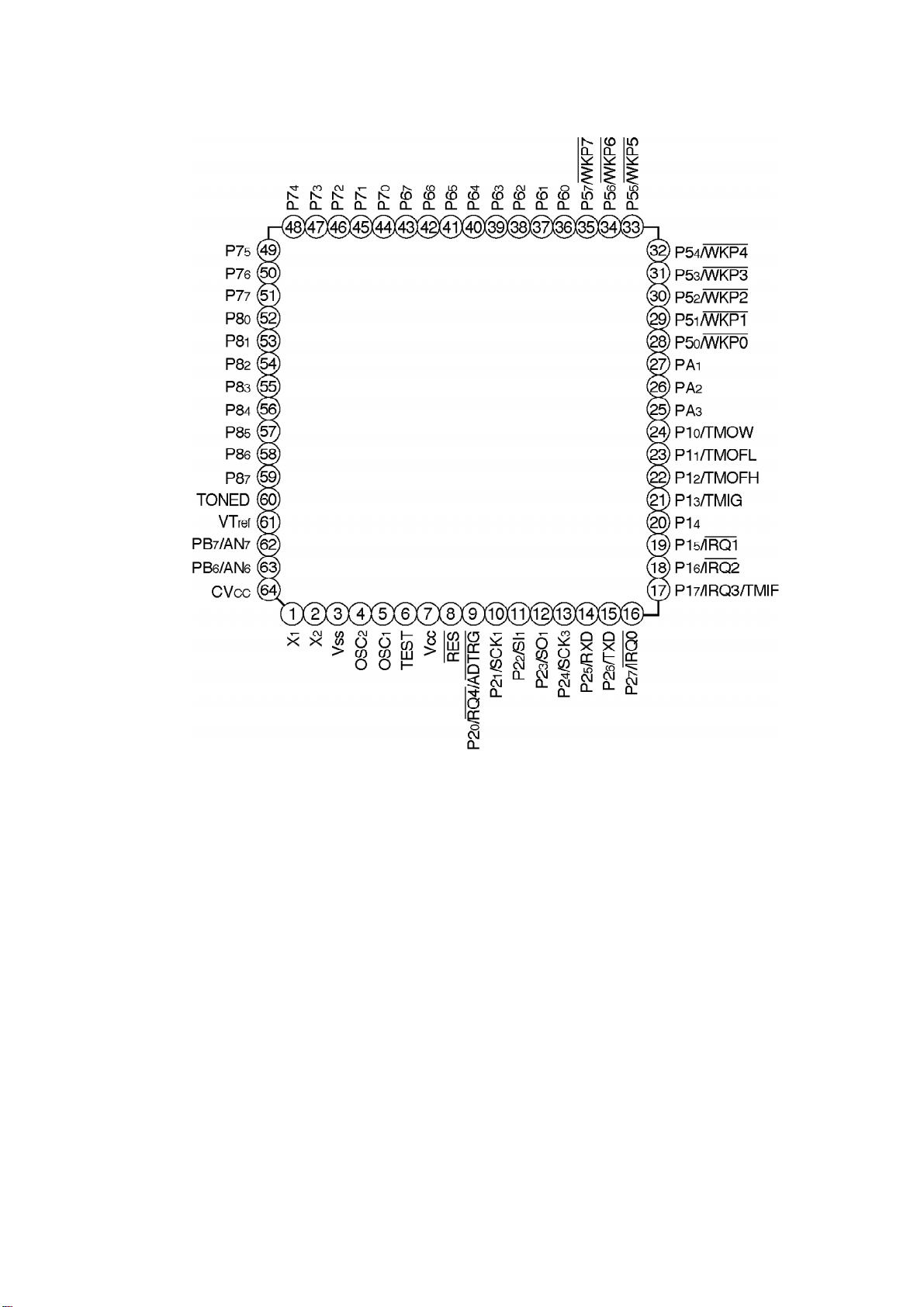

5.2. IC2

Classification Terminal PinNo. Input/

Output Function

Power

supply Vcc 7 - Powersupplyterminal

GND 3 - Ground terminal

CVcc 64 - Connect tothe Vcc terminal

Vtref 61 - DTMFreference level voltage terminal /

Connect

Vcc terminal

Oscillation X1 1 Input Input/Output terminal tothe mainoscillator.

X2 2 Output Connect tothe ceramic oscillator.(8MHz)

OSC1 5 Input Nouse

OSC2 4 Output Nouse

Reset RESET 8 Input Reset terminal of MCU (Active Low)

Test TEST 6 Input Nouse

I/O port P20 9 Output DTMFtone control

P24 13 Output Handset tone control

P25 14 Output SP-Phone tone control

P26 15 Output Ringertone control

P27 16 Input Hook Switch

SCK1 10 Output LCD serial clock

P22 11 Output LCD write enable command

SO1 12 Output LCD data

P17 17 Input Interrupt request fromG/A (IC1)

P16 18 Input Interrupt request fromG/A (IC1)

P15 19 Output Reset terminal of G/A (IC1) (Active Hi)

P14 20 Output KEY communication output 1

P13 21 Output KEY communication output 2

P12 22 Output KEY communication output 3

P11 23 Output KEY communication output 4

P10 24 Output KEY communication output 5

P50 28 Input KEY communication input 0

P51 29 Input KEY communication input 1

P52 30 Input KEY communication input 2

P53 31 Input KEY communication input 3

P54 32 Input KEY communication input 4

P55 33 Input KEY communication input 5

P56 34 Input KEY communication (HOLD key)

P57 35 Input Nouse

PA3 25 Output W.OHCA control

PA2 26 Output Ringertone vol. Control 1

PA1 27 Output Ringertone vol. Control 2

P60 36 Output Handset speakermute control

P61 37 Output Handset mic mute control

P62 38 Output SP-Phone speakermute control

P63 39 Output Off-hook-monitorcontrol

P64 40 Output Handset powercontrol
