Panasonic EH1673-A3 Manual de usuario

©2005 Matsushita Electric Works (Thailand), Ltd.All

rights reserved. Unauthorized copying and

distribution is a violation of law.

EH1673-A3

EH1613-T3

Negative Ion Steam Hair Straightener

SPECIFICATIONS

EH1673

Power Source

A

C220-240V / 50-60Hz

Rated current 0.2A

Tank Quantity approximately 6 ml

Steam discharge rate approximately 0.35 ml/min

Iron pipe temperature approximately 145°C

Cord length 1.7 m

Weight approximately 375 g (B2 plug)

approximately 435 g (S3 plug)

EH1613

Power Source

A

C110V / 50-60Hz

Rated current 31W

Tank Quantity approximately 6 ml

Steam discharge rate approximately 0.35 ml/min

Iron pipe temperature approximately 145°C

Cord length 1.7 m

Weight approximately 320 g (A2 plug)

ORDER NO. MEWT0511A02CE3

1 SCHEMATIC DIAGRAM 3

2 WIRING CONNECTION DIAGRAM 4

3 DISASSEMBLY INSTRUCTIONS 5

4 TROUBLESHOOTING GUIDE 9

5 EXPLODED VIEW 10

6 REPLACEMENT PARTS LIST 11

CONTENTS

Page Page

2

EH1673-A3 / EH1613-T3

1 SCHEMATIC DIAGRAM

1.1. EH1673

1.2. EH1613

3

EH1673-A3 / EH1613-T3

2 WIRING CONNECTION DIAGRAM

2.1. EH1673

2.2. EH1613

4

EH1673-A3 / EH1613-T3

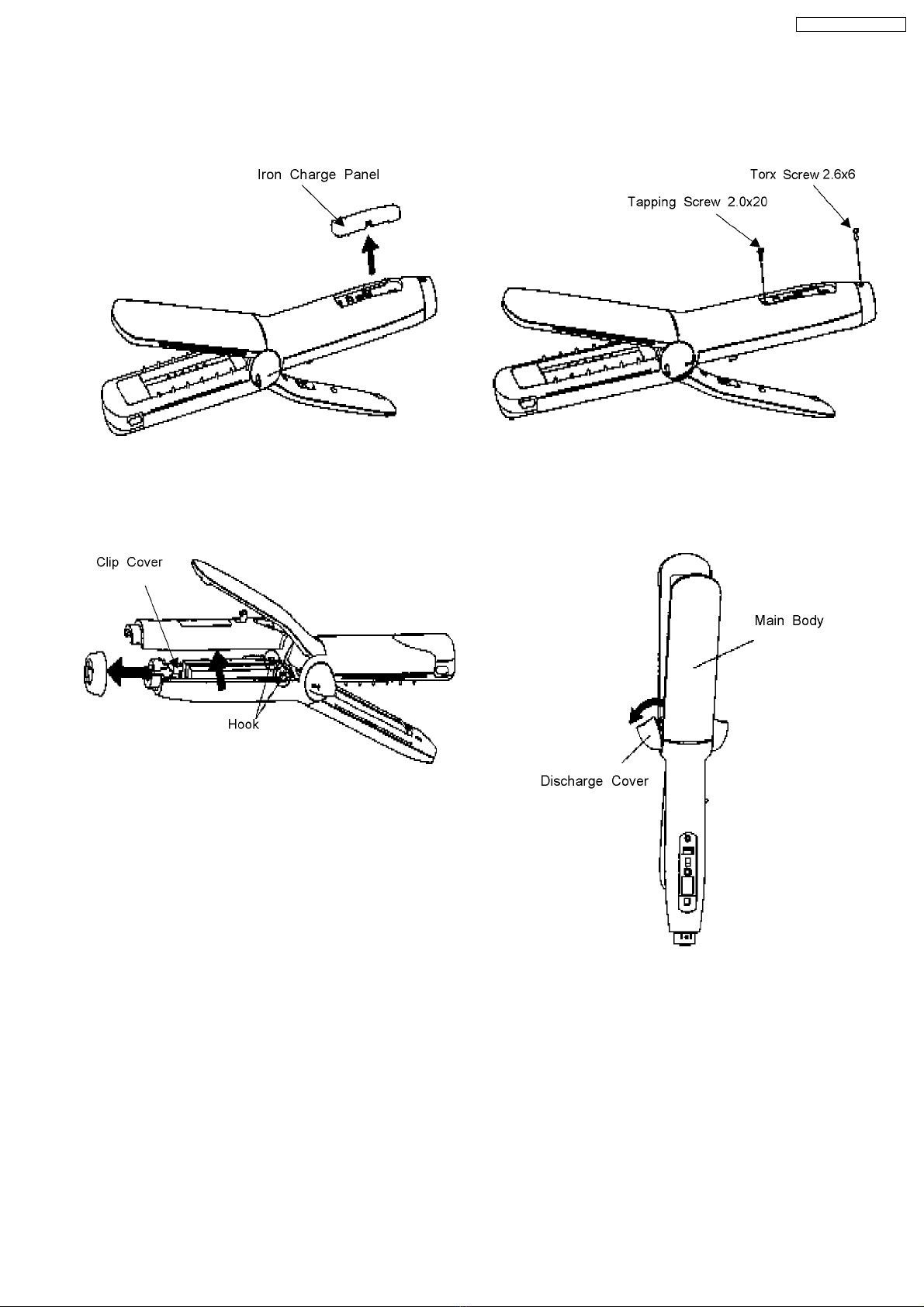

1. Remve Ion Charge Panel from Main Body.

3. Remove The Fixing Ring and Clip Cover by push at 2

hooks.

2. Remove Tapping Serew(2.0x20)and torx Screw(2.6x6) .

4. Remove Discharge Cover (no printing side) from Main Body

as show in Figure.

3 DISASSEMBLY INSTRUCTIONS

5

EH1673-A3 / EH1613-T3

5. Remove Tapping Screw (3.0x10) from Main Body.

7. Remove Discharge Cover (Primting side) from Main Body.

6. Take off the shaft (on printing side) from Main Body.

8. Take off Discharge Cover from Shaff and take off Discharge

Holder from discharge Cover.

6

EH1673-A3 / EH1613-T3

9. Remove 2 Tapping Screws (2.0x6.0) from Main Body.

11. Take off Lever B/K from Main Body by backside.

13. Remove 5 Tapping Screws from Lever

10. Remove Steam Iron Cover from Main Body by push at 4

hooks.

12. Input Discharge Holder into hold of Main Body by arrow

side.

7

EH1673-A3 / EH1613-T3

14. Take off LED B/K by solder 2 points.

15. Take off Dry Iron Plate by solder 2 points.

16. Take off Steam Iron Plate by solder 2 points.

8

EH1673-A3 / EH1613-T3

4 TROUBLESHOOTING GUIDE

9

EH1673-A3 / EH1613-T3

5 EXPLODED VIEW

10

EH1673-A3 / EH1613-T3
