Panasonic SC-TM82AV Manual de usuario

��

�

AMPLIFICADORSA-TM82AV

Potenciadesalida:7500W(P.M.P.O.)

Consumodepotencia:414W

Alimentación:127Vca±10%60Hz

SensibilidadAUX:250mV

RangodesintoníaAM:522-1629kHz(pasode9kHz)

520-1630kHz(pasode10kHz)

RangodesintoníaFM:87,5-108,0MHz(pasode0,05MHz)

Dimensiones(bxhxl):250mmx335mmx360mm

Peso:9,8kgaprox.

LECTOR DE DISCOS COMPACTOS

Frecuencia de muestreo 44,1 kHz

Decodificación16 bits lineares

Fuente del haz Láser semiconductor/780 nm

Número de canales Estéreo

Respuesta en frecuencia 20 Hz-20 kHz (+1,-2dB)

Wow yFlutter Por debajo de los límites de medición.

Filtrodigital8fs

ConvertidorD/AMASH (1 bit DAC)

VideoCD

DatosdevideoBasado en MPEG 1

Datos de audio Basado en MPEG 1capa 2

Salidadevideo

Formato devideoNTSC/PAL

Voltaje de salida 1Vp-p, 75 �

Formato físico Basado en el formato de CD-ROM

MP3

Decodificador de MP3 Basado en MPEG 1capa 3

Velocidad de bit 32 kbps-320 kbps

Frecuencia de muestreo 32 kHz 44,1 kHz 48 kHz

Notas:

•Lasespecificaciones estánsujetasacambios sin previo aviso.

•Los pesos ylas dimensiones son aproximados.

Frontal(Bajo)90 WRCM por canal (6��), 80 Hz ,10% DAT

(Alto)95 WRCM por canal (6��), 1kHz ,10% DAT

Surround 40 WRCM por canal (8 �), 1kHz ,10% DAT

Subwoofer90 WRCM por canal (6��), 80 Hz ,10 %DAT

POTENCIADESALIDA(AMPLIFICADOR)

BAFLESIMPEDANCIADIMENSIONESPESO

DE ENTRADA(b xhxl)

SB-TM82

FRONTAL252mmx370mmx292mm5,3kgaprox.

Bocina Tweeter6cm---

Bocina Full range12 cm---------

Bocina Woofer16 cm------

(alto)6�------

(bajo)�------

SB-PS82

SURROUND

Bocina Full Range8cm8�205mmx145mmx160mm1,3kgaprox.

SB-W82

SUBWOOFER16cm6�299mmx371mmx358mm6,0kgaprox.

�

��

�Modelo: SC-TM82AV

SC-TM82AV

SA-TM82AV

SB-TM82

SB-PS82

SB-W82

MODELO UNIDAD

Estéreo

Bafles

Surround

Subwoofer

SB-TM82

SB-W82

SB-PS82 SB-PS82

SA-TM82AV

SB-TM82 SB-W82

ARCHIVE Y USE ESTE SIMPLIFICADO JUNTO CON LOS MODELOS SC-VK800GC-S Y SC-TM81AV

SIM

ICADO







 

















 







 













 



































No Part No. Description

11 RGKM0015 CONTROL PANEL

12 RGLX0069-Q POWER LIGHT CHIP

13 L6FALEFH0018 FAN UNIT

14 RYPM0174 FRONT PANEL UNIT

15 RGRM0015A-1 REAR PANEL

16 RGUX0527-S POWER BTN

17 RGUX0528-1S DECK 1 / 2

18 RGUM0013 CONTROL BTN (R)

19 RGUM0014 CONTROL BTN (L)

20 RGUX0532-S FUNCTION BTN (R)

21 RGUX0531-S FUNCTION BTN (L)

22 RGUX0533-1S PRESET EQ. BTN

23 RGUX0535-S CD EJECT BTN

25 RGWX0056-S MIC VOL KNOB

27 RHD30004-2S SCREW

30 RMQX0081 F.PANEL

No Part No. Description

31 RKFX0093-K CASS HOLDER (L)

32 RKFX0094-K CASS HOLDER (R)

35 RYKM0033-2 TOP CABINET

37 RKWX0210A-V FL WINDOW

38 RYFX0128-S CASS LID (R)

39 RYFX0127-S CASS LID (L)

41 RMBX0021 CASS OPEN SPRING

44 RMKX0075A-1 CD CHASSIS

50 RUS757ZAA CASS HALF SPRING

51 RXGX0002 DAMPER GEAR

54 RGKM0013 TOP ORNAMENT

55 RYQX0109 SS EQ BTN (L)

56 RGUX0536-S 5 CD CONTROL BTN

1 Connection of the Speaker Cables

•Be sure to connect speaker cables before

connecting the AC power supply cord.

•The load impedance of any speaker used with this

unit must be 8˜.

•Be sure to connect the cable from the right speaker

to the right terminal and the cable from the left speaker to

the left terminal.

Strip off the outer covering, and twist the center

conductor. Make sure the bare ends of the wires are

not unravelled. (If they are, twist them tight again.)

Insert the wire to the rear panel of the unit and close

the lever.

Notes :

•To prevent damage to circuitry, never short-circuit

positive (+) and negative (-) speaker wires.

•Be sure to connect only positive (red) wires to

positive (+) terminals and negative (black) wires to

negative (-) terminals.

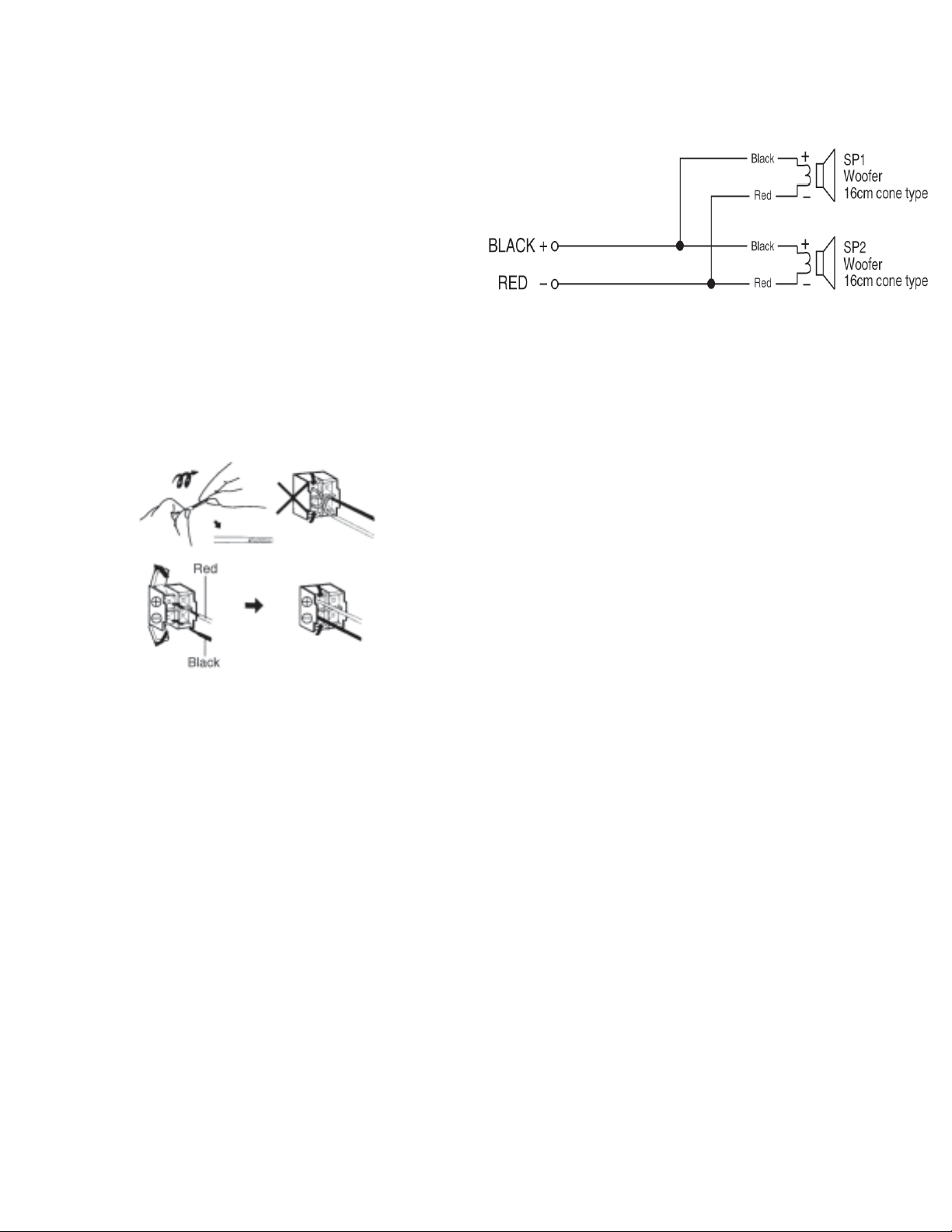

2 Connection of Wiring Diagram

SB-PS82

3 Cabinet Parts Location

Ref. No.

1-1

SP1

Part No.

RKPX0056-LM

RKA0072-KJ

RYPM0169

RMR1265-LM

XTBS3+8JFZ1-A

XTB4+10G-A

EAST10P25D6

Part Name & Description

REAR CABINETASS’Y

LEG RUBBER

FRONT PANELASS’Y R

COVER

SCREW

SPEAKER

1 Connection of the

Speaker Cables

•Be sure to connect speaker cables before

connecting the AC power supply cord.

•The load impedance of any speaker used with this

unit must be 6˜/12˜.

•Be sure to connect the cable from the right speaker

to the right terminal and the cable from the left speaker to

the left terminal.

Strip off the outer covering, and twist the center

conductor. Make sure the bare ends of the wires are

not unravelled. (If they are, twist them tight again.)

Insert the wire to the rear panel of the unit and close

the lever.

Notes :

•To prevent damage to circuitry, never short-circuit

positive (+) and negative (-) speaker wires.

•Be sure to connect only positive (red) wires to

positive (+) terminals and negative (black) wires to

negative (-) terminals.

2 Connection of the Wiring Diagram

3 Cabinet Parts Location

SB-TM82

Ref. No.

1-1

1-2

SP1

SP2

SP3

Part No.

RKPM0084

RKPM0085

RKA0072-KJ

RJH9210

RYPM0166

RYPM0167

RGKX0115-SJ

RMG0520-H

RMQX0076

RMQX0077

RMQX0078

RMRX0038-LM

RMRX0037-LM

REEX0304-1

XTB4+8G-A

XTB4+10G-A

XTB4+16AFZ-A

RMQ0922

EAS6PH121A

EAST16PL44E6

EAST12P39E6

Part Name & Description

SPK CABINET ASS’Y L

SPK CABINET ASS’Y R

LEG

TERMINAL PLATE

FRONT PANELASS’Y L

FRONT PANELASS’Y R

ORNAMENT CAP

CATCHING HOLDER

HIMELON (355 x 8 x 0.5)

HIMELON (320 x 8 x 0.5)

HIMELON (240 x 8 x 0.5)

BACK CAVITY L

BACK CAVITY R

CORD ASS’Y

SCREW (TWEETER)

SCREW (S. WOOFER)

SCREW

EVA PACKING

TWEETER

WOOFER

S. WOOFER

1 Connection of the

Speaker Cables

•Be sure to connect speaker cables before

connecting the AC power supply cord.

•The load impedance of any speaker used with this

unit must be 6˜.

•Be sure to connect the cable from the right speaker

to the right terminal and the cable from the left speaker to

the left terminal.

Strip off the outer covering, and twist the center

conductor. Make sure the bare ends of the wires are

not unravelled. (If they are, twist them tight again.)

Insert the wire to the rear panel of the unit and close

the lever.

Notes :

•To prevent damage to circuitry, never short-circuit

positive (+) and negative (-) speaker wires.

•Be sure to connect only positive (red) wires to

positive (+) terminals and negative (black) wires to

negative (-) terminals.

2 Connection of the Wiring Diagram

3 Cabinet Parts Location

SB-W82A

SB-PS82A

3 Cabinet Parts Location

Ref. No.

1-1

SP1

Part No.

RKPX0056-LM

RKA0072-KJ

RYPM0169

RMR1265-LM

XTBS3+8JFZ1-A

XTB4+10G-A

EAST10P25D6

Part Name & Description

REAR CABINETASS’Y

LEG RUBBER

FRONT PANELASS’Y R

COVER

SCREW

SPEAKER

SB-W82A

Ref.

No.

SP1

Part No.

RKPM0088

RYPM0168

RKA0072-KJ

RMG0520-H

RGKX0115-SJ

436-1704301A

XTB4+12G

XTB4+16AFZ’A

XTB4+10G

RMGQX0073

RMGQX0074

EAST16PL44D6

Part Name & Description

SPK CABINETASS’Y

FRONT PANELASS’Y

LEG RUBBER

RUBBER CATCH

ORNAMENT CAP

WOOFER EVA PACKING

SCREW (FRONT PANEL)

SCREW (BLACK)

SCREW (WOOFER)

HIMELON

SPEAKER (WOOFER)
