Speaker System

Model No. SB-MAX4000E

SB-MAX4000GS

SB-MAX4000PN

SB-MAX4000PS

Product Color : (K)... Black Type

TABLE OF CONTENTS PAGE PAGE

1 Specifications ----------------------------------------------------- 2

2 Disassembly and Assembly Instructions ---------------- 2

2.1. Type of screws --------------------------------------------- 2

2.2. Disassembly of Upper Front Panel Block ----------- 3

2.3. Disassembly of Tweeter Speaker (SP1)------------- 4

2.4. Disassembly of Woofer Speaker (SP2)-------------- 4

2.5. Disassembly of Lower Front Panel Block ----------- 5

2.6. Disassembly of Subwoofer Speaker (SP3) --------- 6

2.7. Disassembly of Lighting Wire P.C.B.

Assembly ---------------------------------------------------- 7

3 Wiring Connection Diagram ---------------------------------- 8

4 Exploded View and Replacement Parts List ------------ 9

4.1. Cabinet Parts Location----------------------------------- 9

4.2. Packaging--------------------------------------------------10

4.3. Replacement Parts List--------------------------------- 11

1 Specifications

2 Disassembly and Assembly Instructions

Caution Note:

• This section describes procedures for checking the operation and replacing the main components.

• For reassembly after operation checks or replacement, reverse the respective procedures.

• Special reassembly procedures are described only when required.

• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.

• During the disassembly and/or assembly process, please handle with care as there may be chassis components with sharp

edges.

• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the service man-

ual.

• Select items from the following indexes when disassembly or replacement are required.

Front Speakers

• Disassembly of Upper Front Panel Block

• Disassembly of Tweeter Speaker (SP1)

• Disassembly of Woofer Speaker (SP2)

• Disassembly of Lower Front Panel Block

• Disassembly of Subwoofer Speaker (SP3)

• Disassembly of Lighting Wire P.C.B. Assembly

2.1. Type of screws

Speakers

Speaker unit(s)

Tweeter 6 cm cone type

Woofer 20 cm cone type

Super Woofer 30 cm cone type

Impedance High 3 Ω/ Mid 3 Ω/ Low 2 Ω

Dimensions (W x H x D) 407 mm x 709 mm x 389 mm

Mass 19 kg

Notes:

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum ana-

lyzer.

2.2. Disassembly of Upper Front

Panel Block

Step 1 : Remove 4 screws.

Step 2 : Insert flathead screwdriver into the grooves.

Step 3 : Insert a steel rule between the Upper Front Panel

Block and Speaker Cabinet.

Step 4 : Apply light force to push the Upper Front Panel Block.

Caution : Do not exert strong force as it may damage the

Upper Front Panel Block.

Step 5 : Detach Upper Front Panel Block.

Step 6 : Detach speaker wire.

Step 7 : Remove Upper Front Panel Block.

During assembling, please do following

Step 1 : Remove and clean up the bosses and holes.

Step 2 : Align the bosses of Upper Front Panel Block to the

holes of Speaker Cabinet.

Step 3 : Press the Upper Front Panel Block tightly.

2.3. Disassembly of Tweeter

Speaker (SP1)

• Refer to “Disassembly of Upper Front Panel Block”

Step 1 : Remove 4 screws.

Step 2 : Remove Tweeter Speaker (SP1).

2.4. Disassembly of Woofer

Speaker (SP2)

• Refer to “Disassembly of Upper Front Panel Block”

Step 1 : Remove 4 screws.

Step 2 : Slightly lift up Woofer Speaker (SP2).

Step 3 : Detach speaker wire.

Step 4 : Remove Woofer Speaker (SP2).

2.5. Disassembly of Lower Front

Panel Block

Step 1 : Remove 4 screws.

Step 2 : Insert flathead screwdriver into the grooves.

Step 3 : Insert a steel rule between the Lower Front Panel

Block and Speaker Cabinet.

Step 4 : Apply light force to push the Lower Front Panel Block.

Caution : Do not exert strong force as it may damage the

Lower Front Panel Block.

Step 5 : Detach Lower Front Panel Block.

Step 6 : Lift up the Himelon.

Step 7 : Detach 4P Socket.

Step 8 : Remove Lower Front Panel Block.

During assembling, please do following

Step 1 : Remove and clean up the bosses and holes.

Step 2 : Align the bosses of Lower Front Panel Block to the

holes of Speaker Cabinet.

Step 3 : Press the Lower Front Panel Block tightly.

2.6. Disassembly of Subwoofer

Speaker (SP3)

• Refer to “Disassembly of Lower Front Panel Block”

Step 1 : Remove 8 screws.

Step 2 : Slightly lift up Subwoofer Speaker (SP3).

Step 3 : Detach speaker wire.

Step 4 : Remove Subwoofer Speaker (SP3).

2.7. Disassembly of Lighting Wire

P.C.B. Assembly

• Refer to “Disassembly of Lower Front Panel Block”

Step 1 : Release the 4P wire from Lower Front Panel Block.

Step 2 : Remove 4 screws.

Step 3 : Remove Lighting Cover.

Step 4 : Release 4P wire from slot.

Step 5 : Remove 2 screws.

Step 6 : Remove Lighting Wire P.C.B. Assembly.

3 Wiring Connection Diagram

4 Exploded View and Replacement Parts List

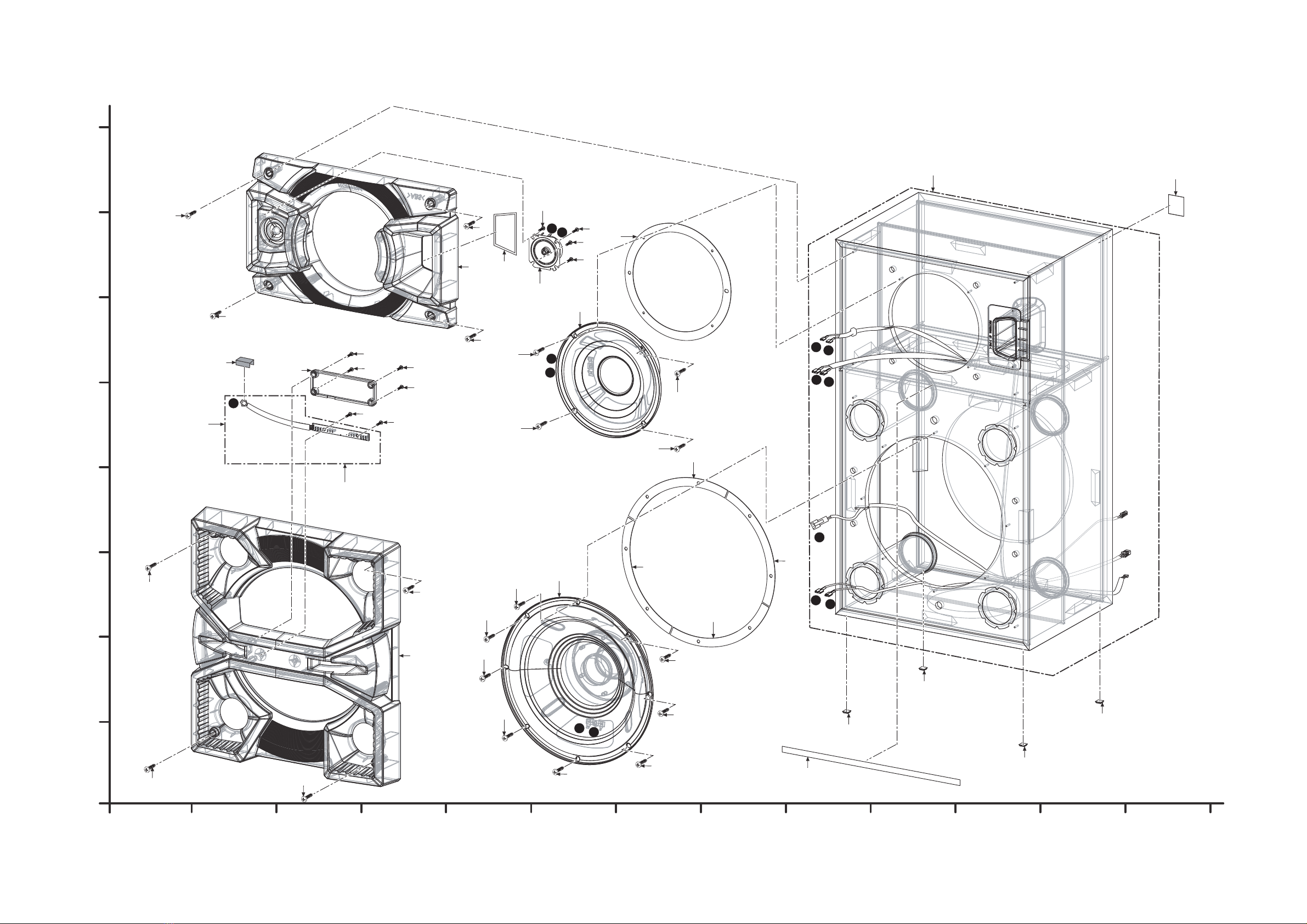

4.1. Cabinet Parts Location

SP3

SP2

SP1

11 11

6(LEFT)

7(RIGHT)

(LIGHTING WIRE

P.C.B. ASSEMBLY)

123456789

10 11 12 13

SB-MAX4000GS

SB-MAX4000PN

SB-MAX4000PS

SB-MAX4000EK

CABINET DRAWING

4.2. Packaging

SB-MAX4000GS/PN/PS/E

*P2

FRONT

123456789

10 11 12 13

*P2

SB-MAX4000GS

SB-MAX4000PN

SB-MAX4000PS

SB-MAX4000EK

PACKAGING DRAWING

POLYFOAM (TOP/FRONT)

POLYFOAM (BOTTOM/REAR)

POLYFOAM (BOTTOM/FRONT)

POLYFOAM (TOP/REAR)
