Functions Added by Version Updates

Updating the version of this unit adds the following functions.

This table lists the functions added to each version. For details on each function, see the corresponding

explanation in this document.

As of October 2020

Version

Added functions

Page

1.10-00-0.02

Functions Added to Status Screen

Addition of [F1-F4 KNOB ASSIGN] to the [FUNCTION] menu



Addition of “I.ZOOM” to [CAM INFO] of the [FUNCTION] menu

Addition of “IRIS LIMIT” and

“FOCUS SPEED” to [PTZ INFO1] of the [FUNCTION] menu



Changing of setting values of “SW” of [CROP] of the [FUNCTION] menu

Addition of “CAM OSD BUTTON” and

“PRESET BUTTON” to [RP SETTING] of the [MAINTENANCE] menu



Addition of [PMEM NAME EDIT] to the [PMEM/TMEM] menu

1.10-00-0.05

Functions Added to Status Screen

Addition of “FCS_SPD” to setting values of [F1-F4 KNOB ASSIGN] of the

[FUNCTION] menu

2.10-00-0.01



Functions added to status screen

Changing of display of camera name and alarm information

Addition of display of camera group number

Display of the [PMEM LIST] screen by long pressing the [F5] dial

Changing of display of menu item being set



Addition of marker display for IRIS LIMIT position

Addition of [CAM ALARM] to the [MAINTENANCE] menu



Addition of “CAM AWB”, ”CAM ABB”, and

“CAM BAR” to [CAMERA] of the [SYSTEM] menu

Addition of “5LIMITS” to [RP IP SET] of the [SYSTEM] menu



Functions Linking with AK-HRP1000/AK-HRP1005

Addition of [ROP LINK] to the [SYSTEM] menu

Functions Linking with AV-HS6000

Addition of [SW LINK SETTING] and [SW LINK ASSIGN] to the [SYSTEM] menu

ENGLISH AW-RP60G

-2-

Functions Added to Status Screen

Display of camera name, alarm information, and camera group

The camera group number is now displayed in the status screen. Furthermore, the display of the camera

name and alarm information has been changed as follows.

No.

Item

Details

Supported versions

①

Camera name

Displays the name of the connected camera. When

the connection with the camera is an IP connection,

up to 10 characters of the camera name set on the

camera are displayed.

2.10-00-0.01 and later

②Camera model

number

Displays the model number or series number notified

from the connected camera.

③

Group number

Displays the camera group number.

④Alarm information Displays the alarm information for one alarm. If

multiple alarms occurred, the alarm information for the

alarm with the highest priority is displayed and the

number of remaining alarms is displayed on the

second line.

Alarm information priority order

“FAN” → “H.TEMP” → “SENSOR” → “P/T” → “LENS”

A list of the alarm information can be displayed in

[CAM ALARM] of the [MAINTENANCE] menu.

②

①

③

④

ENGLISH AW-RP60G

-3-

Assignment of functions to the [F1], [F2], [F3], and [F4] dials

(version 1.10-00-0.02 and later)

The following functions can be assigned to the [F1], [F2], [F3], and [F4] dials to operate them while the

status screen is displayed.

SHUTTER MODE

SHTTER SPEED

ND

COLOR TEMP

M.PED

GAIN

FOCUS SPEED (Version 1.10-00-0.05 and Later)

Assign the functions from [F1-F4 KNOB ASSIGN] of the [FUNCTION] menu.

[F1

-F4 KNOB ASSIGN] of the [FUNCTION] menu

Switches the functions of the

[F1], [F2], [F3], and [F4] dials

Displays the

functions

assigned to each button

ENGLISH AW-RP60G

-4-

Item

Setting value

Setting details

Supported versions

[F1] to [F4]

SHTTR_MD

SHTTR_SPD

C.TEMP

GAIN

FCS_SPD*1

Selects the functions to assign to the [F1] to [F4]

dials.

SHTTR_MD: SHUTTER MODE

SHTTR_SPD: SHUTTER SPEED

ND: ND FILTER

C.TEMP: COLOR TEMP

GAIN: GAIN

FCS_SPD: FOCUS SPEED

Default value

[F1] dial: SHTTR_MD (SHUTTER MODE)

[F2] dial: SHTTR_SPD (SHTTER SPEED)

[F3] dial: ND

[F4] dial: C.TEMP (COLOR TEMP)

1.10-00-0.02 and later

*1：“FCS_SPD” only

1.10-00-0.05 and later

Display of [PMEM LIST] screen (version 2.10-00-0.01 and later)

If you long press the [F5] dial while the status screen is displayed, the [PMEM LIST] screen

([PMEM/TMEM] > [PMEM LIST]) appears.

Long press

[PMEM LIST] of the [PMEM/TMEM] Menu

ENGLISH AW-RP60G

-5-

Changing of Display of Menu Item Being Set (Version 2.10-00-0.01

and Later）

The display color of the menu item being set changes to amber. When the setting is confirmed, the color

changes back to the original color.

Display example

ENGLISH AW-RP60G

-6-

[CAM INFO] of [FUNCTION] Menu

The following item has been added to [CAM INFO] of the [FUNCTION] menu.

No.

Item

Setting value and setting details

Supported versions

①

I.ZOOM

Sets the i.Zoom function to ON/OFF. This setting can be

assigned to a USER button.

The setting is “ON” when the USER button is lit, and

“OFF” when it is not lit.

1.10-00-0.02 and later

①

ENGLISH AW-RP60G

-7-

[PTZ INFO1] of [FUNCTION] Menu

The following items have been added to [PTZ INFO1] of the [FUNCTION] menu.

No.

Item

Setting value and setting details

Supported versions

①

IRIS LIMIT

Sets the limit in the close direction in the iris operation

of the selected camera. When you set this to “ON” at

the desired iris position, operation toward the close

end can no longer be performed any farther than that

position.

When you set this to “OFF”, the setting is canceled.

1.10-00-0.02 and later

②FOCUS SPEED Sets the speed for when the [FOCUS] dial is operated

to 1 to 6 levels (default value: 3). This item can also

be assigned to the [F1], [F2], [F3], and [F4] dials in

[F1-F4 KNOB ASSIGN] of the [FUNCTION] menu.

NOTE

This is displayed as “FCS_SPD” in the [F1-F4

KNOB ASSIGN] screen and status screen.

1.10-00-0.05 and later

Marker display during [IRIS LIMIT] setting (version 2.10-00-0.01 and later)

When [IRIS LIMIT] is set to “ON”, a marker to indicate the limiter position is displayed at the IRIS position

on the status screen.

②

①

ENGLISH AW-RP60G

-8-

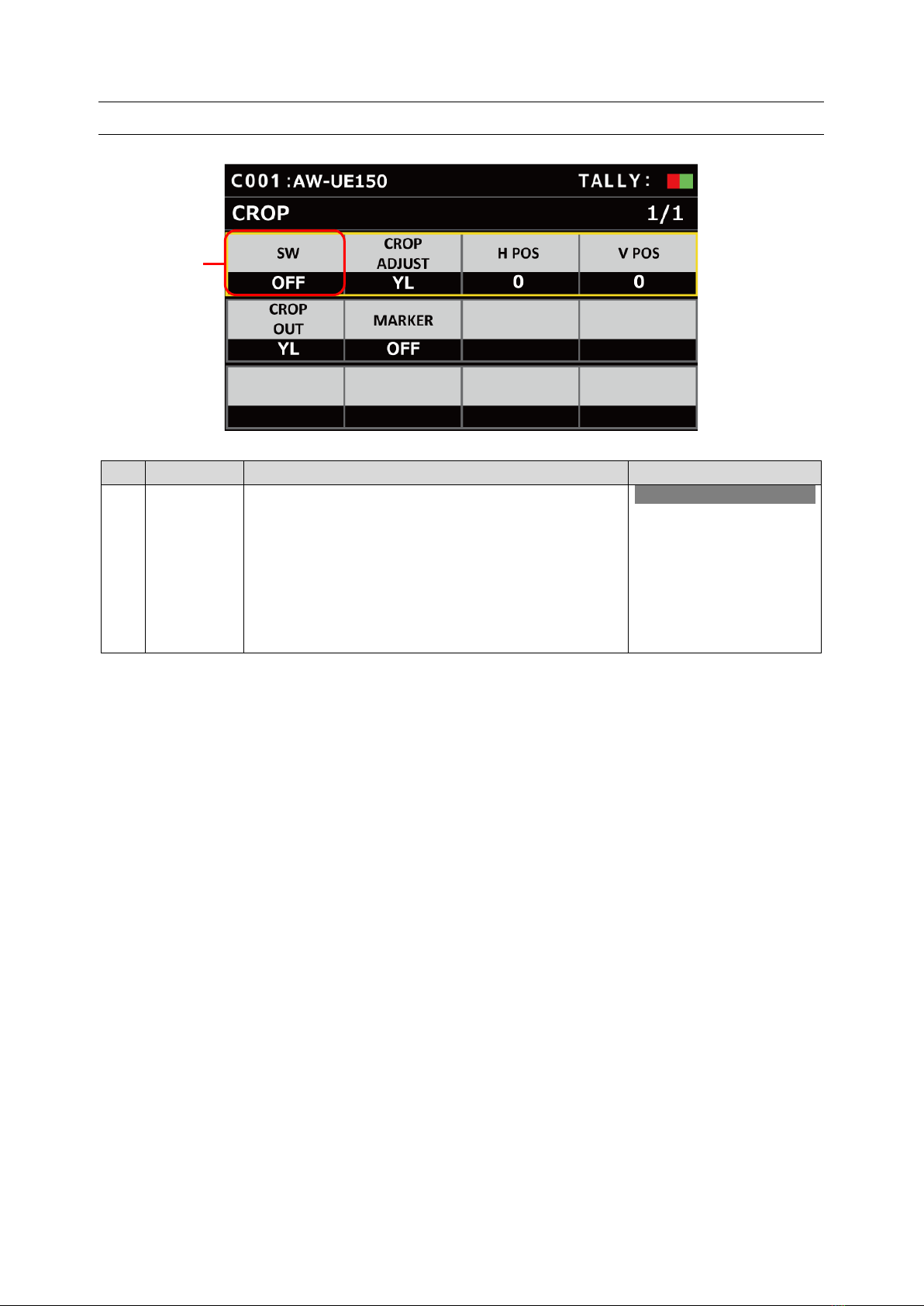

[CROP] of [FUNCTION] Menu

The following item has been changed in [CROP] of the [FUNCTION] menu.

No.

Item

Setting value and setting details

Supported versions

①

Select from “OFF”, “CROP(1080)”, and “CROP(720)” for

the setting of [CROP SW].

When the [CROP SW] function is assigned to the [USER 1]

to [USER 4] buttons, you can select “CROP 1080” or

“CROP 720”.

NOTE

The “CROP:ON” setting value prior to the version

update will be replaced with “CROP(1080)”.

1.10-00-0.02 and later

①

ENGLISH AW-RP60G

-9-

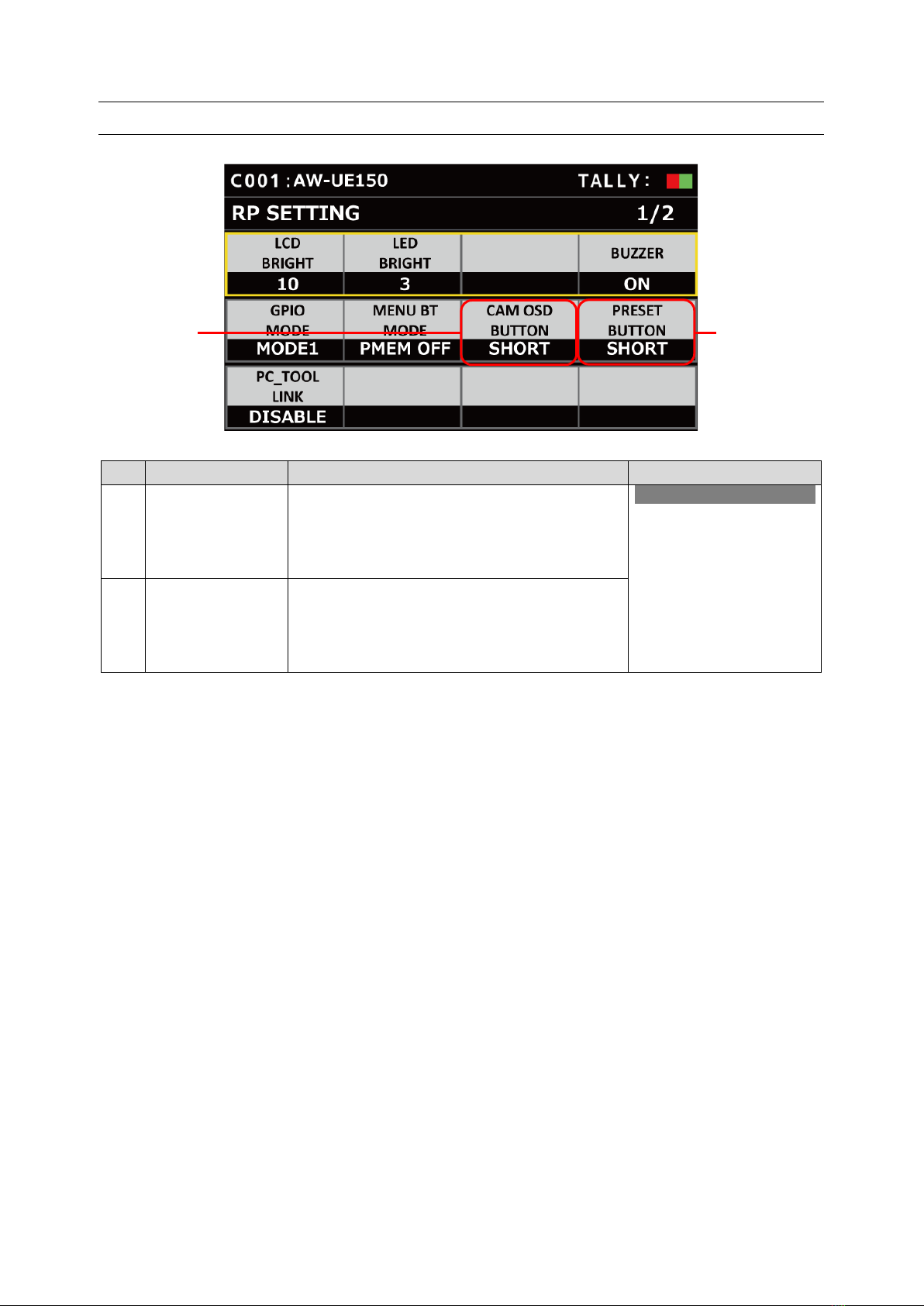

[RP SETTING] of [MAINTENANCE] Menu

The following items have been added to [RP SETTING] of the [MAINTENANCE] menu.

No.

Item

Setting value and setting details

Supported versions

①

CAM OSD BUTTON

Switches the operation (short press or long press) of

the [CAMERA OSD ON/OFF] button on the control

panel.

SHORT: Short press

LONG: Long press

1.10-00-0.02 and later

②PRESET BUTTON Switches the operation (short press or long press) of

the [PRESET STORE] and [PRESET DELETE]

buttons on the control panel.

SHORT: Short press

LONG: Long press

①

②

ENGLISH AW-RP60G

-10-

[CAM ALARM] of [MAINTENANCE] Menu (Version 2.10-00-0.01 and

Later)

[CAM ALARM] for displaying a list of the alarms notified from the selected camera has been added to the

[MAINTENANCE] menu.

The alarm information is displayed in order of notification in [ALARM1] to [ALARM5]. If there is no

notification, "—" is displayed.
