Panasonic PT-TW230U Manual de usuario

Operating Instructions

Network Operations

LCD Projector Commercial Use

SO-LW4AC

Model No.

PT-TW230U/PT-TW231RU

PT-TW230E/PT-TW231RE

PT-TW230EA/PT-TW231REA

This manual explains the network operation of the projector.

For information other than the network operation, such as the usage, inspection and replacement of parts,

see “Operating Instructions - Projector Operations”.

ENGLISH

Contents

The illustrations and screenshots in this manual may be different from those on your computer.

Expressions used in this document

Pages to reference within this document are indicated as (See page ○○), and pages to reference in the

supplemental “Operating Instructions - Projector Operations” are indicated as (See [○○] of the Projector

Operations).

Request Regarding Security········································· 3

Whatyoucando ················································· 3

Check your computer ·············································· 4

Necessary environment for computers to be connected · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4

NETWORKmenu ················································· 5

DisplayingtheNETWORKmenu ···············································5

Projectorname ····························································6

Networksetup·····························································7

Network control ····························································8

Network status·····························································8

AMXD.D.·································································9

Network factory default ······················································9

Connecting with Wired LAN ········································ 10

Computer operation························································10

UsingWebBrowser ···············································11

AccessingfromtheWebbrowser ············································· 11

PJLinkprotocol ················································· 22

Controlcommands ························································22

PJLinksecurityauthorization ················································22

ControlcommandsviaLAN········································ 23

When WEB Control administrator rights password is set (Protect mode) ···················23

When WEB Control administrator rights password is not set (Non-protect mode) ·················24

Glossary ······················································ 25

Trademarks ···················································· 25

Request Regarding Security

When using this product, security breaches of the type described below are conceivable.

Leakage of your private information via this product•

Illegal operation of this product by a malicious third-party•

Harm to or cessation of operation of this product by a malicious third-party•

Be sure to implement sufcient security measures.

Set passwords, and limit the users that are permitted login access.•

Make sure the password is as hard to guess as possible.•

Change the password periodically.•

Panasonic Corporation and its afliated companies never directly ask customers for their password. Do not give •

out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.

Always use on a network that has safety protection such as a rewall implemented.•

<WEB control> (See page 11)

The following operations are possible when using Web Browser.

Setting and adjusting the projector•

Displaying the projector status•

Setting for message transmission•

<PJLink> (See page 22)

Compatible with PJLink Class 1. The following operations can be performed from a computer when PJLink protocol

is used.

Setting the projector•

Querying the projector status•

(Refer to “Serial terminal” in “Technical Information” of the Projector Operation manual)

You can control the projector from a computer, using the control commands of the serial terminals.

When using [Web control], [PJLink], and [Command control], set [Network control] in the [Network] menu of the

projector to [On] (See page 8).

What you can do

Check your computer

Necessary environment for computers to be connected

First, check your computer to see whether or not it has a wired LAN• function.

“Glossary” (See page 25)

Before connecting the projector to the computer, be sure to check the following settings.•



Wired LAN

Check 1 For LAN cable

Is the cable properly connected?•

Use shielded LAN cable (STP cable) that is compatible with category 5 or above.•

Check 2 Wired LAN settings

Is your wired LAN switched on?•

Is your wired LAN adapter properly recognized?•

Is your wired LAN adapter switched on?•

Install the wired LAN adapter driver beforehand.•

For details on how to install the driver, refer to the instructions accompanying the wired LAN adapter.

Check 3 For Web Browser

Web Browser is necessary to use WEB control.•

Compatible OS : Windows XP/Windows Vista/Windows 7, Mac OS X v10.4/v10.5/v10.6/v10.7•

Compatible Web Browser : Internet Explorer 7.0/8.0/9.0, Safari 4.0/5.0 (Mac OS)•

Do not touch the LAN terminal or the metal part of the LAN cable, the static electricity may discharge from our

hand (body) causing a malfunction.

NETWORK menu

To connect the projector and the computer by changing the setting at the time of purchase, change the setting by

displaying the menu with the following procedure.

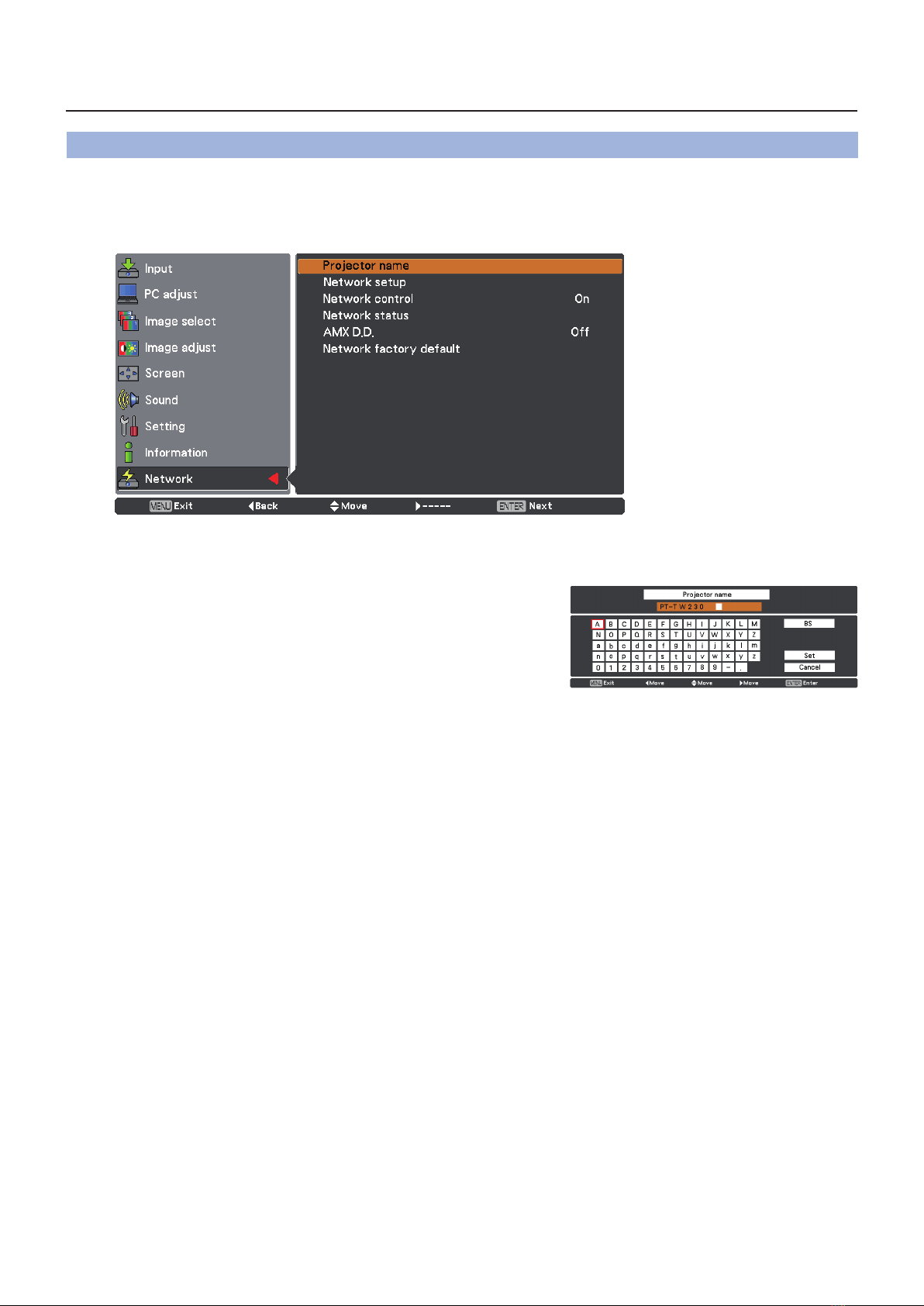

Displaying the NETWORK menu

Press the <MENU> button on remote control.

1 The main menu appears.

Select [Network] with the ▲▼ buttons.

2 The network menu appears.

Press the <ENTER> button.

3 You can select the sub-menu item.

Unavailable items on the menu screen are grayed out and cannot be selected.

NETWORK menu (continued)

Projector name

You can change the projector name to be displayed on the network.

Press ▲▼ to select [Projector name], and press <ENTER> button.

Select characters with the ▲▼◄► buttons and

2 press the <ENTER> button to enter the projector

name.

Select [Set] with the ▲▼◄► buttons

3 and press the <ENTER> button.

Select [Cancel] to undo the changes and then press the

<ENTER> button.

Select [Yes] or [No] with the ▲▼◄► buttons and

4 press the <ENTER> button.

NETWORK menu (continued)

Network setup

You can make detailed wired LAN settings.

Press ▲▼ to select [Network setup], and press <ENTER> button.

1 The detailed [Network setup] screen will be displayed.

Press ▲▼ to select an item, and change the setting according to the instructions.

DHCP 

(DHCP client function)

On: If a DHCP server exists in the network to which the

projector is connected, the IP address will automatically be

acquired.

Off: If a DHCP server does not exist in the network to which

the projector is connected, additionally set [IP address],

[Subnet mask ] and [ Default gateway ].

IP address 

(Display of IP address and setting) Enter the IP address if DHCP server is not used.

Subnet mask

(Displaying and setting the subnet mask) If not using a DHCP server, enter the subnet mask.

Default gateway 

(Display of gateway address and setting) Enter the gateway address if DHCP server is not used.

DNS1

(Display of Preferred DNS server

address and setting)

Enter the DNS server address if DHCP server is not used.

DNS2(Display of Alternate DNS

server address and setting)

Enter the alternate DNS server address if DHCP server is not

used.

 “Glossary” (See page 25)

Press ▲▼◄► to select [Set], and press <ENTER> button.

3 Save the current network settings.

Before using the DHCP server, make sure the DHCP server is already functioning.

For details of IP address, subnet mask, gateway and DNS, ask the network administrator.

Default wired LAN settings

The following settings are set before the projector leaves the factory.

DHCP Off

IP address 192.168.10.100

Subnet mask 255.255.255.0

Default gateway 192.168.10.1

DNS 1/DNS 2 NONE

NETWORK menu (continued)

Network control

Set when you want to control the projector from a computer connected to the network.

Press ▲▼ to select [Network control].

Press <ENTER> button to select [On] or [Off] with the ▲▼ buttons.

Network status

This function shows the LAN setting environment of the currently selected projector.

Press ▲▼ to select [Network status].

Press <ENTER> button or the ► button to show the information of the current

2 projector status.

NETWORK menu (continued)

AMX D.D.

This function alows the projector to be detected by AMX Device Discovery. For more details, visit http://www.amx.

com/.

Press ▲▼ to select [AMX D.D.].

Press <ENTER> button and then to select [On] or [Off] with the ▲▼ buttons to allow

2 the projector to be detected by AMX Device Discovery.

Network factory default

You can reset the network setting to the factory default of the projector.

Press ▲▼ to select [Network factory default], and press <ENTER> button.

A conrmation box appears and select [Yes] and then press <ENTER> button.

2 Another conrmation box appears and select [Yes] and then press <ENTER>

button.

Connecting with Wired LAN

Computer operation

Connection can be made with wired LAN. However, conrm to your system administrator on network settings

before changing any settings.

Turn on the computer.

Make the network setting according to your system administrator.

2 If the projector settings are the default settings (See page 7), the computer can be used with the following

network settings.

DHCP Off

IP address 192.168.10.101

Subnet mask 255.255.255.0

Default gateway 192.168.10.1

DNS 1/DNS 2 NONE
