Panasonic PT-LB10S Manual del sistema

•High performance, compact body

-Bright 2000 lumens

-Notebook-size compact body

-Ultra-lightweight: 2.1 kg

(4.7 lbs)

-Short-throw zoom lens

•Quick operation

-5-second speed start

-One-touch auto setup with

digital keystone correction

-Direct power off

•Sophisticated functions

-Projector AI

-Index window

-Secure, anti-theft features

-Auto power off

- 1 -

S P E C F I L E

PRODUCT NO.: PT-LB10S

PRODUCT NAME: Micro-Portable LCD Projector

MAJOR FEATURES

PT-LB10S

Micro-Portable LCD Projector

S P E C F I L E

Power supply

Power consumption

Optical system

LCD panel Panel size

Display method

Drive method

Pixels

Pixel configuration

Lens

Lamp

Screen size

Colors

Brightness

Center-to-corner uniformity ratio

Contrast ratio

Resolution RGB

Scanning frequency RGB

YPBPR

S-Video/Video

Optical axis shift

Keystone correction range

On-screen menu

Installation

Built-in speakers Size

Output power

Terminals RGB IN

RGB signal

YPBPRsignal

RGB OUT

RGB signal

YPBPRsignal

VIDEO IN

S-VIDEO IN

AUDIO IN

SERIAL

Power cord length

Specifications

100–240 V AC, 50/60 Hz

220 W (6 W in standby mode with fan stopped)

Dichroic mirror separation/prism synthesis system

0.7˝diagonal with micro lens array (4:3 aspect ratio)

Transparent LCD panel (x 3, R/G/B)

Active matrix

480,000 (800 x 600) x 3, total of 1,440,000 pixels

Stripe

Manual zoom/focus lens (1:1–1:1.2),

F 1.7–1.9, f 21.5–25.8 mm

155 W UHM™ lamp

838–7,620 mm (33– 300 inches) diagonally, 4:3 aspect ratio

Full color (16,777,216 colors)

2000 lumens

90%

400:1*1(full on/full off)

800 x 600 pixels (1,600 x 1,200 pixels with compression)

Horizontal: 15 – 91 kHz, Vertical: 50 – 85 Hz

480i (525i): fH15.75 kHz; fV60 Hz

576i (625i): fH15.63 kHz; fV50 Hz

480p (525p): fH31.5 kHz; fV60 Hz

576p (625p): fH31.25 kHz; fV50 Hz

720p (750p): fH45 kHz; fV60 Hz

1080i (1125i): fH33.75 kHz; fV60 Hz

1080i (1125i): fH28.125 kHz; fV50 Hz

NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fV60 Hz

PAL, SECAM, PAL-N: fH15.63 kHz; fV50 Hz

6:1 (fixed)

Vertical: approx. ±30°

8 languages: English, French, German, Spanish, Italian, Chinese,

Korean, Russian

Ceiling/desk, front/rear (menu selection)

4 x 3 cm x 1, oval

1.0 W (monaural)

D-sub HD 15-pin x 1

G: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75Ω

R, B: 0.7 Vp-p, 75Ω

HD, VD, SYNC: TTL, high impedance (positive/negative polarity)

Y: 1.0 Vp-p (including sync signal), 75Ω

PB, PR: 0.7 Vp-p, 75Ω

D-sub HD 15-pin x 1

G: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75Ω

R, B: 0.7 Vp-p, 75Ω

HD, VD, SYNC: TTL, high impedance (positive/negative polarity)

Y: 1.0 Vp-p (including sync signal), 75Ω

PB, PR: 0.7 Vp-p, 75Ω

RCA pin x 1, 1.0 Vp-p, 75Ω

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω

RCA (L, R) x 1, 0.5 Vrms, for RGB/VIDEO/S-VIDEO

Mini DIN 8-pin x 1 (RS-232C)

2 m

As of March 2004

PT-LB10S

Micro-Portable LCD Projector

S P E C F I L E

As of March 2004

Cabinet material

Dimensions (W x H x D)

Weight

Operating environment Temperature

Humidity

Remote Control Unit Power supply

Operation range

Dimensions (W x H x D)

Weight

Supplied accessories

Optional accessories

ABS/PC

297 x 65 x 210 mm (11-23/32˝x 2-9/16˝x 8-9/32˝)*2

2.1 kg (4.7 lbs.)

0° – 40°C (32°–104°F)

20%– 80% (no condensation)

3 V DC (button battery x 1)

Approx. 7 m when operated from directly in front of the signal receptor

40 x 86 x 6.5 mm (1-9/16˝x 3-3/8˝x 1/4˝)

17.5 g (0.62 oz.) (including a battery)

Power cord

Wireless remote control

Button battery for remote control

VGA cable

Carrying bag

Replacement lamp unit: ET-LAB10

Ceiling mount bracket: ET-PKC80

Full-function wireless remote control: ET-RM300

Serial adapter (DIN 8-pin/D-sub 9-pin): ET-ADSER

*1: In AI mode.

*2: Height including protruding parts and legs: 72 mm (2-27/32˝).

Weights and dimensions shown are approximate.

Specifications subject to change without notice.

PT-LB10S

Micro-Portable LCD Projector

S P E C F I L E

As of March 2004

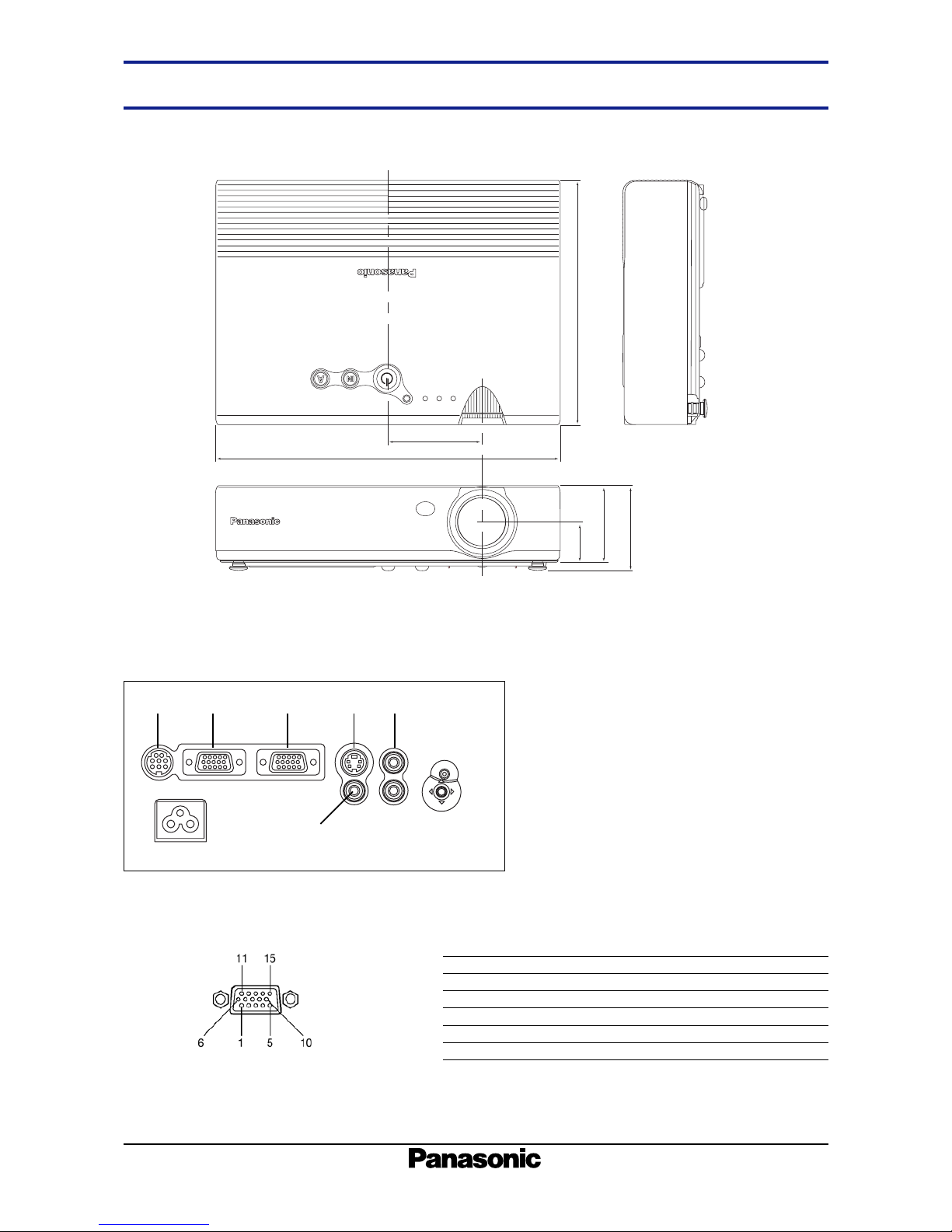

Dimensions

81.2

3-7/32˝

297

11-23/32˝

210

8-9/32˝

(72)

(2-27/32˝)

2-9/16˝

34.8

1-3/8˝

unit: mm (inch)

Note: This illustration is not drawn to scale.

AC IN

SERIAL RGB IN RGB OUT

VIDEO IN

S-

VIDEO

VIDEO R

AUDEO IN

ENTER

(PUSH)

Terminals

RGB IN connector pin assignment

1Serial

2RGB input

3RGB output

4S-Video input

5Audio input

6Video input

no. signal

6GND

7GND

8GND

9NC

10 GND

no. signal

11 NC

12 SDA*

13 HD/SYNC

14 VD

15 SCL*

no. signal

1R/PR

2G/Y

3B/PB

4GND

5GND

* Effective when connected to a PC having proper functions.

D-sub HD 15-pin, female

12 3 45

PT-LB10V

Micro-Portable LCD Projector

S P E C F I L E

As of March 2004

Standard setting-up positions

A92

(3-5/8˝)

(2-3/4˝)

(2-9/16˝)

(3-3/16˝)

unit: mm (inch)

NOTE:

Illustrations show the projector installed

using optional ceiling bracket.

This illustration is not drawn to scale.

A: Distance to screen

E: Height from the edge of screen to

center of lens

Computer data compatibility

This projector accepts up to 91 kHz horizontal scanning frequency and 162 MHz dot clock.

NOTE: The projector is not fully compatible with RGB signals of which dot clock is higher than 100 MHz.

The display resolution of this projector is 1024 x 768 pixels. If the display resolution indicated in the above data does not match this

resolution, the input signal will be converted to 1024 x 768 pixels.

–

1.2 m /

1.5 m /

1.8 m /

2.1 m /

2.4 m /

2.8 m /

3.0 m /

3.7 m /

4.6 m /

6.1 m /

7.6 m /

9.2 m /

Diagonal image size

(4:3 aspect ratio) Distance to screen Height from the

edge of screen to

center of lens

min. max.

33˝

40˝

50˝

60˝

70˝

80˝

90˝

100˝

120˝

150˝

200˝

250˝

300˝

3.9´

4.9´

5.9´

6.9´

7.9´

9.2´

9.8´

12.1´

15.1´

20.0´

24.9´

30.2´

1.1 m /

1.4 m /

1.8 m /

2.1 m /

2.5 m /

2.9 m /

3.2 m /

3.6 m /

4.3 m /

5.4 m /

7.3 m /

9.1 m /

11.0 m /

3.6´

4.6´

5.9´

6.9´

8.3´

9.5´

10.5´

11.8´

14.1´

17.7´

24.0´

29.9´

36.1´

8 cm /

9 cm /

11 cm /

14 cm /

16 cm /

18 cm /

20 cm /

22 cm /

26 cm /

33 cm /

44 cm /

55 cm /

66 cm /

3.1˝

3.5˝

4.3˝

5.5˝

6.3˝

7.1˝

7.9˝

8.7˝

10.2˝

13.0˝

17.3˝

21.7˝

26.0˝

0.84 m

1.02 m

1.27 m

1.52 m

1.78 m

2.03 m

2.29 m

2.54 m

3.05 m

3.81 m

5.08 m

6.35 m

7.62 m

2.7´

3.3´

4.2´

4.9´

5.8´

6.7´

7.5´

8.3´

10.0´

12.5´

16.7´

20.8´

25.0´

Calculation of the projection distance

For a screen size different from the above, use the equation below to calculate the projection distance.

Aspect ratio 4 : 3

minimum L (m) = (diagonal screen size in inches) x 0.0308 - 0.038

maximum L (m) = (diagonal screen size in inches) x 0.0368 - 0.038

Aspect ratio 16 : 9

minimum L (m) = (diagonal screen size in inches) x 0.0333 - 0.038

maximum L (m) = (diagonal screen size in inches) x 0.0401 - 0.038

NOTE:

Values shown are approximate.
