Operating Instructions

Network Operations

DLP™Projector Commercial Use

SO-MB2AC

Model No.

PT-CW230U/PT-CX200U

PT-CW230E/PT-CX200E

PT-CW230EA/PT-CX200EA

This manual explains the network operation of the projector.

For information other than the network operation, such as the usage, inspection and replacement of parts,

see “Operating Instructions - Projector Operations”.

ENGLISH

Contents

The illustrations and screenshots in this manual may be different from those on your computer.

Expressions used in this document

Pages to reference within this document are indicated as (See page ○○), and pages to reference in the

supplemental “Operating Instructions - Projector Operations” are indicated as (See [○○] of the Projector

Operations).

Request Regarding Security········································· 3

Whatyoucando ················································· 3

Check your computer ·············································· 4

Necessary environment for computers to be connected · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4

NETWORKmenu ················································· 5

DisplayingtheNETWORKmenu ···············································5

LANmodeselect···························································6

Networksetting····························································7

NetworkPINcode ··························································8

Networkinformation ························································8

Network factory default ······················································9

Connecting with Wired LAN ········································· 9

Computer operation·························································9

UsingWebBrowser ·············································· 10

AccessingfromtheWebbrowser ·············································10

PJLinkprotocol ················································· 21

Controlcommands ························································21

PJLinksecurityauthorization ················································21

ControlcommandsviaLAN········································ 22

Use of telnet······························································22

Useoftelnet(continued) ····················································23

Glossary ······················································ 24

Trademarks ···················································· 24

Request Regarding Security

When using this product, security breaches of the type described below are conceivable.

Leakage of your private information via this product•

Illegal operation of this product by a malicious third-party•

Harm to or cessation of operation of this product by a malicious third-party•

Be sure to implement sufcient security measures.

Set passwords, and limit the users that are permitted login access.•

Make sure the password is as hard to guess as possible.•

Change the password periodically.•

Panasonic Corporation and its afliated companies never directly ask customers for their password. Do not give •

out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.

Always use on a network that has safety protection such as a rewall implemented.•

<WEB control> (See page 10)

The following operations are possible when using Web Browser.

Setting and adjusting the projector•

Displaying the projector status•

Setting for message transmission•

<PJLink> (See page 21)

Compatible with PJLink Class 1. The following operations can be performed from a computer when PJLink protocol

is used.

Setting the projector•

Querying the projector status•

(Refer to “Serial terminal” in “Technical Information” of the Projector Operation manual)

You can control the projector from a computer, using the control commands of the serial terminals.

What you can do

Check your computer

Necessary environment for computers to be connected

First, check your computer to see whether or not it has a wired LAN• function.

“Glossary” (See page 24)

Before connecting the projector to the computer, be sure to check the following settings.•



Wired LAN

Check 1 For LAN cable

Is the cable properly connected?•

Use shielded LAN cable (STP cable) that is compatible with category 5 or above.•

Check 2 Wired LAN settings

Is your wired LAN switched on?•

Is your wired LAN adapter properly recognized?•

Is your wired LAN adapter switched on?•

Install the wired LAN adapter driver beforehand.•

For details on how to install the driver, refer to the instructions accompanying the wired LAN adapter.

Check 3 For Web Browser

Web Browser is necessary to use WEB control.•

Compatible OS : Windows XP/Windows Vista/Windows 7, Mac OS X v10.4/v10.5/v10.6/v10.7•

Compatible Web Browser : Internet Explorer 7.0/8.0/9.0, Safari 4.0/5.0 (Mac OS)•

Do not touch the LAN terminal or the metal part of the LAN cable, the static electricity may discharge from our

hands (body) causing a malfunction.

NETWORK menu

To connect the projector and the computer by changing the setting at the time of purchase, change the setting by

displaying the menu with the following procedure.

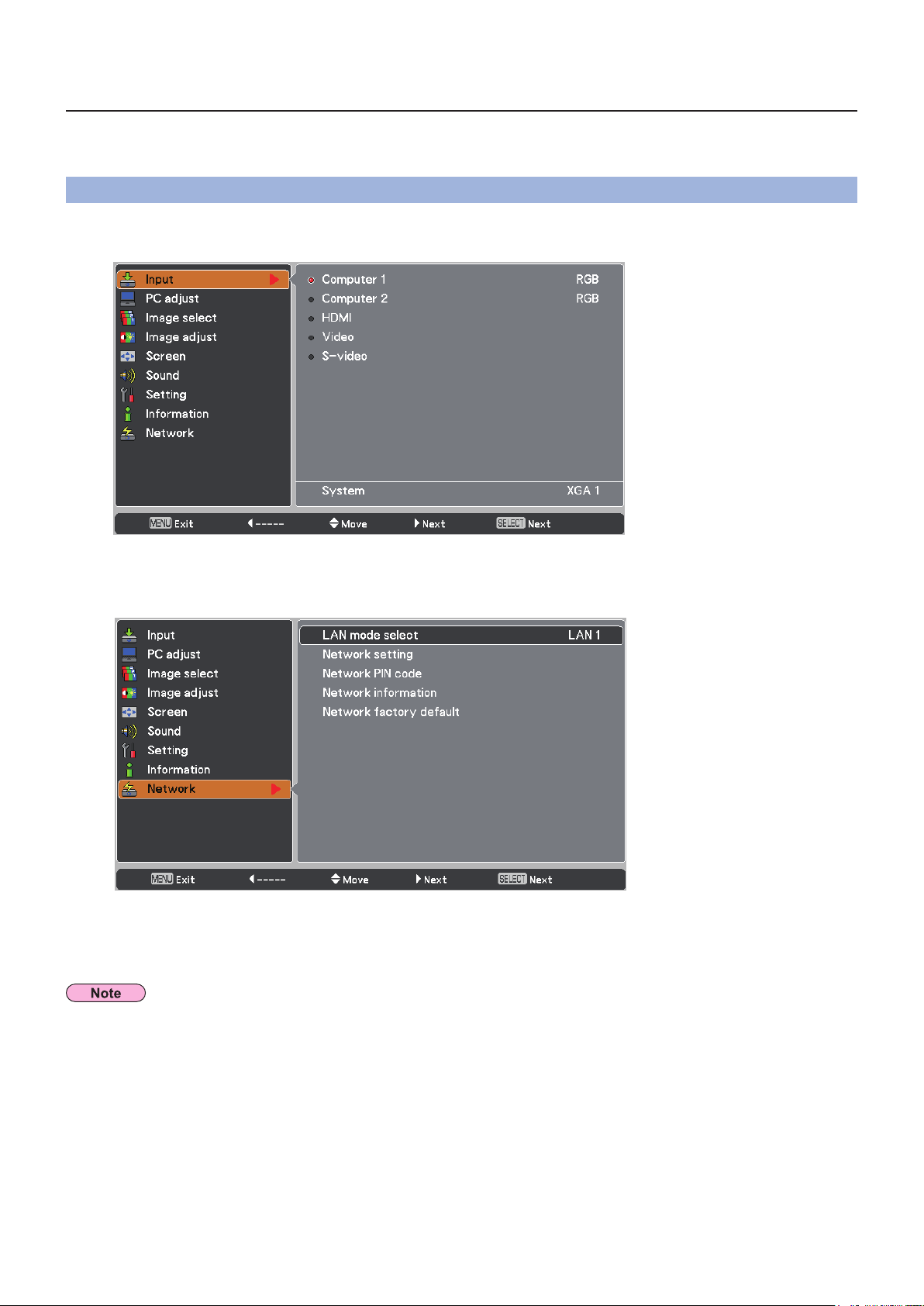

Displaying the NETWORK menu

Press the <MENU> button on remote control.

1 The main menu appears.

Select [Network] with the ▲▼ buttons.

2 The network menu appears.

Press the <SELECT> button.

3 You can select the sub-menu item.

Unavailable items on the menu screen are grayed out and cannot be selected.

NETWORK menu (continued)

LAN mode select

Set the Wired LAN network through the projector menu.

Press ▲▼ to select [LAN mode select], and press <SELECT> button or the ►

1 button.

Select similar LAN environment among LAN1, LAN2 and LAN3 with the ▲▼

2 buttons and press the <SELECT> button.

NETWORK menu (continued)

Network setting

You can make detailed wired LAN settings.

Press ▲▼ to select [Network setting], and press <SELECT> button.

1 The detailed [Network setting] screen will be displayed.

Press ▲▼ to select an item, and change the setting according to the instructions.

DHCP 

(DHCP client function)

On: If a DHCP server exists in the network to which the

projector is connected, the IP address will automatically be

acquired.

Off: If a DHCP server does not exist in the network to which

the projector is connected, additionally set [IP address],

[Subnet mask ] and [ Gateway ].

IP address 

(Display of IP address and setting) Enter the IP address if DHCP server is not used.

Subnet mask

(Displaying and setting the subnet mask) If not using a DHCP server, enter the subnet mask.

Gateway 

(Display of gateway address and setting) Enter the gateway address if DHCP server is not used.

DNS

(Display of Preferred DNS server

address and setting)

Enter the DNS server address if DHCP server is not used.

 “Glossary” (See page 24)

Press ▲▼◄► to select [Set], and press <SELECT> button.

3 Save the current network settings.

Before using the DHCP server, make sure the DHCP server is already functioning.

For details of IP address, subnet mask, gateway and DNS, ask the network administrator.

Default wired LAN settings

The following settings are set before the projector leaves the factory.

Parameter SELECTED LAN

LAN 1 LAN 2 LAN 3

DHCP OFF ON OFF

IP ADDRESS 16 9. 2 5 4.10 0.10 0 19 2.16 8 .10 0 .10 0 19 2.16 8 .10 0 .10 0

SUBNET MASK 255.255.0.0 255.255.255.0 255.255.255.0

GATEWAY ADDRESS 255.255.255.255 255.255.255.255 255.255.255.255

DNS ADDRESS 255.255.255.255 255.255.255.255 255.255.255.255

NETWORK menu (continued)

Network PIN code

The Network PIN code is to restrict the access to the projector through the network.

Press ▲▼ to select [Network PIN code] and press <SELECT> button.

Set the gures with the ▲▼ buttons and move to the next items with the ◄►

2 buttons. Select [Set] and press the <SELECT> button to set.

To cancel the preset [Network PIN code], select [Cancel].

Network information

This function shows the LAN setting environment of the currently selected projector.

Press ▲▼ to select [Network information].

Press <SELECT> button or the ► button to show the information of the current

2 projector status.

NETWORK menu (continued)

Network factory default

You can reset the network setting to the factory default of the projector.

Press ▲▼ to select [Network factory default], and press <SELECT> button.

A conrmation box appears and select [Yes] and then press <SELECT> button.

2 Another conrmation box appears and select [Yes] and then press <SELECT>

button.

Connecting with Wired LAN

Computer operation

Connection can be made with wired LAN. However, conrm to your system administrator on network settings

before changing any settings.

Turn on the computer.

Make the network setting according to your system administrator.

2 If the projector settings are the default settings (See page 7), the computer can be used with the following

network settings.

DHCP Off

IP address 16 9. 2 5 4.10 0.101

Subnet mask 255.255.0.0

Default gateway NONE

DNS NONE

Using Web Browser

Accessing from the Web browser

Activate the Web browser in the personal computer.

Enter the IP address set by the projector into the URL input eld of the Web

2 browser.

Enter your “User name” and “Password”.

The entering User Name must be “user” and it can

not be changed.

Click [OK] to display the Initial setting

4 page.

“Initial setting” page is displayed.

Avoid activating two or more Web browser simultaneously to work out setting or control actions.•

Change the password rst of all.•

There are some control items used with the JavaScript function in the setting pages. If the web browser is set•

not to use this JavaScript function, it may not control the projector properly.
