Panasonic ET-DLE050 Manual del sistema

ET-DLE050

Fixed Focus Lens (0.8:1) for DLP™Projector

S P E C F I L E

Specifications

F value: 2.1

Focal distance: 11.4 mm

Dimensions (W x H x D): 95 x 95 x 135 mm (3-3/4˝x 3-3/4˝x 5-5/16˝)

Weight: 0.7 kg (1.5 lbs) Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

as of September 2004

This fixed-focus lens with a short focal distance is designed for use with the DLP™projector. It is suitable for rear

projection.

NOTE: Please use the lens only on the specified Panasonic DLP™projector.

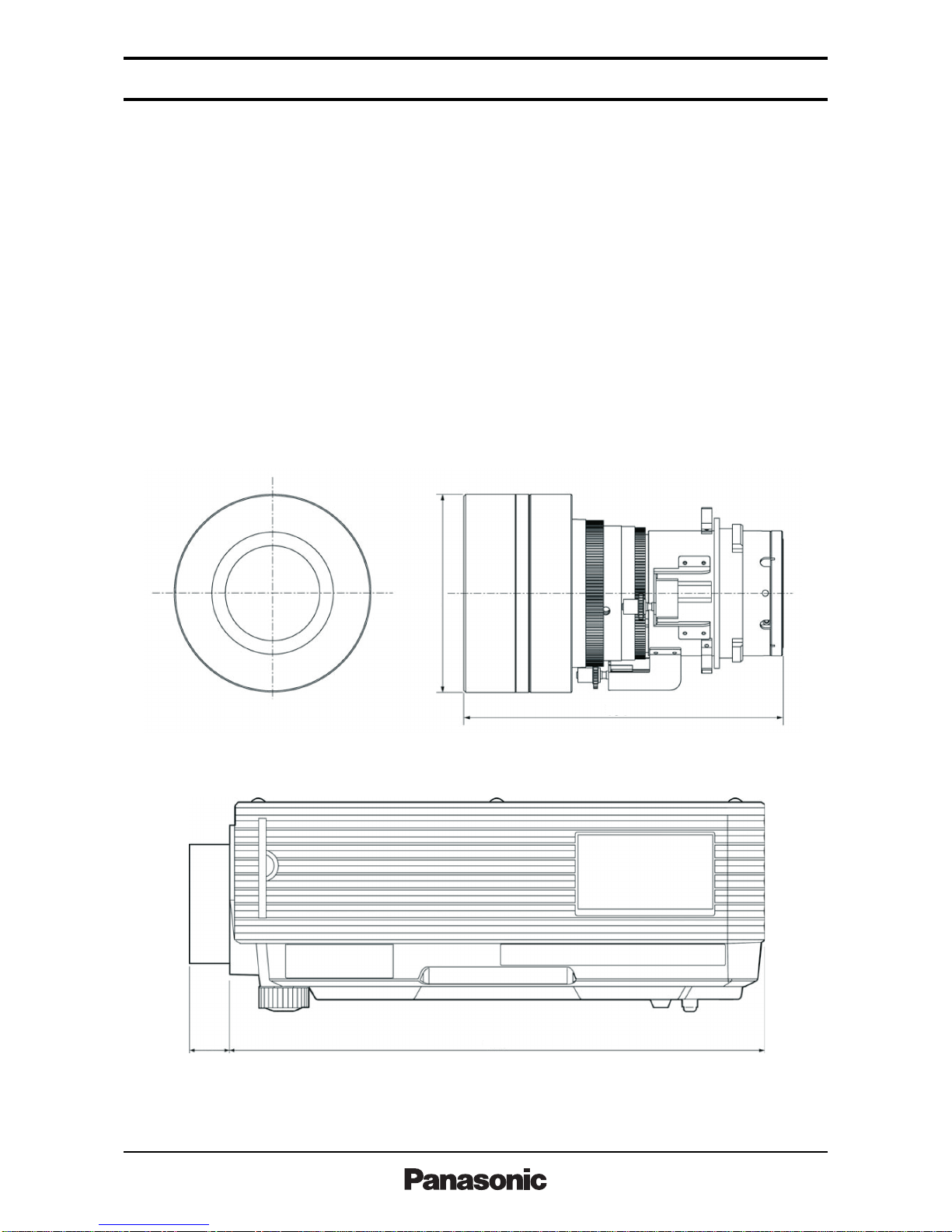

Dimensions

unit: mm (inch)

135

Ø95 (Ø3-3/4˝)

(5-5/16˝)

429

(16-7/8˝)

(5/32˝)

Note: This illustration is not drawn to scale.

The illustration shows the lens attached to the DLP™projector.

ET-DLE100

Zoom Lens (1.3–1.8:1) for DLP™Projector

S P E C F I L E

as of September 2004

Specifications

F value: 1.8 – 2.3

Focal distance: 19.3 mm – 25.8 mm

Dimensions (W x H x D): 95 x 95 x 163 mm (3-3/4˝x 3-3/4˝x 6-13/32˝)

Weight: 0.7 kg (1.5 lbs) Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

This zoom lens is designed for use with the DLP™projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™projector.

Dimensions

unit: mm (inch)

163

Ø95 (Ø3-3/4˝)

(6-13/32˝)

429

(16-7/8˝)

(1-13/32˝)

Note: This illustration is not drawn to scale.

The illustration shows the lens attached to the DLP™projector.

ET-DLE200

Zoom Lens (2.5–4.0:1) for DLP™ Projector

S P E C F I L E

as of September 2004

Specifications

F value: 2.0 – 2.5

Focal distance: 34.8 mm – 56.5 mm

Dimensions (W x H x D): 95 x 95 x 163 mm (3-3/4˝x 3-3/4˝x 6-13/32˝)

Weight: 0.9 kg (2.0 lbs) Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

This zoom lens is designed for use with the DLP™projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™projector.

Dimensions

unit: mm (inch)

163

Ø95 (Ø3-3/4˝)

(6-13/32˝)

429

(16-7/8˝)

(1-3/8˝)

Note: This illustration is not drawn to scale.

The illustration shows the lens attached to the DLP™projector.

ET-DLE300

Zoom Lens (3.7–5.7:1) for DLP™Projector

S P E C F I L E

as of July 2000

Specifications

F value: 2.1 – 2.8

Focal distance: 53.6 mm – 82.6 mm

Dimensions (W x H x D): 95 x 95 x 153 mm (3-3/4˝x 3-3/4˝x 6-1/32˝)

Weight: 0.9 kg (2.0 lbs) Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

This zoom lens is designed for use with the DLP™projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™projector.

Dimensions

unit: mm (inch)

153

Ø95 (Ø3-3/4˝)

(6-1/32˝)

429

(16-7/8˝)

(29/32˝)

Note: This illustration is not drawn to scale.

The illustration shows the lens attached to the DLP™projector.

ET-DLE400

Zoom Lens (5.7–8.0:1) for DLP™Projector

S P E C F I L E

as of September 2004

Specifications

F value: 2.1 – 2.8

Focal distance: 82.6 mm – 116.0 mm

Dimensions (W x H x D): 95 x 95 x 153 mm (3-3/4˝x 3-3/4˝x 6-1/32˝)

Weight: 0.9 kg (2.0 lbs) Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

This zoom lens is designed for use with the DLP™projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™projector.

Dimensions

unit: mm (inch)

152

Ø95 (Ø3-3/4˝)

(5-31/32˝)

429

(16-7/8˝)

(29/32˝)

Note: This illustration is not drawn to scale.

The illustration shows the lens attached to the DLP™projector.

SPEC FILE

ET-DLE310

Zoom Lens (3.4–4.5:1) for DLP™-Based Projectors

As of July 2006 <6>

Specifications

Main Unit

Fvalue:

Focal distance:

Dimensions (W x H x D):

Weight:

2.4–2.8

48.4–63.3 mm (1-29/32˝—2-1/2˝)

95 x 95 x 171 mm (3-3/4˝ x 3-3/4˝ x 6-23/32˝)

1.1 kg (2.4 lbs)

Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

Ø95 (Ø3-3/4˝)

171

(6-23/32˝)

429

(16-7/8˝)

(1-27/32˝)

unit : mm (inch)

The illustration shows the lens attached to the DLP™ projector.

NOTE: This illustration is not drawn to scale.

Dimensions

This zoom lens is designed for use with the DLP™ projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™ projector.

SPEC FILE

ET-DLE410

Zoom Lens (4.5–8.4:1) for DLP™-Based Projectors

As of July 2006 <7>

Specifications

Main Unit

Fvalue:

Focal distance:

Dimensions (W x H x D):

Weight:

2.2–3.1

63.5– 117.4 mm (2-1/2˝—4-5/8˝)

95 x 95 x 154 mm (3-3/4˝ x 3-3/4˝ x 6-1/16˝)

0.9 kg (2.0 lbs)

Weights and dimensions shown are approximate.

Specifications subject to change without notice.

Digital Light Processing and DLP are trademarks of Texas Instruments.

unit : mm (inch)

The illustration shows the lens attached to the DLP™ projector.

NOTE: This illustration is not drawn to scale.

Dimensions

This zoom lens is designed for use with the DLP™ projector.

The lens makes it possible to vary the projection distance by changing the focal distance.

NOTE: Please use the lens only on the specified Panasonic DLP™ projector.

Ø95 (Ø3-3/4˝)

154

(6-1/16˝)

429

(16-7/8˝)

(1-13/32˝)
