Operating Instructions

Operating InstructionsOperating Instructions

Operating Instructions

Printer

rinterrinter

rinter

Model No.

JT-H340PR-E1JT-H340PR-E8

Contents

Precautions............................................... 3

Name of each part & function................... 7

Battery Installation....................................8

Paper Installation......................................9

AC cable Set Up.....................................10

How to connect USB cable..................... 10

Charging Battery......................................11

Troubleshooting......................................12

How to care.............................................13

How to attach the Option parts ............... 14

Specifications.......................................... 16

Warranty Policy.......................................20

Compliance Notice.................................. 20

For USA..................................................21

For CANADA..........................................22

WEEE..................................................... 23

Before operating this product, please read these instructions carefully and save this document

for future use.

Read Me First

................................

.............

1. Getting Started....................................... 3

2. Operation

................................

................

3. Appendix

................................

...............

Read Me First

Introduction

Thank you for purchasing the

JT-H340PR series Panasonic Printer.

This manual describes the instructions for the printer.

Please read this manual carefully before using this product.

This Printer is equipped with “Bluetooth” wireless communication. [Class1 Device]

What’s in the Box?

1. Printer (Battery is not included.)

2. Safety Precautions

3. Shoulder Strap

Options

1.BatteryPack:JT-H340BT-E1/-E22.BatteryCharger:JT-H100CG-553.ACAdaptor:JT-H300AD-P14.BeltHook:JT-H340BH-P15.WearableCase:JT-H340CA-P16.USBCable:JT-H300CC-P1

Other Equipment

1. Thermal Paper (Please ask our sales rep about the recommended Paper.)

1. Getting Started

Precautions

[Printer: JTJTJTJT----H3H3H3H344440PR0PR0PR0PR]

1. Avoid Radio Frequency Interference

Do not place the printer near a television or radio receiver.

2. Avoid Stacking

Do not place heavy objects on the printer.

3. Keep Small Objects Away

Do not insert paper clips or other small objects into the printer.

Failure to observe this may cause heat or fire.

4. Keep Dry

Failure to observe this may cause heat or fire.

5. Do Not Disassemble the Printer

Do not attempt to disassemble the printer. Failure to observe this may cause heat or fire.

6. Do Not Touch

Keep your hands away from the paper cutter and the thermal head.

Failure to observe this may cause injury.

7. Do Not Use With Any Other Battery

The printer is designed for the specified JT-H340BT battery.

Using unspecified battery may cause smoke or fire.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions and/or local requirements.

8. Use only the specified AC adaptor and AC cord

Using unspecified AC adaptor or AC cord may cause smoke or fire.

9. Do Not Use In Aircrafts or Hospitals

This printer includes “Bluetooth” wireless communication.

Turn off the power switch in aircrafts or hospitals. Abnormal use may occur if used in close

proximity to electric instruments or electro-medical apparatus.

10. Do Not Hold this product for too long when the power on

Failure to observe this may cause a serious low-temperature burn.

11. Do Not Open connector cover and battery cover when transporting this product

Failure to observe this may cause heat or fire.

<NOTE>

Do not open the cover while the printer is operating.

Keep the thermal paper away from the direct exposure to light, high temperature, dust and

humidity.

Precautions

[Battery Pack:JTJTJTJT----HHHH340B340B340B340BTTTT]

1. Avoid Heat

Do not throw the battery pack into a fire, heat above 140°F (60°C) or incinerate.

Failure to observe this may cause fire or explosion.

2. Keep Articles Away

Do not place the battery pack together with articles such as necklaces or hairpins when

carrying or storing. Failure to observe this may cause heat, fire or explosion.

3. Keep Dry

Failure to observe this may cause heat, fire or explosion.

4. Do Not Disassemble and Crush

Do not insert sharp object into the battery pack. Do not deform, disassemble, crush, or

modify the printer. Failure to observe this may cause heat, fire or explosion.

5. Do Not Short

Do not short the positive (+) and negative (-) contact. Failure to observe this may cause

heat, fire or explosion.

6. Avoid Extreme Heat, Cold, and Direct Sunlight

Do not charges, use or leave the battery pack for extended periods where it will be exposed

to direct sunlight or in a hot, or cold environment.

7. Do Not Put Into a Microwave Oven

Do not put the battery pack into a microwave oven or pressurized chamber.

Failure to observe this may cause explosion.

8. Do Not Use With Any Other Device

The battery pack is designed for the specified JT-H340PRprinterandJT-H100CG-55 charger.

Do not use the battery with any other device.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions and/or local requirements.

9. Stop Using

Should the battery emit an abnormal odor, become hot to the touch, become discolored,

change shape, or become in any way different, remove it from the printer and stop using it.

<NOTE>

Please charge the battery pack for at least 100minutes before first use.

Please ask our sales rep about the dispose method of the battery.

If the battery pack is not going to be used for a long period, pleasecharge or discharge it until

the remaining battery capacity becomes 30% to 40% and store it in a cool, dry place.

Precautions

[Li-ion Battery Charger: JTJTJTJT----H100CGH100CGH100CGH100CG]

1. Keep Small Object Away

Do not insert paper clips or other small object into charger. Failure to observe this may cause

fire or electric shock.

2. Do Not Disassemble the Charger

Do not attempt to disassemble the charger. Failure to observe this may cause fire.

3. Keep Dry

Failure to observe this may cause heat or fire.

4. Do Not Short

Do not short the positive (+) and negative (-) contact.

Failure to observe this may cause heat or fire.

5. Do Not Use With Any Other Battery

The charger is designed for the specified JT-H340BTbattery.Donotusethechargerwith any

other battery.

CAUTION Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions and/or local requirements.

6. Do Not Touch the Plug with Wet Hands

Failure to observe this may cause electric shock.

7. Do Not Touch the Charger During a Lightning

Failure to observe this may cause electric shock.

8. Be Certain to Plug Fully Into the Outlet

Failure to observe this may cause electric shock or fire.

9. When Unplugging, Make Sure to Hold the Body of the Plug

Using damaged power strip may cause electric shock, short circuit or fire.

10. Do Not Use a Damaged Power-code or Plug

Failure to observe this may cause electric shock or fire

11. Clean the Dust off the Plug, Periodically

Failure to observe this may cause electric shock or fire.

12. Do Not Hold this product for too long when the power on

Failure to observe this may cause a serious low-temperature burn.

13. Do Not Use this product Outdoors

Failure to observe this may cause electric shock or fire.

<NOTE>

To prolong the life of the battery, please remove it from the charger within 24 hours when

charging is complete.

Please charge the battery at temperature between 5 to 40 degrees centigrade.

Precautions

[AC Adaptor: JTJTJTJT----H300AH300AH300AH300ADDDD----P1P1P1P1]

1. Do Not Disassemble

Do not attempt to disassemble the charger.

Failure to observe this may cause electric shock or fire.

2. Keep Dry

Failure to observe this may cause heat or fire.

3. Do Not Use With Any Other Device

The AC Adaptor is designed for the specified JT-H340PR printer. Do not use the AC adaptor

with any other device.

4. Do Not Exceed the Ratings of AC Outlet and Wirings, and Connect the AC Adaptor

Only within 100-240 V AC.

Exceeding the ratings may result in overheating or fire.

5. Do Not Touch the Plug with Wet Hands

Failure to observe this may cause electric shock.

6. Be Certain to Plug Fully Into the Outlet

Failure to observe this may cause electric shock or fire.

7. When Unplugging, Make Sure to Hold the Body of the Plug

Using damaged power strip may cause electric shock, short circuit or fire.

8. Do Not Use a Damaged Power-code or Plug

Failure to observe this may cause electric shock or fire.

9. Clean the Dust off the Plug, Periodically

Failure to observe this may cause electric shock or fire.

10. Do Not hold this product for too long when the power on

Failure to observe this may cause a serious low-temperature burn.

11. Do Not Use this product outdoors.

Failure to observe this may cause electric shock or fire.

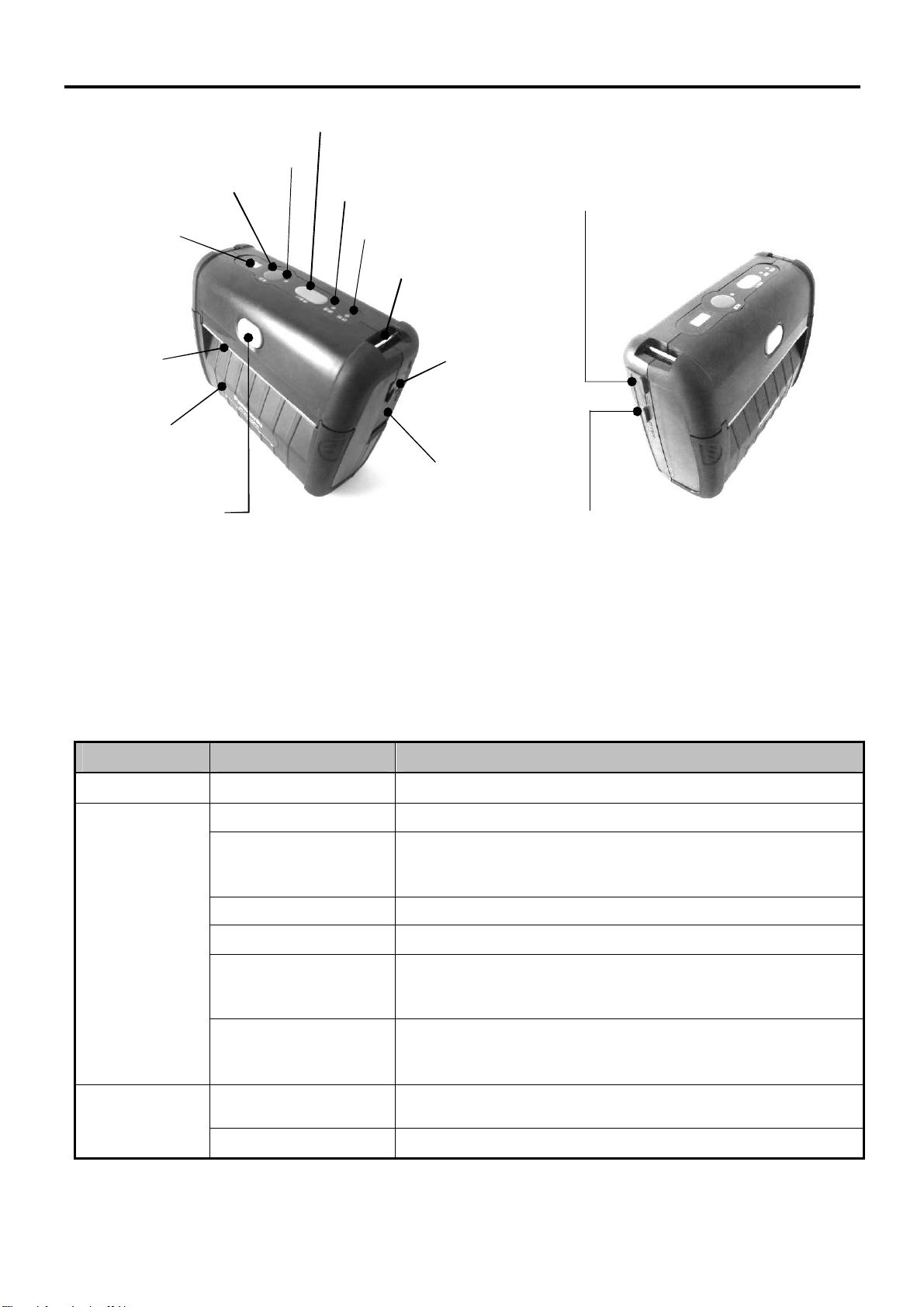

Name of each part & function

LED Indicate Status

Power LED Green Blink Power-on

Off Normal status.

Green Light 1. Start Up (Approx.5 seconds lightning),

2. Shut Down (Approx.0.5 second lightning)

3. Battery Full Charge(at ACAdaptor connection)

Orange Light Detect battery capacity low; printable.

Red Light Battry Charging(at ACAdaptor connection)

Red Blink

(Fast)

1. The cover of paper is open.

2. The paper is empty.

3. Others, the printer is out of order.

Status LED

Red Blink

(Slow)

1. Detect Low voltage; not printable.

2. Battry Charging Error or Preliminary charging

(at AC Adaptor connection)

Green Light 1. Printing

2. Shut Down (Approx.0.5 second lighting)

Receiving

LED Green Blink In communications.

USB Connector Cover

(USB Connector)

DC Jack Cover

(DC IN 9.5 V Jack)

Battery

Cover

Lever

Paper Cover

Receiving LED

Status LED

Feed

(Press

button to feed paper)

Paper Cover

Button

Power

Switch

IrDA I/F

Paper Out

Battery

Cover

Power

LED

Strap Pin

(Both Side)

2. Operation

Battery Installation

1) Turn Off Power Switch

2) Slide Battery Cover Lever

3) Open the Battery Cover

4) Slide and insert the Battery completely to the printer.

5) Close the Battery Cover.

6) Slide the Battery Cover Lever.

<NOTE> If the Battery cover comes off, fit it as indicated.

Slide the hinge of the Battery Cover into the metal bar

and hook to it.

Metal bar

2) 3) 4) 5) 6)

Paper Installation

1) Push the Paper Cover Button.

2) Open the Paper Cover

3) Install Paper (Paper must be tightly rolled and be confirmed that dust/sand is not on.)

4) Close the Paper Cover (Make sure that the Cover is closed completely.)

１) ２)

ForReceipt Paper

(insidesurface;thermalpaper) ForLabel Paper

(outsidesurface; thermalpaper)

AC cable Set Up

Please attach the core to the AC cable, before using the AC adaptor.

The core is included in theAC adaptor (JT-H300AD-P1).

How to connect USB cable

1) Pull the USB Connector Cover.

2) Connect the plug of USB cable (JT-H300CC-P1), to the USB connector of the printer.

<Note>

The USB cable must use the special one (JT-H300CC-P1).

1) 2)

USB Connector Cover

AC Adaptor

AC cable

Core

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Panasonic

Panasonic

Panasonic KX-MB283BR Manual de usuario

Panasonic

Panasonic KX-P8420 Manual de usuario

Panasonic

Panasonic SP28P Instrucciones de funcionamiento

Panasonic

Panasonic SV-AP10 Operating Manual de usuario

Panasonic

Panasonic KX-P8415 Manual de usuario

Panasonic

Panasonic KX-P1124 Manual de usuario

Panasonic

Panasonic KX-P3196 - KX-P 3196 B/W Dot-matrix Printer Manual de usuario

Panasonic

Panasonic SV-P20 Manual de usuario

Panasonic

Panasonic KX-P1150 - KX-P 1150 B/W Dot-matrix Printer Manual de usuario

Panasonic

Panasonic Jetwriter KX-P6100 Manual de usuario

Panasonic

Panasonic DP-MC210 Manual de usuario

Panasonic

Panasonic KX-MC6040 - Color Laser Multi-Function... Manual de usuario

Panasonic

Panasonic Panafax UF-8100 Manual de usuario

Panasonic

Panasonic KX P2130 - KX-P 2130 Color Dot-matrix... Manual de usuario

Panasonic

Panasonic Jetwriter KX-CL500 Manual de usuario

Panasonic

Panasonic NV-APD1E Manual de usuario

Panasonic

Panasonic KXPX2M - HOME PHOTO PRINTER Manual de usuario

Panasonic

Panasonic AGEP50 - COLOR VIDEO PRINTER Manual de usuario

Panasonic

Panasonic KX-MB2085CXW Manual de usuario

Panasonic

Panasonic KX-CL400 Manual de usuario

Panasonic

Panasonic DP-CL21 Series Manual de usuario

Panasonic

Panasonic KX-P2180 Manual de usuario

Panasonic

Panasonic JT-H200PR Series Manual de usuario

Panasonic

Panasonic KX-P8415 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
