Panasonic Toughbook CF-VDL02BM Manual de usuario

LCD Monitor

CF-VDL02BM

ENGLISH

OPERATING INSTRUCTIONS

Introduction......................................4

Names and Functions of Parts .......5

Mounting the LCD Monitor ..............6

Starting Up/Shutting Down .............8

Touchscreen ....................................9

Adjusting the LCD Monitor ...........13

Troubleshooting ............................17

Specifications ................................19

FRANÇAIS

INSTRUCTIONS D’UTILISATION

Introduction................................. 22

Noms et fonctions des pièces ... 23

Montage du Moniteur LCD ......... 24

Mise en marche/Arrêt ................. 26

Écran tactile ................................ 27

Réglage du Moniteur LCD.......... 31

Dépannage .................................. 36

Spécifications ............................. 38

ENGLISH

To avoid risk of serious injury or possible violation of laws, make sure that the monitor

is placed visible to the driver for no other purpose than navigational or with the use of

rear view camera only.

When Driving

The driver must not operate the LCD monitor.

(Operating the LCD monitor while driving is a distraction and may lead to an acci-

dent.)

As a safety factor, driving with the television, video or DVD player is prohibited.

Keep the unit at an appropriate sound level. Driving with the sound at a level that

prevents you from hearing sounds outside and around the car may cause an acci-

dent.

CAUTION

Warning:A LCD monitor may be installed in a motor vehicle and visible to the driver only if

used to support vehicle related functions such as vehicle information, system control, rear or

side observation and navigation. If used for entertainment purpose, such as television recep-

tion or video play, it must be installed to the rear of the driver’s seat where it will not be

visible, directly or indirectly, to the operator of the motor vehicle. Check with individual

state/provincial laws to determine lawful use of this product while operating within a motor

vehicle.

Used in Motor Vehicle

For Used in Motor Vehicle

When Car Washing

Do not expose the LCD monitor to water or excessive moisture. This could cause electrical

shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Let the

interior of the car cool down before switching the unit on.

Do not watch the LCD monitor with the engine off. It will consume battery power and

may prevent the engine from starting.

Use Panasonic Technical Support

Do not attempt to disassemble or adjust this precision product. Contact Panasonic Technical

Support.

For Installation

Be sure to install the LCD monitor in a position that does not obstruct the driver’s vision.

If the LCD monitor has been installed for the rear seat passengers, they must be careful to

prevent injury by hitting their heads on the LCD monitor in case of an accident.

Do not expose the LCD monitor to direct sunlight or excessive heat.

Be sure not to install the LCD monitor in a location at which it is exposed to water, hot air

such as near heater duct, or where it may stepped on.

Do not install the LCD monitor in an area where it would obstruct the operation of an air

bag.

Ask a trained technician to install the unit. Installation and wiring require training and

experience.

To be safe, ask the sales outlet where you purchased the unit to perform the installation.

When Operating

Make sure the LCD monitor is firmly secured and protected from strong impact, because this

may cause a malfunction or possible fire.

Precautions

Thank you for purchasing the LCD Monitor for the Panasonic notebook computer series.

This LCD monitor features a touchscreen function, which makes computer operation pos-

sible by simply touching the surface of the LCD monitor and pressing buttons – even when

the computer is not being held.

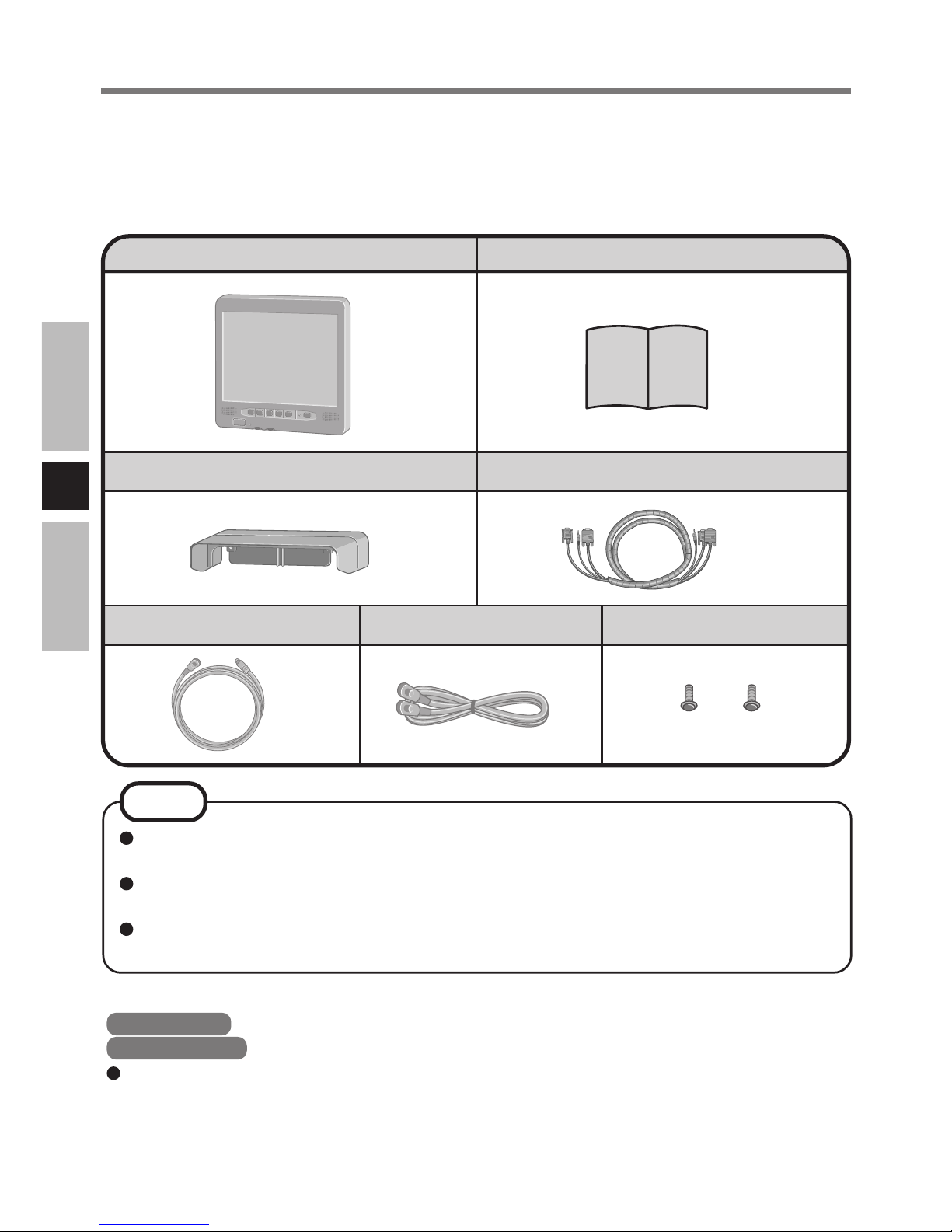

Introduction

Operating Instructions ............... 1

RGB/Serial/Sound Cable ............ 1

Sun Shade ................................... 1

PS/2 Cable ................1

LCD Monitor ................................ 1

Function Cable .......1 Screws .................... 2

NOTE

A Port Replicator with a display port, serial port, and sound port is required for comput-

ers without these ports. For more information, refer to the computer’s Reference Manual.

An optional keyboard (Model no. CF-VKBL01/CF-VKBL02) is required to use the

Function Buttons of the LCD Monitor.

This manual explains the procedure for default settings. The procedure may differ

according to the settings.

[Illustration in this manual]

Windows XP : Information for Microsoft®Windows®XP Professional users.

Windows 2000 : Information for Microsoft®Windows®2000 Professional users.

Windows XP screens are used in this manual when no specific OS notes are required.

Microsoft®and Windows®are registered trademarks of Microsoft Corporation of the United

States and/or other countries.

PS/2®is a registered trademark of International Business Machines Corporation.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

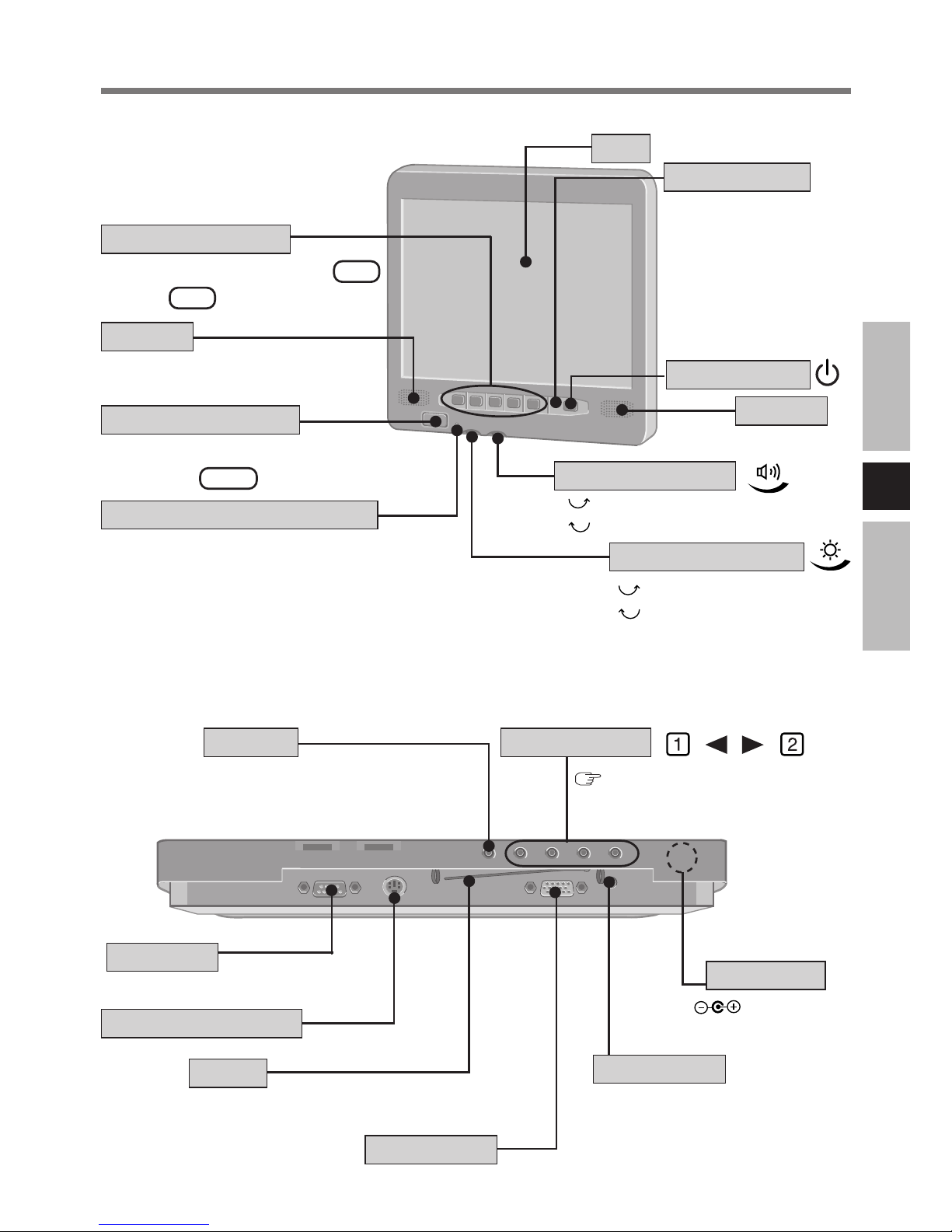

Names and Functions of Parts

Function Buttons

LCD

<Front>

Does the same operation as

through F5 of the keyboard.

Speaker

The application software

allocated to F11 is started up.

Emergency Button

Green : Normal

The brightness can be adjusted freely.

Orange : Drops the brightness automatically due to an

increase in the internal temperature.

Red : The backlight goes OFF automatically due to

an increase in the internal temperature.

Temperature LED Indicator

Power Switch

LED Indicator

Speaker

Green : power on

Orange : power on but

no VGA Sig-

nal or the

cable is not

connected.

Brightness Volume

down

Speaker Volume

down

Do not have anyone except an

authorized repairperson push this

button.

OSD buttons

page13

DC-IN 15.6 V

Serial Port

SERIAL I/F

Sound Port

Function Key Port

LINE IN

Fn KEY

RGB IN

Binder

Bind the cables and fix

firmly.

Reserve

DC-IN Jack

Display Port

Connect your computer to the port replicator

( Operating Instructions of the port replicator)

Remove the cover of the LCD Monitor

Remove the four screws, and remove the cover.

Connect the LCD Monitor to your computer via the connection cables (in-

cluded)

Mounting the LCD Monitor

Function Key Port Fn KEY

SERIAL I/F

Sound Port LINE IN

DC-IN Jack

Serial Port

Display Port RGB IN

DC-IN Jack

Keyboard

(commercially available product)

Car Adaptor

(commercially

available prod-

uct)

Car Adaptor

LCD Monitor

(Model no.

CF-VKBL01/

CF-VKBL02)

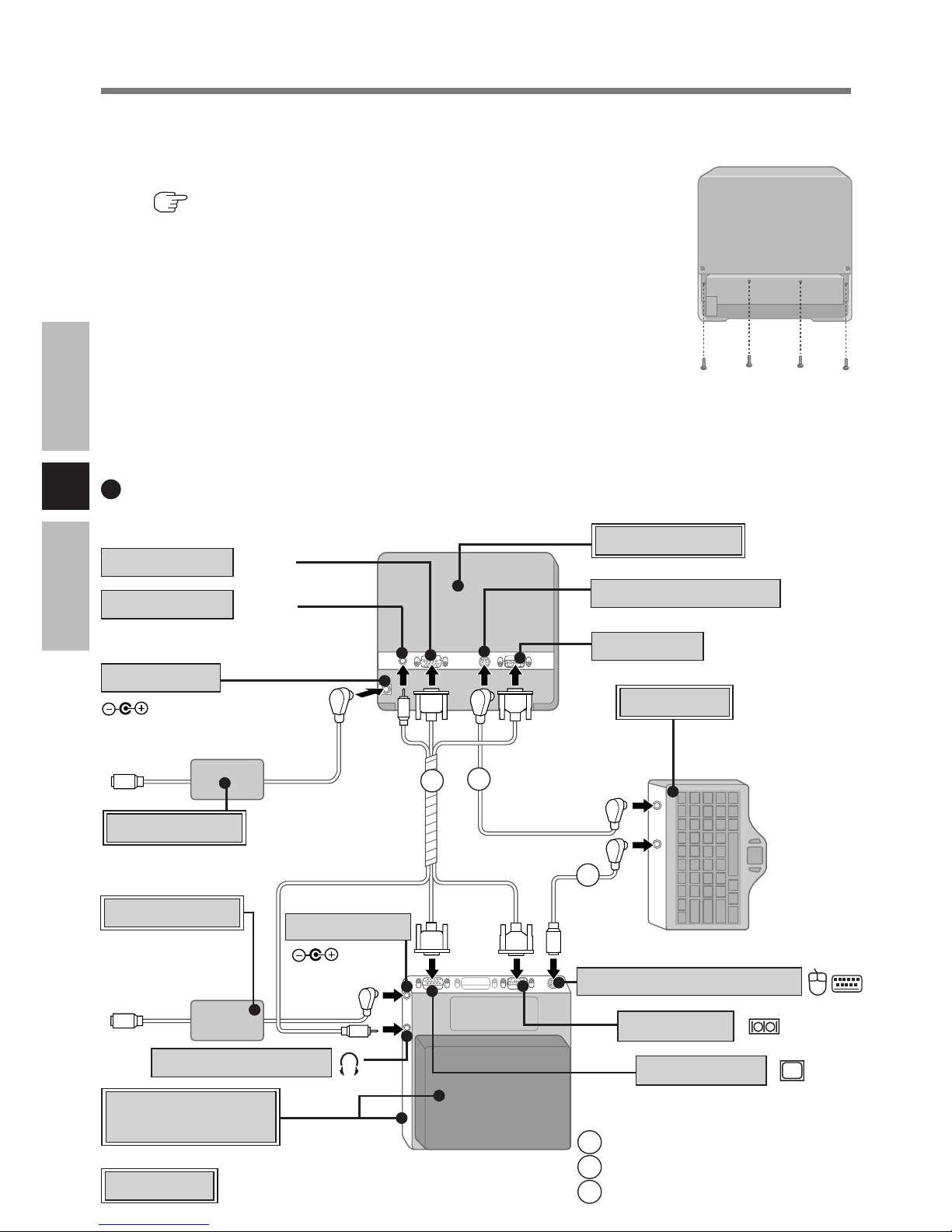

Example of connection

DC-IN 15.6 V

Keyboard/Mouse Port

Serial Port

1RGB/Serial/Sound cable

2PS/2 cable

3Function cable

Headphone Jack

Port Replicator

and Computer

Computer

Display Port

When installing the LCD monitor, lo-

cate the monitor under the dashboard

as shown in the figure to prevent the

monitor from interrupting the sight

of the driver and to prevent the moni-

tor from being hit by direct sunlight.

Do not expose the computer to direct

sunlight or excessive heat.

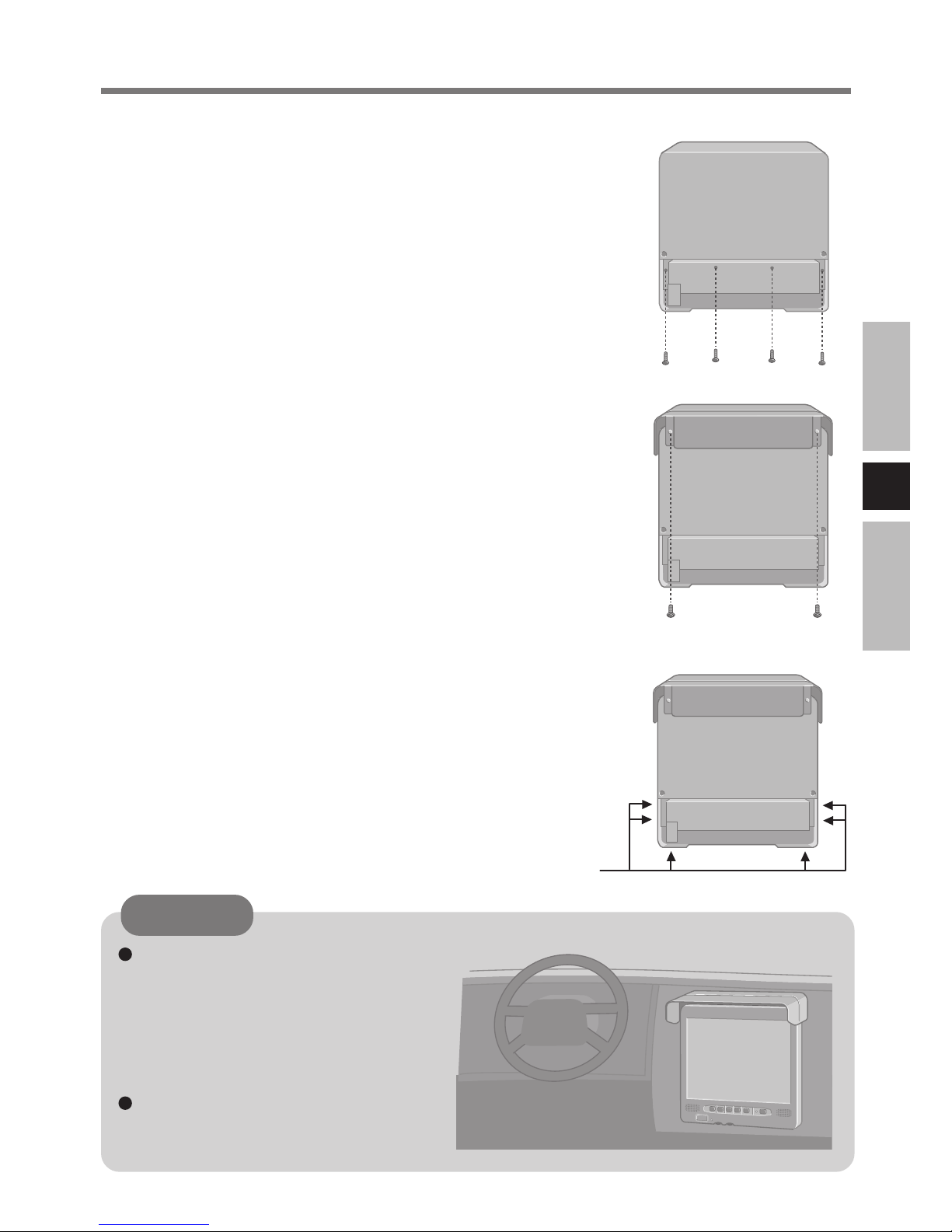

Attach the cover of the LCD Monitor

Attach the four screws.

Mount the Sun Shade

Attach the two screws (included).

Mount the LCD Monitor

CAUTION

Use these M4 screw holes to mount the LCD Monitor.

Save important data and close each application

Display the shut down screen

Windows XP

Select [start] - [Turn Off Computer].

Windows 2000

Select [Start] - [Shut Down].

Confirm shut down

Windows XP

Select [Turn Off].

Windows 2000

Select [Shut Down], then select [OK].

The computer will power off automatically.

Press the power switch of the LCD Monitor

The LCD Monitor will turn off after the computer is shut down completely.

Starting Up/Shutting Down

Starting Up

Press the power switch of the LCD Monitor

The LCD Monitor will turn on.

Turn your computer on (Operating Instructions of the computer)

Select your application

You are able to start working on your computer.

Shutting Down (power off your computer)

This procedure is for shutting down the computer without using the standby or hibernation

function. ( Reference Manual of the computer)

NOTE

Some computers will shut down automatically when the LCD Monitor is turned off

according to power switch settings.

You can modify power switch settings on the following menus.

Windows XP : [start] - [Control Panel] - [Performance and Maintenance] - [Power

Options] - [Advanced] - [When I press the power button on my

computer]

Windows 2000 : [Start] - [Settings] - [Control Panel] - [Power Options] -

[Advanced] - [When I press the power button on my computer]

NOTE

Some computers will turn on automatically when the LCD Monitor is turned on.

Touchscreen

The LCD Monitor is equipped with a touchscreen function allowing you to perform the

same operations as the touch pad or mouse by touching the surface of the display with the

finger or stylus.

The operation settings can be changed in the following menu.

Windows XP : [start] - [All Programs] - [UPDD] - [Settings].

Windows 2000 : [Start] - [Programs] - [UPDD] - [Settings].

NOTE

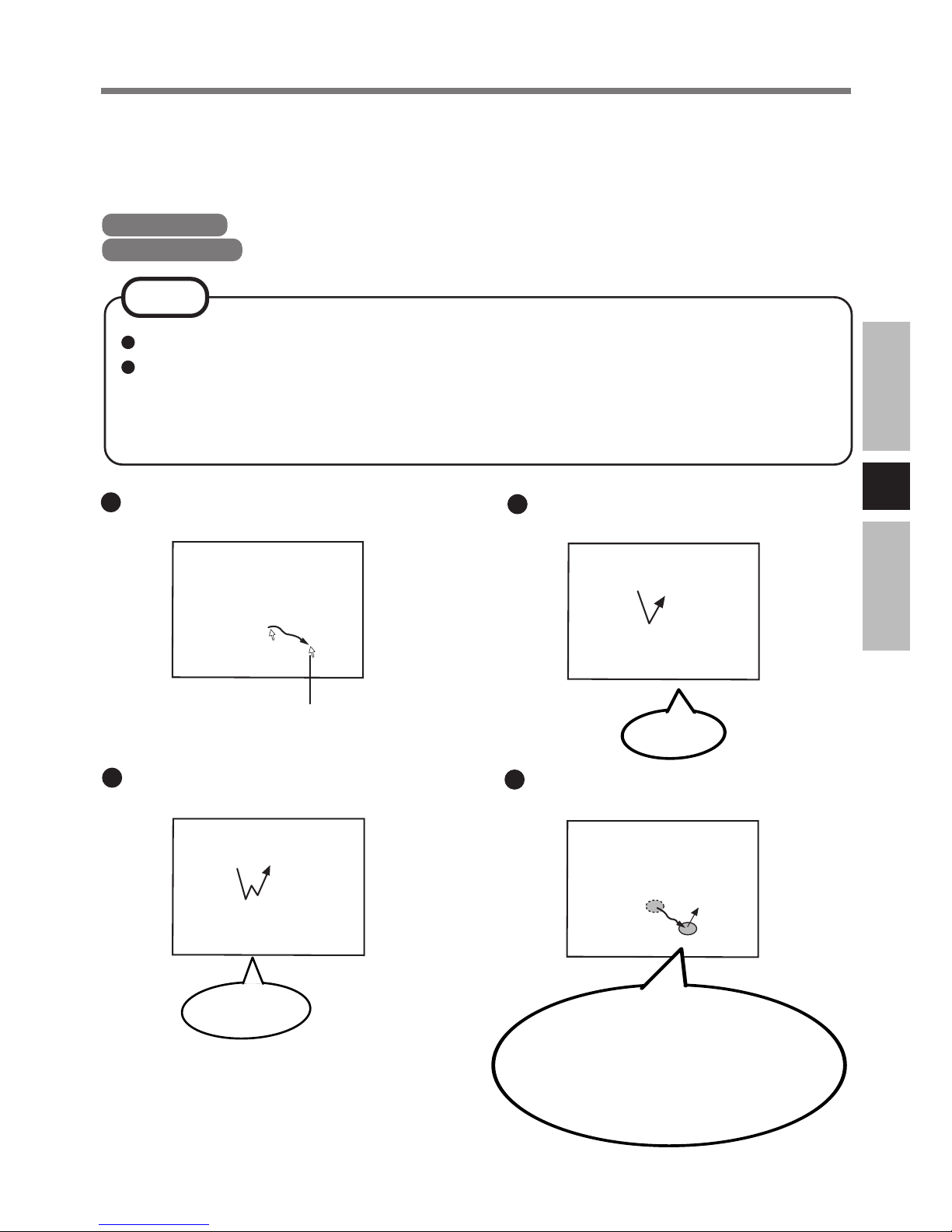

Moving the cursor Clicking

Double-clicking Dragging

Cursor

Touch and hold the object (i. e.

file or icon), move the finger or

stylus on the surface (dragging

the object to the desired loca-

tion), then release the finger or

stylus.

Two quick

taps

One tap

The touchscreen feature cannot be used with models which do not have a serial port.

For some models, you first need to install the touchscreen driver. Follow the installa-

tion instructions that come with the driver CD-ROM.

For more information, ask your system administrator or contact Panasonic Technical

Support.

CAUTION

Handling the Touchscreen

Do not place any object on the surface or press down forcefully with sharp-pointed ob-

jects (e.g., nails), hard objects that can leave marks (e.g., pencils and ball point pens).

Do not apply pressure within 5 mm of the perimeter of the display panel. The cursor may

move to the edge of the display.

Do not operate the computer when such things as dust are on the screen, or allow contact

with substances that could dirty the touchscreen, such as oil. The cursor may not work

properly in such cases.

When the touchscreen becomes dirty:

Use a dry soft cloth such as a gauze to clean the dirty areas.

Do not use benzene, thinner, or disinfectant- type alcohol.

The touchscreen function can not be used when using the full screen in [Command

Prompt].

When the operation of panning is performed, the touchscreen function will not work

properly.

If a change is made to the screen resolution, or the cursor can not be pointed correctly

with the finger or stylus, be sure to perform calibration.

Touchscreen

Tabla de contenidos

Idiomas:

Otros manuales de Monitor de Panasonic

Panasonic

Panasonic TH-50PF20U Manual de usuario

Panasonic

Panasonic TH-103PF12UK Manual de usuario

Panasonic

Panasonic DTM3050W - 30" MONITOR Manual de usuario

Panasonic

Panasonic PLCD24HD Manual de usuario

Panasonic

Panasonic WVBM500 - B&W MONITOR Manual de usuario

Panasonic

Panasonic M-900 Series Manual de usuario

Panasonic

Panasonic TH-42LFE7U Manual de usuario

Panasonic

Panasonic TH-37PW4 Manual de usuario

Panasonic

Panasonic TH 50PHD3 Manual de usuario

Panasonic

Panasonic WVLC1710 - LCD MONITOR Manual de usuario

Panasonic

Panasonic th-49lf8w Manual de usuario

Panasonic

Panasonic WVCM146 - COLOR MONITOR Manual de usuario

Panasonic

Panasonic TH-37PR11UK Manual de usuario

Panasonic

Panasonic TH-58PF20U TENTATIVE Manual de usuario

Panasonic

Panasonic TH-47LF25ER Manual de usuario

Panasonic

Panasonic CT-32HXC43 Manual de usuario

Panasonic

Panasonic TH-55VF2W Manual de usuario

Panasonic

Panasonic LH-32RM1MX Manual de usuario

Panasonic

Panasonic Viera TH-65PF10UK Manual de usuario

Panasonic

Panasonic PLCD8C Manual de usuario

Panasonic

Panasonic TH-50PHW3 Manual de usuario

Panasonic

Panasonic TH-65PF9BK Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Panasonic

Panasonic GPRV700 - REAR VIEW CAMERA Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario
