Panasonic TH-103PF9WK Manual de usuario

rights reserved. Unauthorized copying and

distribution is a violation of law.

TH-103PF9WK

GPF9D Chassis

High Definition Plasma Display

Please file and use this manual together with the service manual for Model No.TH-103PF9EK, Order

No.ITD0610074CE.

Specifications

Power Source 220 V - 240 V

C, 50

60Hz

Power Consumption

Power on 1,500 W

Stand-b

condition Save OFF 1.5 W, Save ON 1.3 W

Power off condition 0.5 W

Plasma Displa

panel Drive method:

C type 103-inch, 16:9 aspect ratio

Screen size 2,269 mm (W) × 1,277 mm (H) × 2,604 mm (diagonal)

(No. of pixels) 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Operating condition

Temperature 0 °C - 40 °C

Humidit

20 % - 80 %

Applicabl

signals

Color System NTSC, PAL, PAL60, SECAM, Modified NTSC

Scanning format 525 (480) / 60i 60p, 625 (575)

50i 50p, 750 (720)

60p 50p, 1125 (1080) / 60i 60p 50i 50p

24p 25p 30p 24sF .... SMPTE274M, 1250 (1080) / 50i

PC signals VGA, SVGA, XGA, SXGA,

UXGA ..... (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

ORDER NO. ITD0612097AE

1 Parts Location 3

1.1. Exploded View 3

1.2. Cable and Fan 6

1.3. Board and Fuse 6

1.4. Packing summary 7

2 Replacement Parts List 14

DVI-D Video Input DVI-D 24 Pin × 1

compliance with DVI Revision 1.0

udio Input Stereo mini

ack (M3) × 1

0.5Vrms

Content Protection Compatible with HDCP 1.1

COMPONENT / RGB

/ G (BNC)

or G with

syn

1.0 Vp-p (75-ohm)

B (BNC), PR/ R (BNC) 0.7 Vp-p (75-ohm)

UDIO IN (RCA PIN JACK × 2) 0.5 Vrms

PC (HIGH-DENSIT

Mini D-SUB 15PIN)

or G with

syn

1.0 Vp-p (75-ohm)

or G without

syn

0.7 Vp-p (75-ohm)

B/P

B/C

B: 0.7 Vp-p (75-ohm)

R/P

R/C

R: 0.7 Vp-p (75-ohm)

VD: 1.0 - 5.0 Vp-p (high impedance)

VBS (use HD port) with

picture 1.0 Vp-p (high impedance)

without

picture 0.3 Vp-p (high impedance)

UDIO IN (M3 JACK) 0.5 Vrms

SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

UDIO OUT RCA PIN JACK × 2 (L / R)

OUTPUT LEVEL : VARIABLE (- - 0 dB) [INPUT 1KHz / 0dB, 10Kohm Load]

Accessories Supplied

Remote Control Transmitter EUR7636070R

Batteries 2 × R6 Size

Fixing bands (TMME203 or TMME187) × 2

Dimensions (

×H×D) 2,414 mm × 1,421 mm × 129 mm (141 mm when including protruding portion of slots)

Mass (weight)

main unit onl

approx. 220.0 kg net

Notes:

Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

CONTENTS

Page Page

TH-103PF9WK

1 Parts Location

1.1. Exploded View

1.1.1. The main mechanical parts relation

TH-103PF9WK

1.1.2. Customer Control part location enlarged view

1.1.3. Escutcheon part location enlarged view

TH-103PF9WK

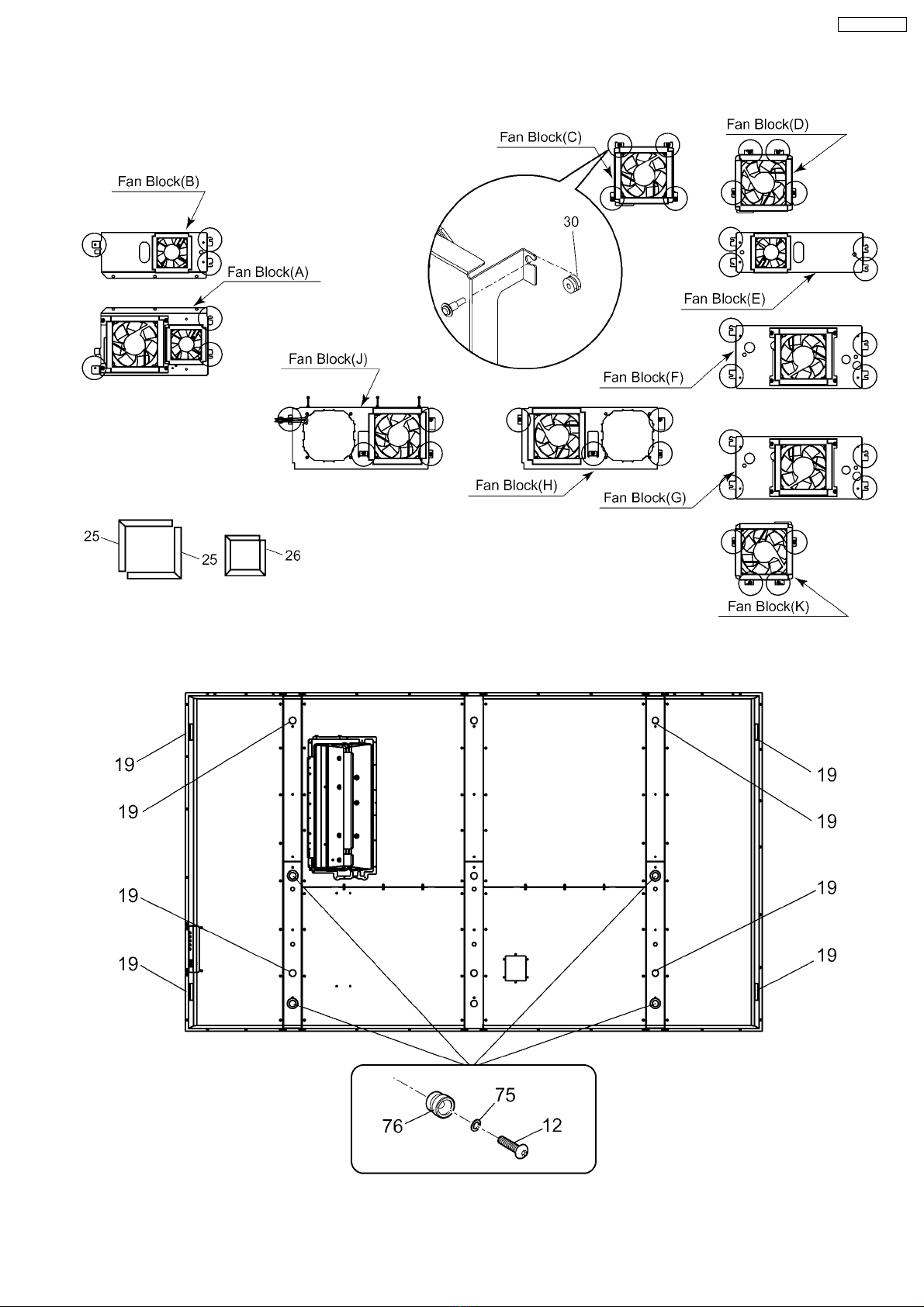

1.1.4. Fan part location enlarged view

1.1.5. Rear cover location enlarged view

TH-103PF9WK

1.2. Cable and Fan

1.3. Board and Fuse

TH-103PF9WK

1.4. Packing summary

TH-103PF9WK
