ORDER NO.MTNC090213CE

B05 Canada: B07

32 inch/37 inch Class 1080p LCD HDTV

Model No. TC-L37S1

TC-L32S1

LH91 Chassis

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the

two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,

between the jumpered AC plug and each exposed metal-

lic cabinet part on the equipment such as screwheads,

connectors, control shafts, etc. When the exposed metal-

lic part has a return path to the chassis, the reading

should be 100 Mohm and over.

When the exposed metal does not have a return path to

the chassis, the reading must be .

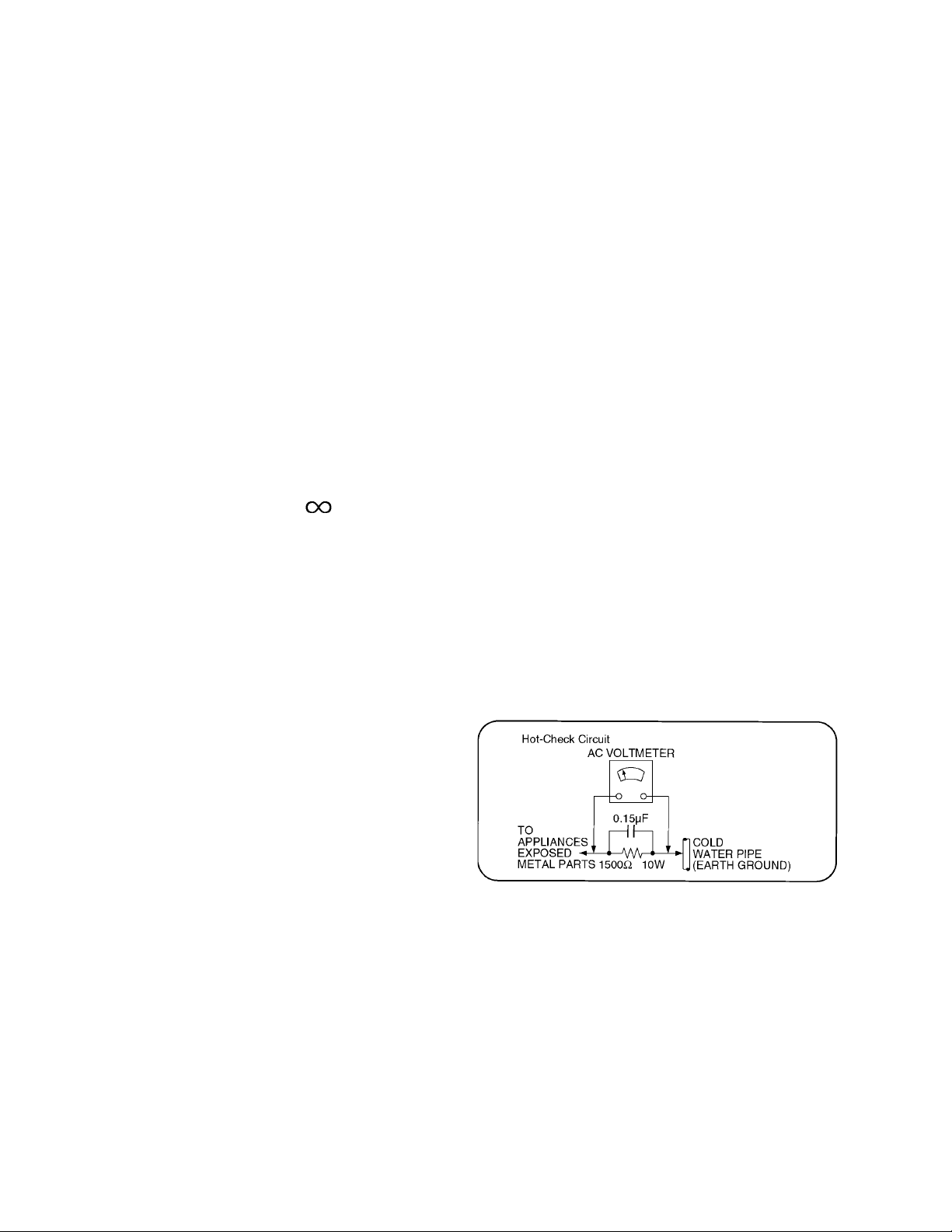

1.1.2. Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use

an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15μF capacitors, between each exposed metallic part

on the set and a good earth ground such as a water pipe,

as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensi-

tivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the volt-

age at each point.

5. Reverse the AC plug in the AC outlet and repeat each of

the above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a mea-

surement is outside of the limits specified, there is a pos-

sibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the cus-

tomer.

Figure 1

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi-

tive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-

trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-

num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-

ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush-

ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient

to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol-

der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How-

ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. Service Hint

3.2. Applicable signals

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

Note:

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

Board Name Function

A-Board Rear Terminal, AV Switch, MCU, Audio & Video

Processor, LVDS, Tuner

V-Board Remote Receiver, LED

P-Board Power (AC/DC), DC-DC

None serviceable

P-Board should be exchanged for service.

Control Panel Assy Control Button, Power switch

None serviceable

Control Panel Assy should be exchanged for service.

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC

525 (480) / 60i 15.73 59.94 * *

525 (480) /60p 31.47 59.94 * *

750 (720) /60p 45.00 59.94 * *

1,125 (1,080) /60i 33.75 59.94 * *

1,125 (1,080) /60p 67.43 59.94 *

1,125 (1,080) /60 67.50 60.00 *

1,125 (1,080) /24p 26.97 23.98 *

1,125 (1,080) /24p 27.00 24.00 *

640 ×400 @70 31.47 70.08 *

640 ×480 @60 31.47 59.94 *

Macintosh13 inch (640 ×480) 35.00 66.67 *

640 ×480 @75 37.50 75.00 *

852 ×480 @60 31.47 59.94 *

800 ×600 @60 37.88 60.32 *

800 ×600 @75 46.88 75.00 *

800 ×600 @85 53.67 85.08 *

Macintosh16 inch (832 ×624) 49.73 74.55 *

1,024 ×768 @60 48.36 60.00 *

1,024 ×768 @70 56.48 70.07 *

1,024 ×768 @75 60.02 75.03 *

1,024 ×768 @85 68.68 85.00 *

Macintosh 21 inch (1,152 ×870) 68.68 75.06 *

1,280 ×768 @60 47.70 60.00 *

1,280 ×1,024 @60 63.98 60.02 *

1,366 ×768 @60 48.36 60.00 *

4 Specifications

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Power Source AC 110-127 V, 60 Hz

Power Consumption

Maximum 123 W (TC-L32S1)

151 W (TC-L37S1)

Standby Condition 0.2 W (TC-L32S1)

0.2 W (TC-L37S1)

Display panel

Aspect Ratio 16:9

Visible screen size 32 inch class (31.5 inches measured diagonally) (TC-L32S1)

37 inch class (37.0 inches measured diagonally) (TC-L37S1)

(W ×H ×Diagonal) 27.5 inch ×15.4 inch ×31.5 inch (698 mm ×392 mm ×801 mm) (TC-L32S1)

32.2 inch ×18.1 inch ×37.0 inch (819 mm ×460 mm ×940 mm) (TC-L37S1)

(No. of pixels) 2,073,600 (1,920 (W) ×1,080(H)) [5,760 ×1,080 dots]

Sound

Speaker 1-way 2 speakers slim under SP System

Audio Output 20 W [10 W + 10 W] ( 10 % THD )

Headphones M3 (3.5 mm) Jack ×1

PC signals VGA, SVGA, XGA, WXGA, SXGA

Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

Channel Capability-

ATSC/NTSC (Digital/Analog)

VHF/ UHF: 2 - 69, CATV: 1 - 135

Operating Conditions Temperature: 32 °F - 95 °F (0 °C - 35°C)

Humidity: 20 % - 80 % RH (non-condensing)

Connection Terminals

VIDEO IN 1 VIDEO: RCA PIN Type ×1 1.0 V [p-p] (75 Ω)

AUDIO L - R: RCA PIN Type ×2 0.5 V [rms]

VIDEO IN 2 VIDEO: RCA PIN Type ×1 1.0 V[p-p] (75 Ω)

S VIDEO: Mini DIN 4-pin Y: 1.0 V[p-p] (75 Ω) C: 0.286 V [p-p] (75 Ω)

AUDIO L - R: RCA PIN Type ×2 0.5 V [rms]

COMPONENT IN 1 Y: 1.0 V [p-p] (including synchronization)

PB, PR: ±0.35 V [p-p]

AUDIO L-R: RCA PIN Type ×2 0.5 V [rms]

HDMI 1-3 TYPE A Connector ×3 .

!This TV supports [HDAVI Control 4] function.

PC D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

Card slot SD CARD slot ×1

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES 3D Y/C Digital Comb Filter, CLOSED CAPTION, V-Chip

HDMI (HDAVI Control 4)

Vesa compatible, Photo viewer

Dimensions (W ×H ×D)

Including TV stand 31.5 inch ×21.7 inch ×8.6 inch (798 mm ×551 mm ×217 mm) (TC-L32S1)

36.1 inch ×24.5 inch ×11.3 inch (915 mm ×620 mm ×287 mm) (TC-L37S1)

TV Set only 31.5 inch ×20.2 inch ×3.7 inch (798 mm ×511 mm ×93 mm) (TC-L32S1)

36.1 inch ×22.8 inch ×3.9 inch (915 mm ×577 mm ×97 mm) (TC-L37S1)

Mass

Including TV stand 29.3 lb. (13.3 kg) NET (TC-L32S1)

37.0 lb. (16.8 kg) NET (TC-L37S1)

TV Set only 25.6 lb. (11.6 ) NET (TC-L32S1)

32.0 lb. (14.5 ) NET (TC-L37S1)

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

5.1.1. Key command

[1] button...Main items Selection in forward direction

[2] button...Main items Selection in reverse direction

[3] button...Sub items Selection in forward direction

[4] button...Sub items Selection in reverse direction

[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

5.1.2. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 000

COLOR 4C

TINT 00

SUB-BRT 808

BACKLGT 4CB

B-Y-G 34

R-Y-A 00

WB-ADJ R-GAIN F2

G-GAIN FC

B-GAIN E6

R-CENT 84

G-CENT 80

B-CENT 7A

OPTION Boot ROM Factory Preset.

STBY-SET 00

EMERGENCY ON

CLK MODE 00

CLOCK FCA

RM-SET CODE 00 Fixed.

SRV-TOOL 00 See next.

5.2. SRV-TOOL

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED blinking ) indication.

From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.

This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship-

ment setting].

5.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.

Time : Cumulative power on time, indicated hour : minute by decimal

Count : Number of ON times by decimal

Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wall outlet.

5.3. Hotel mode

1. Purpose

Restrict a function for hotels.

2. Access command to the Hotel mode setup menu

In order to display the Hotel mode setup menu, please

enter the following command (within 2 second).

[TV] : Vol. [Down] + [REMOTE] : INPUT (3 times)

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu

Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

item Function

Mode Select hotel mode off/on

Input Select input signal modes.

Set the input, when each time power is

switched on.

Selection:

-/RF/Component/HDMI1/HDMI2/HDMI3/

Video1/Video2/PC

• Off: give priority to a last memory.

Channel Select channel when input signal is RF.

Set the channel, each time power is switched

on.

Selection:

Any channel number or [-].

[-] means the channel when turns off.

Volume Adjust the volume when each time power is

switched on.

Range:

0 to 100

Vol. Max Adjust maximum volume.

Range:

0 to 100

OSD Ctrl Restrict the OSD.

Selection:

Off/Pattern1

• OFF: No restriction

• Pattern1: restriction

FP Ctrl Select front key conditions.

Selection:

Off/Pattern1/All

• Off: altogether valid.

• Pattern1: only input key is valid.

• All: altogether invalid.

Pow Ctrl Select POWER-ON/OFF condition when AC

power cord is disconnected and then con-

nected.

OFF: The same condition when AC power

cord is disconnected.

ON: Forced power ON condition.

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control

for more than 3 seconds.

Self-check indication and forced to factory shipment setting:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote

control for more than 3 seconds.

6.1.2. Exit

Disconnect the AC cord from wall outlet.

6.1.3. Screen display

6.1.4. Check Point

Confirm the following parts if NG was displayed.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Televisor LCD de Panasonic

Panasonic

Panasonic TX-P42VT30E Manual de usuario

Panasonic

Panasonic Viera TH-L42E30K Manual de usuario

Panasonic

Panasonic TC26LX20 - 26" LCD TV Manual de usuario

Panasonic

Panasonic Viera TX-55AX900E Manual de usuario

Panasonic

Panasonic Viera TX-L24C5E Manual de usuario

Panasonic

Panasonic Viera TX-85X942B Manual de usuario

Panasonic

Panasonic Viera TX-32CS510B Manual de usuario

Panasonic

Panasonic TC-32LX60 - 32" LCD TV Manual de funcionamiento

Panasonic

Panasonic TC-L32C20P Manual de usuario

Panasonic

Panasonic TC22LH1 - 22" WIDE LCD CLR TV Manual de usuario

Panasonic

Panasonic Vieta TX-26LX600P Manual de usuario

Panasonic

Panasonic Viera TC-37LZ85X Manual de usuario

Panasonic

Panasonic Viera TX-L26X10Y Manual de usuario

Panasonic

Panasonic TC-55AS540C Manual de usuario

Panasonic

Panasonic VIERA TX-L65WT600B Manual de usuario

Panasonic

Panasonic Viera TX-L24C3B Manual de usuario

Panasonic

Panasonic TCL32C12 - 32" LCD TV Manual de usuario

Panasonic

Panasonic TX-L32DT35E Manual de usuario

Panasonic

Panasonic TC-L32B6H Manual de usuario

Panasonic

Panasonic TC-32LX14 - 31.5" LCD TV Manual de usuario

Panasonic

Panasonic VIERA TC-L42E30 Manual de usuario

Panasonic

Panasonic TX-L42E6B Manual de usuario

Panasonic

Panasonic TC-L32E6H Manual de usuario

Panasonic

Panasonic TC15LT1 - 15"WIDE LCD TV Manual de usuario

Manuales populares de Televisor LCD de otras marcas

LG 32LC4R* Manual de usuario

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manual de usuario

Salora

Salora 22LED1600 Manual de usuario

Samsung

Samsung LA32E420 Guía

Dell

Dell W1900 19 Instrucciones de uso

Samsung

Samsung LN40C670M1F Manual de usuario

Samsung

Samsung Series 4+ Manual de usuario

Samsung

Samsung 5 Series Manual de usuario

Grundig

Grundig 40 VLE 8230 BP Manual de usuario

Philips

Philips 43PFL4901/F7 Manual de usuario

Sony

Sony Bravia XBR-43X830C Manual de usuario

LG 32LS350 Manual de usuario

VIORE

VIORE LED32VF60 Manual de usuario

Toshiba

Toshiba Regza 42HL167 Manual de usuario

JVC

JVC LT-32A220 Manual de usuario

Philips

Philips 20TA1000/93 Manual de usuario

Philips

Philips 32PFL3158T/12 Manual de usuario

Sony

Sony Bravia KDL-V32XBR2 Manual de usuario
