Panasonic VL-GC002A Instrucciones de funcionamiento

Door Station

Installation and Operation Guide

Model No. VL-GC002A

Thank you for purchasing a Panasonic Door Station.

Please read this Installation and Operation Guide before using the unit and

save for future reference.

Video Intercom System

Important Information

Introduction and Installation

Included items............................................................................................................ 5

Location of controls ................................................................................................... 6

Before installation ...................................................................................................... 7

Installing the door station .......................................................................................... 8

Help

Cleaning ................................................................................................................... 12

General Information

Technical data about this product ............................................................................ 13

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

FCC and Other Information

CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

Important Information

FCC and Other Information ....................................................................................... 2

Important safety instructions ..................................................................................... 3

Additional safety information ..................................................................................... 4

For best performance ................................................................................................ 4

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrow

head within a triangle is

intended to tell the user that

parts inside the product are a

risk of electric shock to persons.

The exclamation point within a

triangle is intended to tell the

user that important operating and

servicing instructions are in the

papers with the appliance.

Important safety instructions

1) Read these instructions.

All the safety and operating instructions should be read before the appliance is

operated.

2) Keep these instructions.

The safety and operating instructions should be retained for future reference.

3) Heed all warnings.

All warnings on the appliance and in the operating instructions should be adhered

to.

4) Follow all instructions.

All operating and use instructions should be followed.

5) Do not use this apparatus near water.

For example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, and the like.

6) Clean only with dry cloth.

Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.

7) Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

Slots and Openings in the cabinet are provided for ventilation and to ensure

reliable operation of the product and to protect it from overheating. The openings

should never be blocked by placing the product on a bed, sofa, rug, or other

similar surface.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

This product should not be placed in a built-in installation such as a bookcase or

rack unless proper ventilation is provided or the manufacturer’s instructions have

been adhered to.

9) Only use attachments / accessories specified by the manufacturer.

10) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power- supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

Important Information

SAVE THESE INSTRUCTIONS

Important Information

Additional safety information

1. Use only the power source marked on the unit. If you are not sure of the type of

power supplied to your home, consult your dealer or local power company.

2. Use only the specified AC adaptor.

3. Do not tamper with the plug.

4. Make sure the plug is securely inserted.

5. Do not touch the plug with wet hands.

6. Do not place objects on the power cord. Install the unit where no one can step or trip

on the cord.

7. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an

authorized service center when service is required. Opening or removing covers

may expose you to dangerous voltages or other risks. Incorrect reassembly can

cause electric shock when the unit is subsequently used.

8. Unplug the monitor station from power outlets and refer servicing to an authorized

service center when the following conditions occur:

A. If smoke rises, or an unaccustomed noise or smell is discharged from the unit.

B. If metal objects have been dropped inside the monitor station.

9. Do not put your ear(s) near the speaker, as loud sounds emitted from the speaker

may cause hearing impairment.

10. Only a qualified technician is allowed to connect a power cable to the unit.

Contact an authorized service center.

11. Do not make any wiring connections when the power supply is turned on.

12. Never install wiring during a lightning storm.

13. When existing chime wires are used, it is possible that they contain AC voltage.

Electric shock or unit damage could result. Contact an authorized service center.

14. Be sure to install the unit as specified to endure the mass.

15. If the wiring is outdoors, use a protection tube or a surge protector.

16. If the wiring is underground, do not make any connections underground.

17. WARNING – Unplug this unit from power outlets if it emits smoke, an abnormal

smell or makes unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped and contact an authorized service center.

For best performance

•If a power failure occurs, the unit will not function.

Included items

No. Item Quantity Notes

Mounting base

Wood screws

Door station 1 ------

4 mm x 20 mm (3/16

″x 13/16

″)

Button cover 1 ------

Introduction and Installation

------

•The Mounting base comes preattached to the Door station.

Introduction and Installation

Location of controls

Camera

•When a visitor presses the Call

Button, the camera will turn on and

an image of the visitor will be shown

on the display of the monitor station

and sub monitor station.

•The camera angle can be adjusted

when installing the door station

(page 9).

Infrared light

Microphone

Speaker

* Be sure to attach the accessory button cover to the Call Button before using it.

(The diagram shows the button cover installed.) (Page 11.)

Front view

Call Button*

•A visitor can press this button to call

the monitor station and sub monitor

station.

Position indicator (Green)

•The Position indicator is lighted with

a green LED light while the power is

on.

Water drain holes (4 places)

•These holes allow rainwater to drain

away. Do not cover them.

Before installation

Introduction and Installation

To avoid malfunction or communication disturbance, do not install the door station

in the following locations:

– Places where vibration or any other kind of impact occurs.

– Places where echoing is frequent.

– Places where a high concentration of dust, hydrogen sulfide, phosphorus,

ammonia, sulfur, carbon, acid, or noxious fumes occur.

– Within 2 m (6′7″) of a TV, microwave, personal computer, air conditioner or any

other electrical device.

Note:

•Be sure to install the monitor station and sub monitor station more than 5 m

(16′5″) away from the door station.

Introduction and Installation

Installing the door station

1Loosen the mounting screw, and then remove the mounting base.

Screwdriver

2Install the mounting base to a wall using the attached wood screws.

(4 mm x 20 mm, 3/16

″x 13/16

″).

Wall

Mounting base

Wood

Screws

Important information:

On the bottom surface of the door station, there are holes to allow water to drain.

Do not cover it up when installing.

Note:

•Install so that picture range will be within a height of

995 mm ~ 1795 mm from the ground surface.

Introduction and Installation

3Remove the adjustment cover, and then adjust the angle of the camera lens.

* Be sure to install the adjustment cover after adjusting the angle of the camera lens.

Screwdriver

Left direction

(maximum 16°)

Angle adjustment lever

Right direction

(maximum 16°)

Upward direction

(maximum 16°)

Adjustment

cover

Standard installation height and filming range

Adjust the angle of the camera lens when carrying out installation.

•Vertical direction (facing the front)

(16°to the right)(16°upward)

•Horizontal direction (facing the front)

•The angle can also be adjusted

16°to the left.

Note:

•The measurements and angles are for reference purposes and may vary depending

on the environment.

•If a strong light is against the door station, the visitor’s face may not be

distinguishable. Do not place the door station in the following locations.

–Where most of the background is the sky.

–Where the background is a white wall, and direct sunlight will reflect off it.

–Where direct sunlight will shine on the door station.

–Depending on where this unit is installed, surrounding noises will cause howling

(beeping sound) to occur. Please avoid installing the unit in such a place.

•Make sure the back of the door station is not subject to water.

Wire type and distance

•Wire (between the monitor station and the door station):

Type: General cable CAT-3 24 AWG.

Distance: Maximum 100 m (about 328 feet).

Introduction and Installation

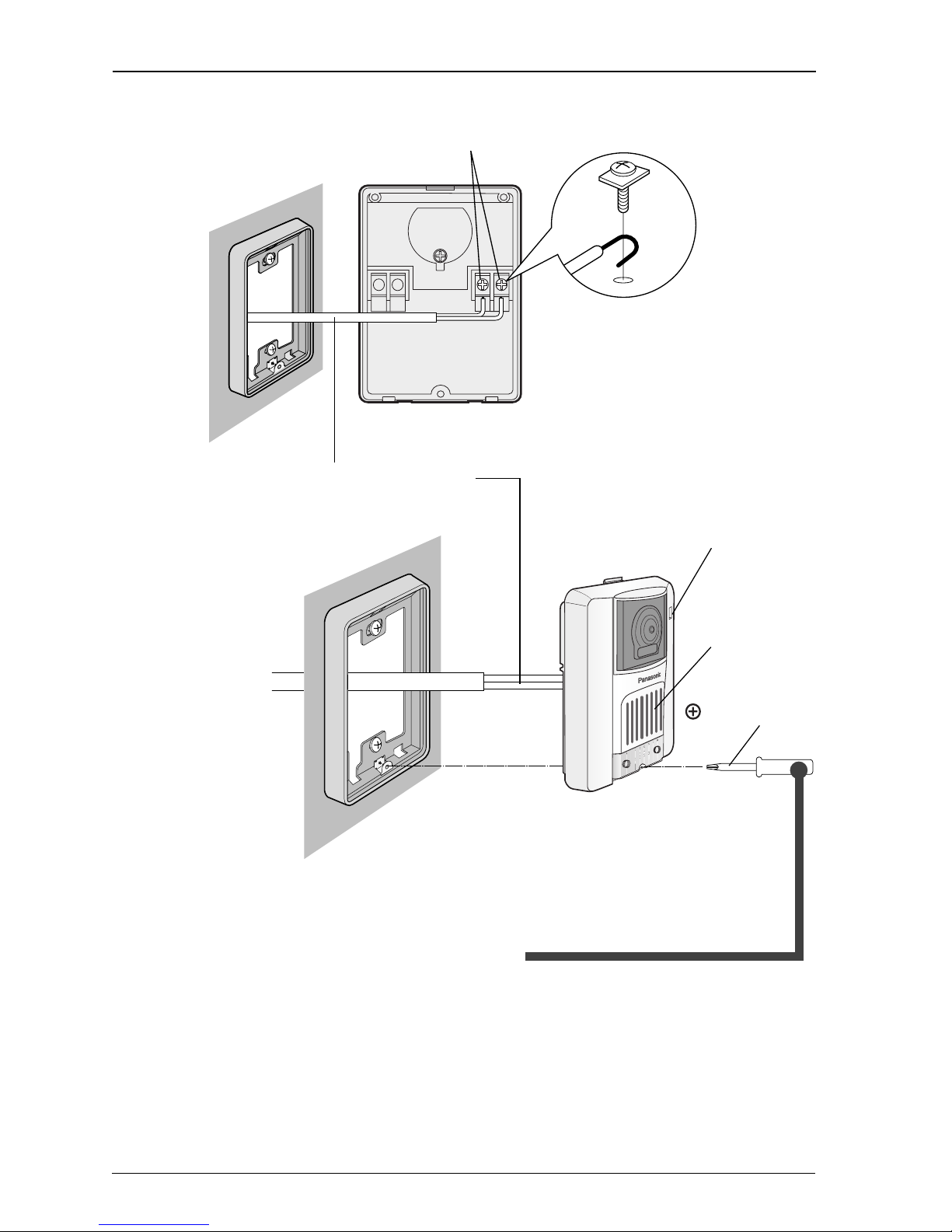

Wire (Not included)

Tighten with screws

4Attach the wire to the terminal.

Mounting base Door station

Speaker

Microphone

5Secure the door station to the mounting base.

•Tighten the mounting screws.

Connect to terminals

D11 and D12 (D21

and D22) of the

monitor station.

Wall

Door station (rear)

Screwdriver

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Panasonic

Panasonic

Panasonic VL-GM001 Instrucciones de funcionamiento

Panasonic

Panasonic VL-GM201A Instrucciones de funcionamiento

Panasonic

Panasonic VL-GM301A Instrucciones de funcionamiento

Panasonic

Panasonic VL-V900 Manual de usuario

Panasonic

Panasonic KX-T7765X Manual de usuario

Panasonic

Panasonic VL-SW102BX Manual de usuario

Panasonic

Panasonic VF540-V Manual de usuario

Panasonic

Panasonic KX-NTV150 Manual de usuario

Panasonic

Panasonic VL-SV71 Manual de funcionamiento

Panasonic

Panasonic VL-SVN511BX Manual de usuario

Panasonic

Panasonic VL-SWD272 Manual de funcionamiento

Panasonic

Panasonic VL-SWD501EX Manual de usuario

Panasonic

Panasonic VL-MV74 Manual de funcionamiento

Panasonic

Panasonic VL-SVN511EX Manual de usuario

Panasonic

Panasonic VL-V901 Manual de usuario

Panasonic

Panasonic VL-V591 Manual de usuario

Panasonic

Panasonic WX-CC411 Manual de usuario

Panasonic

Panasonic VL-VC3900BX Manual técnico

Panasonic

Panasonic VL-SW102BX Manual de usuario

Panasonic

Panasonic VL-V900 Manual de usuario

Panasonic

Panasonic VL-SV74 Manual de usuario

Panasonic

Panasonic VL-SWD501UBX Manual de usuario

Panasonic

Panasonic VL-SWD275 Manual de funcionamiento

Panasonic

Panasonic VG-M186D Manual de usuario

Manuales populares de Sistema de intercomunicación de otras marcas

Bticino

Bticino LINEA 3000 Manual de usuario

MSI

MSI MSI-140 Manual de usuario

golmar

golmar Stadio Plus Manual de usuario

CyberData

CyberData 011211 series Manual

Vidos

Vidos duo M1021 Manual de usuario

Vimar

Vimar ELVOX 7539/E Manual de usuario

SSS Siedle

SSS Siedle BTSV 850-03 Manual de usuario

Dahua

Dahua VTO Series Manual de usuario

Elvox

Elvox 5651 Manual de usuario

Videx

Videx VIDEOKIT Series Manual de usuario

Rocom

Rocom Doortello Business FW T2.05W2.04 Manual de usuario

Viking

Viking E-35-EWP Manual de usuario

Safeguard Supply

Safeguard Supply LRA-EX1000 Manual de usuario

SSS Siedle

SSS Siedle BFCV 850 Series Manual de usuario

GRD

GRD MAX V2 Manual de usuario

Alecto

Alecto ADI-250 Manual de usuario

Aiphone

Aiphone IE-8MD Manual de usuario

Perel

Perel EDB4 Manual de usuario
