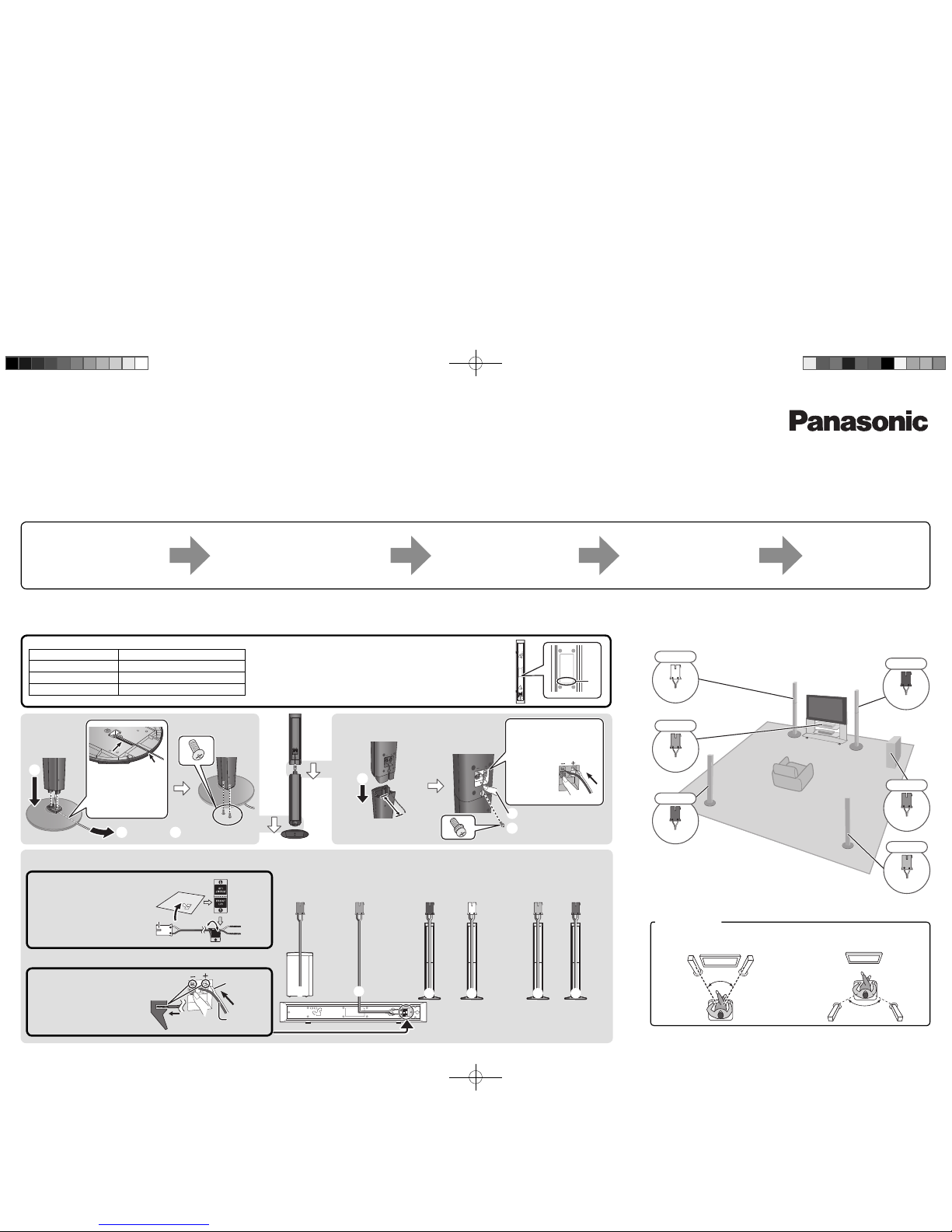

Easy Setting Guide

The order of setting

Blu-ray Disc Home Theater Sound System

Model No. SC-BTT755

Prepare the

speakers

See below

Place the speakers

See below

Connect the

cables

See over

Turn on the

main unit

See over

Easy setup

See Easy setup screen

Prepare the speakers Place the speakers

Refer to the rear label of the speaker before connecting

the corresponding cable.

Verify the type of speaker with the label on the rear of

the speaker.

Speakers 

Front speakers Front/Avant

Centre speaker Center/Centre

Surround speakers Surround/Ambiophonie

e.g.,

GREEN

GREY

RED

WHITE

PURPLE

BLUE

Recommended

Front speakers

(L, R)

60

120

Surround speakers

(LS, RS)

Label each speaker cable

by attaching the numbered

sticker at the position

indicated in the illustration. Be

sure to match the number on

each sticker with the circled

number in the illustration.

Connect the speaker cables.

Insert the wire fully, taking care

not to insert beyond the wire

insulation.

: White

: Blue line

e.g., Front speaker

Lch

PUSH!

Front speakers Surround speakersCentre speakerSubwoofer

STEP 3

STEP 4

STEP 1 STEP 2

WHITE

White

Blue line

Tighten securely.

Leave about 80 mm Tighten securely.

Front/

surround

speaker

Stand

Base

speaker

Lch

WHITE

Rch

RED

Rch

GREY

GREENPURPLE

Press into the groove.

Insert the wire fully, taking

care not to insert beyond

the wire insulation.

: White

: Blue line

Lch

BLUE

PUSH!

Back of the base

Pull the cable straight

along the line and slide

into the groove.

VQC7715eng.indd2-3VQC7715eng.indd2-3 2010/06/2316:12:222010/06/2316:12:22

12 4

AC IN

AUDIO OUT

AV IN

OPTICAL

OUT

VIDEO IN

521

FRONT SURROUND

CENTER

R L

SUBWOOFER

643

R L





AUX

OPTICAL

(STB/TV)

DIGITAL AUDIO IN

FM ANT

(75Ω)

OUT

(ARC)

VIDEO

OUT

 

iPod

EXT-IN

RADIO

R6/LR6, AA





LAN

(

10BASE-T/

100BASE-TX)

RETURN

Easy setup

Would you like to start easy setup?

Yes

Connect the cables by colour or by the numbers indicated in the illustration

to the appropriate terminals on the rear panel of the unit.

Main unit

Main unit’s speaker

terminals (rear panel)

PURPLE GREEN RED WHITE GREY BLUE

Connect the cables For detailed information, refer to the operating instructions.

FM indoor antenna

(supplied)

Adhesive tape

Turn on the main unit

Connect the AC mains lead

Connect the AC mains lead to the

main unit before connecting to the

household mains socket.

AC mains lead (supplied)

To a household mains socket

(AC 220 V to 240 V, 50 Hz)

Turn on the TV

Turn on your TV and select the appropriate video input mode

(e.g., VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this

unit.

Broadband Network Connections

(Optional)

By connecting this unit to the network, you can use the

BD-Live and VIERA CAST features.

Main unit

Shielded LAN cable

(not supplied)

Modem (Broadband)

• Provided by ISP

Press [, ] to select [Yes].

*2If you want to restart the Easy setup:

Refer to “STEP 6: Easy setup” in the operating instructions.

Broadband router, etc.

Other connection

Press [ ] to turn

on the main unit.

Installing batteries in the

remote control

The Easy setup starts

The on screen display will guide you through the steps.*2

Turn on the main unit

Video cable*1(supplied)

HDMI cable (not supplied)

(Recommended for highest quality picture)

Optical digital audio cable (not supplied)

Audio cable (not supplied)

Audio connection

For best quality audio,

use the HDMI cable (with

an ARC compatible

TV) or an optical digital

audio cable.

If your TV does not

support the above, use

the audio cable.

Make sure that the video cable connection is

made to view photos/videos from the iPod/iPhone.

VQC7715eng.indd4-5VQC7715eng.indd4-5 2010/06/2316:12:232010/06/2316:12:23
