Panasonic KX-TGA685EX Manual de usuario

Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGA685EX

Thank you for purchasing a Panasonic product.

This unit is an additional handset compatible with the following series of

Panasonic Digital Cordless Phone:

– KX-TG6851/KX-TG6861

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used.

This installation manual describes only the steps needed to register and

begin using the handset. Please read the base unit’s operating instructions

for further details.

Please read this installation manual before using the unit and save it for

future reference.

KX-TGA685EX(7Languages)_0921_ver020.pdf 1 9/21/2020 9:32:46 AM

Italiano/

Nederlands

Français/

Deutsch

English/

Português

Español/

Useful Information

Accessory information

Supplied accessories

Accessory item/Part number Quantity

Charger 1

AC adaptor/PNLV233CE 1

Rechargeable batteries*1 2

Handset cover*2 1

*1 Please read the base unit’s operating instructions for replacement battery

information.

*2 The handset cover comes attached to the handset.

Note:

RPlease read the base unit’s operating instructions for additional/replacement

accessories.

RPanasonic Corporation declares that the radio equipment type (KX-TGA685) is

in compliance with Directive 2014/53/EU. The full text of the EU declaration of

conformity is available at the following internet address:

https://www.ptc.panasonic.eu/compliance-documents

RPlease read “Ecodesign information” of the base unit’s operating instructions for

information regarding ErP directive.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 2 9/21/2020 9:32:46 AM

Setting up

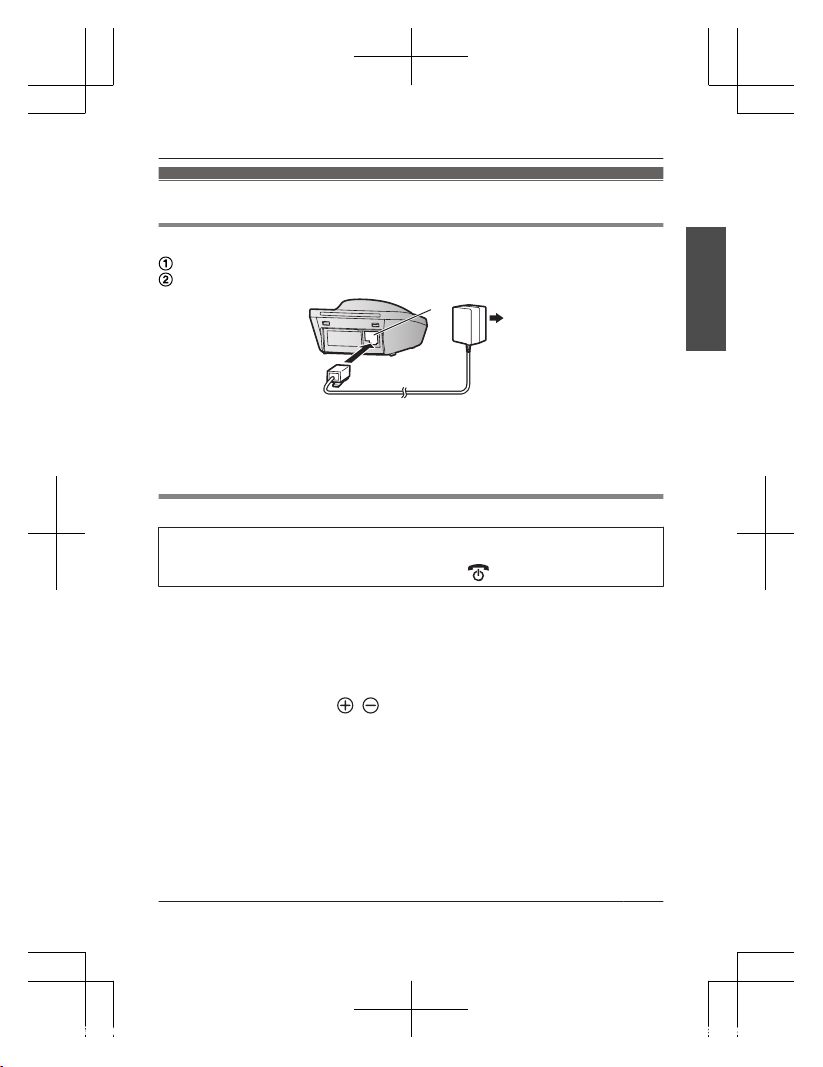

Connections

Connect the AC adaptor plug to the unit until you hear a click.

Connect the AC adaptor to the power outlet.

Note:

RUse only the supplied Panasonic AC adaptor PNLV233CE.

RThe AC adaptor must remain connected at all times. (It is normal for the adaptor

to feel warm during use.)

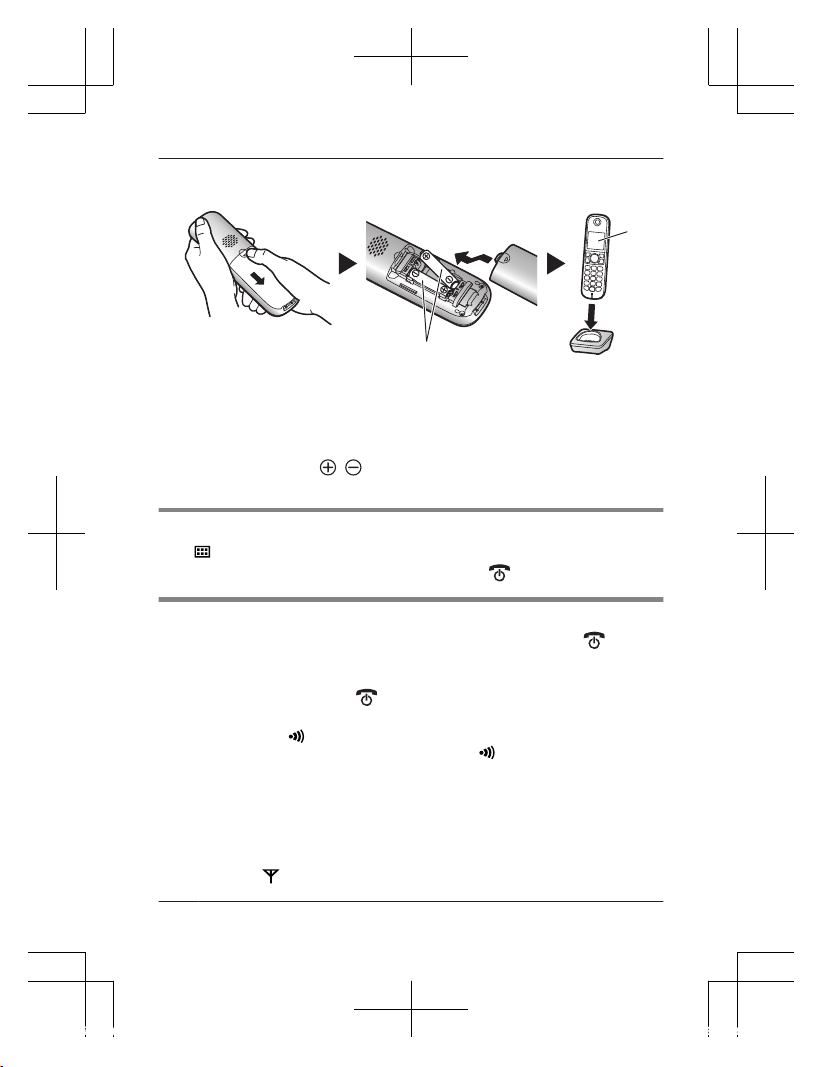

Battery installation/Battery charging

When the language selection is displayed after installing the batteries for the first

time, you can select your desired language.

MbN: Select your desired language. a MOKN a MN

Important:

RUse the supplied rechargeable batteries. For replacement, we recommend using

the Panasonic rechargeable batteries noted in the base unit’s operating

instructions.

RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size (

RDo NOT use alkaline/manganese/Ni-Cd batteries.

RConfirm correct polarities ( , ).

Charge for about 7 hours.

RConfirm “Charging” is displayed (

RWhen the batteries are fully charged, “Fully Charged” is displayed.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 3 9/21/2020 9:32:46 AM

Note:

RThe handset display may show “Please wait for 1 minute.” when the

handset is placed on the charger if it is not registered to the base unit.

RIf the batteries are fully charged, but the operating time seems to be shorter,

clean the battery ends ( , ) and the charge contacts with a dry cloth and

charge again.

Display language

1MN#110

2MbN: Select your desired language. a MOKN a MN

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold M N for few

seconds to turn the handset on.

1Handset:

Lift the handset and press MN.

2Base unit:

Press and hold MN for about 5 seconds.

RIf all registered handsets start ringing, press MN again to stop, then repeat

this step.

3Handset:

Place the handset on the base unit or charger.

RContinue the operation even when the handset display shows “Please

wait for 1 minute.”.

4With the handset still on the base unit or charger, wait until a confirmation tone

sounds and is displayed.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 4 9/21/2020 9:32:46 AM

Note:

RIf an error tone sounds, or if is displayed, register the handset according to

the base unit’s operating instructions.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

RUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact an authorised service

centre.

Installation

RTo prevent the risk of fire or electrical shock, do not expose the product to rain

or any type of moisture.

RDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

RDo not place the handset on the base unit when battery cover is removed.

CAUTION

Installation and location

RThe AC adaptor is used as the main disconnect device. Ensure that the AC

outlet is installed near the product and is easily accessible.

Battery

RWe recommend using the supplied batteries or additional/replacement batteries

noted in the base unit’s operating instructions for replacement battery

information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 5 9/21/2020 9:32:46 AM

RDo not mix old and new batteries.

RDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

RExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

RCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

ROnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

RAvoid the use in the following conditions:

– High or low extreme temperatures during use, storage or transportation.

– Replacement of a battery with an incorrect type that can defeat a safeguard.

– Disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery, that can result in an explosion.

– Extremely high temperature and/or extremely low air pressure that can result

in an explosion or the leakage of flammable liquid or gas.

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

RThe applied nameplate is located at the bottom or rear of the product.

ROperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose

of used batteries according to the instructions.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 6 9/21/2020 9:32:46 AM

Routine care

RWipe the outer surface of the product with a soft moist cloth.

RDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

RThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

Disposal of Old Equipment and Batteries (Only for European Union and

countries with recycling systems)

These symbols (A, B) on the products, packaging, and/or accompanying

documents mean that used electrical and electronic products and batteries must

not be mixed with general household waste. For proper treatment, recovery and

recycling of old products and used batteries, please take them to applicable

collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and

prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local

authority. Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (A, B) are only valid in the European Union. If you wish to discard

these items, please contact your local authorities or dealer and ask for the correct

method of disposal.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 7 9/21/2020 9:32:46 AM

Note for the battery symbol

This symbol (B) might be used in combination with a chemical symbol. In this case

it complies with the requirement set by the Directive for the chemical involved.

Note for the battery removal procedure

Refer to “Battery installation/Battery charging” on page 3.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 8 9/21/2020 9:32:46 AM

Manuel d’installation

Combiné supplémentaire numérique sans fil

Modèle KX-TGA685EX

Vous venez d’acquérir un produit Panasonic et nous vous en remercions.

Cet appareil est un combiné supplémentaire compatible avec les séries de téléphones

numériques sans fil Panasonic suivantes :

– KX-TG6851/KX-TG6861

(Les modèles correspondants peuvent être modifiés sans préavis.)

Vous devez enregistrer ce combiné sur la base avant de pouvoir l’utiliser. Ce manuel

d’installation n’explique que la procédure requise pour enregistrer le combiné et com-

mencer à l’utiliser. Pour plus de détails, reportez-vous au Manuel utilisateur de la base.

Veuillez lire le présent manuel d’installation avant d’utiliser l’appareil et conservez-le pour

référence ultérieure.

KX-TGA685EX(7Languages)_0921_ver020.pdf 9 9/21/2020 9:32:46 AM

Informations sur les accessoires

Accessoires fournis

Accessoire/Référence Quantité

Chargeur 1

Adaptateur secteur/PNLV233CE 1

Batteries rechargeables*1 2

Couvercle du combiné*2 1

*1 Pour obtenir des informations sur le remplacement des batteries, reportez-vous au

Manuel utilisateur de la base.

*2 Le couvercle du combiné est livré fixé au combiné.

Remarques :

RPour obtenir des informations sur les accessoires supplémentaires et de rechange,

reportez-vous au Manuel utilisateur de la base.

RPanasonic Corporation déclare que le type d’équipement radio (KX-TGA685) est

conforme à la directive 2014/53/UE. Le texte intégral de la déclaration de conformité UE

est accessible à l’adresse Internet suivante :

https://www.ptc.panasonic.eu/compliance-documents

RPour obtenir des informations relatives à la directive ErP, veuillez lire la section

“Informations relatives à l’écoconception” du Manuel utilisateur de la base.

Installation

KX-TGA685EX(7Languages)_0921_ver020.pdf 10 9/21/2020 9:32:46 AM

Tabla de contenidos

Idiomas:

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic KX-PRWA13C Manual de usuario

Panasonic

Panasonic KX-TGA680C Manual de usuario

Panasonic

Panasonic KX-TGDA50 Manual de usuario

Panasonic

Panasonic KX-FKN550 Manual de usuario

Panasonic

Panasonic EBPH55S - CELL PHONE Manual de usuario

Panasonic

Panasonic KX-TGA671EXB Manual de usuario

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manual de usuario

Panasonic

Panasonic KX-TGP550 Manual de usuario

Panasonic

Panasonic KX-TGLA40 Manual de usuario

Panasonic

Panasonic KX-TD7685 - Wireless Digital Phone Manual de usuario

Panasonic

Panasonic KX-TGEA20EX Manual de usuario

Panasonic

Panasonic KX-TPA60 Manual de usuario

Panasonic

Panasonic KX-TGA270S Manual de usuario

Panasonic

Panasonic KX-TGEA20 Manual de usuario

Panasonic

Panasonic KX-TGA641E Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manual de usuario

Panasonic

Panasonic KX-TGFA71 Manual de usuario

Panasonic

Panasonic KX-TGA830EX Manual de usuario

Panasonic

Panasonic KX-TG1000N - 2.4GHz Cordless Phone Manual de usuario

Panasonic

Panasonic KX-TGP500 Manual de usuario

Panasonic

Panasonic KX-TGFA97 Manual de usuario

Panasonic

Panasonic KX-TGD583 Manual de usuario

Panasonic

Panasonic KX-TD7580 Manual de usuario

Panasonic

Panasonic KX-TGA740B - Cordless Extension Handset Manual de instrucciones

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
