ORDERNO. KMF0305650C3

Compact PlainPaperFAXwithCopier

KX-FP342CX

(forAfrica and LatinAmerica)

IMPORTANT INFORMATIONABOUT LEAD FREE, (PbF),

SOLDERING

Ifleadfree solderwas usedinthemanufactureofthisproducttheprintedcircuitboardswill be

markedPbF.

Standard leaded, (Pb), soldercanbeusedas usual on boardswithoutthePbF mark.

Whenthismarkdoes appearplease readand followthespecial instructionsdescribedinthis

manual on theuse ofPbF and howitmightbepermissibletouse Pbsolderduring service and

repairwork.

1. INTRODUCTION

1.1. ABOUTLEADFREE SOLDER(PbF:Pbfree)

Note:

Intheinformation below, Pb, thesymbol for leadintheperiodictableofelements, will referto

standard solderor solderthatcontainslead.

Wewill use PbF solderwhendiscussing theleadfree solderusedinour manufacturing process

whichismadefrom Tin(Sn), Silver, (Ag), and Copper, (Cu).

Thismodel, and otherslike it, manufacturedusing leadfree solderwill have PbF stampedon the

PCB. For service and repairworkwesuggestusing thesametypeofsolderalthough, withsome

precautions, standard Pbsoldercanalsobeused.

Caution

-PbF solderhas amelting pointthat is50° ~70° F, (30° ~40°C)

higherthanPbsolder. Please use asoldering iron with

temperaturecontrol and adjust itto700° ±20° F, (370° ±10°C).In

case ofusing high temperaturesoldering iron, please becareful

nottoheat too long.

-PbF solderwill tend tosplashifitisheatedmuchhigherthanits

melting point, approximately1100°F, (600°C).

-Ifyou must use Pbsolderon aPCB manufacturedusing PbF

solder, removeas muchoftheoriginal PbF solderas possibleand

besurethat anyremaining ismeltedpriortoapplying thePb

solder.

-Whenapplying PbF soldertodoublelayeredboards, please check

thecomponentsideforexcess whichmayflow ontotheopposite

side(See figure, below).

1.1.1. SUGGESTEDPbF SOLDER

Thereareseveral types ofPbF solderavailablecommercially. Whilethisproductismanufactured

using Tin, Silver, and Copper,

(Sn+Ag+Cu), you canalsouse Tinand Copper, (Sn+Cu), or Tin, Zinc, and Bismuth, (Sn+Zn+Bi).

Please check themanufac

turer’sspecificinstructionsfor themelting pointsoftheirproductsand anyprecautionsfor

using theirproductwithother

materials.

Thefollowing leadfree (PbF)solderwiresizes arerecommendedfor service ofthisproduct:

0.3mm, 0.6mm and 1.0mm.

1.1.2. HOWTORECOGNIZE THATPbFREE SOLDERIS USED

P.C.Boardsmarkedas “PbF”use PbFree solder. (See thefigurebelow.)

PbFree isnotusedthePowerSupplyBoard ofthisunit.

(Example:Digital Board)

Note:

The“PbF”markedmay befound on differentareas ofthesameP.C.Board, depending on

manufacturedate.

1.2. SAFETYPRECAUTIONS

1. Beforeservicing, unplug theACpowercordtopreventanelectric

shock.

2. Whenreplacing parts, use onlythemanufacturer'srecommended

components.

3. Check thecondition ofthepowercord. Replace ifwearordamage

isevident.

4. Afterservicing, besuretorestoretheleaddress, insulation

barriers, insulation papers, shields, etc.

5. Beforereturning theservicedequipmenttothecustomer, besure

toperform thefollowing insulation resistance test topreventthe

customerfrombeing exposedtoshock hazards.

1.3. INSULATIONRESISTANCETEST

1. Unplug thepowercordand shortthetwoprongsoftheplug witha

jumperwire.

2. Turnon thepowerswitch.

3. Measuretheresistance valuewithanohmmeterbetweenthe

jumperedACplug and eachexposedmetal cabinet part

(screw heads, control shafts, bottomframe, etc.).

Note:Someexposedparts maybeisolatedfromthechassisby

design. These will readinfinity.

4. Ifthemeasurementisoutsidethespecifiedlimits, thereisa

possibilityofashock hazard.

1.4. FORSERVICETECHNICIANS

ICsand LSIsarevulnerabletostaticelectricity.

Whenrepairing, thefollowing precautionswill helppreventrecurring malfunctions.

1. Covertheplasticpart'sboxes withaluminumfoil.

2. Ground thesoldering irons.

3. Use aconductivemat on theworktable.

4. DonottouchtheICorLSI pinswithbarefingers.

1.5. BATTERYCAUTION

CAUTION

Dangerofexplosion ifthebatteryisincorrectlyreplaced. Replace

onlywiththesameorequivalenttyperecommendedbythe

manufacturer. Dispose ofusedbatteries according tothe

manufacturer’sInstructions.

Thelithiumbatteryisacritical component(typeNo. CR2032).

Please observefortheproperpolarityand theexact location when

replacing itand theexact location whenreplacing itand soldering

thereplacementlithiumbatteryin.

Recommend TypeNumber:

CR2032 (BAT501) ManufacturedbyMATSUSHITA/SONY/TOSHIBA/

HITACHI

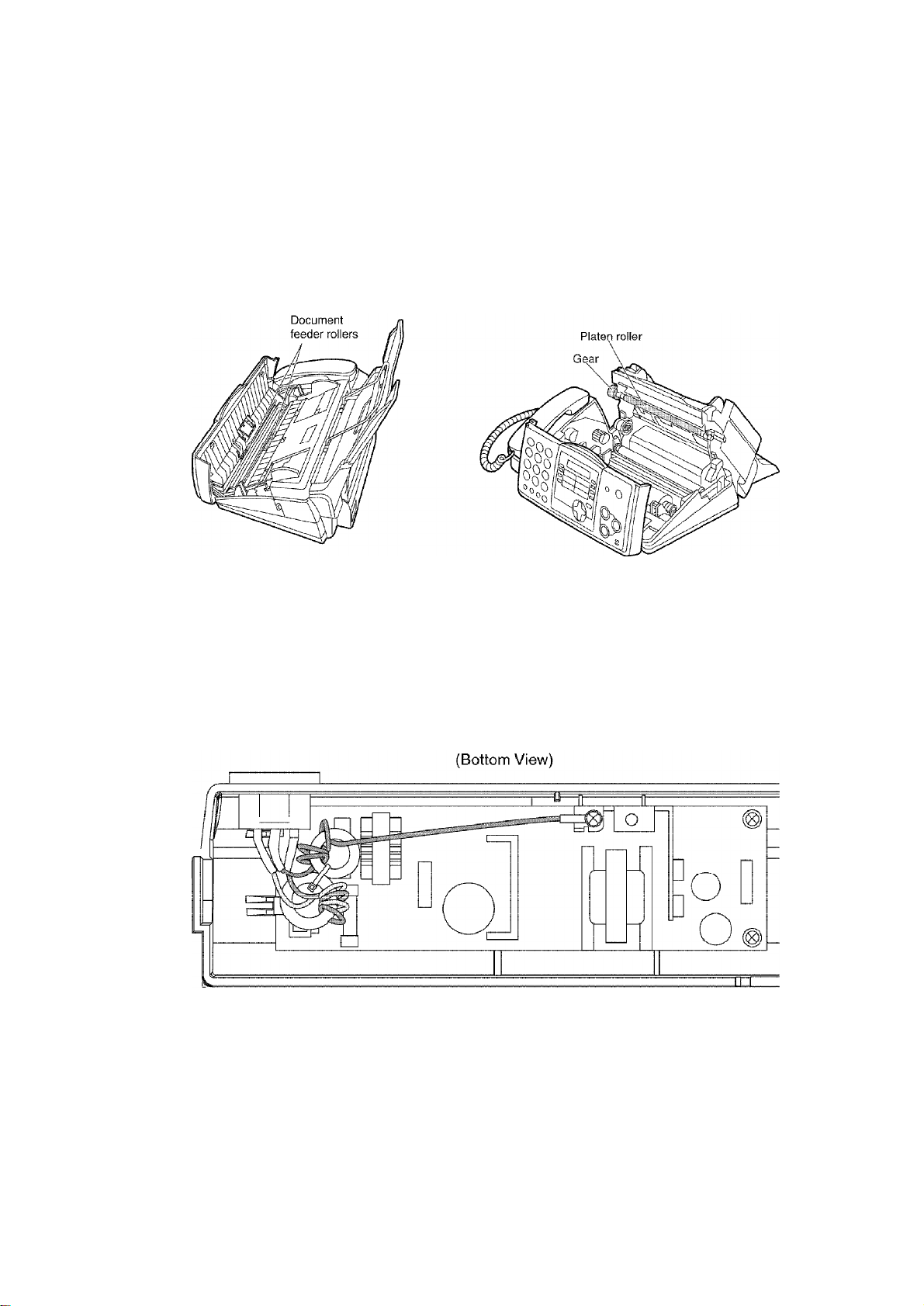

1.6. ACCAUTION

For safety, beforeclosing thelowercabinet, please make sureofthefollowing precautions.

1. Theearthleadisfixedwiththescrew.

2. TheACconnectorisconnectedproperly.

3. Wraptheearthleadaround thecore3times.

4. WraptheACleadaround thecore3times.

1.7. PERSONALSAFETYPRECAUTIONS

1.7.1. MOVINGSECTIONS OFTHE UNIT

Becareful nottoletyour hair, clothes, fingers, accessories, etc., becomecaughtinanymoving

sectionsoftheunit.

Themoving sectionsoftheunitaretherollersand agear. Thereisaseparation rollerand a

documentfeedrollerwhicharerotatedbythedocumentfeedmotor. Agearrotates thetwo

rollers. Becareful nottotouchthem withyour hands, especiallywhentheunitisoperating.

1.7.2. LIVE ELECTRICALSECTIONS

All theelectrical sectionsoftheunitsuppliedwithACpowerbytheACpowercord arelive.

Neverdisassembletheunitfor service withtheACpowersupplypluggedin.

CAUTION:

ACvoltageissuppliedtotheprimarysideofthepowersupplyunit.

Therefore, alwaysunplug theACpowercordbeforedisassembling

forservice.

1.8. SERVICEPRECAUTIONS

1.8.1. PRECAUTIONS TOPREVENTDAMAGE FROMSTATICELECTRICITY

Electrical charges accumulateon aperson. For instance, clothes rubbing togethercandamage

electricelementsor changetheirelectrical characteristics. Inordertopreventstaticelectricity,

touchametallicpartthatisgroundedtoreleasethestaticelectricity. Nevertouchtheelectrical

sectionssuchas thepowersupplyunit, etc.

2. FEATURES AND SPECIFICATIONS

2.1. FEATURES

General

-Helpfunction

Display:

-QUICK SETUP

-FEATURELIST

-DIRECTORY

-FAXRECEIVING

-COPIER

-REPORTS

-CALLERID

-LCD (LiquidCrystal Display)readout

-TAM(Telephoneanswering machine) interface

PlainPaperFacsimileMachine

-12 second transmission speed*

-A4/ Letter, G3compatible

-Automaticdocumentfeeder(10 sheets)

-Quick scan

-Resolution:Standard/ Fine/ Superfine/ Photo(64 level)

-Broadcast withNavigator

-50-sheet papercapacity

-Polling

-Distinctivering detection **

*The12 second speedisbasedupon theITU-TNo. 1TestCharton thecondition thatmemory

transmission isperformed.

** Subscription todistinctive ring services isrequired.

LargeMemory(28 pages)... PerformedbyDRAM

Approx. 25 pages ofmemorytransmission

Approx. 28 pages ofmemoryreception

IntegratedTelephoneSystem

-On-hookdialing

-Monitorspeaker

-Voice muting

-Redialing function

-100-Station telephonedirectorywithNavigator/one-touchkey

-CallerIDcompatible***

***Featurerequires asubscription tocalleridentification services

offeredbycertainlocal telephonecompanies foratee. You and

yourcaller(s) must beinareas that providecalleridentification

services, and compatibleequipmentmust beusedbyboth

telephonecompanies. Featurenotavailablewhentheunitis

connectedtoaPBXsystem.

EnhancedCopierFunction

-Multi-copyfunction (up to50 copies)

-Enlargementand reduction

-Collate

-64-Level halftone

2.2. OPTIONALACCESSORIES

-Theincludedfilmroll is10 meterslong. Werecommend that you

buyafull-sizereplacementfilm70 metersforcontinuoususe of

yourunit. Forbest results, use genuinePanasonicreplacement

filmas follows:

Model No. Description Specifications

KX-FA57A ReplacementFilm 216 mm ×70 m

Note:

Theinkfilm isnotreusable. Donotrewind and use theinkfilm again.

2.3. SPECIFICATIONS

ApplicableLines:

PublicSwitchedTelephoneNetwork

DocumentSize:

Max. 216 mm inwidth

Max. 600 mm inlength

EffectiveScanning Width:

208 mm

Recording PaperSize:

A4:210×297 mm

Letter:216×279 mm

EffectivePrinting Width:

208 mm

Transmission Time* 1:

Approx. 12 s/page(Original mode)* 2

Scanning Density:

Horizontal:

8pels/mm

Vertical:

3.85 lines/mm—STANDARD mode

7.7lines/mm—FINE/ PHOTO mode

15.4lines/mm—SUPERFINEMode

HalftoneLevel:

64-level

ScannerType:
