Panasonic FV-0510VS1 Manual de usuario

Service Manual

PEG1611051CE

Version:1601

CONTENTS

1.Parts Identification

2.Wiring Diagram

3.Parts List

PAGE

Ventilating Fan

1~2

4~5

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-0510VS1

1. Parts Identification

Main Body Section

FV-0510VS1

Adapter Assembly

(4pcs)

(2pcs)

(3pcs)

14 13

1. Parts Identification

Main Labels

Packing Section

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

instructions Non destiné à la zone de cuisson -Voir

instructions d’installation.

.No usar en áreas donde

cocine - Consulte las instrucciones de instalación.

FV-0510VS1

2. Wiring Diagram

FV-0510VS1

3. Parts List

FV-0510VS1

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFV5710025S Suspension Bracket 1

2 FFV1600159S Frame Assy 1

3 FFV0000166S Adapter Assy 1

4 FFV0900052S Connector Plate 1

5 FFV3450010S Earth Lead Wire 1

6 FFV0900072S Connector Assy (V) 1

7 FFV2800020S Junction Cover 1

8 FFV4700070S PCB Assy Unit 1

9 FFV3700347S Motor Assy 1

10 FFV3700348S Motor Support Unit 1

11 FFV0400127S Blade Plate 1

12 FFV0400128S Blade 1

13 FFV0400113S Blade Fix Ring 1

FFE06090801S Undee Washer 1

15 FFV7020024S Hexagon Nut 1

16 FFV1610080S Casing Unit 1

17 FFV3400146S Louver Assy 1

A FFV7000108S Truss Tap Screw 5

B FFV7000227S Earth Screw Assy 1 Include Spring Washer

C FFV7000089S Truss Tap Screw 6

D FFV7000163S Pan Tap Screw 4

E FFV7000202S Bind Tap Screw 3

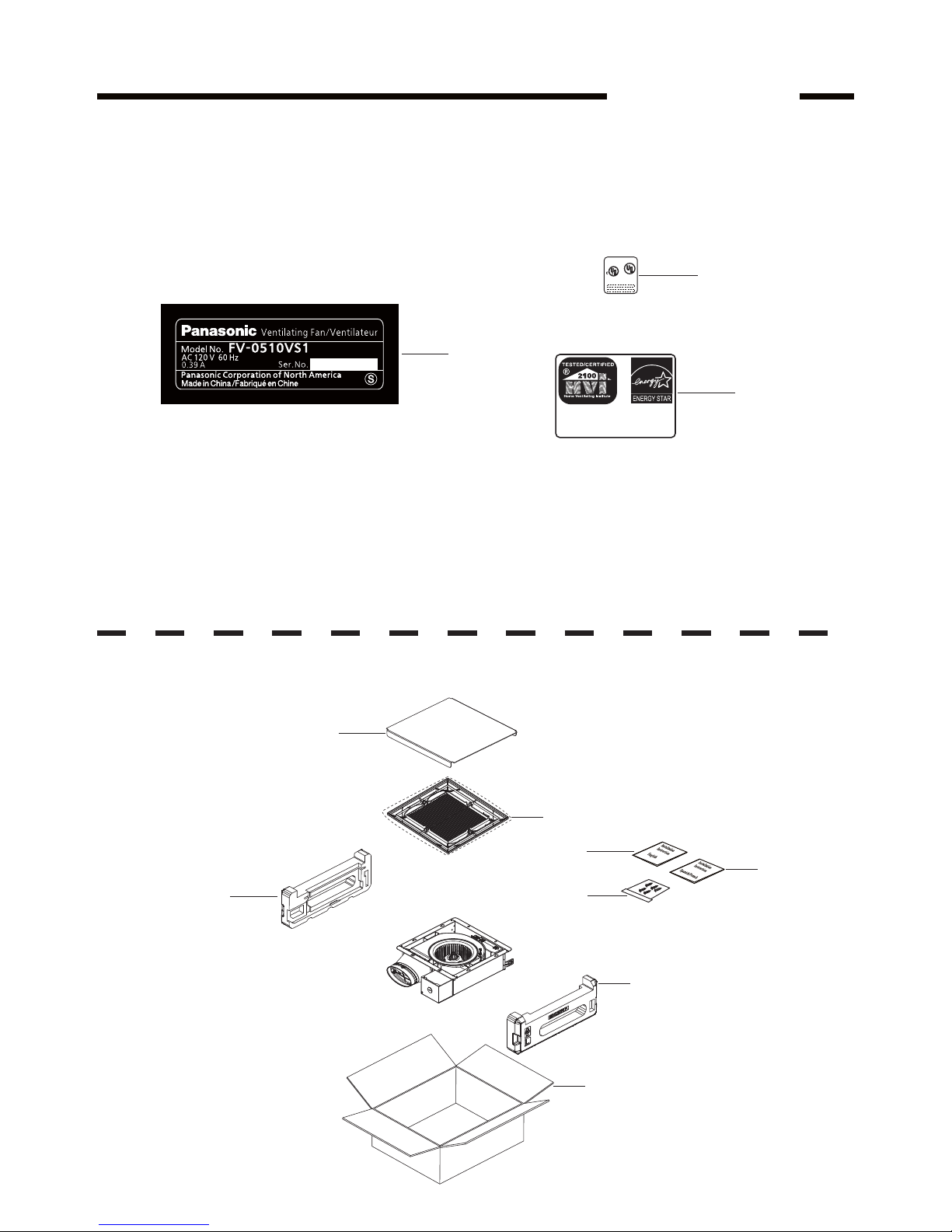

Main Labels

No. Part No. Part Name Q'ty Remark

18 FFV4020865S Name Plate 1 Stuck On Casing

19 FFV2260003S UL Mark 1 Stuck On Frame Assy

20 FFV0810011S Caution Label 1 1 Stuck On Frame Assy

3. Parts List

FV-0510VS1

Packing Section

No. Part No. Part Name Q'ty Remark

21 FFV4710381S Louver Case Assy 1

22 FFV4650016S Poly Cover 1

23 FFV2540204S Installation Instructions 1 English,For USA/CA Market

24 FFV2540205S Installation Instructions 1 Spanish,For USA Market

(24) FFV2540206S Installation Instructions 1 French,For CA Market

25 FFV0010231S Accessory A 1

26 FFV4710369S Right Pad 1

27 FFV4710370S Left Pad 1

28 FFV9001231S Packing Case Assy 1
