Panasonic ES8075-U1 Manual de usuario

1 SCHEMATIC DIAGRAM 2

2 DISASSEMBLY INSTRUCTIONS 3

3 ASSEMBLY INSTRUCTIONS 5

reserved. Unauthorized copying and distribution is a

violation of law.

ES8075-U1

ES8077-U1

ES8078-U1

4 TROUBLESHOOTING GUIDE 7

5 OPERATION OF SELF-CLEANING RECHARGER 10

6 EXPLODED VIEW & REPLACEMENT PARTS LIST 11

Wet/Dry Rechargeable Shaver

SPECIFICATIONS

Power source

C 100-240V, 50-60Hz (Automatic voltage conversion)

Power consumption

pprox. 5W

Motor voltage 3.6V DC

Charging time 1 Hour

Shaves per charge 14 times (3 minutes shave)

Measurement (H)15.3 x (W)6.2 x (D)4.6 cm

Weight 180g (without protective cap)

Supplied accessory Self-cleaning recharger

CONTENTS

Page Page

ORDER NO. SD0509U48C1

1.1. ES8075

1.2. ES8077/ES8078

1 SCHEMATIC DIAGRAM

ES8075-U1 / ES8077-U1 / ES8078-U1

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil with foil frame and the

inner blade.

2. To remove the trimmer driving bar or the slit blade

driving bar, press bars outward.

3. Loosen a screw and remove the bottom cover. Set the

pivot action selector to "LOCK". Slide the rear panel and

remove it with care of pivot action selector.

4. Remove the both side of housing clips.

Loosen four screws and remove housing B.

Take out the lock lever shaft.

5. Slide the trimmer handle up to open the trimmer and

unhook 2 locations on both side by inserting the slit with

something like a slotted-head screw driver.

2 DISASSEMBLY INSTRUCTIONS

ES8075-U1 / ES8077-U1 / ES8078-U1

6. Remove trimmer and trimmer handle.

7. Move gently the linear motor assembly down and

unhook it and remove the float springs from housing A.

8. Pull up the battery and chassis block from the linear

motor side first. Then, slide it upward and take it out

from the housing A.

NOTE:

Do not pull the battery and chassis block forcefully

due to connecting the linear motor by the lead wires.

9. Take out the battery from the chassis.

10. Unsolder the lead wires from the module.

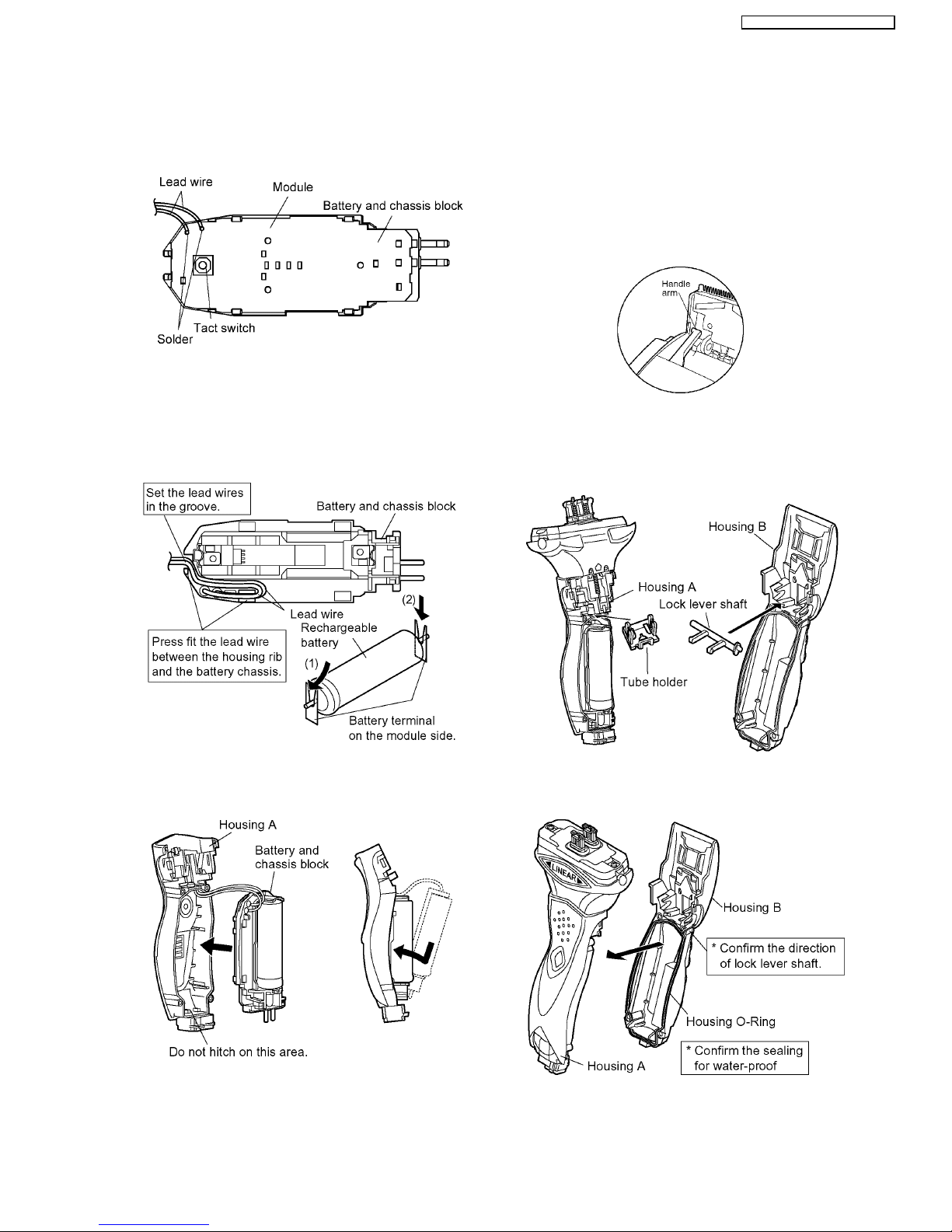

ES8075-U1 / ES8077-U1 / ES8078-U1

1. Solder the lead wires with the module.

NOTE:

Make sure of the color of lead wires.

2. Make sure that the lead wires set in position. Install (+)

terminal of battery into the terminal plate at the linear motor

side and firmly set the battery sliding the direction of arrow.

Attach (-) terminal of battery.

NOTE:

Fix the lead wires with the adhesive tape.

3. When inserting the battery and module assembly into the

housing A, confirm if the module does not get any damage

or deformation.

4. In case of trimmer is removed;

Make sure if the bosses of handle arm insert into the holes

of trimmer. Align the bosses of housing with the holes of

trimmer, and hook the trimmer. Then, slide the trimmer up

and hook the both sides of trimmer handle.

NOTE:

Confirm its operation or smooth movement of trimmer.

5. Set the linear motor assembly on the housing A and sliding

it upward to hook. Confirm that the lead wire tube fits to the

housing A firmly and no foreign substance sticking around.

Attach the head block to housing A with care of the

direction. And attach the rock lever shaft to housing B.

6. When putting the housing A and the housing B together,

make sure if the waterproof seal must be fitted properly and

no foreign substance sticking around.

3 ASSEMBLY INSTRUCTIONS

NOTE: When reassembling, replace the new waterproof rubber.

Make sure whether there is NO foreign substance sticking around a part covered with waterproof seal.

ES8075-U1 / ES8077-U1 / ES8078-U1

7. Tighten the four screws and set the housing clip.

8. Attach the rear panel with the position "LOCK".

9. Set the bottom cover tighten with a screw.

10. Set the trimmer driving bar and the slit blade driving bar.

ES8075-U1 / ES8077-U1 / ES8078-U1

4 TROUBLESHOOTING GUIDE

4.1. Main unit and charging adaptor

ES8075-U1 / ES8077-U1 / ES8078-U1

4.2. Self-cleaning recharger

ES8075-U1 / ES8077-U1 / ES8078-U1

5 OPERATION OF SELF-CLEANING RECHARGER

ES8075-U1 / ES8077-U1 / ES8078-U1
