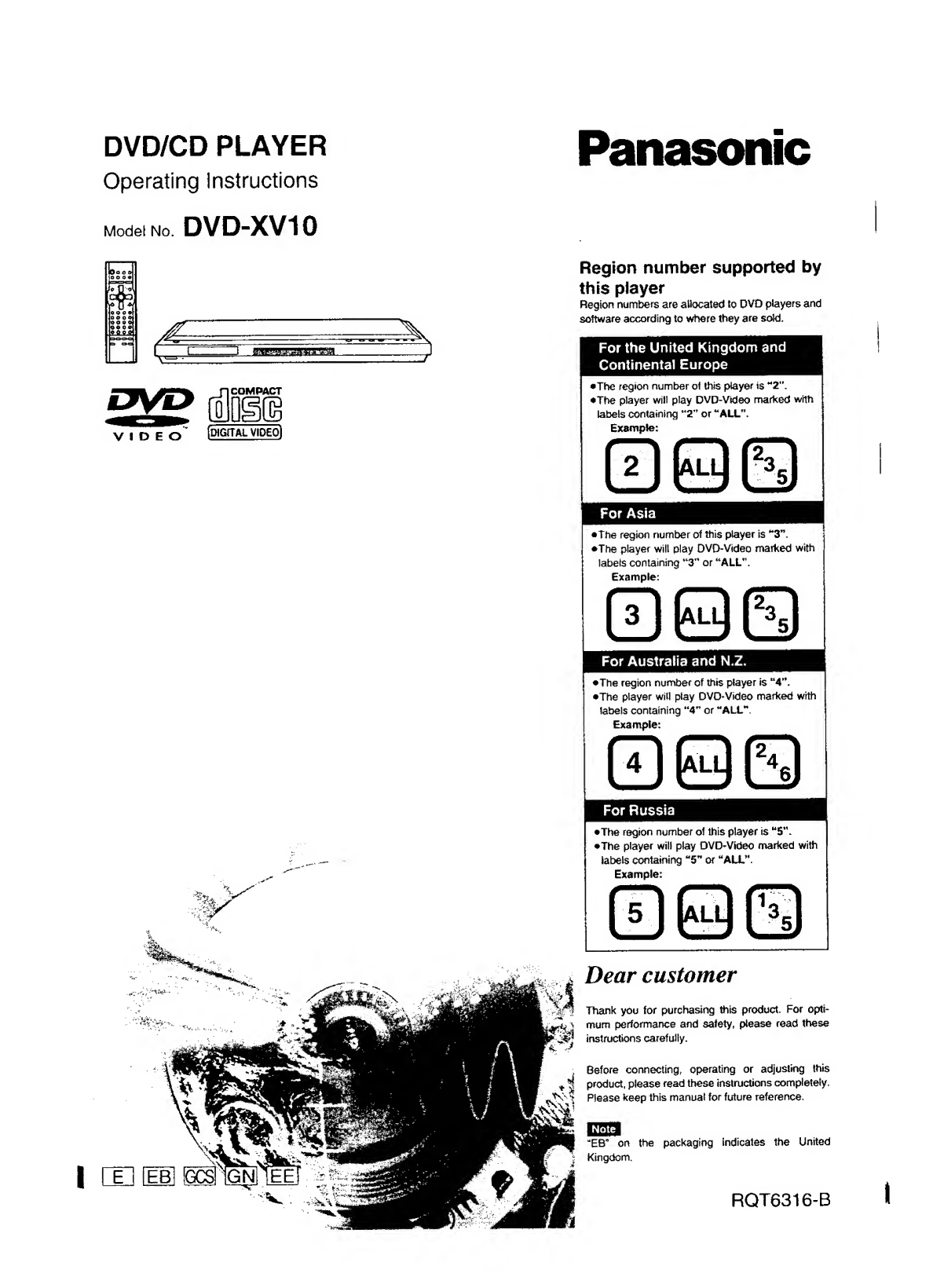

dvd/cd

player

Panasonic

Operating

instructions

Model

No.

DVD-XV10

video'

[DIGITAL

VIDEO)

Region

number

supported

by

this

player

Region

numbers

are

allocated

to

DVD

players

and

software

according

to

where

they

are

sold.

For

the

United

Kingdom

and

Continental

Europe

•

The

region

number

of

this

player

is

“2”.

•The

player

will

play

DVD-Video

marked

with

labels

containing

“2”

or

“ALL”.

Example:

•

The

region

number

of

this

player

is

“3”.

•The

player

will

play

DVD-Video

marked

with

labels

containing

“3”

or

“ALL”.

Example:

•The

region

number

of

this

player

is

“4”.

•The

player

will

play

DVD-Video

marked

with

labels

containing

“4”

or

“ALL”.

Example:

•The

region

number

of

this

player

is

“5”.

•The

player

will

play

DVD-Video

marked

with

labels

containing

“5”

or

“ALL”.

Example:

Dear

customer

Thank

you

for

purchasing

this

product.

For

opti¬

mum

performance

and

safety,

please

read

these

instructions

carefully.

Before

connecting,

operating

or

adjusting

this

product,

please

read

these

instructions

completely.

Please

keep

this

manual

for

future

reference.

EQ23

“EB”

on

the

packaging

indicates

the

United

Kingdom.

RQT6316-B

I

CAUTION!

•

DO

NOT

INSTALL,

OR

PLACE

THIS

UNIT,

IN

A

BOOKCASE,

BUILT-IN

CABINET

OR

IN

ANOTHER

CONFINED

SPACE.

ENSURE

THE

UNIT

IS

WELL

VENTILATED.

TO

PREVENT

RISK

OF

ELECTRIC

SHOCK

OR

FIRE

HAZARD

DUE

TO

OVERHEATING,

ENSURE

THAT

CURTAINS

AND

ANY

OTHER

MATE¬

RIALS

DO

NOT

OBSTRUCT

THE

VENTILATION

VENTS.

•DO

NOT

OBSTRUCT

THE

UNIT’S

VENTILATION

OPENINGS

WITH

NEWSPAPERS,

TABLECLOTHS,

CURTAINS,

AND

SIMILAR

ITEMS.

•

DO

NOT

PLACE

SOURCES

OF

NAKED

FLAMES,

SUCH

AS

LIGHTED

CANDLES,

ON

THE

UNIT.

•DISPOSE

OF

BATTERIES

IN

AN

ENVIRONMENTAL¬

LY

FRIENDLY

MANNER.

For

Asia

THIS

UNIT

IS

INTENDED

FOR

USE

IN

TROPICAL

CLIMATES.

For

others

THIS

UNIT

IS

INTENDED

FOR

USE

IN

MODER¬

ATE

CLIMATES.

NORSK

ADVARSEL!

DETTE

PRODUKTET

ANVENDER

EN

LASER.

BETJENING

AV

KONTROLLER,

JUSTERINGER

ELLER

ANDRE

INNGREP

ENN

DE

SOM

ER

BE-

SKREVENT

I

DENNE

BRUKSANVISNING,

KAN

FORE

TIL

FARLIG

BESTRALING.

DEKSLER

MA

IKKE

APNES,

OG

FORS0K

ALDRI

A

REPARERE

APPARATET

PA

EGENHAND.

ALT

SER¬

VICE

OG

REPARASJONSARBEID

mA

UTFORES

AV

KVAL1FISERT

PERSONELL.

ADVARSEL:

FOR

A

REDUSERE

FAREN

FOR

BRANN,

ELEKTRISK

ST0T

ELLER

SKADER

PA

PRODUKTET,

MA

DETTE

APPARATET

IKKE

UTSETTES

FOR

REGN,

FUK-

TIGHET,

VANNDRAPER

ELLER

VANNSPRUT.

DET

mA

HELLER

IKKE

PLASSERES

GJENSTANDER

FYLT

MED

VANN,

SLIK

SOM

BLOMSTERVASER,

OPPA

AP¬

PARATET.

ADVARSEL!

•APPARATET

MA

IKKE

PLASSERES

I

EN

BOKHYLLE,

ETINNEBYGGET

KABINETT

ELLER

ET

ANNET

LUKKET

STED

HVOR

VENTILASJONSFOR-

HOLDENE

ER

UTILSTREKKELIGE.

S0RG

FOR

AT

GARDINER

ELLER

LIGNENOE

IKKE

FORVERRER

VENTILASJONSFORHOLDENE,

SA

RISIKO

FOR

ELEKTRISK

SJOKK

ELLER

BRANN

FORARSAKET

AV

OVERHETING

UNNGAS.

•

APPARATETS

VENTILASJONSAPNINGER

MA

IKKE

DEKKES

TIL

MED

AVISER,

BORDDUKER

,

GARDI¬

NER

OG

LIGNENDE.

•

PLASSER

IKKE

APEN

ILD,

SLIK

SOM

LEVENDE

LYS,

OPPA

APPARATET.

•

BRUKTE

BATTERIER

MA

KASSERES

UTEN

FARE

FOR

MILJ0ET.

DETTE

APPARATET

ER

BEREGNET

TIL

BRUK

UNDER

MODERATE

KLIMAFORHOLD.

Table

of

contents

Caution

for

AC

Mains

Lead

Getting

started

Caution

for

AC

Mains

Lead.

3

Accessories.

4

Q

Connection.

4

E3

The

remote

control.

6

□

Quick

Setup.

6

Control

reference

guide.

7

Disc

information.

7

Basic

operations

Basic

play.

8

Starting

play

from

a

selected

title

or

track.

8

Skipping

chapters

or

tracks.

9

Fast

forward

and

rewind—SEARCH.

9

Slow-motion

play..

9

Frame-by-frame

viewing.

9

Replaying

a

scene—QUICK

REPLAY

.

9

Resume

function.

9

4:3

TV

ZOOM

function

.

9

Advanced

operations

Convenient

features.10

Repeat

play.

10

A-B

repeat

play.

10

Program

play.

10

Random

play.

11

Using

menus

to

play

MP3

discs

.

11

Setting

the

unit

to

turn

off—SLEEP

timer.

11

Increasing

your

enjoyment

of

movies

.12

Soundtracks

.

12

Subtitles.

12

Angles.

12

Q

ADVANCED

SURROUND.

13

QBASS

PLUS.

13

□

CINEMA/CONCERT

.

13

0

DIALOGUE

ENHANCER.

13

ONE

TOUCH

CINEMA

MEMORY.

13

Using

Graphical

User

Interface

(GUI)

screens

.

1

4

Common

procedures.

14

Disc

information.

14

Unit

information.

15

Progress

indicator..

15

Changing

settings.16

Common

procedures.

17

Entering

a

password

(Ratings).

17

Digital

output.

17

Reference

Troubleshooting

guide.18

Safety

precautions.19

Maintenance.19

Specifications.Back

cover

Glossary.

Back

cover

(Back

of

product)

LUOKAN

1

LASERLAITE

KLASS

1

LASER

APPARAT

(The

illustration

shows

the

model

for

the

United

Kingdom,

Continental

Europe

and

Russia.)

(For

United

Kingdom)

(“EB”

area

code

model

only)

For

your

safety,

please

read

the

following

text

carefully.

This

appliance

is

supplied

with

a

moulded

three

pin

mains

plug

for

your

safety

and

convenience.

A

5-ampere

fuse

is

fitted

in

this

plug.

Should

the

fuse

need

to

be

replaced

please

ensure

that

the

replacement

fuse

has

a

rating

of

5-ampere

and

that

it

is

approved

by

ASTA

or

BSI

to

BS1362.

Check

for

the

ASTA

mark

<$>

or

the

BSI

mark

^

on

the

body

of

the

fuse.

If

the

plug

contains

a

removable

fuse

cover

you

must

ensure

that

it

is

refitted

when

the

fuse

is

replaced.

If

you

lose

the

fuse

cover

the

plug

must

not

be

used

until

a

replacement

cover

is

obtained.

A

replacement

fuse

cover

can

be

purchased

from

your

local

dealer.

CAUTION!

IF

THE

FITTED

MOULDED

PLUG

IS

UNSUITABLE

FOR

THE

SOCKET

OUTLET

IN

YOUR

HOME

THEN

THE

FUSE

SHOULD

BE

REMOVED

AND

THE

PLUG

CUT

OFF

AND

DISPOSED

OF

SAFELY.

THERE

IS

A

DANGER

OF

SEVERE

ELECTRICAL

SHOCK

IF

THE

CUT

OFF

PLUG

IS

INSERTED

INTO

ANY

13-AMPERE

SOCKET.

_

If

a

new

plug

is

to

be

fitted

please

observe

the

wiring

code

as

stated

below.

If

in

any

doubt

please

consult

a

qualified

electrician.

IMPORTANT

The

wires

in

this

mains

lead

are

coloured

in

accordance

with

the

following

code:

Blue:

Neutral,

Brown:

Live.

As

these

colours

may

not

correspond

with

the

coloured

markings

identifying

the

terminals

in

your

plug,

proceed

as

follows:

The

wire

which

is

coloured

Blue

must

be

connected

to

the

termi¬

nal

which

is

marked

with

the

letter

N

or

coloured

Black

or

Blue.

The

wire

which

is

coloured

Brown

must

be

connected

to

the

ter¬

minal

which

is

marked

with

the

letter

L

or

coloured

Brown

or

Red.

WARNING:

DO

NOT

CONNECT

EITHER

WIRE

TO

THE

EARTH

TERMINAL

WHICH

IS

MARKED

WITH

THE

LETTER

E,

BY

THE

EARTH

SYMBOL

4-

OR

COLOURED

GREEN

OR

GREEN/YELLOW.

THIS

PLUG

IS

NOT

WATERPROOF—KEEP

DRY.

Before

use

Remove

the

connector

cover.

How

to

replace

the

fuse

The

location

of

the

fuse

differ

according

to

the

type

of

AC

mains

plug

(figures

A

and

B).

Confirm

the

AC

mains

plug

fitted

and

fol¬

low

the

instructions

below.

Illustrations

may

differ

from

actual

AC

mains

plug.

1.

Open

the

fuse

cover

with

a

screwdriver.

2.

Replace

the

fuse

and

close

or

attach

the

fuse

cover.

Getting

started

Getting

started

Accessories

El

□

1

Remote

control

(N2QAJB000037)

Please

check

and

identify

the

supplied

accessories.

Use

numbers

indicated

In

parentheses

when

asking

for

replacement

parts.

j

2

Batteries

for

remote

control

□

1

Audio/video

cable

(VJA0788-D)

□

1

Cleaning

cloth

(RFE0088-1)

.

□

1

AC

mains

lead

(RJA0053-3X)

(RJA0035-K)

2H

(RJA0019-2X)

Egg

The

included

AC

mains

lead

is

for

use

with

this

unit

only.

Do

not

use

it

with

other

equipment.

Connection

Basic

connection

Television

Connect

your

untt

directly

to

your

television.

Do

not

connect

the

unit

through

your

video

cassette

recorder

when

setting

up

your

home

entertainment

system,

because

the


may

not

be

played

correctly

due

to

the

copy

guard.

S

VIDEO

OUT

terminal

The

S-video

terminal

achieves

a

more

vivid


than

the

VIDEO

OUT

terminal

by

separating

the

chrominance

(C)

and

luminance

(Y)

signals.

{Actual

results

depend

on

the

television

)

’

}

Television

Audio/video

cable

{included)

When

making

this

connection,

ensure

you

connect

the

audio

cables

V

to

the

corresponding

audio

input

terminals

on

the

television.

FOR

THE

UNITED

KINGDOM

ONLY

READ

THE

CAUTION

FOR

THE

AC

MAINS

LEAD

ON

PAGE

3

BEFORE

CON¬

NECTION.

To

household

mains

socket

t

COMPONENT

VIDEO

OUT

terminal

Connection

using

these

terminals

outputs

the

color

difference

signals

(Pb/Pr)

and

luminance

signal

(Y)

separately

in

order

to

achieve

high

fidelity

in

reproducing

colors.

•The

description

of

the

component

video

input

terminals

depends

on

the

television

or

monitor{e.g.

Y/Pb/Pr,

Y/B-Y/R-Y,

Y/Cb/Cr).

Connect

to

terminals

of

the

same

color.

Television

COMPONENT

VIDEO

IN

<§>

Y

"

■

©

Pb

<5)

Pn

When

making

this

connection,

ensure

you

connect

the

audio

cables

\Jo

th

e

corresponding

audio

input

terminals

on

the

television.

•To

improve


quality,

you

can

change

the

video

signal

output

from

the

A

V

terminal

from

“Video”

to

either

“S-Video"

or

“RGB"

to

suit

the

type

of

television

you

are

using

(-

page

16,

Video—AV

Output).

Television

SCART

terminal

yew

KnnoocoDDoijl)

^Qoccngaconnl

21-pin

SCART

cable

(not

included)

Connection

This

model

can

play

Dolby

Digital,

but

only

in

two

channels.

This

model

does

not

have

a

DTS

decoder.

You

must

connect

a

unit

with

a

Dolby

Digital

or

DTS

decoder

to

enjoy

surround

sound.

•The

equipment

connections

described

are

examples.

•

Peripheral

equipment

and

optional

cables

sold

separately

unless

otherwise

indicated.

•

Before

connection,

turn

off

all

equipment

and

read

the

appropriate

operating

instructions.

Digital

connection

HI

Analogue

connection

To

enjoy

5-1

-ch

surround

sound

Connect

an

amplifier

with

a

built-in

decoder

or

a

decoder-amplifier

combination.

•Change

the

settings

in

“Digital

output"

to

suit

the

equipment

you

connect

(~

page

17).

You

cannot

use

DTS

Digital

Surround

decoders

not

suited

to

DVD.

To

enjoy

stereo

or

Dolby

Pro

Logic

Connect

a

digital

amplifier

or

system

component.

•Change

the

settings

in

“Digital

output"

(•

page

17).

To

enjoy

stereo

or

Dolby

Pro

Logic

Connect

an

analogue

amplifier

or

system

component.

r

i'-

-~--Tl

|

Amplifier

or

system

|j

v

—

'

j

j

component

(©<©

r

O-VT-

Connecting

an

active

subwoofer

You

can

enjoy

more

powerful

bass

by

connecting

an

active

subwoofer.

•Place

the

subwoofer

as

close

as

possible

to

the

front

center.

•Turn

BASS

PLUS

on

to

boost

the

output

from

the

subwoofer

(•

page

13).

•Adjust

the

volume

on

the

subwoofer

to

suit

your

preference.

Audio

cable

To

the

subwoofer's

input

terminal

■

Recording

to

digital

recording

equipment

or

cassette

tapes

•Digital

recording

You

can

record

the

digital

signal

directly

to

digital

recording

equipment.

Connect

the

recording

equipment

with

an

optical

digital

audio

cable

{•

D

above).

•Analogue

recording

You

can

record

to

a

cassette

deck

or

other

recording

equipment.

Connect

the

recording

equipment

with

an

audio

cable

(•

Q

above).

There

are

no

limitations

on

recording

analogue

signals

as

there

are

with

digital

signals.

•With

DVD,

the

following

conditions

must

be

met:

®

the

disc

doesn’t

have

protection

preventing

digital

recording,

and

®

the

recording

equipment

can

handle

signals

with

a

sampling

frequency

of

48

kHz.

•You

cannot

record

DTS

signals.

•You

cannot

record

MP3.

When

recording

DVDs,

make

the

following

settings.

ADVANCED

SURROUND:

OFF

(-

page

13)

PCM

Down

Conversion:

Yes

{•

page

17)

Dolby

Digital:

PCM

(•

page

17)

DTS

Digital

Surround:

Off

(•

page

17)

MPEG©

PCM

{•page

17)

-Not

available

in

Asia.

Getting

started

RQT6316

Getting

started

B

The

remote

control

Do

not:

•

mix

old

and

new

batteries.

•use

different

types

at

the

same

time.

•

heat

or

expose

to

flame.

•take

apart

or

short

circuit.

•attempt

to

recharge

alkaline

or

manganese

batteries.

•use

batteries

if

the

covering

has

been

peeled

off.

Mishandling

of

batteries

can

cause

electrolyte

leakage

which

can

damage

items

the

fluid

contacts

and

may

cause

a

fire.

Remove

if

the

remote

control

is

not

going

to

be

used

for

a

long

period

of

time.

Store

in

a

cool,

dark

place.

■

Use

Aim

at

the

sensor,

avoiding

obstacles,

at

a

maximum

range

of

7

m

directly

in

front

of

the

unit.

1

Press

[

6

]

to

turn

on

the

unit.

2

Press

[SETUP]

to

show

the

QUICK

SETUP

screen.

e.g.

Units

for

the

United

Kingdom,

Continental

Europe,

Russia,

Australia

and

N.Z.

3

Press

[A,

▼

,

►

]

to

select

the

menu

language

and

press

[ENTER].

4

Press

[A,

▼

]

to

select

“Yes”

to

continue

and

press

[ENTER].

5

Press

[A,

▼

,

►

]

to

select

the

item

and

press

[ENTER],

•Audio

Language

(For

setting

details

-

page

16)

•

Subtitle

Language

(For

setting

details

page

16)

•TV

Aspect

(For

setting

details

-

TV

Aspect”

below)

6

Press

[ENTER]

and

then

[SETUP]

to

end

the

settings.

The

QUICK

SETUP

screen

appears

when

you

press

[SETUP]

the

first

time

after

purchase

and

assists

you

to

make

necessary

settings.

You

can

access

this

screen

again

later

if

you

need

to

paqe

16

Others—

QUICK

SETUP).

Preparation

Turn

on

the

television

and

select

the

appropriate

video

input

on

the

televi¬

sion

to

suit

the

connections

for

the

player.

To

return

to

the

previous

screen

Press

[RETURN],

■

TV

Aspect

Select

4:3’

(regular)

or

“'16:9”

(widescreen)

to

suit

your

television.

If

you

have

a

regular

4:3

television,

you

can

also

select

how

video

on

some

discs

is

shown

page

16,

Video—TV

Aspect).

•4:3

Pan&Scan

(Factory

preset)

The

pan

and

scan

(the

original

widescreen

images

are

converted

for

viewing

on

a

regular

television)

version

of

the

video

is

automatically

selected

if

recorded

on

the

disc.

•4:3

Letterbox

The

letterbox

(the

original

widescreen

images

appear

with

black

bands

above

and

below)

version

of

the

video

is

automatically

selected

if

recorded

on

the

disc.

•Insert

so

the

poles

(+

and

—)

match

those

in

the

remote

control.

•Do

not

use

rechargeable

type

batteries.

Control

reference

guide

Operations

in

these

instructions

are

described

mainly

with

the

remote

control,

but

you

can

do

the

operations

on

the

main

unit

if

the

controls

are

the

same.

Buttons

such

as

0

function

the

same

as

the

controls

on

the

remote

control.

Disc

information

■

Discs

that

can

be

played

DVD-Video

\

DVD-R

Audio

CD

Video

CD

'<

-I-

'

video”

1

_

i

_

n

COM

PACT

(Dims

DIGITAL

AUDIO

nCOMfWCT

i®s

1WGTTW.

VIDEO]

Indication

used

in

instructions

rrrai

I

ed

VCP

'Including

CD-R/RW

and

discs

recorded

with

MP3.

Do

not

use

irregularly

shaped

discs

(e.g.

heart-shaped),

as

these

can

dam¬

age

the

unit.

■

Discs

that

cannot

be

played

DVD-Audio,

DVD-ROM,

DVD-RAM,

CD-ROM,

CDV,

CD-G,

+RW,

DVD-RW,

CVD,

SVCD,

SACD,

Divx

Video

Discs

and


CD.

■

DVDs

that

can

be

played

This

unit

has

a

Dolby

Digital

decoder

so

you

can

play

DVDs

with

this

mark.

This

unit

does

not

have

a

DTS

decoder.

Connect

this

unit

to

equipment

that

has

a

DTS

decoder

to

enjoy

DVDs

with

this

mark.

■

Playing

DVDs

and

Video

CDs

The

producer

of

these

discs

can

control

how

they

are

played

so

you

may

not

always

be

able

to

control

play

as

described

in

these

operating

instruc¬

tions.

Read

the

disc's

instructions

carefully.

DIGITAL

DIGITAL

SURROUND

Page

(D

Standby/on

switch

((!)/l).

6

Press

to

switch

the

unit

from

on

to

standby

mode

or

vice

versa.

In

standby

mode,

the

unit

is

still

consuming

a

small

amount

of

power.

<D

Skip

buttons

(!

◄◄

,

►

►

)

SKIP).

9

(3)

Stop

button

(

■

STOP)

.

8

@

Pause

button

(I

I

PAUSE).

8

©

Top

menu

button

(TOP

MENU).8,11

<D

Cursor

buttons

(A,

▼

,

►

y

Enter

button

(ENTER).6,

8

®

Display

button

(DISPLAY).

14

<D

Subtitle

button

(SUBTITLE).8,12

<§)

Audio

button

(AUDIO)

.12

®

Program

button

(PROGRAM).10

(0)

Random

play

button

(RANDOM).

1

1

<$

Repeat

button

(REPEAT).10

®

A-B

repeat

button

(A-B

REPEAT).

10

®

Cancel

button

(CANCEL).

10

©

Advanced

Surround

button

(fj

A.SRD).

13

Bass

plus

button

(Q

BASS).

13

(0)

One

touch

cinema

memory

button

(ONE

TOUCH

MEMORY).

13

©

Sleep

button

(SLEEP).

1

1

<§)

Setup

button

(SETUP).6,17

©

Open/Close

button

(±

OPEN/CLOSE).

8

@

Slow/Search

buttons

(

◄

◄

,

►►

SLOW/SEARCH).

9

©

Play

button

(

►

PLAY).

6

©

Menu

button

(MENU).8,11

<8)

Return

button

(RETURN).

6

©

Angle

button

(ANGLE).

1

2

@

Quick

replay

button

(QUICK

REPLAY).

9

@

Numbered

buttons

(1-9,

0,^10).

8

©

Cinema/Concert

button

(Q

CINEMA/CONCERT)

.13

©

Dialogue

Enhancer

button

(Q

D.ENH).

13

©

Position

memory

button

(POSITION

MEMORY).

9

©

4:3

TV

ZOOM

button

(ZOOM).

9

©

Remote

control

signal

sensor

©

Standby

indicator

((!))

When

the

unit

is

connected

to

the

AC

mains

supply,

this

indicator

lights

up

in

standby

mode

and

goes

out

when

the

unit

is

turned

on.

@

Display

©

Disc

tray.

8

©

Skip/Slow/Search

buttons

{KM/MM

,

►►

/).

9

I

■

Video

systems

This

unit

can

play

both

the

PAL

and

NTSC

video

systems.

To

view

PAL

or

NTSC,

however,

your

television

must

match

the

system

used

on

the

disc.

PAL

discs

cannot

be

correctly

viewed

on

an

NTSC

television.

NTSC

can

be

correctly

viewed

on

a

PAL

television

by

converting

the

video

signal

to

PAL

60

{-*

page

16,

Video—NTSC

Disc

Output).

■

CD-R

and

CD-RW

discs

This

unit

can

play

CD-DA

(digital

audio)

and

video

CD

format

audio

CD-R

and

CD-RW

that

have

been

finalized

(a

process

that

enables

CD-R/

CD-RW

players

to

play

audio

CD-R

and

CD-RW)

upon

completion

of

recording.

It

may

not

be

able

to

play

some

CD-R

or

CD-RW

due

to

the

condition

of

the

recording.

■

DVD-R

discs

Panasonic

DVD-R

recorded

and

finalized

on

a

Panasonic

DVD

video

recorder

are

played

as

DVD-Video

on

this

unit.

It

may

not

be

possible

to

play

these

discs

in

all

cases

due

to

the

type

of

disc

or

condition

of

the

recording.

■

Handling

precautions

•

Do

not

write

on

the

label

side

with

a

ball-point

pen

or

other

writing

instrument.

•

Do

not

use

record

cleaning

sprays,

benzine,

thinner,

static

electricity

prevention

liquids

or

any

other

solvent.

•

Do

not

attach

labels

or

stickers

to

discs.

(Do

not

use

discs

with

exposed

^

adhesive

from

tape

or

left

over

peeled-off

stickers.)

•

Do

not

use

scratch-proof

protectors

or

covers.

•

Do

not

use

discs

printed

with

label

printers

available

on

the

market.

Getting

started

Basic

operations

Basic

play

r

(9^0.

iO:

-2

Hi

i

fl

i

lESf

lit®

i

ssM

r-i

—

«,

►►

—

4

r

*:r

•

——

-

-

.--r-

-II

-

1-1-

M

E

NU

-1

■

-

M&BW

jm

HtBWBB

\

rMlVi

l

!

-

RETURN

■

WKWHH-.

i

fl

-VQ-.

-•.-j

-

Q

UICK

REPLAY

n

n

1

|

-

N

u

mbered

—

0

.0

0

of

I

jrjrT

I

fl

buttons

wteimmSfiTl

-

P

OSITION

.

r~

1

I

MEMORY

i

-

Z

OOM

.

I

1

3

/

/

2

,

4

jy

•*

/

k

Cl

t

3

►►

/

►

ah'

itfJ.ffl

£22

vcb

Preparation

Turn

on

the

television

and

select

the

appropriate

video

input

on

the

televi¬

sion

to

suit

the

connections

for

the

player.

1

Press

[(!)]

to

turn

on

the

unit.

2

Press

[^]

to

open

the

disc

tray.

3

Place

the

disc

on

the

disc

tray.

Label

must

face

upward.

(With

double-sided

discs,

load

so

the

label

for

the

side

you

want

to

play

is

facing

up.)

E3g

•If

“Q”

appears

on

the

television

The

operation

is

prohibited

by

the

unit

or

disc.

•The

disc

continues

to

rotate

while

the

menu

is

displayed

even

after

you

finish

playing

an

item.

Press

(

■

]

when

you

finish

to

preserve

the

unit’s

motor

and

your

television

screen.

•Volume

may

be

lower

when

playing

DVDs

than

when

playing

other

discs

or

during

television

broadcasts.

If

you

turn

the

volume

up

on

the

television

or

amplifier,

be

sure

to

reduce

the

volume

again

before

playing

other

sources

so

that

a

sudden

increase

in

output

does

not

occur.

When

a

menu

screen

appears

on

the

television

EEGfil

W

Remote

control

only

Press

the

numbered

buttons

to

select

an

item.

To

select

a

2-digit

number

Example:

To

select

item

23,

press

{^10]

[2]

~

[3].

•

When

playing

DVDs,

you

can

also

use

[A,

▼

,

◄

,

►

]

to

select

items.

Press

[ENTER]

to

confirm

your

selection.

Play

of

the

selected

item

now

begins.

Other

buttons

used

to

operate

menus

Read

the

disc’s

instructions

for

further

details

about

operation.

[

►

N].[

►

►

/

►

►

I]:

Shows

the

next

menu.

W(HN/

'«]:

Shows

the

previous

menu.

[RETURN]:

Shows

the

menu

screen.

!~VCDj

[TOP

MENU]:

Shows

the

first

menu

screen.

[MENU]:

Shows

the

menu

screen.

I'WM

Starting

play

from

a

selected

title

or

track

ran

vco

Remote

control

only

Press

the

numbered

buttons

to

select

the

item.

To

select

a

2-digit

number

Example:

To

select

track

23,

press

[^10]

^

[2)

•

[3].

E3

(MP3

discs)

Press

[ENTER]

after

pressing

the

numbered

buttons.

(You

do

not

have

to

press

[^10].)

Play

starts

from

the

selected

item.

This

works

only

when

stopped

with

some

discs.

4

P

r

ess

[

►

]

(PLAY).

The

disc

tray

closes

and

play

begins.

E3

(MP3

discs)

Group

and

track

names

are

displayed

on

the

television.

Press

[SUBTITLE]

to

turn

the

display

on

or

off.

To

stop

play

Press

[

■

]

(~

page

9,

Resume

function).

£

To

pause

play

Press

[I

I]

during

play.

§

Press

[

►

]

(PLAY)

to

restart

play.

Skipping

chapters

or

tracks

Resume

function

eej

vco

During

play

or

while

paused

Press

[!

◄◄

]

or

[

►

►

!].

•Each

press

increases

the

number

of

skips.

•

Press

[**</+*]

or

[

►

*-/

►

►

!]

0n

the

main

unit.

Fast

forward

and

rewind—SEARCH

ia+J»a

T

J

I?»1;

vco

During

play

Press

[

◄

◄

]

or

[

►

►

]

.

•

Press

and

hold

[t

-**/*+<}

or

[

►

►

/

►

**]

on

the

main

unit.

•Audio

will

be

heard

during

search.

You

can

turn

this

audio

off

if

you

want

to

page

16,

Audio—Audio

during

Search).

Slow-motion

play

ln'jnyi

vco

While

paused

Press

[<M]

or

[

►►

]

.

•

Press

and

hold

or

[

►

►

/

►

►

#]

on

the

main

unit.

JS3

vcd

(When

the

elapsed

play

time

is

displayed)

The

position

you

stopped

play

at

is

recorded

by

the

unit

when

is

flash*

ing

on

the

display.

W»

ME

OUT

i

in

n-n

hjijli

ID

ASS

While

is

flashing,

press

[

►

]

(PLAY)

to

start

pfay

from

where

you

stopped

it.

(When

playing

DVD

-

Chapter

Review

below)

•The

position

is

cleared

when

the

disc

tray

is

opened

or

the

unit

is

switched

to

standby.

•

Press

{

■

]

to

clear

the

position.

Position

Memory

function

Remote

control

only

This

function

allows

you

to

memorize

a

position

to

start

from

even

after

switching

the

unit

to

standby

or

changing

discs.

1.

During

play,

press

[POSITION

MEMORY].

2.

Press

ft!)]

to

switch

the

unit

to

standby,

or

press

[±]

to

remove

the

disc.

3.

When

you

are

ready

to

play

the

disc

again,

press

[

►

]

(PLAY).

Play

starts

from

the

memorized

position

and

the

position

is

cleared.

(When

playing

DVD

—

Chapter

Review

below)

To

clear

the

position

before

play

Press

[

■

]

before

recalling

the

memorized

position.

I

Frame-by-frame

viewing

•You

can

memorize

positions

on

up

to

five

different

discs

at

a

time.

When

you

memorize

another

position,

the

earliest

position

is

replaced.

vcd

Remote

control

only

While

paused

Press

[

◄

]

or

[

►

]

.

The

frame

changes

each

time

you

press

the

button.

•The

frames

change

in

succession

if

you

press

and

hold

the

button.

•

Pressing

[II]

also

activates

forward

frame-by-frame.

Notes

•The

speed

of

search

and

slow-motion

increases

up

to

5

steps.

•

Press

[

►

j

(PLAY)

to

restart

play.

•You

cannot

move

backwards

with

Video

CD

during

slow-motion

and

frame-by-frame.

When

playing

Video

CDs

with

playback

control

Pressing

buttons

to

perform

skip,

search

or

slow-motion

may

take

you

to

a

menu

screen.

Replaying

a

scene—QUICK

REPLAY

VCD

Skip

back

a

few

seconds

within

the

current

item

(track

or

title).

Remote

control

only

During

play

Press

[QUICK

REPLAY].

This

feature

may

not

work

while

playing

some

parts

of

a

disc

or

at

alf

with

some

discs.

[

Chapter

Review

One

of

these

messages

appears

immediately

after

you

press

[

►

]

(PLAY).

Press

[

►

]

(PLAY)

while

the

message

is

displayed

and

the

beginning

por¬

tions

of

each

chapter

up

to

the

current

one

are

played.

Full

play

resumes

from

the

point

where

you

pressed

[

■

]

or

[POSITION

MEMORY].

(This

feature

works

only

within

a

title.)

If

you

do

not

press

[

►

]

(PLAY),

the

message

disappears

and

play

starts

from

where

you

pressed

(

■

]

or

[POSITION

MEMORY].

4:3

TV

ZOOM

function

Remote

controf

only

Widescreen

software

often

appears

as

a

letterbox


when

shown

on

a

regular

4:3

aspect

television.

Use

4:3

TV

ZOOM

to

expand

these

pictures

to

fill

more

of

the

television.

(The

sides

of

the


are

cut

off

when

you

do

this.)

During

play

Press

[ZOOM],

•

Press

again

to

cancef.

•4:3

TV

ZOOM

is

also

canceled

when

you

open

the

disc

tray

or

switch

the

unit

to

standby.

KffiEl

•

Depending

on

the

video

format

of

the

disc

and

current

play

status,

this

feature

may

not

work

as

described.

•Menus

may

act

or

appear

differently

while

4:3

TV

ZOOM

is

on.

i

i

Basic

operations

Convenient

features

mm

Ossiig

►

TOP

MENU

-

A,

ENTER

PROGRAM

RANDOM

REPEAT

A-B

REPEAT

CANCEL

B

j

RETURN

*

Numbered

buttons

ETE53

E2

Vcd

(When

the

elapsed

play

time

is

displayed)

Repeat

play

Remote

control

only

During

play

Press

[REPEAT].

e^jDVD-Video

^

Each

time

you

press

the

button:

'

w

^

*

raroi

i®

E3

Chapter

(C>—Title

(T)—OFF

±

___I

'

t—-—___J

E3

yep

[DVD*

V

^\

Tra

ck

(T)—Entire

disc

(

A)-+OFF

j

ED

(MP3

discs)

1

-\

Track

(T)-»Group

(G)'

->OFF

t--J

s

“All

(A)"

during

program

a

nd

random

play.

If

the

Video

CD

has

playback

control

1.

Press

[

■

]

during

play

until

“PBC

PLAY"

is

cleared

from

the

display.

2.

Press

the

numbered

buttons

to

select

a

track

to

start

play

paae

8)

3.

Pre

s

s

[REPEAT]

<-

above).

1JBE1

You

cannot

use

repeat

play

to

repeat

an

entire

DVD

or

an

entire

MP3

disc.

■

To

repeat

only

your

favorite

tracks

Start

program

play

(see

right)

and

press

[REPEAT]

to

display

“A”.

A-B

repeat

play

Remote

control

only

You

can

repeat

a

section

between

points

A

and

B

within

a

title

or

track.

During

play

1

Press

[A-B

REPEAT]

at

the

starting

point

(A).

2

Press

[A-B

REPEAT]

at

the

finishing

point

(B).

DVD-

V

...)

**AOB>

El

VCD

Remote

control

only

You

can

select

up

to

32

tracks

to

play

in

the

order

you

choose.

While

stopped

1

Press

[PROGRAM],

e.g.

CD

|fWGRAM

CIkk***

m

track,

then

press

ENTER.

|

„

Mo

Track

Time

I

s-

wmm

r

-

psj

—

i

i

I

IHPntss

[=»->;

CO

TRACK

i

:

PGM>

SmU**

P

->-

i

[

-r

t

i

•

/i\

V

1

Track

No.

Program

No.

^

MP

3

discs

on

ly

Press

the

numbered

buttons

to

select

a

group.

3

Press

the

numbered

buttons

to

select

a

track

(and,

for

MP3

discs

press

[ENTER]).

•

Repeat

steps

2

and

3

to

program

other

tracks.

•To

select

a

track

using

the

cursor

buttons

Press

[ENTER]

and

[A

,

T]

to

select

a

track,

then

press

[ENTER]

again

to

register

the

number.

All

the

tracks

on

a

disc

or

a

group

are

selected

when

you

select

“ALL”.

•Times

are

not

displayed

when

programming

MP3.

4

Press

[

►

]

(PLAY).

Play

now

begins

in

the

programmed

sequence.

To

add

or

change

tracks

Press

[

A,

T]

to

select

an

available

item,

then

repeat

steps

2

and

3.

To

move

to

the

page

before

or

after

the

one

shown

Press

[

◄

◄

]

or

[

►►

]

.

To

clear

the

programmed

tracks

one

by

one

Press

[A.

▼

]

to

select

the

item

number

(No)

and

press

[CANCEL].

(Alter¬

natively,

you

can

select

“Clear”

with

[A,

¥,

◄,

►

]

and

press

[ENTER].)

To

dear

the

whole

program

Move

to

“Clear

air

with

[A,

Y,

►

]

and

press

[ENTER],

The

whole

program

is

also

cleared

when

the

unit

is

turned

off

or

the

disc

tray

is

opened.

To

exit

the

program

mode

Press

[PROGRAM]

while

stopped.

(The

program

is

retained

in

memory.)

To

cancel

to

Press

{A-B

REPEAT]

until

u

Cj

*

*"

is

displayed.

§EE3

O

•Some

subtitles

recorded

around

point

A

or

B

may

fail

to

appear.

l*M»yi

*The

unit

automatically

determines

the

end

of

a

title/track

as

point

B

when

the

end

of

the

title/track

is

reached.

«A-B

repeat

is

canceled

when

you

press

[QUICK

REPLAY].
