Panasonic KX-UDS Series Manual de usuario

Panasonic Corporation

June 13 , 2017

Ver.1.2

(KX-UDS/UDT series)

Step by step

for KX-UDS/UDT series installation

This document describes about step by step for KX-UDS/UDT series installation.

Abstract about this document

Revision history

Date Version Revision Firmware version

Aug 21, 2012 Ver. 1.0 Initial Release All versions

Dec 21, 2012 Ver. 1.1 To add example of how to site survey. UDS124CE: 01.202 or later

UDS124 : 01.002 or later

July 3, 2017 Ver. 1.2 To add taking few minutes before to be able

to do handover after finishing registration.

Add page 47 All versions

The Air Sync Master CS of Air Sync Group 1 is the most important CS.

It is called the “Super Master CS”.

Note

• You can move between the coverage areas of CSs during a conversation, without disrupting the call.

This is called "Handover" and is only possible within the same Air Sync Group.

• The system requires one Super Master CS to control the system as a whole.

The Air Sync Master CS of Air Sync Group 1 becomes the Super Master CS.

System configuration

CS CS

Up to 8Air Sync Group

Up to 32 CSs for each Group

Up to 255 PSs under one System

SIP Server

Master Slave

Slave

Site Survey

CS Registration

Configuration

Handset Registration

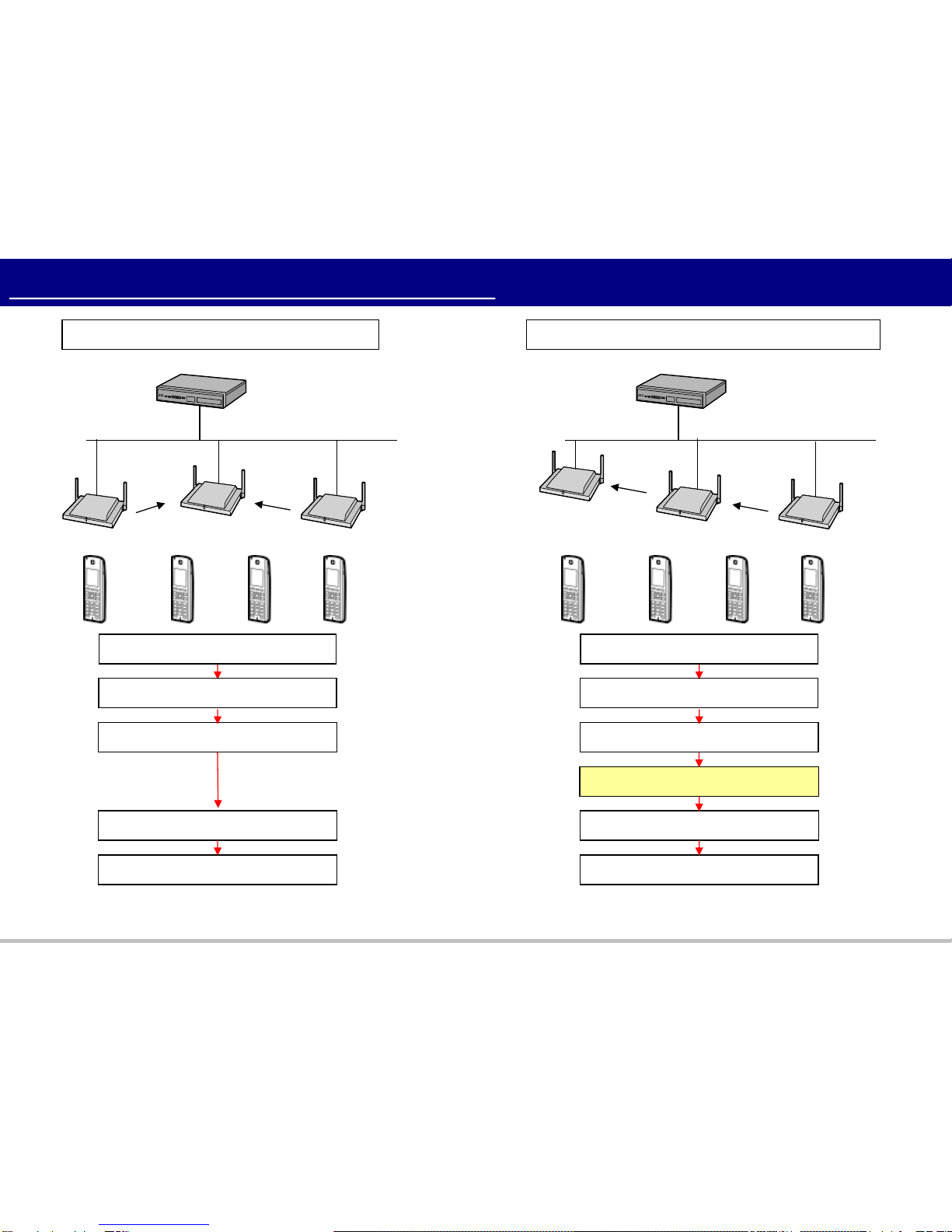

Case: 1 Hop To Master from each Slave

SIP Server

Master Slave

Slave

Case: Multi Hops To Master from each Slave

Tree Survey is not required in the case there is

only 1 hop to Master from each slave.

Overview of installation process

Basic Network Configuration

Site Survey

CS Registration

Configuration

Handset Registration

Tree Survey

Basic Network Configuration

PSPSPSPS PSPSPSPS

Up to 7Hops (8 levels)

Master : 1st level

1. Site Survey

2. Basic Network Configuration

3. CS Registration

4. Tree Survey

5. Configuration

6. PS Registration

Procedure

Appendix

1. Site Survey

2. Basic Network Configuration

3. CS Registration

4. Tree Survey

5. Configuration

6. PS Registration

・Use 2 CSs to conduct the site survey to

check radio signal strength.

・Check the radio signal strength by the color

of the CS’s LED.

・After confirming the CS coverage area

for air synchronization, confirm the speech

quality.

1.1 Site Survey

1.2 How to setup Maintenance mode

1.3 Example of How to site survey

1.4 Example of How to make site MAP

Procedure

Appendix

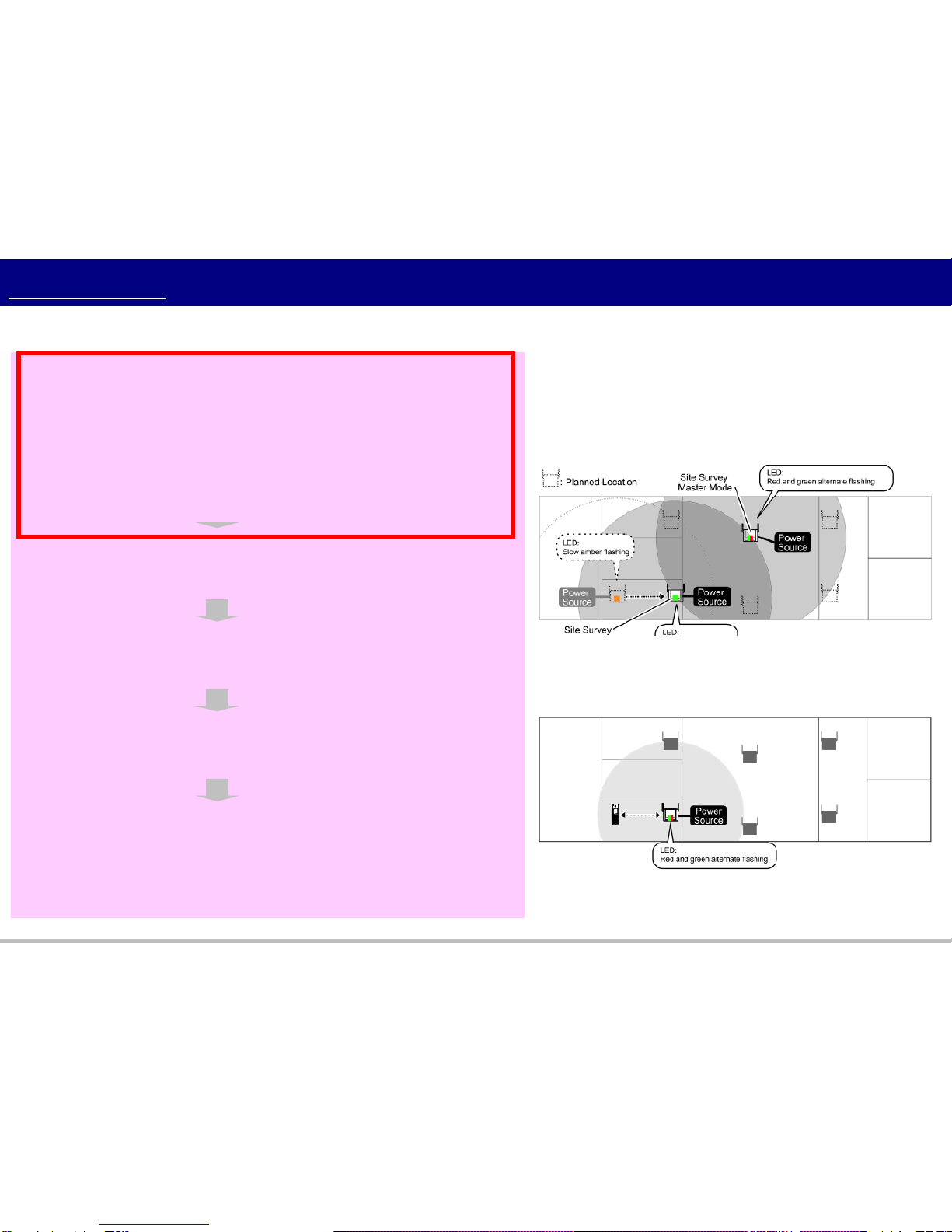

1. Insert AC adapter cable to the CS

(Assume this cell station will be Site

Survey Master Cell Station) with

pressing RESET switch.

LED

Green > Amber > OFF > Green/Red/Amber flashing alternately

1. Press RESET switch for 1 second, then the

LED turns on Red and Green flashing alternately.

2. Put Site Survey Master CS into appropriate

position.

LED

Red fast flash > Red and Green flashing alternately

[This LED pattern indicates Site Survey master (signal generator) mode.]

2. Release the RESET Switch when the LED

flashes [Green/Red/Amber] alternately,

then the IP address is set to [192.168.0.241]

1.1 Site Survey <Step1> : Turn on Site Survey Master CS

・You can set Site Survey Master mode from normal mode or fixed IP mode.

Fixed IP mode

LED

Green > Amber > OFF > Red flashing

Normal mode

1. Insert AC adapter cable to the CS.

(Assume this cell station will be Site

Survey Master Cell Station) .

Note:

LED indicates as above explanation when you start site

survey with non-active CS.

Reset button for site survey mode is available even if the

CS has already run in the system. In this case, LED

becomes green generally.

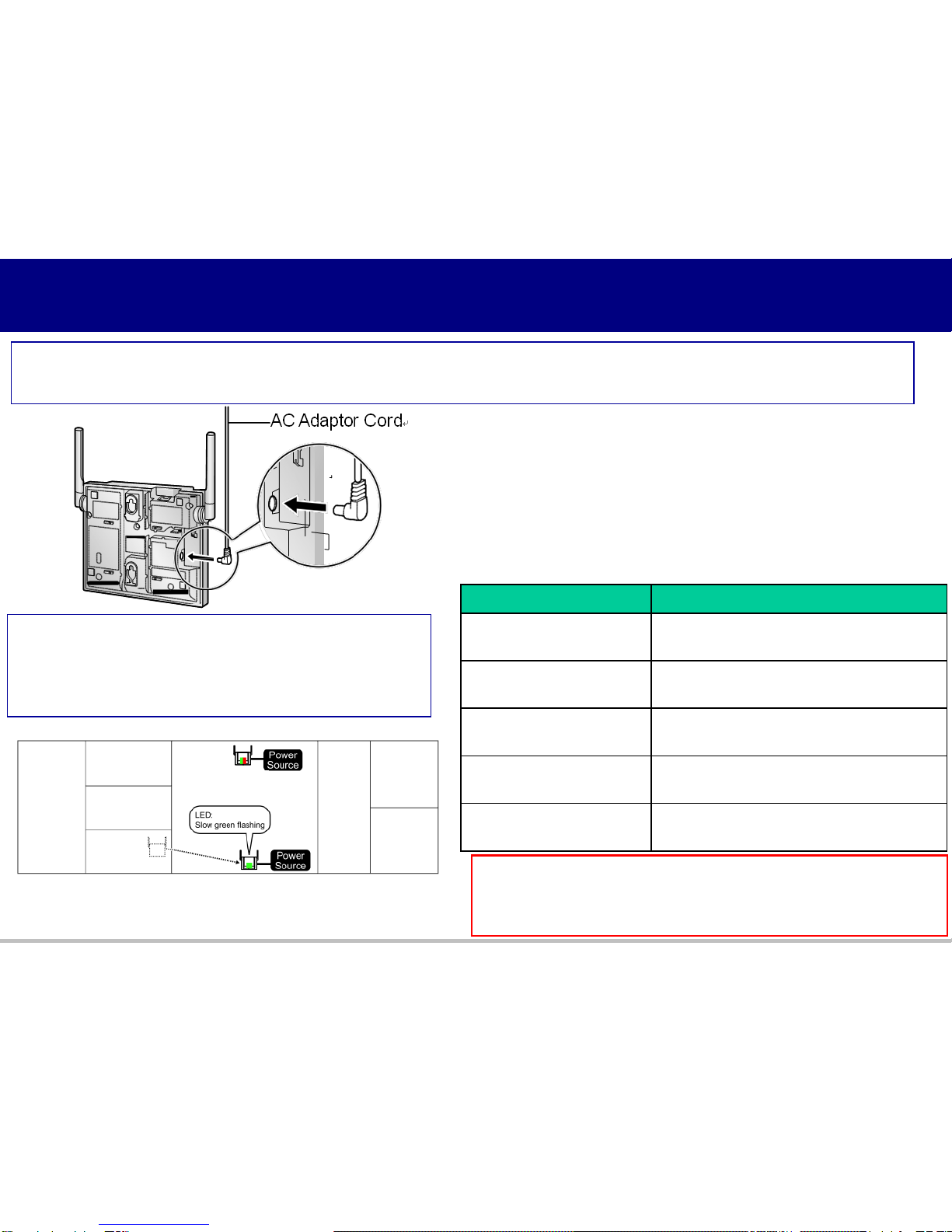

1. Insert AC adapter cable to another CSs (Assume this CS will be Slave CS).

(This Cell Station go into Site Survey signal receiver mode)

Indications Description

Red and Green

alternate flashing Site survey signal generator mode

(Site survey Master Mode)

Slow green flashing Receiving site survey signal

condition is good

Slow amber flashing Receiving site survey signal

condition is not good

Slow red flashing No find site survey signal (After

getting IP address)

Moderate Red flashing No find site survey signal (Before

getting IP address)

LED Status:

It takes around a minute to be sync again, if

slave CS is not sync with master CS during

Red LED status.

Master

Slave

1.1 Site Survey <Step2> : Turn on Slave CS and

Confirm the coverage area

2.Place Slave CS closet to Site Survey

Master CS and confirm LED is slow

green flashing.

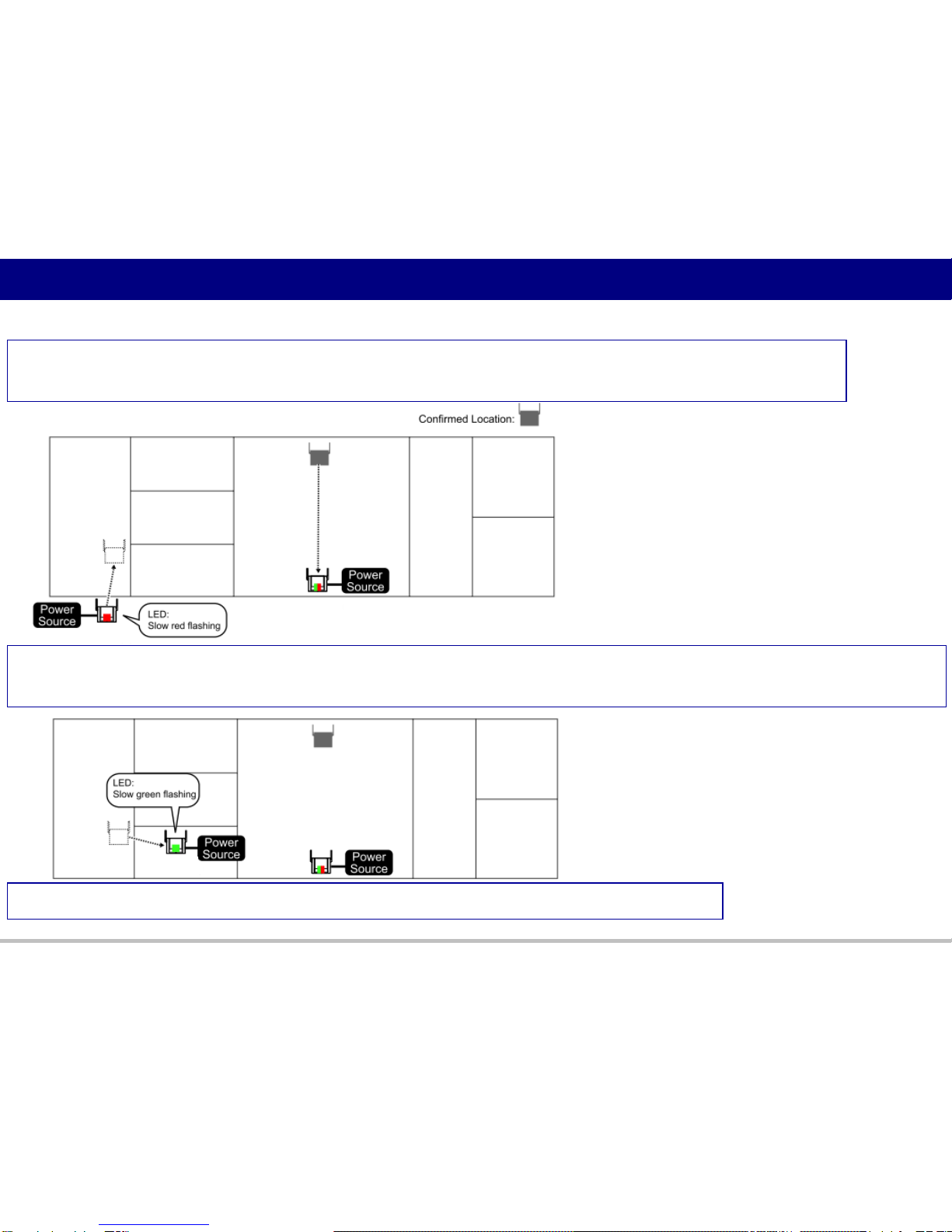

3. Place Site survey Master CS where Slave CS was, and then place Slave CS

closest to current location of Master CS.

4. Confirm whether the LED of Slave CS is slow green flashing. If it is not slow green

flashing, move Slave CS around to find a location where its LED turns slow green flashing.

5. Repeat steps 3 for all other locations.

1.1 Site Survey <Step3> : Confirm the coverage area (Next place)

Master

Slave

Master

Slave

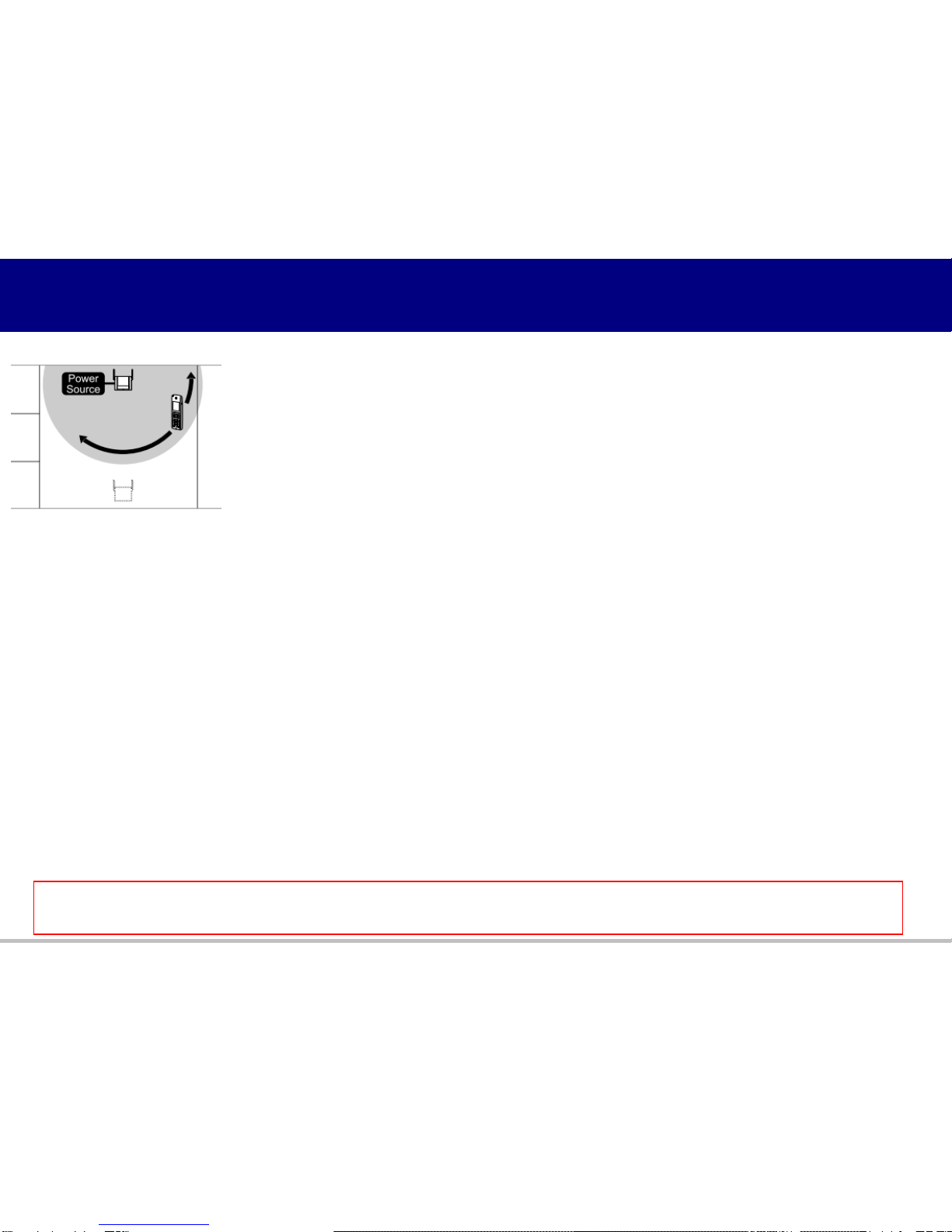

1. Place a CS in the location confirmed for the Air Sync Master CS in

the previous site survey.

2. Supply power to the CS.

3. Start “CS Area Check” mode from Maintenance mode in PS.

＊See “Section 1.2”.

In this mode, you will hear a cyclic tone from receiver.

4. Walk around the CS to confirm the CS’s service area.

If the radio strength level and Error Rate are at acceptable levels,

you will continue hearing a tone from the PS and 2 lines on the

LCD of the PS light green.

Note : If there is an area where you can’t hear a tone and

the 2 lines of the LCD don’t light green, relocate the CS.

5. After confirming the service area, press [CANCEL] on the PS

to stop the tone.

6. Relocate the CS to another location.

7. Walk around the CS to confirm the CS’s service area.

8. Repeat steps 4 to 7 for all the locations so that the CSs will

provide service for whole area.

9. After finishing CS Area Check, turn off the PS.

(Please refer to “41-003” about explanation with visual information.)

1.1 Site Survey <Step4> : Site Survey by using PS and

Confirm CS coverage area

After Site Survey, you should exit Site Survey Master mode (press RESET button while power is

supplied to CS), and turn off all CS used for Site Survey once.

Site Survey from

Handset
