Digital Cordless Phone

Operating Instructions

Model No. KX-TCD455E

Caller ID and SMS Compatible

PLEASE READ BEFORE USE AND SAVE.

Charge the battery for about 7 hours before initial use.

Preparation Cordless Telephone Useful Information

Contents

Preparation

Before Initial Use..........................2

Important Information...................3

Setting up.....................................4

Cordless Telephone

Using the Telephone....................8

Making Calls ..............................11

Caller ID.....................................12

Phonebook.................................14

SMS Feature (Text Messaging).22

Handset Settings........................31

Base Unit Settings .....................37

Initial Settings.............................39

Multi-unit User Operation...........41

Intercom.....................................45

Walkie-Talkie .............................46

Useful Information

Before Requesting Help.............49

Technical Information.................52

Index ..........................................53

Guarantee..................................54

455E.book Page 1 Thursday, March 20, 2003 7:44 PM

Before Initial Use

Thank you for purchasing your new Panasonic digital cordless telephone.

•Order accessory items for all Communications Products with ease and confidence

either by telephoning our Customer Care Centre on:

08700 100 076 Monday - Friday 9:00am - 5:30pm

Or go on line through our Internet Accessory ordering application at

shop@Panasonic http://www.panasonic.co.uk

•Most major credit and debit cards accepted.

•All enquires transactions and distribution facilities are provided directly by Panasonic

UK Ltd.

•It couldn’t be simpler!

Dear purchaser,

You have acquired a KX-TCD455E, which is a product made in regard with

the Digital Enhanced Cordless Telecommunications (DECT). DECT technology is

characterized by high-security protection against interceptions as well as high-quality

digital transmission. This telephone was designed for a wide range of applications. For

example, this telephone can be used within a network of base units and handsets,

constituting a telephone system which:

•operates up to 6 handsets at one base unit.

•allows an intercom between 2 handsets.

•allows the operation of a handset at up to 4 base units, expanding the communication

radio area.

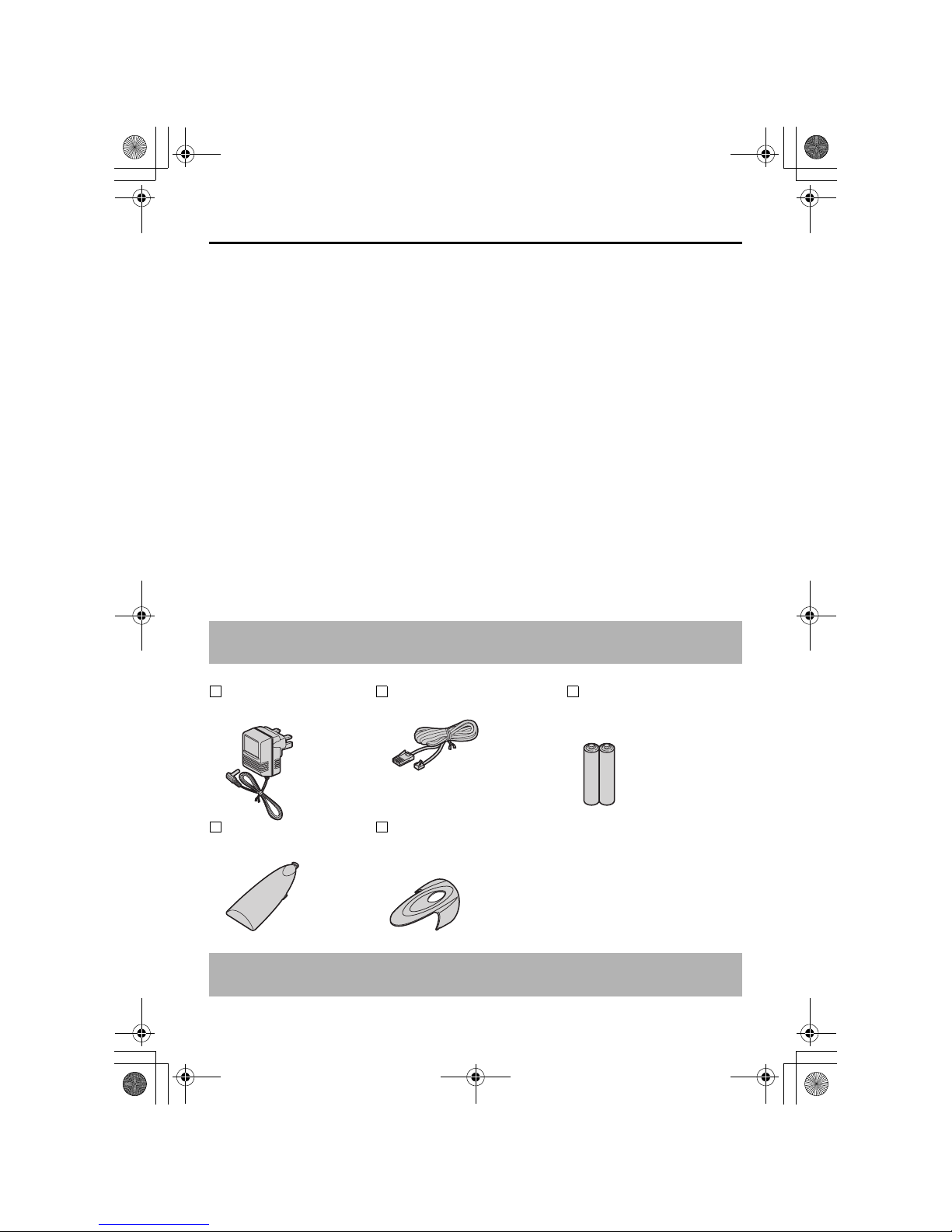

Accessories (included)

Caller ID Service, where available, is a telephone company service. After subscribing

to Caller ID, this phone will display the caller’s phone number.

AC Adaptor

PQLV19EZ

Telephone Line Cord

PQJA87S (for UK)

Rechargeable Batteries

(AAA size)

HHR-4EPT/BA2 (P03P)

Battery Cover

PQKK10134Z5

Belt Clip

PQKE10355Z1

(Dark Metallic)

Additional accessories are available for purchase. Contact your Panasonic Customer

Care Helpline for further details. U.K. 08700 100 076 R.O.I. 01289 8333

455E.book Page 2 Thursday, March 20, 2003 7:44 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 3

Preparation

Important Information

Only use the power supply included with

the product.

Do not connect the AC Adaptor to any AC

outlet other than the standard AC220-240

The apparatus is approved for use with

PQLV19EZ power supply.

This apparatus is unable to make

emergency telephone calls under the

following conditions:

•The portable handset batteries need

recharging, or have failed.

•During a mains power failure.

•When the Key Lock is set to ON.

•When the unit is in Direct Call mode.

Do not open the base unit or handset

(other than to change the batteries).

This apparatus should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

Care should be taken that objects do not

fall onto, and liquids are not spilled into

the unit. Do not subject this unit to

excessive smoke, dust, mechanical

vibration or shock.

Environment

Do not use this unit near water.

This unit should be kept away from heat

sources such as radiators, cookers, etc. It

should also not be placed in rooms where

the temperature is less than 5 °C or

greater than 40 °C.

The AC Adaptor is used as the main

disconnect device. Ensure that the AC

outlet is located/installed near the unit and

is accessible.

Battery Caution

Use only specified batteries.

Only use rechargeable batteries.

Do not mix old and new batteries.

Do not dispose of batteries in a fire, as

they may explode.

Check local waste management codes for

special disposal instructions.

Do not open or mutilate the batteries.

Released electrolyte is corrosive and may

cause burns or injury to the eyes or skin.

The electrolyte may be toxic if swallowed.

Exercise care in handling the batteries in

order not to short the batteries with

conductive materials such as rings,

bracelets and keys.

The batteries and/or conductor may

overheat and cause burns.

Charge the batteries provided in

accordance with the information given in

this operating guide.

Location

•For maximum distance and noise-free

operation, place your base unit:

- Away from electrical appliances such

as TVs, radios, personal computers or

other phones.

- In a convenient high and central

location.

WARNING:

TO PREVENT THE RISK OF

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN

OR ANY OTHER TYPE OF

MOISTURE.

455E.book Page 3 Thursday, March 20, 2003 7:44 PM

Setting up

Connection

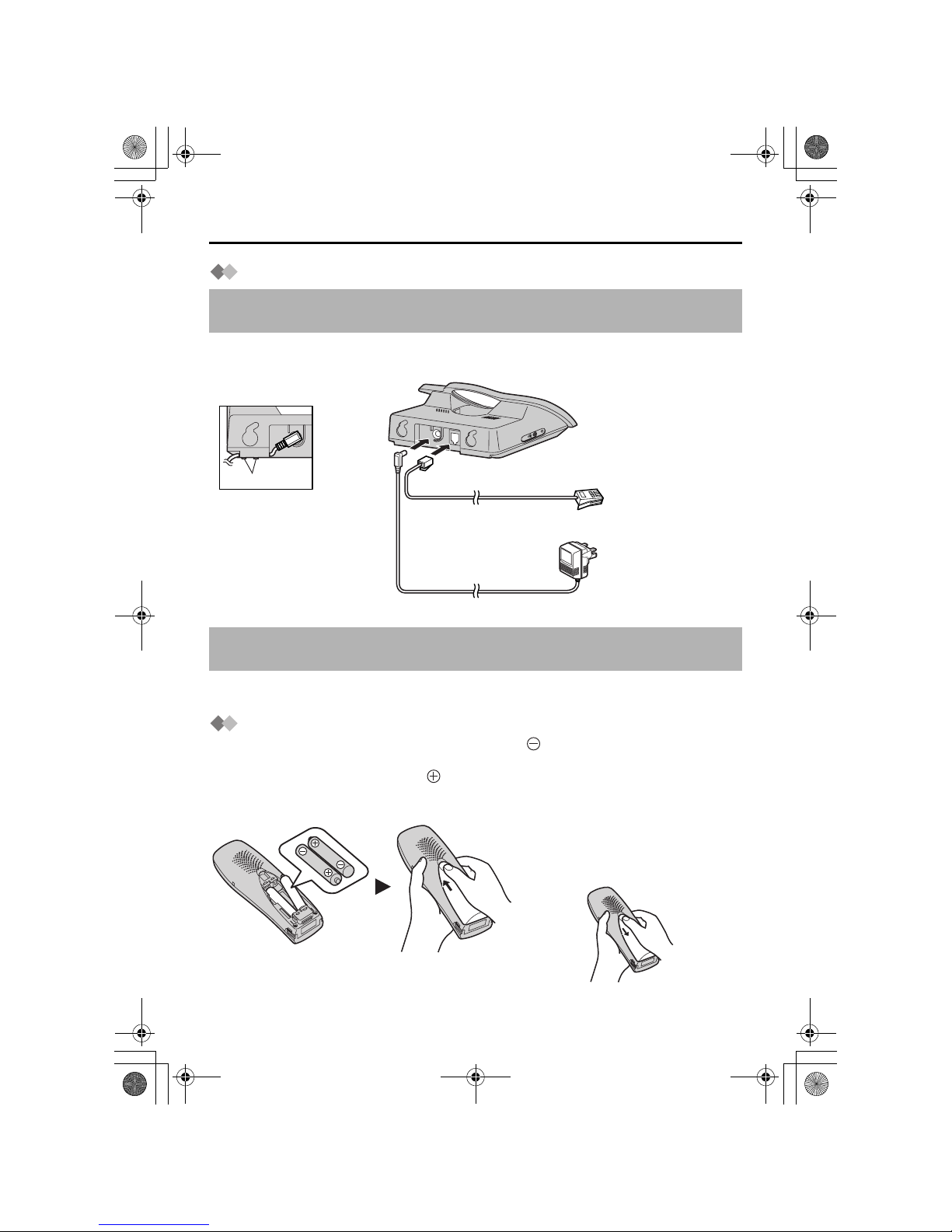

Plug in the AC adaptor and the telephone line cord in order 1, 2, 3.

(Switch on AC mains outlet.)

•Never install telephone wiring during a lightning storm.

Battery Installation

Please ensure the batteries are inserted as shown. part should be inserted first.

Close the cover as indicated by the arrow.

•When you replace the batteries, part should be removed first.

Do not connect the telephone line cord to the phone socket 4until the handset is fully

charged.

The AC adaptor must remain connected at all times (It is normal for the adaptor to feel

warm during use).

Fasten the AC adaptor

cord to prevent it from

being disconnected.

Hook

LINE

To replace the batteries:

Press the notch on the cover firmly

and slide it as indicated by the arrow

Replace both batteries and close the

cover then charge the handset for

about 7 hours.

455E.book Page 4 Thursday, March 20, 2003 7:44 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 5

Preparation

Setting up

Battery Charge

At the time of shipment, the batteries are

not charged. To charge, place the

handset on the base unit. Please charge

the batteries for about 7 hours before

initial use. During charging, the battery

icon is as shown below.

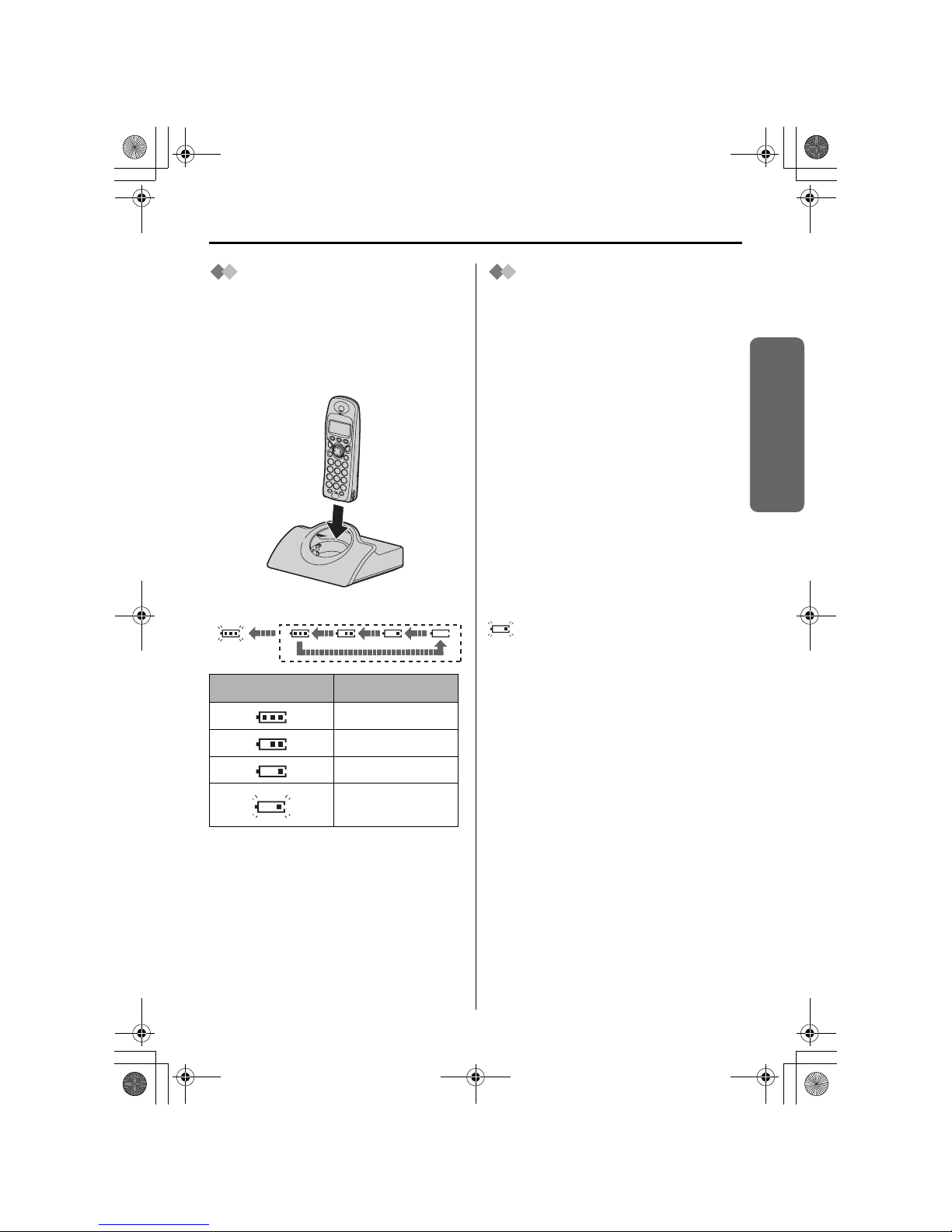

Fully charged During charging

The handset which power is off will be

turned on automatically when it is placed

on the base unit.

In normal use, the handset and the base

unit should be turned on at all times.

Battery Life

Battery life is dependent on use and

conditions but in general when using fully

charged Ni-MH batteries (700 mAh):

Talk time: 10hrs approx.

Standby time: 120hrs approx.

When using Ni-Cd batteries (250 mAh):

Talk time: 4hrs approx.

Standby time: 40hrs approx.

(Times indicated are for peak

performance)

The batteries reach peak performance

after several full charge/discharge cycles.

The batteries cannot be overcharged

unless they are repeatedly removed and

replaced.

If battery life is shortened then please

check that battery and charge terminals

are clean.

For maximum battery life, it is

recommended that the handset not be

recharged until the battery icon flashes

Display icon Battery strength

High

Medium

Low

Needs to be

charged

(Flashing)

455E.book Page 5 Thursday, March 20, 2003 7:44 PM

Setting up

Symbols Used in This Operating Instructions

Replacing the Batteries

If the icon flashes after a few telephone calls even when the handset batteries have

been fully charged, both batteries must be replaced.

Charge new batteries for approximately 7 hours before initial use.

(The telephone line cord must not be connected to the telephone socket at this

time.)

When replacing the batteries, ensure that the correct battery type is selected.

Selecting the Battery Type

•To exit the operation, press any time.

•Do not use non-rechargeable batteries. If non-rechargeable batteries are fitted and

start charging, it may cause the leakage of the battery electrolyte.

Please use only Panasonic P03P(Ni-MH) or P03H(Ni-Cd) batteries.

Symbol Meaning

To search for the desired item, press UP or DOWN.

To select the desired item, press RIGHT.

To search for and then select the desired item, press UP or DOWN then

RIGHT.

To move the cursor to the right or to the left, press RIGHT or LEFT.

To go to the next step.

""The words in ""indicate the words in display.

Press

MENU.

Search/Select

"Other Option".

Search/Select

"Setting Handset".

12 3

Search/Select

"Battery Type".

Search/Select

"Ni-Cd" or "Ni-MH".

455E.book Page 6 Thursday, March 20, 2003 7:44 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 7

Preparation

Setting up

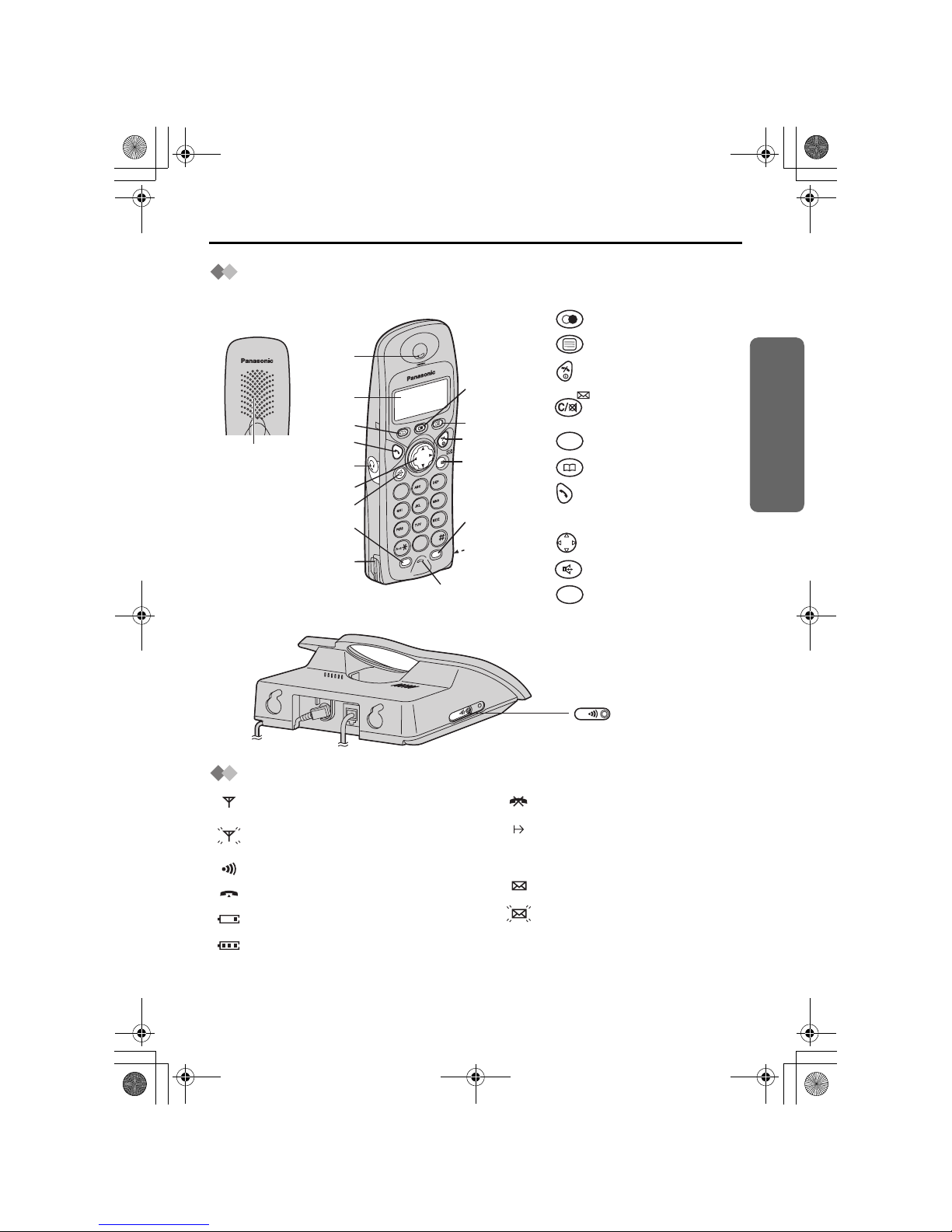

Location of Controls

Handset

Base unit

Handset Display

1 - REDIAL/PAUSE Button

2 - MENU/OK Button

3 - OFF/POWER Button

4 - CLEAR/MAIL/MUTE

Button

5 - INTERCOM Button

6 - PHONEBOOK Button

7 - TALK Button

8 - Headset Jack

9 - Navigator Key

10 - SPEAKERPHONE Button

11 - RECALL Button

INT

Charge

Contact

Charge

Contact

Display

Receiver

Microphone

Rear side

Speaker

INT

LINE

PAGE Button

and Indicator

Within range of a base unit

Out of range/No registration/

No power on base unit

Paging

Making or answering calls

Battery strength is low.

Battery strength is high.

Call Bar On (p.34)

Direct Call On (p.35)

Key Lock On (p.36)

SMS mail icon

An SMS mail (text message)

has arrived. If flashing quickly,

SMS memory is full.

[X]

455E.book Page 7 Thursday, March 20, 2003 7:44 PM

Using the Telephone

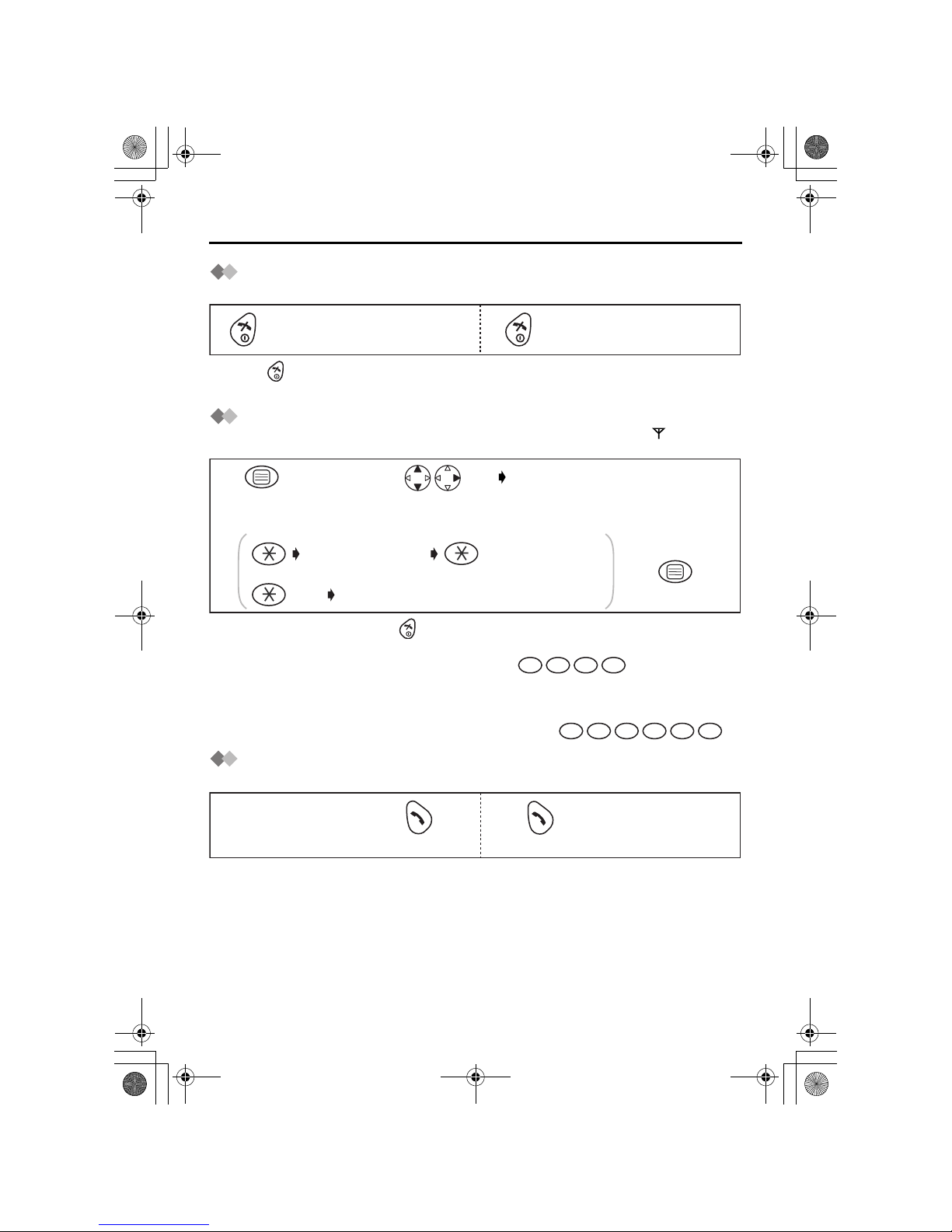

Power On/Off

Power on Power off

*1 When button is released, the display changes to the standby mode.

*2 The display goes blank.

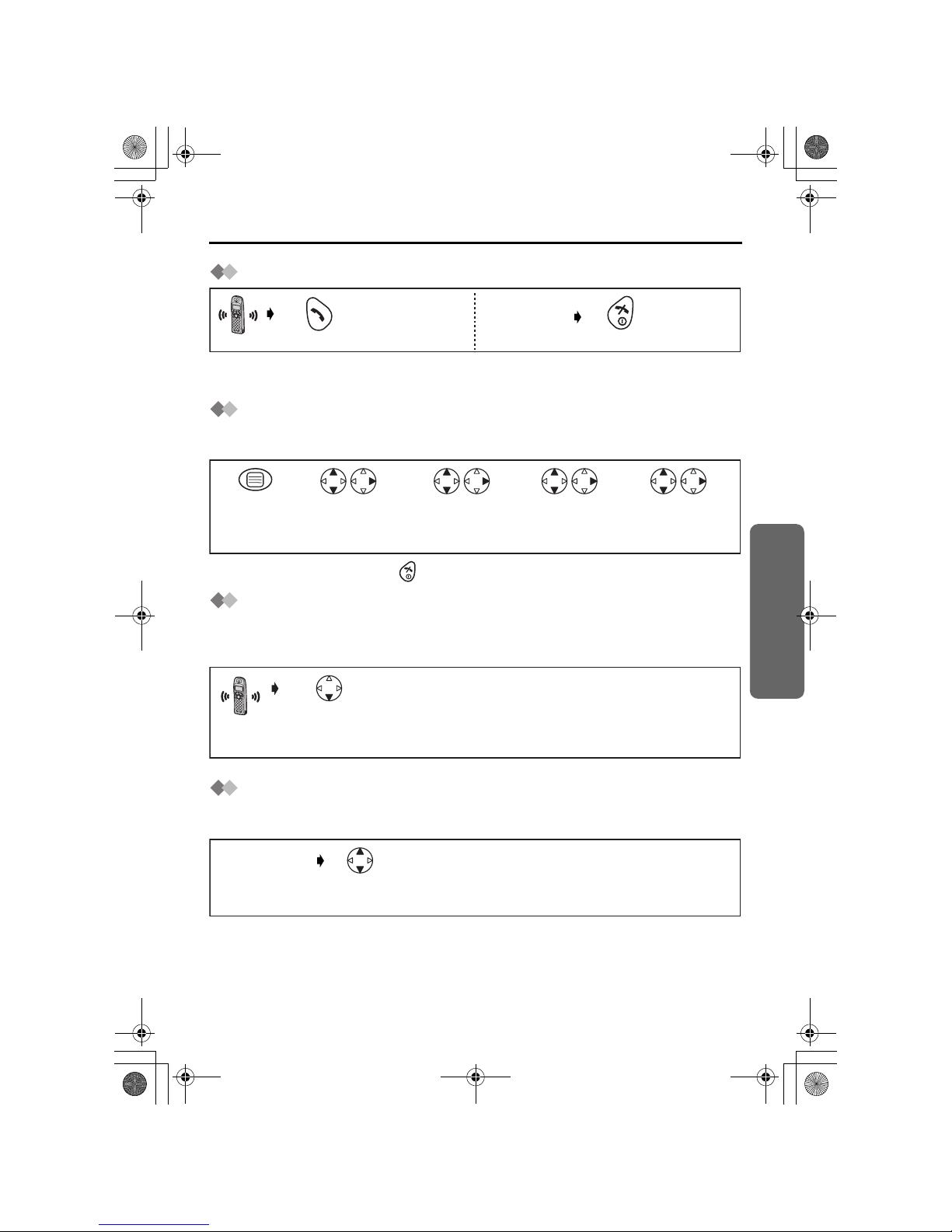

Setting the Clock/Date

After a mains power failure the clock needs to be reset. Ensure that the icon is not

flashing.

•To exit the operation, press any time.

*1 You can enter the time in 12 hour clock or 24 hour clock.

For example, to set 7:15 (12 hour clock), press .

If you enter the time in 24 hour clock, go to step 4.

*2 If AM or PM is not selected, display will show 24 hour clock even if the time has been

entered in 12 hour clock.

*3 For example, to set the 16th of February, 2003, press .

Making a Call

Pre-dialling Post-dialling

*1 If you need to make a correction, press CLEAR. The digit is cleared to the left, then

you can enter numbers. All digits are cleared if you press and hold CLEAR.

*2 You can also press SPEAKERPHONE to make a call.

Press for more than

2 seconds. *2

Press for more than

2 seconds. *1

"Input Command"

Press MENU.Search/Select

"Setting Base".

Press OK.

Time

Enter time. 4-digit.*1 Select AM or PM.*2

Date

Enter day, month then year.*3

twice

0715

160203

Press TALK.*2

Phone Number

Press TALK.*2

Phone Number

1122

455E.book Page 8 Thursday, March 20, 2003 7:44 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 9

Cordless Telephone

Using the Telephone

Answering a Call Terminating a Call

*1 You can also answer a call by pressing a dialling button, INTERCOM, t, xor

SPEAKERPHONE.

Auto Talk

If you set Auto Talk to on, you can answer the phone by lifting the handset off the base

unit.

•To exit the operation, press any time.

Temporary Bell Off

When an external call is ringing, you can temporarily turn off the handset ringer.

This function will not work when the handset is on the base unit or if an internal call is

ringing.

Receiver Volume/Speaker Volume

During a call, press UP or DOWN to change the receiver/speaker volume setting. There

are 6 levels for speaker volume, and 3 levels for receiver volume.

Press TALK.

(During a call)

Press OFF.

Search/Select

"ON" or "OFF".

Search/Select

"Other

Option".

Press

MENU.Search/Select

"Setting

Handset".

Search/Select

"Auto Talk".

12 345

Press and hold

DOWN for

over 1 second.

(During a call)

Press UP or

DOWN.

455E.book Page 9 Thursday, March 20, 2003 7:44 PM

Using the Telephone

Handset Locator/Paging

You can locate a misplaced handset by paging it.

*1 You can also stop paging by pressing a dialling button, INTERCOM, t, xor

SPEAKERPHONE.

Speakerphone

Have a Hands-Free Phone Conversation (using Digital Speakerphone)

Handsfree allows you to talk to your caller without holding the handset and allows other

persons in the room to listen to the conversation.

•For best performance, please note the following:

- Talk alternately with the caller in a quiet environment.

- If either party has difficulty hearing, press UP or DOWN to change the volume

accordingly. The choices for the receiver (or headset receiver) volume are 3 levels,

and 6 levels for speakerphone volume.

- During a conversation you can switch to hands-free by pressing SPEAKERPHONE.

To switch back to the receiver, press TALK or SPEAKERPHONE.

Turning the Mic On/Off

During a telephone conversation, you can mute the mic. When the mic is turned off, it

disables the caller from hearing your conversation. This feature is useful if you want to

say something to someone in the same room as yourself without the caller being able to

hear your conversation.

Press on the base unit.

Press on the base unit OR on one of the handsets.

All registered handsets ring for 1 minute.

Phone Number

Press OFF

to finish conversation.

Press SPEAKERPHONE.

123

(During a call)

Press MUTE

to turn the

mic off.

Press MUTE

to return to the

conversation.

Press OFF

to finish conversation.

455E.book Page 10 Thursday, March 20, 2003 7:44 PM

Tabla de contenidos

Otros manuales de Teléfono inalámbrico de Panasonic

Panasonic

Panasonic KX-TC1486B - 900 MHz Analog Cordless Phone Manual de usuario

Panasonic

Panasonic KXTC909B - CORDLESS 900 ANALOG Manual de usuario

Panasonic

Panasonic KX-TG7200E Manual de usuario

Panasonic

Panasonic KX-TG2770S Manual de usuario

Panasonic

Panasonic KX-TG3411BX Manual de usuario

Panasonic

Panasonic KX-TU301FX Manual de usuario

Panasonic

Panasonic KX-TG1311E Manual de usuario

Panasonic

Panasonic KX-TG7622, KX-TG7623, KX-TG762 Manual de usuario

Panasonic

Panasonic KX-TGA910E Manual de usuario

Panasonic

Panasonic KX-TG4000B Manual de usuario

Panasonic

Panasonic KX-TGA421 Manual de usuario

Panasonic

Panasonic KX-TG8107UA Manual de usuario

Panasonic

Panasonic KX-TD7685 - Wireless Digital Phone Manual de usuario

Panasonic

Panasonic KX-TC1035BXW Manual de usuario

Panasonic

Panasonic TGB810S Manual de usuario

Panasonic

Panasonic KXT4310B - CORDLESS/ANS MAC/HYB Manual de usuario

Panasonic

Panasonic KX-TPA60 Manual de instrucciones

Panasonic

Panasonic KX-TGD58 M2 Series Manual de usuario

Panasonic

Panasonic KX-TGF675 Manual de usuario

Panasonic

Panasonic KX-TG2711HK Manual de usuario

Panasonic

Panasonic KX-TCC116ALW Manual de usuario

Panasonic

Panasonic KXTGA820 - EXPND DIGITAL CORDLESS HANDSET Manual de instrucciones

Panasonic

Panasonic KX-TGE260 Manual de usuario

Panasonic

Panasonic KX-TG9471C Manual de usuario

Manuales populares de Teléfono inalámbrico de otras marcas

3Com

3Com NBX Manual de usuario

BT FREESTYLE 3200 Manual de usuario

AT&T

AT&T CL84102 Manual de usuario

BREZZICNI

BREZZICNI CL-3622 Manual de usuario

Furuno

Furuno FM-4721 Manual de usuario

Sanyo

Sanyo CLT-J70 Manual de usuario

Amplicomms

Amplicomms BigTel 201 Manual de usuario

GE 26992 Manual de usuario

AT&T

AT&T E1812B Manual de usuario

Sanyo

Sanyo CLT-670 Manual de usuario

GE 15432970 Manual de usuario

Curtis

Curtis TC595 Manual de usuario

Gigaset

Gigaset Gigaset 3000 Micro Manual de usuario

Poly

Poly VVX D230 Guía de configuración

AT&T

AT&T 7625 Manual de usuario

GE 27930 Manual de usuario

Radio Shack

Radio Shack 43-3557 Manual de usuario

Uniden

Uniden D1785 Series Manual de usuario
