Panasonic CQ-VX2200W Manual de usuario

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

CQ-VX2200W

Operating Instructions

¡Please read these instructions carefully before using this product and keep this manual for future reference.

SKIP

DISC

REP

SCAN

TPS

LOC

B NR

SPACE

POSI

MTL

DISP SPACE

123456

REMOTE

REVERSE

SOURCE

OPEN

S·A

D·M

REPEAT

DSP SPACEDISPLAY CLOCK

SEL S·A

TUNE

TRACK

SCANRANDOM

CQ-VX2200

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

MTL B NR TPS SKIP

MUTE

VOL

AUTO·P

S·ANALYZER

PWR

Human

Equalizer

FM■ DISC

AM45DISC

2CQ-VX2200W

CAUTION:

THIS PRODUCT IS A CLASS ILASER PROD-

UCT.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, AND ANNOYING INTERFERENCE, USE

ONLY THE INCLUDED COMPONENTS.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted

with safety protection.

Safety Information

Contents Page

Safety Information ......................................... 2

Use This Product Safely ................................ 8

Components ................................................... 8

Remote Control .............................................. 10

Name of Controls and Functions .................. 11

Power and Basic Operations ........................ 12

Radio Basics .................................................. 14

CD Player Basics ........................................... 16

Cassette Tape Player Basics ........................ 18

CD Changer Control ...................................... 20

Sound Space and Useful Functions ............ 22

Sound Setting ................................................ 26

Other Setting .................................................. 30

Installation Guide ........................................... 32

Electrical Connections ................................... 36

Troubleshooting ............................................. 39

Maintenance ................................................... 44

Specifications ................................................. 45

CQ-VX2200W

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this

product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechani-

cal engineering, manufactured with carefully selected components and assembled by people who take

pride in their work. Once you discover the quality, reliability, and value we have built into this product, you

too will be proud to be a member of our family.

When Driving

Keep the volume level low enough to be aware of road

and traffic conditions.

When Washing Your Car

Do not expose the product, including the speakers, CDs

and tapes to water or excessive moisture. This could

cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high tempera-

tures inside your car. Give the interior a chance to cool

down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, nega-

tive ground battery system.

Disc Mechanism

Do not insert coins or any small objects. Keep screw-

drivers and other metallic objects away from the disc

mechanism and disc.

Tape Mechanism

Keep magnets, screwdrivers or other metallic objects

away from the tape mechanism and tape head to prevent

poor performance or malfunctions.

Use Authorized Service Centers

This product is made of precision parts. Do not attempt

to disassemble or adjust any parts. For repair, please

consult your nearest authorized Panasonic Service

Center.

For Installation

The product should be installed in a horizontal position

with the front end up at a convenient angle, but not more

than 30˚.

❏Use This Product Safely

❏Components

¡Operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . 1

¡Installation hardware . . . . . . . . . . . . 1 set (apage 32)

¡Power connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

¡Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 1

¡Lithium battery (CR2025) . . . . . . . . . . . . . . . . . . . . . . 1

10 CQ-VX2200W

Remote Control

¡Do not disassemble or short

the battery. Do not throw a bat-

tery into a fire.

¡Keep batteries away from chil-

dren to avoid the risk of acci-

dents.

¡Be careful to observe proper

local disposal rules when you

dispose of batteries.

Caution: Improper use of bat-

teries may cause overheating,

an explosion, ignition, resulting

in injury or a fire. Battery leak-

age may damage the unit.

¡Battery Type:

Panasonic lithium battery

(CR2025)

¡Battery Life:

Approximately 6 months with

normal use (at room temperature)

Battery Installation

Back side

Lithium battery

(+ side face up)

Battery holder

qWhile pushing

wPull

eInstall the

battery

Control Reference Guide

Point the remote control unit at the main unit’s sensor (REMOTE).

PWR (Power)

¡Power ON/OFF MUTE / ATT (Attenuator)

¡Mute the sound temporarily

¡Decrease the volume to 1/10

VOL (Volume)

¡Adjust volume

SEL (Select)

¡Select the setting item

¡Change MONO/LOCAL

DISP (Display)

¡Change display

BAND

¡Change band

¡Auto preset memory

PRG (Program)

¡Reverse the tape play

side

■(Stop)

¡Stop the tape rewind or

fast forward

Spectrum Analyzer

¡Change Spectrum Analyzer pattern

¡Arrange Spectrum Analyzer

DIMMER

¡Change the dimmer level

SPACE

¡Change sound space

SOURCE

¡Change source

][ (TUNE) / 1 2 (TRACK)

¡Change frequency

¡Change track

¡Select / Adjust the item

}{(DISC)

¡Change disc

¡Select / Adjust the item

DISP SPACE

123456

REMOTE

REVERSE

SOURCE

OPEN

S·A

D·M

REPEAT

DSP SPACEDISPLAY CLOCK

SEL S·A

TUNE

TRACK

SCANRANDOM

CQ-VX2200

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

MTL B NR TPS SKIP

MUTE

VOL

AUTO·P

S·ANALYZER

PWR

Human

Equalizer

FM■ DISC

AM45DISC

SKIP

DISC

REP

SCAN

TPS

LOC

B NR

SPACE

POSI

MTL

CQ-VX2200W

CD EJECT

CST EJECT

CD IN

CST IN

LARGE FLUORESCENT DISPLAY ■

41W x4CH AMPLIFIER ■

15 BAND SPECTRUM ANALYZER ■

FLIP DOWN PANEL ■

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

RESET

CD Slot

Cassette Tape Slot

Reset Switch

CST (Cassette tape)

u(Eject)

CD u(Eject)

Name of Controls and Functions

][ (TUNE) / s d (TRACK)

¡Change frequency

¡Change track

¡Select / Adjust the item

SPACE

¡Change sound space

REMOTE

(Remote control sensor)

SEL (Select)

¡Select the setting

item

DISP (Display)

¡Change display

Display (VFD)

S•A (Spectrum Analyzer)

¡Change Spectrum Analyzer pattern

¡Arrange Spectrum Analyzer

OPEN

¡Open the panel

PWR (Power) / SOURCE

¡Power ON/OFF

¡Change source

D•M (Direct Memory)

¡Recall the direct memory

¡Memorize the frequency

MUTE / ATT (Attenuator)

AUTO•P (Auto Preset Memory)

¡Mute the sound temporarily

¡Decrease the volume to 1/10

¡Auto preset memory

}{(DISC)

¡Change band

¡Change tape side

¡Change disc

¡Select / Adjust the item

VOL (Volume)

¡Adjust volume

1 to 6

¡Preset memory / Recall preset memory

¡Memorize GEQ level adjustment / Recall GEQ level adjustment

¡Random ....... [4]

¡Scan ............. [5]

¡Repeat .......... [6]

For details about terminals

on the rear of the unit, please

see "Electrical Connections"

(apage 37)

Behind the Front Panel

12 CQ-VX2200W

DISP SPACE

123456

REMOTE

REVERSE

SOURCE

OPEN

S·A

D·M

REPEAT

DSP SPACEDISPLAY CLOCK

SEL S·A

TUNE

TRACK

SCANRANDOM

CQ-VX2200

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

MTL B NR TPS SKIP

MUTE

VOL

AUTO·P

S·ANALYZER

PWR

Human

Equalizer

FM■ DISC

AM45DISC

VOLUME 20

Volume

Power on : Press

Power off : Press again and hold

Power On / Off

: Press Setting Range : 0 to 40

¡ACC

¡ON

Turn the key in the ignition until

the accessory indicator lights.

Preparation

SOURCE

PWR

DISP

¡The sound level for each source is stored in memory.

(For radio, one volume setting for AM, one volume

setting for all FMs.)

OPEN

Display Change

: Press

DISP

When Power is Off

Example: CD Mode

Clock display

Display off

VOLUME 20

Clock display

Dot Spectrum Analyzer display

Track number/Track playing time

CD 01 0’37

8:15

Power and Basic Operations

¡When you use this unit for the first

time, a demonstration message

appears on the display.

: Press to cancel this display

SOURCE

: Press and hold for more than

1 second when turning

power on to display a

demonstration message

again

Press 2

times

CQ-VX2200W

Decreasing volume range depends on setting.

(MUTE/ATT setting apage 30)

¡MUTE : No sound (Default)

¡ATT:Decrease the volume to 1/10 of previous level.

TUNER CD TAPE

AUXILIARY CHANGER

Mode Selection

Note: Skipping “AUXILIARY” can be set. (apage 30)

Mute / ATT (Attenuator)

: Press to select

Clock Setting

: Press to move to

minute

: Press and hold for

more than 2 seconds

: Press to adjust hour

: Press to adjust minute

12:00

8:00

8:15

DISP

DISPLAY CLOCK

DISP

DISPLAY CLOCK

SOURCE

(When a CD is

in the player.) (When a tape is

in the player.)

(When a changer with

a magazine loaded is

connected.)

(When AUX-IN

setting is ON.)

: Press

(Press again to cancel)

MUTE

: Press to set

Notes:

¡If clock is not adjusted, “ADJUST” will be appear.

¡The 12-hour system is used for the clock.

¡The clock is not adjustable when power is off.

MUTE ON

: Press to determine the

AM band

DISP SPACE

123456

REMOTE

REVERSE

SOURCE

OPEN

S·A

D·M

REPEAT

DSP SPACEDISPLAY CLOCK

SEL S·A

TUNE

TRACK

SCANRANDOM

CQ-VX2200

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

MTL B NR TPS SKIP

MUTE

VOL

AUTO·P

S·ANALYZER

PWR

Human

Equalizer

FM■ DISC

AM45DISC

LOC

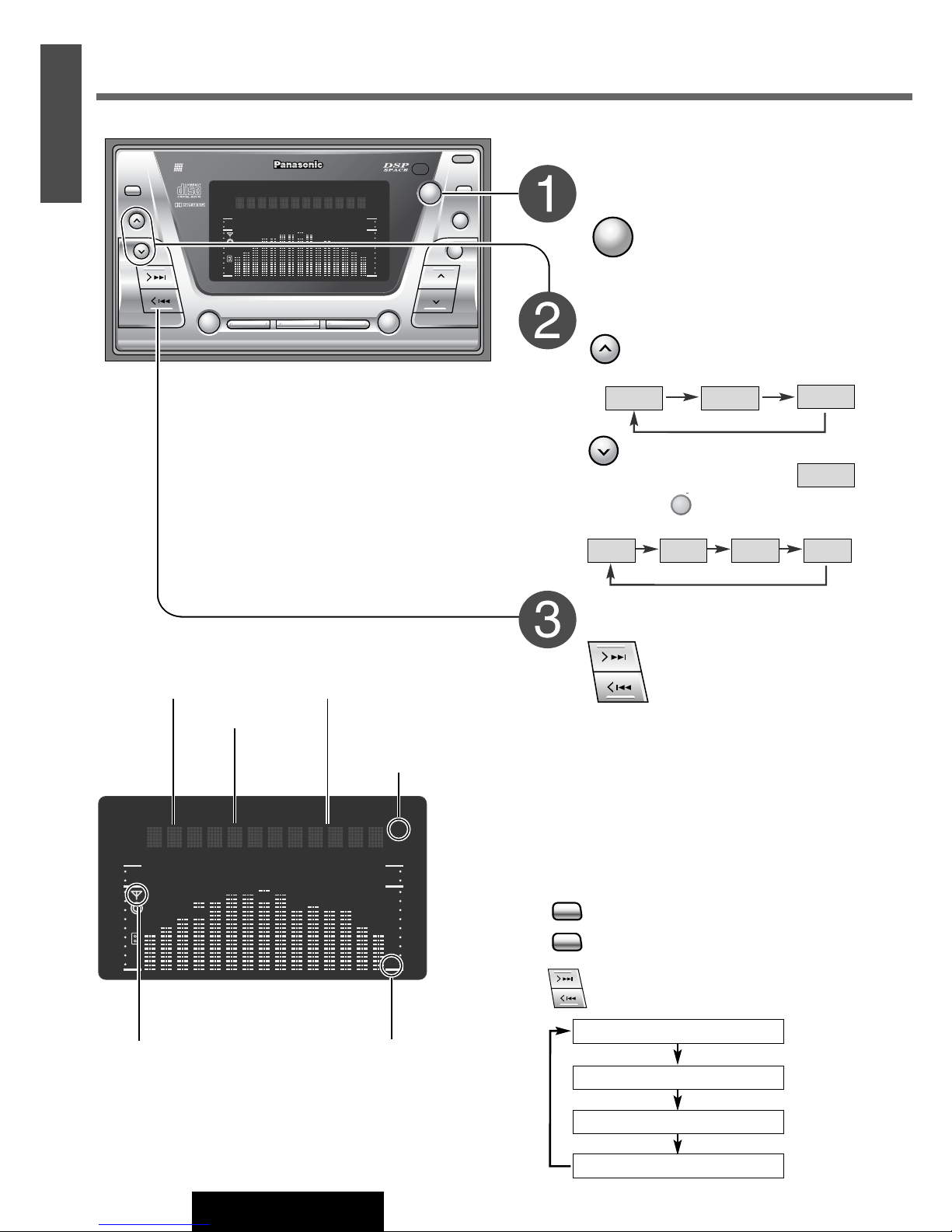

FM1-1 87.50

14 CQ-VX2200W

LOC

FM1-1 87.50

FM1 FM2 FM3

Mono / Local selection

MONO OFF/LOCAL OFF

MONO: Reduce noise during a weak FM broadcast.

LOCAL: Searching stops at a strong signal only.

MONO ON/LOCAL OFF

MONO ON/LOCAL ON

MONO OFF/LOCAL ON

q:Press and hold for more than 2 seconds.

w:Press to select MONO/LOCAL

e:Press to change the display as follows.

SEL

FM1 FM2 FM3 AM

Radio Basics

SOURCE

: Press to select the radio

mode

: Press to select an FM

band

: Higher frequency

: Lower frequency

Press and hold for more than 0.5 seconds

then release.

Seeking will start.

Band Frequency

FM Stereo Indicator

lights while FM stereo

broadcast is received.

LOCAL Indicator

lights while in LOCAL

mode.

Preset Number

When in Radio Mode

Mode Selection

Band

Tuning

Note: Press when using the remote

control

BAND

PRG/

CQ-VX2200W

Select a band and frequency (step q, wand e on the

previous page)

Preset Station Setting

Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.

Select a band (step q and won the previous page)

Preset

Station

Calling

Auto Preset

Memory

Automatically save

strong stations in the

preset memory.

Manual

Preset

Memory

Manually save a station

in the preset memory.

FM1-2 102.70

FM1-1 87.50

MUTE

AUTO·P

Note: New stations are overwritten on existing saved stations after following this procedure.

: Press and hold for more than 2 seconds

¡The 6 strongest available stations will be automatically saved

in the memory under preset numbers 1 to 6.

¡Once set, the preset stations are sequentially scanned for 5

seconds each.

to :Press to select the station.

Blinks once

Blinks

to :Press to select the station.

to : Press and hold for more than 2 seconds

¡The display blinks once, and a

receiving station is saved in

the memory.

RESET

CD EJECT

MD EJECT

MDIN

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

VX2200

DISP SPACE

123456

REMOTE

REVERSE

SOURCE

OPEN

S·A

D·M

REPEAT

DSP SPACEDISPLAY CLOCK

SEL S·A

TUNE

TRACK

SCANRANDOM

CQ-VX2200

INTEGRATED CD/CASSETTE RECEIVER WITH DSP

MTL B NR TPS SKIP

MUTE

VOL

AUTO·P

S·ANALYZER

PWR

Human

Equalizer

FM■ DISC

AM45DISC

REP

SCAN

MTL

CD 01 0’37

16 CQ-VX2200W

REP

SCAN

MTL

CD 01 0’37

If lights, a CD has been already loaded.

: Press to open the panel

¡Insert the disc and playback will start.

Close the front panel manually.

OPEN

When a CD is inside

(Blinks during CD play)

CD Player Basics

SOURCE

Disc Insert / Eject

CD u(Eject) Button Label Side

Mode Selection

: Press to select the CD

mode

: Next track

Press and hold

: Beginning of the current track/

Previous track (Press twice)

Track Selection

Fast Forward / Reverse

: Fast forward

: Fast reverse

¡Release to resume the regular CD play.

Track Number Play Time

Repeat, Random and

Scan Indicator

Cautions:

¡Do not use irregularly shaped CDs.

¡To avoid damaging the front panel, do not push it

down or place objects on it while it is open.

¡Do not pinch your finger or hand in the front

panel. Do not insert foreign matter into the disc

and cassette tape slots.

Notes:

¡Loading a CD when the power is off allows the

power to be turned on.

¡Ejecting the CD when the unit is in the CD mode

allows the power to be turned off.

When a CD is in the player

Caution: Only 12 cm CD is available for this unit.

Tabla de contenidos

Otros manuales de Receptor de coche de Panasonic

Panasonic

Panasonic CQ-DFX683 Manual de usuario

Panasonic

Panasonic CQE15EUC - AUTO RADIO/CASSETTE Manual de usuario

Panasonic

Panasonic CQC1304U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQDPX172U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQRG131U - AUTO RADIO/CASSETTE Manual de usuario

Panasonic

Panasonic CQDP383U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic C1303U Manual de usuario

Panasonic

Panasonic CQ-EF7160A Manual de usuario

Panasonic

Panasonic CQ-DPX152 Manual de usuario

Panasonic

Panasonic CQ-5800U - Double DIN Heavy Duty MP3 Manual de usuario

Panasonic

Panasonic CQDF602U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQDF601U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQC1101U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQ-VD7005W Manual de usuario

Panasonic

Panasonic CQ-C9701N Manual de usuario

Panasonic

Panasonic CQ-DRX900U Manual de usuario

Panasonic

Panasonic CQDF202U - AUTO RADIO/CD DECK Manual de usuario

Panasonic

Panasonic CQ-C7703N Manual de usuario

Panasonic

Panasonic CQ-DVR7000U Manual de usuario

Panasonic

Panasonic CQDFX683U - AUTO RECEIVER Manual de usuario

Panasonic

Panasonic CQ-DX200W Manual de usuario

Panasonic

Panasonic CQ-DVR7000U Manual de usuario

Panasonic

Panasonic PP105168 Manual de usuario

Panasonic

Panasonic CQ-DF801 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
