Panasonic CQ-DFX572N Manual de usuario
cqdfx572n.html
Table Of Contents
COVER
1 FEATUERS
2 REPLACEING THE FUSE
3 MAINTENANCE
4 RADIO ALIGNMENT
5 CD DECK ALIGNMENT
6 LASER PRODUCTS
7 DIMENSIONS
8 WIRING CONNECTION
9 TERMINALS
DESCRIPTION
9.1 Main Block
9.2 Display Block
9.3 CD Servo Block
10 PACKAGE AND IC
BLOCK DIAGRAM
10.1 Main Block
10.2 CD Servo Block
11 REPLACEMENT PARTS
LIST
12 EXPLODED VIEW
(Unit)
13 CD PLAYER PARTS
14 EXPLODED VIEW (CD
Deck)
15 WIRING DIAGRAM
15.1 Display Block
15.2 Main Block (Top View)
15.3 Main Block (Bottom
View)
15.4 CD Servo Block (Top
View)
15.5 CD Servo Block
(Bottom View)
15.6 Front SW/ Interface
Block
Service Manual
TOP NEXT
ORDER No. ACED020271C8
AUTOMOTIVE CONSUMER ELECTRONICS
●CQ-DFX572N
MP3 CD Player/ Receiver with CD Changer Control
Specification*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Current Consumption Less than 2.5A (CD mode, 0.5W×4-Speaker)
Maximum Power Output 50W×4 (at 4Ω)
Power Output 22W×4 (DIN45 324, at 4Ω)
Speaker Impedance 4-8Ω
External Input Impedance 10kΩ(AUX IN)
file:///C|/Documents and Settings/Tolik/Рабочий стол/CQ-DFX572N.htm (1 of 3)04.11.2005 13:42:22
cqdfx572n.html
16 SCHEMATIC
DIAGRAM
16.1 Main Block
16.2 Display Block
16.3 CD Servo Block
16.4 Front SW/ Interface
Block
17 BLOCK DIAGRAM
17.1 Main Block
17.2 Display/
Interface/ Front SW Block
17.3 CD Servo Block
18 SCHEMATIC DIAGRAM
for Printing with Letter Size
18.1 Main Block (Left Side)
18.2 Main Block (Right Side)
18.3 Display Block (Left
Side)
18.4 Display Block (Right
Side)
18.5 CD Servo Block (Left
Side)
18.6 CD Servo Block (Right
Side)
18.7 Front SW/ Interface
Block
External Input Sensitivity Max. 2V (AUX IN)
Pre-AMP Output Voltage 2.5V (CD mode)
Pre-AMP Output Impedance 200Ω
Sub-Woofer Output Voltage 2.5V
FM Stereo Radio
Frequency Range 87.5 - 108MHz
Usable Sensitivity 6dB/μV (S/N 30dB)
Stereo Separation 35dB (at 1kHz)
MW Radio
Frequency Range 531 - 1,602kHz
Usable Sensitivity 29 dB/μV (S/N 20dB)
LW Radio
Frequency Range 153 - 279kHz
Usable Sensitivity 34dB/μV (S/N 20dB)
CD Player
Sampling Frequency 8 times over sampling
DA Converter MASH 1bit/4 DAC system
Error Correction System Panasonic super decoding algorithm
Pick-Up Type Astigma 3-beam
Light Source Semiconductor Laser
Wavelength 780nm
Frequency Response 5Hz - 20kHz (±1dB)
Signal to Noise Ratio 90dB
Total Harmonic Distortion 0.01% (1kHz)
Wow and Flutter Below measurable limits
Channel Separation 70dB
MP3 Decoding MPEG1 Audio Layer3/ MPEG2 Audio Layer3
Bit Rate (MPEG1 Audio Layer3) 32kbps-256kbps, VBR (Variable Bit Rate)
(MPEG2 Audio Layer3) 16kbps-160kbps, VBR (Variable Bit Rate)
Sampling Frequency (MPEG1 Audio Layer3) 32kHz, 44.1kHz, 48kHz
(MPEG2 Audio Layer3) 22.05kHz, 24kHz
Dimensions ** (W× H× D) 178×50×150mm
file:///C|/Documents and Settings/Tolik/Рабочий стол/CQ-DFX572N.htm (2 of 3)04.11.2005 13:42:22
cqdfx572n.html
Weight ** 1.6kg
* Specifications and the design are subject to possible modification without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2002 Matsushita Communication Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a
violation of law.
TOP NEXT
file:///C|/Documents and Settings/Tolik/Рабочий стол/CQ-DFX572N.htm (3 of 3)04.11.2005 13:42:22
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html

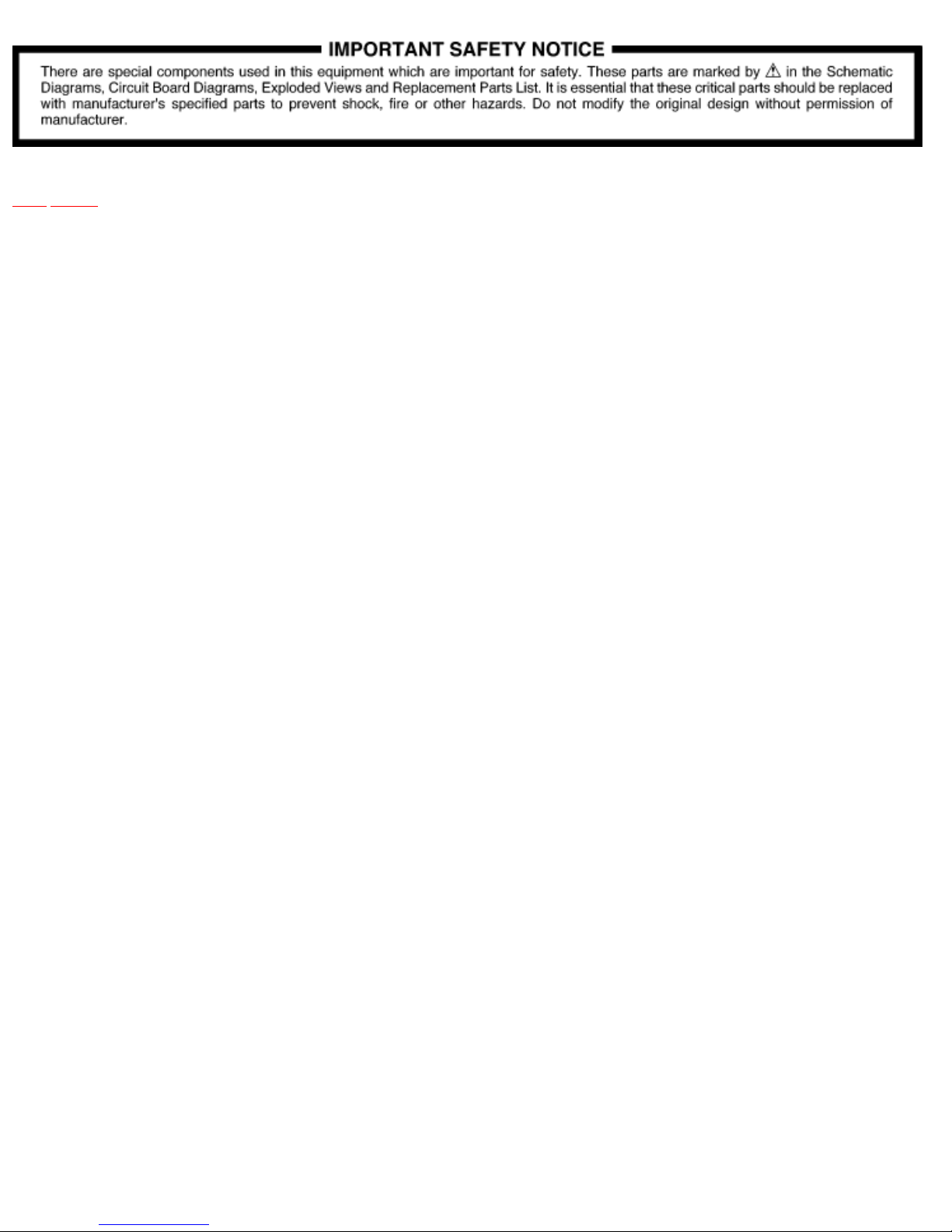

Service Manual
TOP NEXT
ORDER No. ACED020271C8
AUTOMOTIVE CONSUMER ELECTRONICS
●CQ-DFX572N
MP3 CD Player/ Receiver with CD Changer Control
Specification*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Current Consumption Less than 2.5A (CD mode, 0.5W×4-Speaker)
Maximum Power Output 50W×4 (at 4Ω)
Power Output 22W×4 (DIN45 324, at 4Ω)
Speaker Impedance 4-8Ω
External Input Impedance 10kΩ(AUX IN)
External Input Sensitivity Max. 2V (AUX IN)
Pre-AMP Output Voltage 2.5V (CD mode)
Pre-AMP Output Impedance 200Ω
Sub-Woofer Output Voltage 2.5V
FM Stereo Radio
Frequency Range 87.5 - 108MHz
Usable Sensitivity 6dB/μV (S/N 30dB)
Stereo Separation 35dB (at 1kHz)
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html (1 of 3)04.11.2005 13:42:43
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html
MW Radio
Frequency Range 531 - 1,602kHz
Usable Sensitivity 29 dB/μV (S/N 20dB)
LW Radio
Frequency Range 153 - 279kHz
Usable Sensitivity 34dB/μV (S/N 20dB)
CD Player
Sampling Frequency 8 times over sampling
DA Converter MASH 1bit/4 DAC system
Error Correction System Panasonic super decoding algorithm
Pick-Up Type Astigma 3-beam
Light Source Semiconductor Laser
Wavelength 780nm
Frequency Response 5Hz - 20kHz (±1dB)
Signal to Noise Ratio 90dB
Total Harmonic Distortion 0.01% (1kHz)
Wow and Flutter Below measurable limits
Channel Separation 70dB
MP3 Decoding MPEG1 Audio Layer3/ MPEG2 Audio Layer3
Bit Rate (MPEG1 Audio Layer3) 32kbps-256kbps, VBR (Variable Bit Rate)
(MPEG2 Audio Layer3) 16kbps-160kbps, VBR (Variable Bit Rate)
Sampling Frequency (MPEG1 Audio Layer3) 32kHz, 44.1kHz, 48kHz
(MPEG2 Audio Layer3) 22.05kHz, 24kHz
Dimensions ** (W× H× D) 178×50×150mm
Weight ** 1.6kg
* Specifications and the design are subject to possible modification without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2002 Matsushita Communication Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation
of law.
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html (2 of 3)04.11.2005 13:42:43
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html
TOP NEXT
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0000000000.html (3 of 3)04.11.2005 13:42:43
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html
Table Of Contents
COVER
1 FEATUERS
2 REPLACEING THE FUSE
3 MAINTENANCE
4 RADIO ALIGNMENT
5 CD DECK ALIGNMENT
6 LASER PRODUCTS
7 DIMENSIONS
8 WIRING CONNECTION
9 TERMINALS DESCRIPTION
9.1 Main Block
9.2 Display Block
9.3 CD Servo Block
10 PACKAGE AND IC BLOCK DIAGRAM
10.1 Main Block
10.2 CD Servo Block
11 REPLACEMENT PARTS LIST
12 EXPLODED VIEW (Unit)
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html (1 of 3)04.11.2005 13:42:49
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html
13 CD PLAYER PARTS
14 EXPLODED VIEW (CD Deck)
15 WIRING DIAGRAM
15.1 Display Block
15.2 Main Block (Top View)
15.3 Main Block (Bottom View)
15.4 CD Servo Block (Top View)
15.5 CD Servo Block (Bottom View)
15.6 Front SW/ Interface Block
16 SCHEMATIC DIAGRAM
16.1 Main Block
16.2 Display Block
16.3 CD Servo Block
16.4 Front SW/ Interface Block
17 BLOCK DIAGRAM
17.1 Main Block
17.2 Display/ Interface/ Front SW Block
17.3 CD Servo Block
18 SCHEMATIC DIAGRAM for Printing with Letter Size
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html (2 of 3)04.11.2005 13:42:49
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html
18.1 Main Block (Left Side)
18.2 Main Block (Right Side)
18.3 Display Block (Left Side)
18.4 Display Block (Right Side)
18.5 CD Servo Block (Left Side)
18.6 CD Servo Block (Right Side)
18.7 Front SW/ Interface Block
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/cqdfx572n.html (3 of 3)04.11.2005 13:42:49
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0100000000x.html
1 FEATUERS
TOP PREVIOUS NEXT
●A CD-R and a CD-RW that hold CD-DA data can be reproduced.
●A CD-R and CD-RW that hold MP3 data can be reproduced.
●RDS (Radio Data System)
●Anti-Theft System
TOP PREVIOUS NEXT
http://manuals.panasonic.co.uk/viewing/EUOT/CQ-DFX572N/SVC/s0100000000x.html04.11.2005 13:42:56
