ORDERNo. ACED020271C8

AUTOMOTIVE CONSUMERELECTRONICS

CQ-DFX572N

MP3 CD Player / Receiver with CD Changer Control

SPECIFICATIONS

Specification*

General

Power Supply DC 12V (11V - 16V),

Test Voltage14.4V

NegativeGround

Current Consumption Less than2.5A(CD mode, 0.5W×

4-Speaker)

MaximumPower Output 50W×4(at 4 )

Power Output 22W×4(DIN45 324, at 4 )

Speaker Impedance 4-8

External Input Impedance 10k (AUX IN)

External Input Sensitivity Max. 2V (AUX IN)

Pre-AMP Output Voltage 2.5V (CD mode)

Pre-AMP Output Impedance 200

Sub-Woofer Output Voltage 2.5V

FM StereoRadio

FrequencyRange 87.5- 108MHz

UsableSensitivity 6dB/ V (S/N 30dB)

StereoSeparation 35dB (at 1kHz)

MWRadio

FrequencyRange 531 - 1,602kHz

UsableSensitivity 29 dB/ V (S/N 20dB)

LW Radio

FrequencyRange 153 - 279kHz

UsableSensitivity 34dB/ V (S/N 20dB)

CD Player

Sampling Frequency 8 times over sampling

DAConverter MASH 1bit/4DAC system

ErrorCorrection System Panasonicsuper decoding

algorithm

Pick-UpType Astigma 3-beam

Light Source SemiconductorLaser

Wavelength 780nm

FrequencyResponse 5Hz - 20kHz (±1dB)

Signal toNoise Ratio 90dB

Total HarmonicDistortion 0.01%(1kHz)

Wowand Flutter Belowmeasurablelimits

Channel Separation 70dB

MP3Decoding MPEG1AudioLayer3/ MPEG2

AudioLayer3

Bit Rate (MPEG1AudioLayer3) 32kbps-

256kbps, VBR (VariableBit

Rate)

(MPEG2AudioLayer3) 16kbps-

160kbps, VBR (VariableBit

Rate)

Sampling Frequency (MPEG1AudioLayer3) 32kHz,

44.1kHz, 48kHz

(MPEG2AudioLayer3)

22.05kHz, 24kHz

Dimensions** (W× H × D) 178×50×150mm

Weight** 1.6kg

*Specificationsand thedesign are subject topossible

modification without notice duetoimprovements.

** Dimensionsand Weight shownare approximate.

2002 Matsushita Communication Industrial Co., Ltd. All rights

reserved. Unauthorized copying and distribution isaviolation of

law.

1. FEATUERS

-ACD-Rand aCD-RWthat holdCD-DA data can be reproduced.

-ACD-Rand CD-RWthat holdMP3 data can be reproduced.

-RDS(RadioData System)

-Anti-Theft System

2. REPLACEING THE FUSE

Use fuses of the same specifiedrating (15amps). Using different substitutes orfuses with

higherratings, orconnecting the unit directlywithout a fuse, couldcause fire ordamage tothe

unit.

3. MAINTENANCE

Yourproducts is designedand manufacturedtoensure the minimumof maintenance. Use a soft

clothforroutine exteriorcleaning. Neveruse benzine, thinnerorothersolvents.

4. RADIO ALIGNMENT

Donot align the AM/FM package block. Whenthe package block is necessary, it will be supplied

alreadyalignedat the factory.

5. CD DECK ALIGNMENT

This model has no servoalignment points because microcomputercontrols the servocircuit.

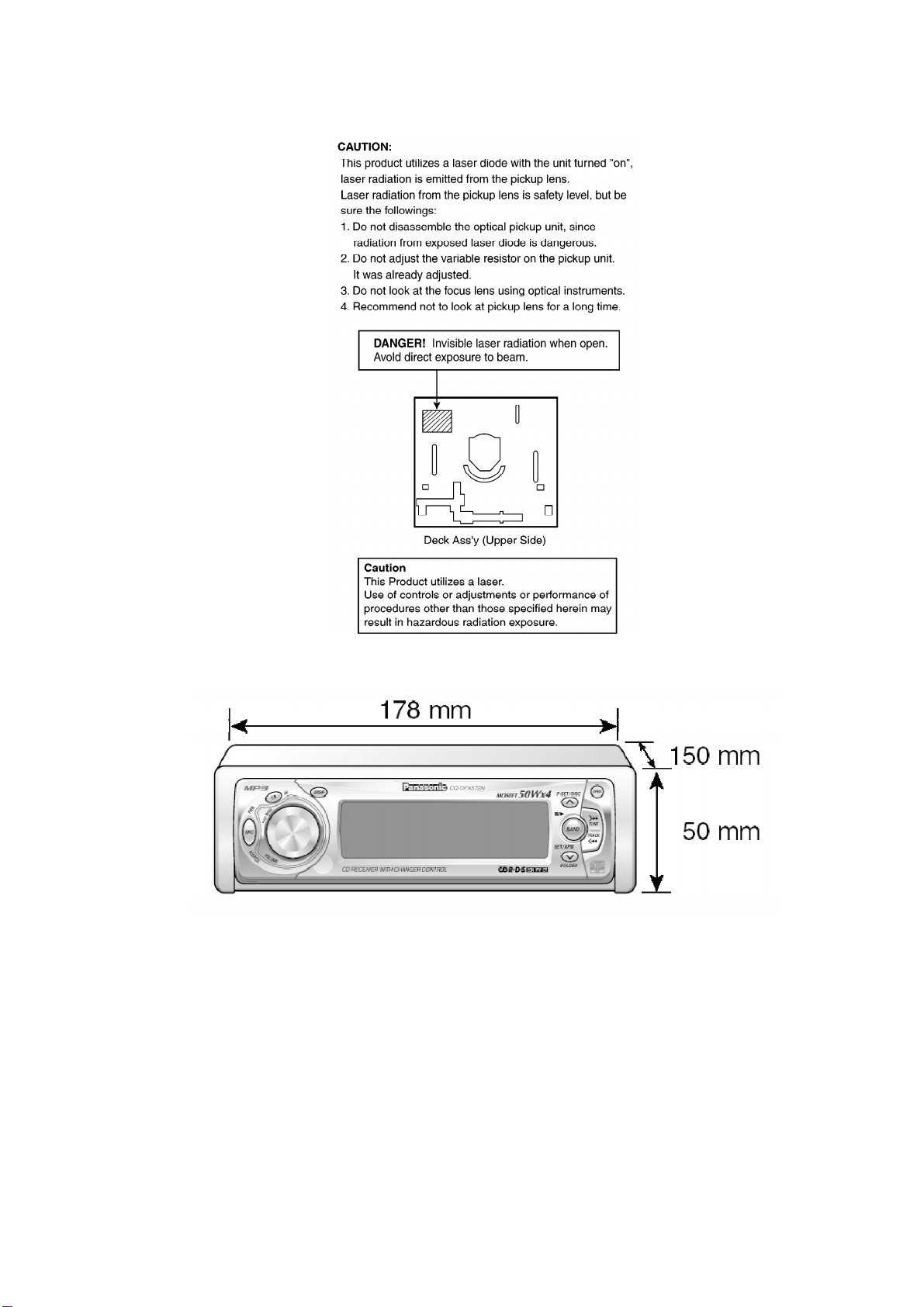

6. LASER PRODUCTS

7. DIMENSIONS

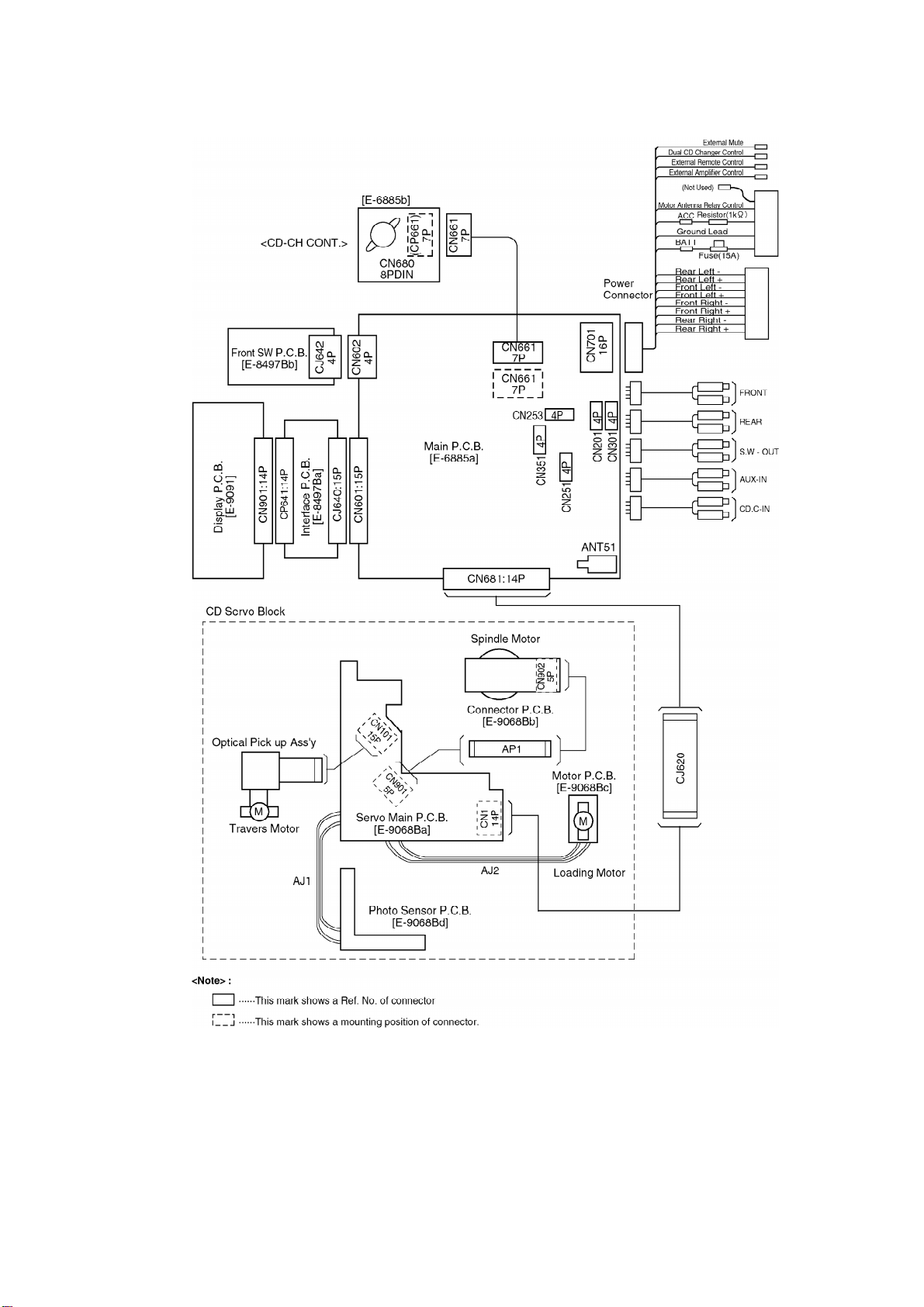

8. WIRING CONNECTION

9. TERMINALS DESCRIPTION

9.1. MainBlock

IC601 : C2CBJG000197

No.

Port Description I/

OVol.(V)

FMAMCD

1 CH.SENS CD changer1/2

detection I5.25.15.2

2 ST FM stereosignal I 5.25.25.2

3 EJECT EJECT.KYE detection I 5.15.15.1

4 AVSS Ground - 0 0 0

5EXTMUTE TEL/NAVI mute I 5.35.35.3

6 CH 1/2 CD changer1/2 O 5.05.05.0

7 AVREF1 Reference voltage - 5.05.05.0

8 SUB.SO LCD data I 3.33.3 0

9LCD.DI LCD data O 1.21.55.0

10 SUB.SI LCD clock O 1.51.51.5

11 CH.DATA CD changerdata I 0 0 0

12 (NC) - - - - -

13 CH.CLK CD changerclock I 0 0 0

14 CH.REM CD changerremote

control O5.05.05.0

15 <K4> BZ

OUT BEEP output O 0 0 0

16 CD.SO CD data I 2.42.52.3

17 CD.SI CD data O 5.0 0 0

18 CD.SCK CD clock O 5.05.05.0

19 S.W.UP Wake up O 5.05.0 0

20 CD.RST CD Reset O 5.05.05.0

21 AMP.CNT External AMP control O 5.05.05.0

22 ANT.CNT Antenna control O 5.05.0 0

23 S-HDB ON

/OFF (NC) - - - - -

24 SUB W

FREQ

SEL(NC)

- - - - -

25 (NC) - - - - -

26 (NC) - - - - -

27 AMP

MUTE Mute control O 5.05.05.0

28 CD ON CD ON output O 5.05.05.0

29 CD MUTE CD mute detection O 0.3 0 0

30 CD SW2

(NC) - - - - -

31 SPE.A Spectrumanalyzer 4.84.84.8

32 SPE.B Spectrumanalyzer 4.84.84.8

33 VSS1 (Connecting toGround) - 0 0 0

No.

Port Description I/

OVol.(V)

FMAMCD

34 SPE.C Spectrumanalyzer 4.84.74.7

35 ILL.CNT ILL control O 0 0 5.0

36 SCL Electronic volume clock O 4.44.44.4

37 SDA Electronic volume data I/

O4.44.44.4

38 S.LED S LED control O 0 0 0

39 EJ. ILL Eject LED control O 5.15.1 0

40 SEL Spectrumanalyzer O 0.50.40.5

41 PLL.DI PLL data O 0 0 0

42 PLL.DO PLL data I 5.25.25.2

43 PLL.CLK PLL clock O 5.05.05.0

44 PLL.CE PLL Control chipenabe O 0 0 0

45 PANEL PANELON/OFF

detection I 0 0 0

46 OP/CL PANELOPEN/CLOSE

detection I5.15.1 0

47 NC - - - - -

48 LCD 5V

CNT +5V powersupply

control O5.05.05.0

49 (NC) - - - - -

50 NC - - - - -

51 DIM1 Dimmercontrol 1 O 0 0 0

52 DIM2 Dimmercontrol 2 O 0 0 0

53 DECK V

CONT

(NC)

- - - - -

54 AF.MUTE Audiomute control O 5.05.05.0

55 (NC) - - - - -

56 INV.CNT INV powercontrol O 5.05.0 0

57 MAIN CNT Mainpowercontrol O 4.8 44.8

58 ACC ACC detection I 5.05.05.0

59 RDS

DATA RDS data input I 2.8 0 0

60 RESET Reset input I 5.05.05.0

61 M.W.UP Mainwake up request I 4.94.94.9

62 BATT Batterydetection I 5.05.05.0

63 RDS CLK RDS clock input I 2.5 0 0

64 CH.STRB CD changerstrobe I 0 0 0

65 ROTARY 1 Rotaryencoder1 O 0 0 0

66 ROTARY 2 Rotaryencoder2 O 0 0 0

67 VSS0 Ground - 0 0 0

No.

Port Description I/

OVol.(V)

FMAMCD

68 VDD1 +5V powersupply - 5.05.05.0

69 X2 Crystal oscillator - 3.13.13.1

70 X1 Crystal oscillator I 2.42.42.4

71 VPP Vpp - 0 0 0

72 SUB X2 Crystal oscillator - 3.13.13.1

73 SUB X1 Crystal oscillator I 2.42.42.4

74 VDD0 +5V powersupply - 5.05.05.0

75 AVREF Reference voltage - 5.05.05.0

76 SD FM/AM signal meter I 0 0 0

77 INIT.A Initialize set up A I 0 0 0

78 INIT.B Initialize set up B I 0 0 0

79 A.IN Spectrumanalyzer I 0 0 0

80 (NC) - - - - -

Note :

Voltage measuerments are with respect to ground, with avoltmeter

(Internal resistance :10M ohms.)

9.2. DisplayBlock

IC901 : C0HBA0000048

No. Port Description I/O Volt.

(V)

1 - 59 SEG1 -

SEG59 LCD Segment O 3.2

60 -

69 COM10 -

COM1 LCD Common O 3.2

70 -

74 KS1 - KS5 KeyData Output O 5.3

75 KS6 (NC) - - -

76 KI1 KeyData Input I 0

77 KI2 KeyData Input I 0

78 KI3 Connecting toGND - 0

79 KI4 Connecting toGND - 0

80 KI5 Connecting toGND - 0

81 P1 LCD Segment O 5.3

82 P2 (NC) - - -

83 P3 (NC) - - -

84 P4 (NC) - - -

85 VDD +5V PowerSupply - 5.3

86 VLCD LCD Control Voltage I 8.3

No. Port Description I/O Volt.

(V)

87 VLCD0 LCD Control Voltage 0 6.3

88 VLCD1 LCD Control Voltage 1 4.7

89 VLCD2 LCD Control Voltage 2 3.2

90 VLCD3 LCD Control Voltage 3 1.6

91 VLCD4 LCD Control Voltage 4 I 0

92 VSS Connecting toGND - 0

93 TEST Connecting toGND - 0

94 OSC0 CR Oscillator I 3.0

95 OSC1 CR Oscillator I 0

96 INH Inhibit Input - 5.3

97 DO LCD Data Output O 4.9

98 CE LCD ChipEnable Input I 0

99 CLK LCD Clock Input I 4.9

100 DI LCD Data Input I 0

9.3. CD Servo Block

IC501 : MN101C28LAC2

No.

Port Description I/O Volt.

(V)

1 VREF- Reference voltage forADC

(GND) - 0

2 PA0 (Connecting toGND) - 0

3 PA1 Disc-Insensor I 2.9

4 PA2 Feederarm SW I 3.0

5 PA3 Disc-Out sensor I 3.0

6 PA4 ClampSW I 0

7 PA5 InnerSW I 3.3

8 PA6 Disc-Insensor I 1.5

9 PA7 Not used - 3.3

10 VREF+ Reference voltage forADC

(+3.3V) - 3.3

11 VDD Powersupply(+3.3V) - 3.3

12 OSC2 Systemclock (7.37MHz) O 1.6

13 OSC1 Systemclock (7.37MHz) I 1.5

14 VSS Ground - 0

15 XI (Connecting toGND) - 0

16 XO (NC) Noconnection - -

17 MMOD (Connecting toGND) - 0

18 SOM Serial data output O 0.5

19 SIM Serial data input I 0.5

No.

Port Description I/O Volt.

(V)

20 SCK Shift clock forserial data I 3.0

21 SB01/P03 Noconnection - -

22 SUBC CD-TEXTdata I 0

23 SBCK CD-TEXTclock O 3.3

24 P06 (NC) Noconnection - -

25 RESET Reset input I 3.3

26 MDATA MPU communication data O 1.0

27 MCLK Shift clock forMDATA O 2.5

28 SCK Shift clock forserial data I 2.2

29 STAT ServoLSI status I 0

30 TM4IO/

P14 Noconnection - -

31 POBF MP3 DSP status I 0

32 DATAREQ MP3 DSP NEXTdata

request I 3.0

33 CD. ON CD operation mode I 3.2

34 DQSY CD-TEXT/SUBQ sync. I 0

35 BLKCK BLKCK signal I 3.3

36 SQCK Clock forsub. code data I 1.5

37 SUBQ Sub. code data I 0

38 SBT2/ P32 (Connecting toGND) O 0

39 MLD MPU command load O 3.3

40 ACK MP3 DSP acknowledge O 0

41 IOSEL ServoLSI mode setting O 3.3

42 VDD2 Powersupplyforflash

write - 3.3

43 VPP Powersupplyforflash

write - 3.3

44 DSPP0 MP3 DSP data (bit0) I/O 0

45 DSPP1 MP3 DSP data (bit1) I/O 0

46 DSPP2 MP3 DSP data (bit2) I/O 0

47 DSPP3 MP3 DSP data (bit3) I/O 0

48 DSPP4 MP3 DSP data (bit4) I/O 0

49 DSPP5 MP3 DSP data (bit5) I/O 0

50 DSPP6 MP3 DSP data (bit6) I/O 0

51 DSPP7 MP3 DSP data (bit7) I/O 0

52 PCS MP3 DSP chipselect O 0

53 PWE MP3 DSP write enable O 0

54 PRE MP3 DSP readenable O 1.3

55 PIBE MP3 status fordata input I 3.3

56 DSPRST DSP reset O 3.3

57 PRST ServoLSI reset O 2.2

58 STAT ServoLSI status I 0
