Before use, please read these instructions completely.

VQT3N28

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-X025

until

2011/7/19

VQT3N28_E.book 1 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

Contents

Information for Your Safety..................................... 2

Precautions........................................................... 5

Supplied Accessories ............................................. 6

Attaching/Detaching the Lens................................. 6

Names and Functions of Components ................... 8

Cautions for Use..................................................... 9

Troubleshooting .................................................. 10

Specifications........................................................ 11

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥If the camera is adversely affected by

electromagnetic equipment and stops functioning

properly, turn the camera off and remove the

battery and/or the connected AC adaptor. Then

reinsert the battery and/or reconnect the AC

adaptor and turn the camera on.

VQT3N28_E.book 2 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥The digital camera illustrations in these operating

instructions show DMC-G3 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥G MICRO SYSTEM is a lens exchange type

digital camera system of LUMIX based on a Micro

Four Thirds System standard.

≥LEICA is a registered trademark of Leica

Microsystems IR GmbH.

SUMMILUX

is a

registered trademark of Leica Camera AG. The

LEICA DG lenses are manufactured using

measurement instruments and quality assurance

systems that have been certified by Leica Camera

AG based on the company’s quality standards.

≥Other names of systems and products mentioned

in these instructions are usually the registered

trademarks or trademarks of the manufacturers

who developed the system or product concerned.

ENGLISH

VQT3N28_E.book 3 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private

households)

This symbol on the products and/or accompanying documents means that used

electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to

designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local

retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could

otherwise arise from inappropriate waste handling. Please contact your local authority

for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for

further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct

method of disposal.

VQT3N28_E.book 4 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact points 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

– When the camera is brought indoors from outside

during cold weather

– When the camera is brought into an air-

conditioned car

– When cold air from an air conditioner is directly

blown onto the lens

– In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

VQT3N28_E.book 5 ページ２０１１年６月１４日　火曜日　午前１１時４９分

VQT3N28

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of July 2011. These

may be subject to change.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens rear cap and lens cap are attached to

the interchangeable lens at the time of purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear

cap to detach it.

A: Lens Rear Cap

2Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

• Do not press the lens release

button C when you attach a lens.

• Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

• Check that the lens is attached correctly.

VFC4456 VYC1063 VYF3284

123

VFC4605













VQT3N28_E.book 6 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

∫Detaching the Lens

≥Check that the camera is turned off.

While pressing on the

lens release button D,

rotate the lens toward the

arrow until it stops and

then remove.

• Attach the lens rear cap so

that the lens contact point

does not get scratched.

• Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

Pinch the lens cap as shown in the figure

to attach or detach.

• Be careful not to lose

the lens cap.

∫Attaching the Lens Hood

(Supplied Accessory)

Insert the lens hood into the lens with the

short sides at the top and bottom, and

turn in the direction of the arrow until it

stops.

E: Fit to the mark

• When taking pictures with the flash with the lens

hood attached, the lower portion of the screen

may turn dark (vignetting effect) and the control

of the flash may be disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

• When using the AF assist lamp in the dark,

detach the lens hood.



VQT3N28_ENG.fm 7 ページ２０１１年６月２８日　火曜日　午後２時５６分

VQT3N28

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional: DMW-LMC46),

PL filters (optional: DMW-LPL46) or ND filters

(optional: DMW-LND46), or if using thick

protectors and/or filters.

≥The filter may become impossible to remove if

excessively tightened, so please refrain from

tightening it too strongly.

≥It is possible to attach the lens cap with the filter

already attached.

≥You cannot attach a conversion lens or adaptor to

this lens. A filter may be used, but attaching any

other element may cause damage to the lens.

Names and Functions of

Components

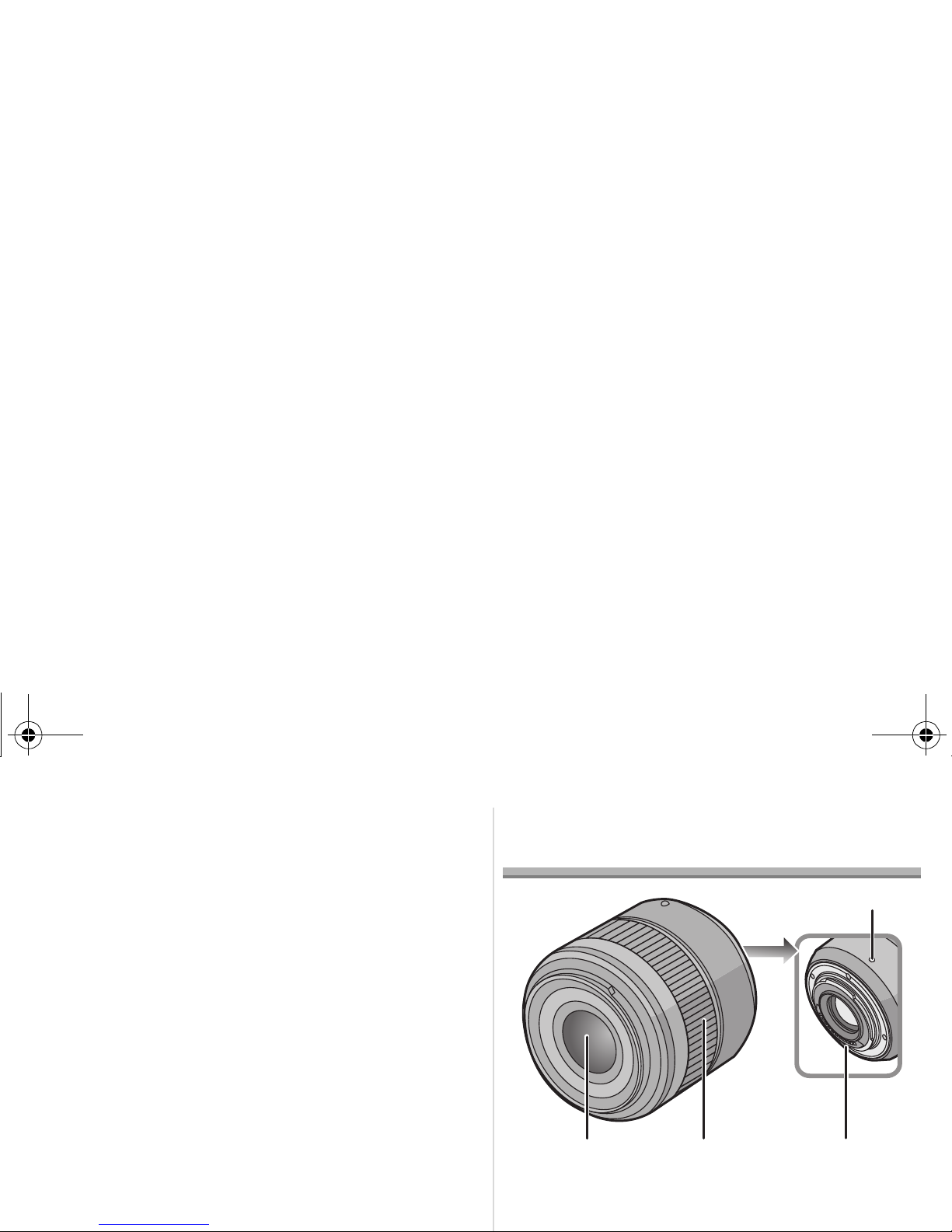

1Lens surface

2Focus ring

Rotate to focus when taking pictures with

manual focus.

3Contact points

4Lens fitting mark

21 3

VQT3N28_E.book 8 ページ２０１１年６月１４日　火曜日　午前１１時４９分

VQT3N28

Note

≥Change in the image by the focus operation may

be more visible depending on the recording

condition when the AF operates during the motion

picture recording. It is recommended to fix the

focus by setting the camera to manual focus (MF),

etc., when the change of image is disturbing you.

Cautions for Use

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥Take care not to drop the bag that you inserted the

lens in as it may strongly shock the lens. The

camera may stop operating normally and pictures

may no longer be recorded. Also, the lens may be

damaged.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥If such substances get onto the lens they can

damage the exterior case or cause the paint to

peel.

Do not carry the unit when it is still attached to

the camera body.

≥Under no circumstances should the unit be stored

in any of the following locations since doing so

may cause problems in operation or

malfunctioning.

– In direct sunlight or on a beach in summer

VQT3N28_E.book 9 ページ２０１１年５月２６日　木曜日　午前９時３４分

VQT3N28

– In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

– In locations with high concentrations of sand,

dust or dirt

– Where there is fire

– Near heaters, air conditioners or humidifiers

– Where water may make the unit wet

– Where there is vibration

– Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Use a dry dust cloth to remove dirt and dust on

the focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

A sound is heard when the camera is turned on

or off.

A sound is heard from the lens when taking a

picture of a bright subject such as when

outdoors.

≥This is the sound of lens or aperture movement

and is not a malfunction.

Troubleshooting

VQT3N28_E.book 10 ページ２０１１年５月２６日　木曜日　午前９時３４分

Otros manuales para HX025

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios para cámaras de Panasonic

Panasonic

Panasonic WVPS154 - CAMERA DRIVE UNIT Manual de usuario

Panasonic

Panasonic WV-Q175E Manual de usuario

Panasonic

Panasonic AJ-YA350G Manual de usuario

Panasonic

Panasonic WV-7150D Manual de usuario

Panasonic

Panasonic WV7110A - MONITOR Manual de usuario

Panasonic

Panasonic WV-CF5S Manual de usuario

Panasonic

Panasonic GP-US932CSXE Manual de usuario

Panasonic

Panasonic AG-HCK10 Manual de usuario

Panasonic

Panasonic AK-HDC931 Manual de usuario

Panasonic

Panasonic A1 Security Cameras WV-CW4C Manual de usuario

Panasonic

Panasonic AS09A51 Manual de instrucciones

Panasonic

Panasonic DVCPRO AJ-CA901 Manual de usuario

Panasonic

Panasonic AKHVF70 Manual de usuario

Panasonic

Panasonic WV-QEM500-W Manual de usuario

Panasonic

Panasonic DMW-EC1 Manual de usuario

Panasonic

Panasonic WV-VF39 Manual de usuario

Panasonic

Panasonic Lumix DMW-MCFX40 Manual de usuario

Panasonic

Panasonic WVQ169 - CCTV CEILING MOUNT BRACKET Manual de usuario

Panasonic

Panasonic YAX800G Manual de usuario

Panasonic

Panasonic AG-CVF15G Manual de usuario

Panasonic

Panasonic WV-Q152C Manual de usuario

Panasonic

Panasonic AJHVF21G - HD EVF - MULTI-LANG Manual de usuario

Panasonic

Panasonic DMW-MCTZ20E Manual de usuario

Panasonic

Panasonic KX-HNP100 Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario
