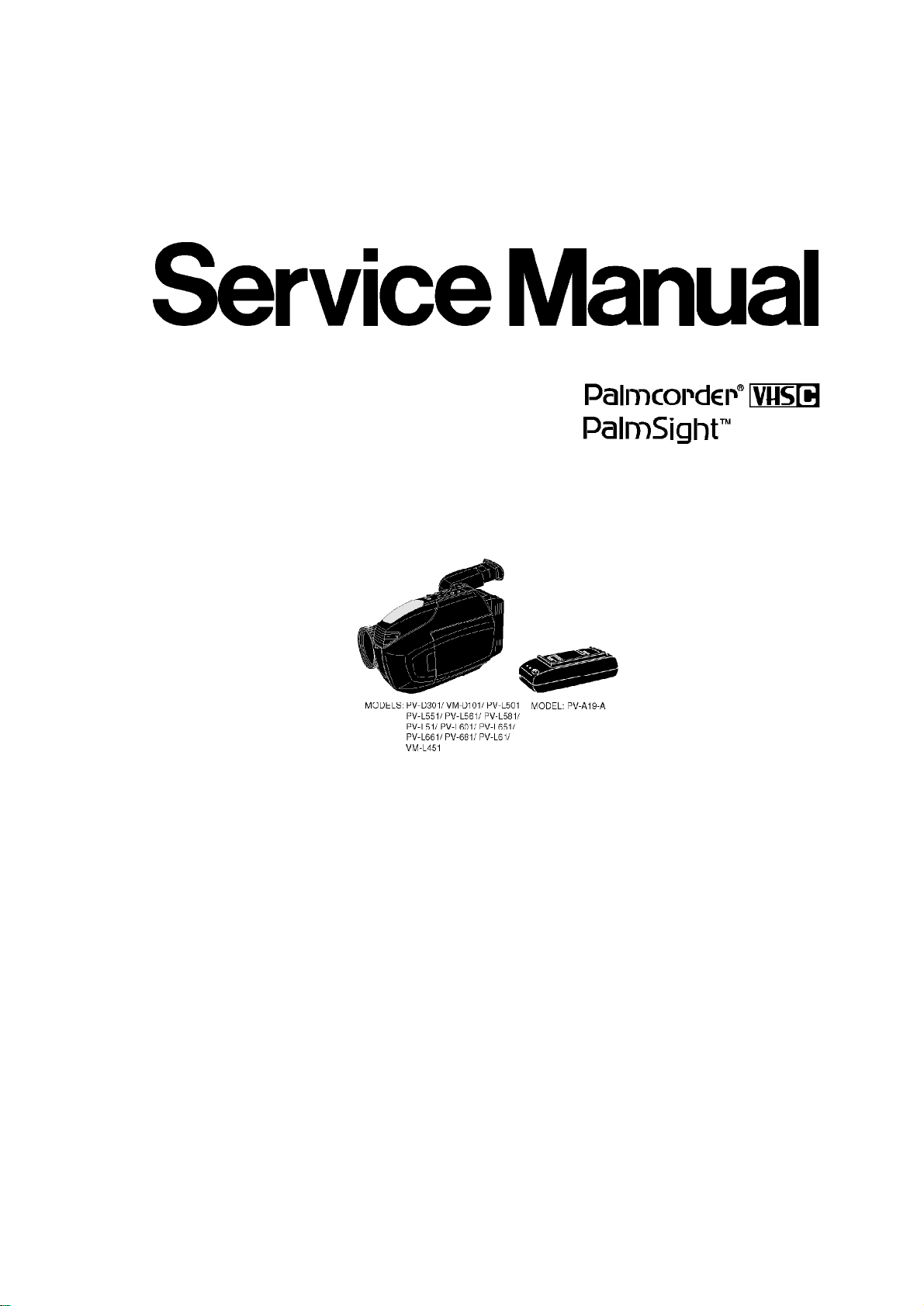

Panasonic PV-D301 Manual de usuario

ORDERNO. MKE0012200C1

B15 (U.S.A), B4(PUERTO RICO)

Compact VHSCamcorder

PV-D301 / VM-D101 / PV-L501 / PV-L551 / PV-L561 / PV-L581

/ PV-L51 / PV-L601 / PV-L651 / PV-L661 / PV-L681 / PV-L61 /

VM-L451

SPECIFICATIONS

1. MODELNO. IDENTIFICATIONMARK INTHIS

SERVICE MANUAL

Use modelsshowninthechartbelowtodistinguishthedifferentmodelsincludedinthisService

Manual.

Notes for PV-D301, PV-L551, PV-L561, PV-L581, PV-L51, PV-L601, PV-L651, PV-L661, PV-L681, PV-

L61, VM-L451

These models(ColorEVFmodels) havetwomarks (Model No.

Identification Mark) suchas Aand AA forPV-D301, Dand DAforPV-

L551, etc., inthisservice manual.

Whenservicing these models, please note thepropermarkand

proceedwithservicing as shownbelow.

Howtodistinguishmarks Afrom AA, Dfrom DA, etc.:

To distinguish, "A"isprintedon theSerial No. on theRating Label

locatedon thebottomsideofthecamcorderforearlyproducts, and

isshownwithModel No. Identification Mark:AA, DA, EA, FA, GA,

HA, JA, KA, LA, MAinthisservice manual.

TheColorEVFunitofthese modelshas beenchangedon running

changebasis. TheColorEVFunitisinterchangeableforearly

products and laterproducts. However, individual parts oftheColor

EVFunitarenotinterchangeable.

Please make surewhether"A"isprintedornoton theSerial No. on

theRating Label locatedon thebottomsideofthecamcorderwhen

servicing these models.

Note:

Forpartstandardization oftheColorEVFunitreplacementparts,

onlytheColorEVFunitforlaterproducts will besupplied.

However, whenreplacing theindividual parts oftheColorEVFunit,

use theproperparts, referring to"REPLACEMENTPARTSLISTS"

section.

2. SAFETYPRECAUTIONS

GENERALGUIDELINES

1. IMPORTANTSAFETYNOTICE

Therearespecial components usedinthisequipmentwhichare

importantforsafety. These parts aremarkedby inthe

SchematicDiagrams, CircuitBoardLayout, ExplodedViewsand

ReplacementParts List. Itisessential that these critical parts

shouldbereplacedwithmanufacturer'sspecifiedparts toprevent

X-RADIATION, shock, fire, orotherhazards. Donotmodifythe

original design withoutpermission ofmanufacturer.

2. AnIsolation Transformershouldalwaysbeusedduring the

servicing ofACAdaptorwhose chassisisnotisolatedfromtheAC

powerline. Use atransformerofadequate powerrating as this

protects thetechnicianfromaccidents resulting inpersonal injury

fromelectrical shocks. Itwill alsoprotect ACAdaptorfrombeing

damagedbyaccidental shorting that mayoccurduring servicing.

3. Whenservicing, observetheoriginal leaddress. Ifashortcircuit

isfound, replace all parts whichhavebeenoverheatedor

damagedbytheshortcircuit.

4. Afterservicing, see toitthat all theprotectivedevices suchas

insulation barriers, insulation papersshieldsareproperlyinstalled.

5. Afterservicing, make thefollowing leakagecurrentchecks to

preventthecustomerfrombeing exposedtoshock hazards.

LEAKAGE CURRENTCOLDCHECK

1. Unplug theACcordand connect ajumperbetweenthetwoprongs

on theplug.

2. Measuretheresistance value, withanohmmeter, betweenthe

jumperedACplug and eachexposedmetalliccabinet parton the

equipmentsuchas screwheads, connectors, control shafts, etc.

Whentheexposedmetallicparthas areturnpathtothechassis,

thereading shouldbebetween1M and 5.2M . Whenthe

exposedmetal does nothaveareturnpathtothechassis, the

reading must beinfinity.

LEAKAGE CURRENTHOTCHECK

(See Figure1.)

1. Plug theACcorddirectlyintotheACoutlet. Donotuse an

isolation transformerforthischeck.

2. Connect a1.5k , 10 Wresistor, inparallel witha0.15 F

capacitor, betweeneachexposedmetallicparton theset and a

good earthground, as showninFigure1.

3. Use anACvoltmeter, with1M /Vormoresensitivity, tomeasure

thepotential across theresistor.

4. Check eachexposedmetallicpart, and measurethevoltageat

eachpoint.

5. Reverse theACplug intheACoutlet and repeat eachoftheabove

measurements.

6. Thepotential at anypointshouldnotexceed0.75 VRMS. A

leakagecurrenttester(Simpson Model 229 orequivalent) maybe

usedtomake thehotchecks, leakagecurrentmust notexceed1/2

mA. Incase ameasurementisoutsideofthe/limits specified,

thereisapossibilityofashock hazard, and theequipmentshould

berepairedand recheckedbeforeitisreturnedtothecustomer.

Figure. 1

3. PREVENTIONOFELECTRO STATICDISCHARGE

(ESD) TO ELECTROSTATICALLYSENSITIVE (ES)

DEVICES

Somesemiconductor (solidstate)devices canbedamagedeasilybystaticelectricity. Such

componentscommonlyarecalledElectrostaticallySensitive (ES)Devices. Examples oftypical

ES devices areintegratedcircuitsand somefield-effecttransistorsand semiconductor "chip"

components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of

componentdamagecausedbyelectro staticdischarge(ESD).

1. Immediatelybeforehandling anysemiconductorcomponentor

semiconductor-equippedassembly, drainoff anyESDon your

bodybytouching aknownearthground. Alternatively, obtainand

wearacommerciallyavailabledischarging ESDwrist strap, which

shouldberemovedforpotential shock reasonspriortoapplying

powertotheunitundertest.

2. Afterremoving anelectrical assemblyequippedwithES devices,

place theassemblyon aconductivesurface suchas aluminum

foil, topreventelectrostaticchargebuildup orexposureofthe

assembly.

3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES

devices.

4. Use onlyanantistaticsolderremoval device. Somesolderremoval

devices notclassifiedas "antistatic(ESDprotected)"cangenerate

electrical chargesufficienttodamageES devices.

5. Donotuse freon-propelledchemicals. These cangenerate

electrical charges sufficienttodamageES devices.

6. DonotremoveareplacementES device fromits protective

packageuntil immediatelybeforeyou arereadytoinstall it. (Most

replacementES devices arepackagedwithleadselectrically

shortedtogetherbyconductivefoam, aluminumfoil orcomparable

conductivematerial).

7. Immediatelybeforeremoving theprotectivematerial fromthe

leadsofareplacementES device, touchtheprotectivematerial to

thechassisorcircuitassemblyintowhichthedevice will be

installed.

CAUTION:

Besureno powerisappliedtothechassisorcircuit, and observe

all othersafetyprecautions.

8. Minimizebodilymotionswhenhandling unpackagedreplacement

ES devices. (Otherwise harmless motion suchas thebrushing

togetherofyourclothes fabricorthelifting ofyourfootfroma

carpetedfloorcangenerate staticelectricity(ESD)sufficientto

damageanES device).

4. X-RADIATION

(For model withMonochromeEVF)

WARNING:

1. Thepotential source ofX-Radiation inEVFsets istheHigh Voltage

section and thepicturetube.

2. Whenusing apicturetubetest jigforservice, ensurethat jigis

capableofhandling 10 kVwithoutcausing X-Radiation.

NOTE :

Itisimportanttouse anaccurate periodicallycalibratedhigh

voltagemeter.

3. MeasuretheHigh Voltage. Themeter(electrostatictype) reading

shouldindicate 2.2kV±0.1kV. Ifthemeterindication isoutof

tolerance, immediate service and correction isrequiredtoprevent

thepossibilityofprematurecomponentfailure. To preventanX-

Radiation possibility, itisessential touse thespecifiedpicture

tube.

5. OPERATIONGUIDE

6. SERVICE NOTES (PLEASE READ)

6.1. SERVICENOTES

6.1.1. EXTENSIONCABLES FORSERVICE

NOTE:

1. Whenusing thecassette tape:

A. Besuretoremoveacassette lidcoverofcassette tape.

B. Besuretoinstall theLock Screw toCassette UpUnit. After

servicing, besuretoremovetheLock Screw.

Referto"HOW TO HOLD THE CASSETTE UP UNIT IN THE

DOWN POSITION WITHOUT CASSETTE COVER INSTALLED ."

C. Select theH. SAFETYDEFEATinSERVICEMODE. Referto"

SERVICE MODE SPECIFICATION (SELF-DIAGNOSTIC SYSTEM) .

Or, connect asilicon diodeon componentsideoftheMain

C.B.A. as showntodefeat safetyfunction.

(Since Takeup Reel sensor, locatedon MainC.B.A. does not

workwhenopening MainC.B.A., themechanismdoes notwork

(Reel lock). Therefore, make suretodefeat Safetyfunction.)

2. Use extremecaresoas nottoapplyanyexcessivepressuretothe

Cylinder/HeadAmpF.P.C. Afterservicing, besuretoplace it

correctly. Referto"Cylinder Unit"in"MECHANISMSECTION."

3. TheLCD open/close SW. isforchanging betweenLCD Displayor

EVFDisplay. Whenturning on LCD Display, place somepaperor

tape, etc. on LCD open/close SW. sothat thisSW. staysON.

4. Whenservicing, avoidcausing afromtouching thecomponent

sideoftheBatteryCatcherUnittotheMainC.B.A.

5. Use agroundedESDwrist strapwhiledisassembling theLens

portion.

6. Use extremecarewhenunplugging orplugging inconnectors.

Fig. 1-1

6.1.2. INTERCONNECTIONOFEXTENSIONCABLES

Fig. 1-2

6.1.3. HOWTOHOLDTHE CASSETTE UP UNITINTHE DOWNPOSITION

WITHOUTCASSETTE COVERINSTALLED

TheCassetteUpUnitwill beintheup position withouttheCassetteCoverinstalled.

ToholdtheCassetteUpUnitinthedownposition withoutit, aLock Screwisneeded.

6.1.3.1. Howtoinstall theLock Screw:

1. IftheLock Lever, showningray, isset toPosition "A"(Nohole),

changePosition "A"(Nohole) toPosition "B"(Hole) as shownin

Fig. 2-2 bypushing Portion (a) as showninFig. 2-1.

Note:

IfthemechanismisinEJECTposition, theLock Levercannotbe

changedtoPosition "B"bypushing Portion (a). Inthiscase, apply

thepowertoset themechanismtoSTOPposition.

Fig. 2-1

Fig. 2-2

2. Install theLock Screw intheHole(ThreadedHoleforLock Screw
