Panasonic NV-DS27EG Manual de usuario

ORDER NO.VMD0104009C8

Digital Video Camera/Recorder

NV-DS27EG / NV-DS27EGM / NV-DS27EGE / NV-DS27B / NV-

DS28EG / NV-DS28EGM / NV-DS28B / NV-DS28EN / NV-DS28ENC

/ NV-DS28ENT / NV-DS28A / NV-DS37EG / NV-DS37EGM / NV-

DS37B / NV-DS38EG / NV-DS38EGM / NV-DS38B / NV-DS38EN /

NV-DS38ENT / NV-DS38A

VOL.1

N-MECHANISM

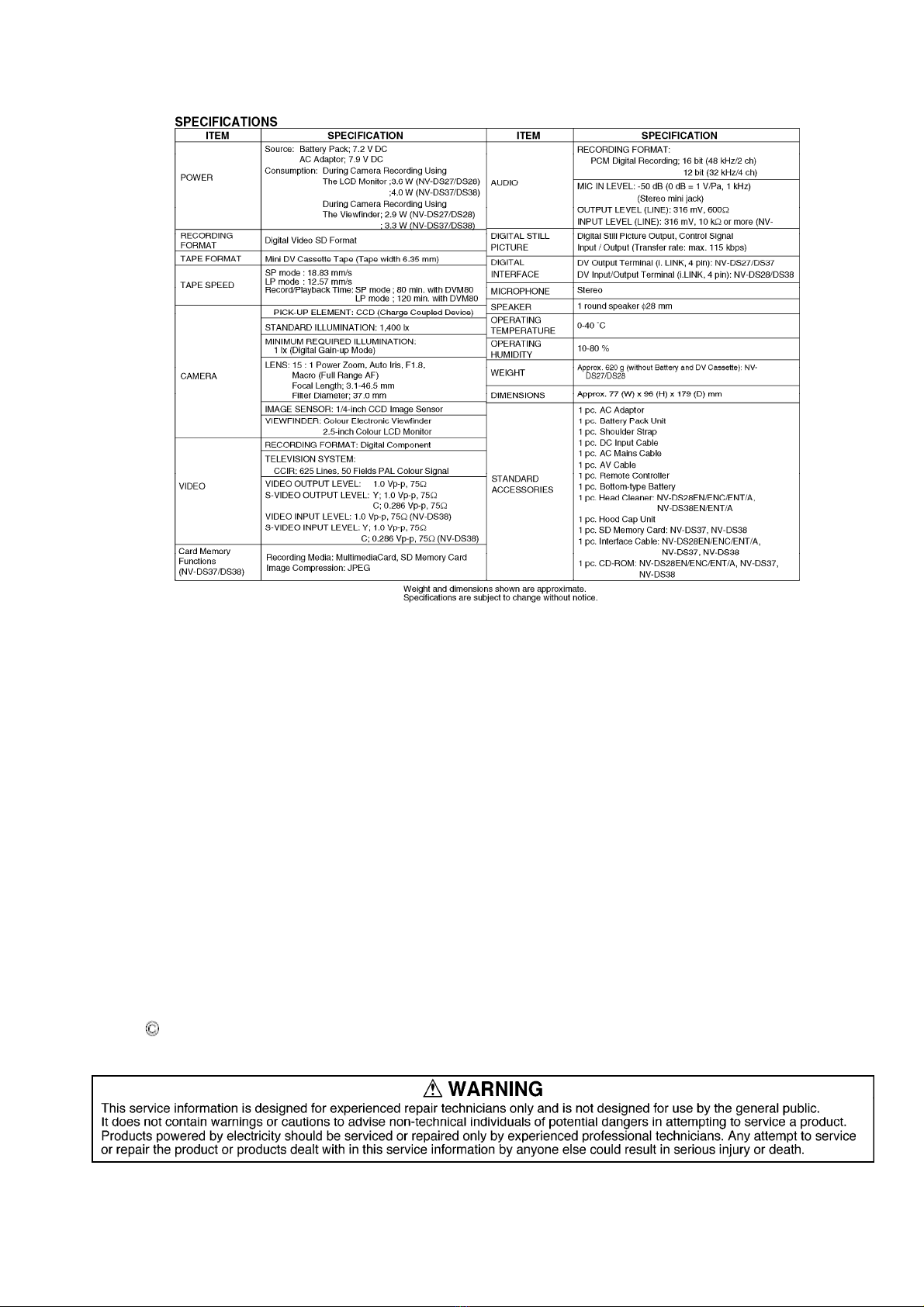

SPECIFICATIONS

www.freeservicemanuals.info

23/7/2013

World of free manuals

Unauthorized copying and distribution is a violation of law.

www.freeservicemanuals.info

23/7/2013

World of free manuals

1. INTRODUCTION

1.1. INTRODUCTION1

This service manual contains technical information which will allow service personnel's to understand

and service this model.Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, this information will be followed by supplement service manual

to be filed with original service manual.

Note 1:

Assembly, Disassembly and Adjustment procedures for Mechanism-Chassis are separate volume.

Please refer to following manual for detail of Mechanism Chassis.

Service Manual Order number for N-Mechanism-Chassis: VMD0105012C8

Note 2:

These movie camera uses AC Adaptor is VSK0581.

The service manual for AC Adaptor is separate volume.

Order number for AC Adaptor-----VSK0581 : VMD0004017C8

Note 3:

This service manual does not contain the following information, because of the impossibility of

sevicing at component level.

1. Schematic Diagram, Block Diagram and C.B.A. layout of Main C.B.A.

2. Parts List for individual parts of Main C.B.A.

3. Exploded View and Parts List for individual parts of Mechanism Unit.

When a part replacement is required for repairing Main C.B.A., replace the assembly parts. (Main

C.B.A.)

The following circuits are contained in Main C.B.A.

1. Main Connection Circuit

2. Drive Circuit

3. Video 1 Circuit

4. Video 2 Circuit

5. Control Circuit

6. Camera Circuit

7. Lens Drive Circuit

8. LCD Circuit

9. Head/ Rec Amp Circuit

www.freeservicemanuals.info

23/7/2013

World of free manuals

10. Power Circuit

The following circuits are contained in DSC/Ex In C.B.A. (NV-DS28EN/ENC/ENT/A, NV-DS37, NV-DS38)

1. DSC Ex Connection Circuit

2. Ex Input Circuit

3. DSC Circuit

Since DSC/Ex In C.B.A. is not serviceable at component level due to 1 or 2 piece of CSP IC mounted

on it with no space, 7 years retention period for the part supply is applied to this DSC/Ex In C.B.A. as

ordinary ICs.

Note 4:

DSC/Ex In C.B.A. (NV-DS28EN/ENC/ENT/A, NV-DS37, NV-DS38) is not categorized as a recycle module

part.

Please do not send the faulty DSC/Ex In C.B.A. to DVC Repair Center.

2. CAUTION FOR AC CORD (VJA0940 TYPE)

2.1. INFORMATION FOR YOUR SAFETY

IMPORTANT

Your attention is drawn to the fact that recording of pre-recorded tapes or discs or other published or

broadcast material may infringe copyright laws.

WARNING

To reduce the risk of fire or shock hazard, do not expose this equipment

to rain or moisture.

CAUTION

To reduce the risk of fire or shock hazard and annoying interference,

use the recommended accessories only.

FOR YOUR SAFETY

DO NOT REMOVE THE OUTER COVER

To prevent electric shock, do not remove the cover. No user serviceable parts inside. Refer servicing

to qualified service personnel.

2.2. CAUTION FOR AC MAINS LEAD

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three-pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5

amperes and it is approved by ASTA or BSI to BS1362

Check for the ASRA mark or the BSI mark on the body of the fuse.

www.freeservicemanuals.info

23/7/2013

World of free manuals

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is

replaced.

If you lose the fuse cover, the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be

removed and the plug cut off and disposed of safety.

There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere socket.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

2.2.1. Important

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with

the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked

with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three

pin plug, marked with the letter E or the Earth Symbol.

2.2.2. Before use

remove the Connector Cover as follows.

2.2.3. How to replace the Fuse

1. Remove the Fuse Cover with a screwdriver.

www.freeservicemanuals.info

23/7/2013

World of free manuals

2. Replace the fuse and attach the Fuse cover.

3. SERVICE CAUTION

3.1. EEPROM DATA FOR SPARE PARTS OF THE MAIN C.B.A.

When the Main C.B.A. is replaced, the fixed and average data must be changed by Tatsujin kit

according to the Movie Camera’s suffix.

Then, confirm and/or adjust the VTR and Camera adjustment one by one.

3.2. SERVICE EXTENSION CABLES.

This models is required the following extension cables for all connections.

Note 1:

Use the following extension cables when checking or adjusting individual circuit boards except

module Parts. (Main C.B.A.)

Ref. Part No. Pin Part Name Connection Q'ty Remarks

(1) VFK1595D1425 14 Flat Cable PP201(Main) - PS291 (CCD) 1as NV-DS1

(2) VFK1282 22 Flat Cable FP701(Main) - Lens Flex. 1as NV-DX

(3) VFK1459 39 Flat Cable FP4801(Main) - FP4903(Front) 1as NV-DS

(4) VFK1441 8 Flat Cable FP5001(Main) - Cylinder (Head Amp) 1as NV-DS

(5) VFK1440 10 Flat Cable FP2202(Main) - Cylinder (Drive) 1as NV-DS

(6) VFK1443 18 Flat Cable FP6302(Main) - Side Case R 1as NV-DS

(7) VFK1443 18 Flat Cable FP2201(Main) - Capstain (Drive) 1as NV-DS

(8) VFK1461 20 Flat Cable FP6301(Main) - Side Case L 1as NV-DS

(9) VFK1492 26 Flat Cable FP2003(Main) - Mechanism Unit 1as NV-DS

(10) VFK1545 100 Flat Cable PS3901(Main) - PP3901(DSC/EX IN) 1as NV-DS1

(11) VFK1492 26 Flat Cable FP601 (Main) - Side Case R

(Monitor)

1as NV-DS

(12) VFK1282 22 Flat Cable FP801 (Main) - EVF 1as NV-DX

(13) VFK1691 6 Wire Cable P1001(Main) - Battery Case 1 New

How to use extension cables.

Fig. T1-1

www.freeservicemanuals.info

23/7/2013

World of free manuals

3.3. LOCATION FOR SPARE CONNECTORS OF THE MAIN C.B.A.

www.freeservicemanuals.info

23/7/2013

World of free manuals

4. PREPARATION FOR ELECTRICAL ADJUSTMENT

1. Unlock the locking tab and remove the EVR connector cover which is

located on Battery Catcher Unit as follows.

www.freeservicemanuals.info

23/7/2013

World of free manuals

2. Then connect the following cables as shown in Fig. E2 .

Fig. E1

Part No. Part Name Q’ty Remarks

VFK1395 232C(M3)I/F Cable 1

VFK1308E Measuring Board 1

VFK1309 EVR Connector

Board

VFK1317 30 Pin Flat Cable 2

VJA0941 DC Output Cable 1For AC

Adaptor

VFK1164TAR3A

Setup Ring 1 For

Collimator

VFK1309EX Connection

Adaptor

Fig. E2

Fig. E3

www.freeservicemanuals.info

23/7/2013

World of free manuals

5. SERVICE MODE

5.1. New Error Code Display

Conventionally, the error code has been displayed automatically on the EVF or LCD Monitor when

undesirable conditions have occurred. With the New Error Code Display, the error code has not been

displayed automatically as follows except some error codesF31(Data Transmission Error), U10(Dew)

and U11(Head Clogging).

Note:

1. The only some error codes F31, U10 and U11 has displayed

automatically on the EVF or LCD monitor as usual.

2. The Power LED also has been flashed for 1 min. when undesirable

condetions have occurred.(See below)

5.2. Viewing Error Code

When displaying the Error Code on the EVF or LCD Monitor, push the FADE/STOP and REC START/

PAUSE buttons simultaneously for more 3 seconds.

Note:

When the cassette tape is inserted, this operation will not be worked.

www.freeservicemanuals.info

23/7/2013

World of free manuals
