Panasonic Broadcast

Mechanical Parts List

MODEL: AJ-SPC700P/E/MC

CONTENTS

CABLE PARTS ASSEMBLY ............................................................................................................MPL-1

CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1).................................................MPL-3

OVERALL (2) SECTION ..................................................................................................................MPL-5

CAMERA PARTS ASSEMBLY ........................................................................................................MPL-7

TOP CASE & HANDLE PARTS ASSEMBLY ..................................................................................MPL-9

SIDE CASE (R) PARTS ASSEMBLY (1) .........................................................................................MPL-11

SIDE CASE (R) PARTS ASSEMBLY (2) .........................................................................................MPL-13

CARD GUIDE PARTS ASSEMBLY .................................................................................................MPL-15

REAR JACK PARTS ASSEMBLY....................................................................................................MPL-16

BACK CASE PARTS ASSEMBLY ...................................................................................................MPL-17

LCD PARTS ASSEMBLY.................................................................................................................MPL-18

PACKING PARTS ............................................................................................................................MPL-19

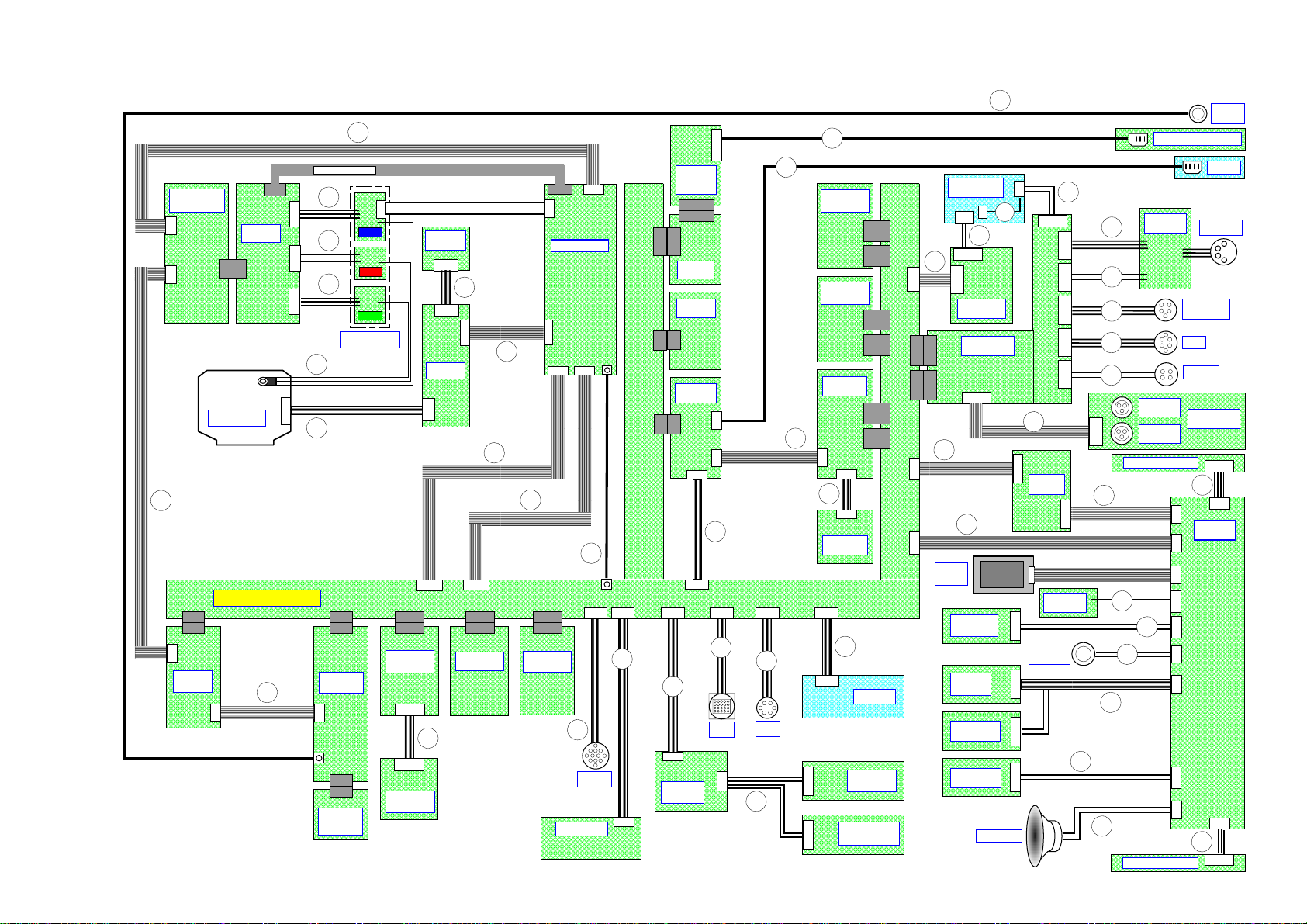

CABLE PARTS ASSEMBLY

MPL-1

PREPROCESS

Board

PREAMP

Board

P101P301 P201

R ch

CCD_SENSOR

Board

B ch

G ch

PULSE Board

FRONT

SW Board

Board to Board

P1 P2

CAM DSP

Board

CAM SYS

Board

SPD AUDIO

Board

SPDSYS

Board

SPD CPU

Board

SPDPOWER

Board

SPDCARD2

Board

SPDCARD1

Board

L_SIDE Board

OPERATE

Board

HANDLE SW

Board

HANDLE TALLY

Board

UNISLOT

INTERFACE

Board

1394CN Board (OPTION)

EXT DC IN

Board

AUDIO OUT

ECU

DC OUT

AUDIO IN

CH1 REAR JACK

Board

SPDLCD

Board

HP Board (FRONT)

SPDSSW

Board

SHOT M SW

Board

V MEMO SW

Board

TOGGLE

Board

POWER SW

Board

OPTICAL UNIT

SDI

Board

(OPTION)

P18

CAMPOWER

Board

FRONT MIC

Board

P10101

1394

Board

(OPTION)

SPD MSC

Board

P31

SPDCARD1

Board

L SIDE LED

Board

P10302

P9801

BATTERY

MOUNT UNIT

P9803

REAR AUDIO

Board

VIDEO

OUT

EXT DC IN

AUDIO IN

CH2

P9001

P6301

LCD

PANEL

V. MEMO

MIC

P4 P9 P10 P5

SPEAKER

P1 P3

P19

P6500

P6600 P1 P1

USBCN

P4254

P4255 P4252 P4259 P4251 P4256

P4258 P4257

P4201

P4101

P6401

LCD OPEN

SW Board

P9501

P11 P12

P9401 P9001 P9401

HP Board (REAR) P9001

J800

P1302

P4500

P9001

P13

P4951

P14

P103

P21 P22 P15 P17 P16 P16

P9001 P9100

SPD MOTHER Board

GPS

EVF

LENZ

P4 P5 P6

P25 P24

P10

P12

P11

P26 P29 P23

39 4

17 15

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VWJ14SW075L0 FFC 1

2 VEE1B65 VIDEO OUT CABLE 1

3 VEE1A52 ND/CC FILTER WIRE U 1

4 VEE0W38 MENU SW CABLE 1

5 VWJ50E5165L0 FLEX. CABLE 1

6 VEE1B11 LENS CABLE 1

7 VEE0Z86 FRONT MIC CABLE 1

8 VEE0W43 EVF CONNECTOR ASS'Y 1

10 VEE0Z90 OPERATE CABLE 1

11 VEE0Z91 HANDLE SW CABLE 1

12 VEE1B86 ANTON LIGHT CABLE 1

13 VEE0W31 BATT CABLE 1

14 VEE0W44 BATT2 CABLE 1

15 VEE0W25 HP1 (FRONT) 1

16 VEE0W26 HP2 (REAR) 1

17 VWJ30E5070L0 LCD IF FFC 1

18 VEE0Z93 TOGGLE CABLE 1

20 VEE0Z96 SHOT M SW CABLE 2

21 VEE0Z98 SPEAKER CABLE 1

22 VEE1B92 AUDIO OUT CONNECTOR ASS'Y 1

23 VEE1A41 ECU HARNESS 1

24 VEE0W29 DC OUT CONNECTOR ASS'Y 1

25 VEE1B91 UNISLOT WIRE U 1

26 VWJ16D1090TT FFC 1

27 VWJ50E5060L0 PREPRO OUT DAT FFC 1

28 VWJ40E5090L0 FLAT CABLE 1

29 VWJ30E5105L0 ZV BUS FFC 1

31 VEE0Z89 L SIDE CABLE 1

33 VWJ40E5210L0 FLEX. CABLE 2

34 VWJ30E5060L0 FFC 1

36 VEE1B44 1394 CABLE 1

37 VEE1A00 L SIDE LED CABLE 1

38 VEE1A38 USB CABLE 1

39 VEE0W39 CCD SENSOR (B) CABLE 3

40 VEE0R31 GND CABLE 1

41 VEE0L74 EXT DC CABLE 1

42 VEE0K14 EXT DC INF CABLE 1

43 VEE0Z94 V MEMO MIC CABLE 1

CABLE PARTS ASSEMBLY

MPL-2

109

115

109 109

E16

109

NOTE

105

102

103

110

103

106

E22

E17

109 109

108

112

101 107 107

104 104

110

114

111

114

113

(Page MPL-9)

TOP CASE & HANDLE ASS'Y

(Page MPL-5)

(Page MPL-17)

(BACK CASE ASS'Y)

(Page MPL-16)

REAR JACK ASS'Y

(Page MPL-11)

SIDE CASE (R) ASS'Y

LCD ASS'Y

(Page MPL-18)

MPL-3

(Page MPL-7)

CAMERA ASS'Y

SIDE (L) U

NOTE:

This connector is the connector ASS'y.

Refer to CABLE PARTS ASSEMBLY with part number.

CASING & FRAME PARTS ASSEMBLY

OVERALL SECTION (1)

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK1J07 BOTTOM CASE 1 U 1

2 VMP4853 LENS CONNECTOR PLATE 1

3 VGM1826 FRONT V EDGE 1

4 VGM2138 FRONT FOOT BASE 1

6 VKC0560 HINGE 1

7 VYK1P21 BOTTOM COVER U 1

8 VMT1591 SHOULDER PAD 1

9 VJF1535 CLAMPER 6

101 XSB4+6FC SCREW 3

102 XWE26FJK WASHER 2

103 XYN26+A8FJK SCREW 2

104 XSS3+8FJK SCREW 4

105 XTN26+8JFJK SCREW 2

106 VHD1774 SCREW 1

107 XSB3+6FJK SCREW 6

108 XSB3+16FJK SCREW 2

109 XYN26+J6FJ SCREW 12

110 XSB3+8FJK SCREW 8

111 XYN2+F6FJ SCREW 1

112 XSB3+4FJK SCREW 2

113 VHD1774 SCREW 1

114 XYN2+F6FJ SCREW 6

115 XYN3+J6FJ SCREW 1

E16 VEP89144A SPD MOTHER P.C.BOARD 1

E17 VEP84396B REAR AUDIO P.C.BOARD 1

E22 VEP80C54A FRONT MIC P.C.BOARD 1

OVERALL SECTION (1)

MPL-4

101

102

E15

E12

E11 E10

E7 E8

E9 E6 E5

E14

E19

103 101

104

101

OVERALL SECTION (2)

MPL-5

* The part number of card holder is written in

Electric Parts List of each P.C.Board.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VSC5632 CCD SHIELD PLATE 1

2 VMP8068 USB PB ANGLE 1

3 VXA8173 RECEIVER BOX U 1

4 VMT1618 SOFT HIGH SHIELD GASKET 2

5 VEK0G98 USB CN 1

6 VMT1549 GASKET 2

7 VSC5655 MIC CABLE SHIELD CASE 1

8 VMZ3479 SDI-1394 BARRIER 1

9 VYP9119 SIDE (L) U 1

10 VMG1642 GUARD 1

11 VMG1643 USB CAP 1

12 VGB0601 DVCPRO50 BADGE 1

13 VGB0625 PANA BADGE 1

14 VMT1570 GASKET 1

101 XYN26+J6FJ SCREW 8

102 VHD1462 SCREW 2

103 XSB3+6FJK SCREW 1

104 XSB3+4FJK SCREW 2

E5 VEP23619A CAM DSP P.C.BOARD 1 FOR AJ-SPC700P

E5 VEP23619B CAM DSP P.C.BOARD 1 FOR AJ-SPC700E/MC

E6 VEP23604D CAM SYSCON P.C.BOARD 1 FOR AJ-SPC700P

E6 VEP23604E CAM SYSCON P.C.BOARD 1 FOR AJ-SPC700E/MC

E7 VEP83659A SPD MSC P.C.BOARD 1

E8 VEP86339F SPD CPU P.C.BOARD 1 FOR AJ-SPC700P/E

E8 VEP86339G SPD CPU P.C.BOARD 1 FOR AJ-SPC700MC

E9 VEP86338B SPD SYSCON P.C.BOARD 1

E10 VEP80C82A SPD CARD 1 P.C.BOARD 2

E11 VEP80C83A SPD CARD 2 P.C.BOARD 1

E12 VEP84400A SPD AUDIO P.C.BOARD 1

E14 VEP21290B CAM POWER P.C.BOARD 1

E15 VEP81234B SPD POWER P.C.BOARD 1

E19 VEP80D05A L SIDE P.C.BOARD 1

OVERALL SECTION (2)

MPL-6

102

101

103

103 109

E21

18 15 16

20 17

E20

106

117

115

117

104

107

105

111

110

116

113

112

30 28

107 116

23 22

105

113

105

CAMERA PARTS ASSEMBLY

MPL-7

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VEQ4515 CAMERA U 1 FOR AJ-SPC700P

1 VEQ4516 CAMERA U 1 FOR AJ-SPC700E/MC

2 VMP7585 P.C.B. MOUNT ANGLE 1

3 VSC5661 OPTICAL SHIELD PLATE RIGH 1

4 VSC5634 SHIELD CASE (PULSE) 1

5 J0KD00000104 FILTER CORE 1

6 VGU9860 FILTER KNOB 1

7 VYK1R08 FRONT CASE 1U 1

8 VJF1256 CABLE CLAMPER 2

9 VMG0948 EVF RUBBER SHIELD 1

10 VMC1210 FRONT DOOR SPRING 1

11 VMP4850 FRONT DOOR ANGLE 1

12 VMS4088 FRONT DOOR ANGLE PIN 1

13 VKF2485 FRONT DOOR 1

14 VXU1620 RUBBER BUTTON ASS'Y 1

15 VGU9299 MENU BUTTON 1

16 VGQ7131 BUTTON HOLDER PLATE 1

17 VMT1432 WATERPROOF CUSHION 2

18 VGU9861 MENU KNOB 1

19 VMG1317 MENU WATERPROOF RUBBER 1

20 VMG1140 RAIN COVER SPONGE 2

21 VYQ3512 OPTICAL U 1 FOR AJ-SPC700P

21 VYQ3513 OPTICAL U 1 FOR AJ-SPC700E/MC

22 VMA0E35 HEAT SINK (R) 1

23 VMA0E36 HEAT SINK (G) 1

24 VMA0E37 HEAT SINK (B) 1

25 VXQ1281 LPF U 1

26 VSQ1225 INSULATION SHEET 1

27 VDW1228 MOUNT RING 1

28 VDS0168 COVER DISK 1

29 VKF2997 CAP 1

30 VMD5185 LENS GUIDE 1

101 XYN2+C4FJ SCREW 1

102 XSB2+4FJK SCREW 2

103 XXEV2W4FP SCREW 2

104 XYN3+C6FJ SCREW 2

105 XYN26+F6FJ SCREW 19

106 VMX1312 POLY WASHER 2

107 XQS2+A4FJK SCREW 3

109 XYN26+J6FJ SCREW 3

110 XQN2+B25FJ SCREW 2

111 XQN2+C6FJK SCREW 2

112 XSB3+6FJK SCREW 4

113 XXE26W3FP HEX SCREW 2

115 XQN2+B6FJK SCREW 2

116 XQN2+A4FJK SCREW 3

117 XQN2+B4FJK SCREW 2

E1 VEP20A88A CCD SENSOR P.C.BOARD 1

E2 VEP20B36A PULSE P.C.BOARD 1 FOR AJ-SPC700P

E2 VEP20B36B PULSE P.C.BOARD 1 FOR AJ-SPC700E/MC

E3 VEP80D27A POSITION SENSOR P.C.BOARD 1

E4 VEP25125A AFC PROCESS P.C.BOARD 1

E20 VEP80C57A FRONT SW P.C.BOARD 1

E21 VEP80C58A MENU SW P.C.BOARD 1

CAMERA PARTS ASSEMBLY

MPL-8

*NOTE

108

111

110

108

110 111

102

112 112

102

108

107

104 101

105

106

104

102

109

103 113

103

113

E25

E23 E24

including

TOP CASE & HANDLE PARTS ASSEMBLY

*NOTE: This connector is the connector ASS'y.

Refer to CABLE PARTS ASSEMBLY with part number.

MPL-9

Otros manuales para AJ-SPC700E

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de Panasonic

Panasonic

Panasonic Palmcoder Multicam PV-GS400 Manual de usuario

Panasonic

Panasonic Palmcoder SDR-H40PC Manual de usuario

Panasonic

Panasonic HDC-HS900PC Manual de usuario

Panasonic

Panasonic AG-DVX100A - Pro 3-CCD MiniDV Proline... Manual de usuario

Panasonic

Panasonic NV-GS1 Manual de usuario

Panasonic

Panasonic NV-GS10 Manual de usuario

Panasonic

Panasonic AGHPX170P - MEMORY CARD CAMERA RECORDER Manual de usuario

Panasonic

Panasonic HC-V180 Manual de usuario

Panasonic

Panasonic Palmcoder PalmSight PV-L679 Manual de usuario

Panasonic

Panasonic P2HDXAG-HPX500 Manual

Panasonic

Panasonic NV-GS6EE Manual de usuario

Panasonic

Panasonic PVL354 - VHS-C CAMCORDER Manual de usuario

Panasonic

Panasonic Vericam 35 Manual de usuario

Panasonic

Panasonic AJ-HPM100MC Manual de usuario

Panasonic

Panasonic AG-HPX300 Manual de usuario

Panasonic

Panasonic SDR-H100P Manual de usuario

Panasonic

Panasonic Palmcoder Multicam PV-GS400 Manual de usuario

Panasonic

Panasonic AJSPX800P - P2 CAMCORDER Manual de usuario

Panasonic

Panasonic SDR-H250EB Manual de usuario

Panasonic

Panasonic Palmcoder PV-L557 Manual de usuario

Panasonic

Panasonic HDC-SD90P Manual de usuario

Panasonic

Panasonic Palmcorder PV-D476 Manual de usuario

Panasonic

Panasonic Palmcorder PV-L557 Manual de usuario

Panasonic

Panasonic AW-F575E Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

RCA

RCA CC616 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario

Sony

Sony Handycam HDR-CX580V Manual de usuario

Sharp

Sharp ViewcamZ VL-Z8H Manual de usuario

Philips

Philips M620/21 Manual de usuario
