Panasonic Broadcast

Mechanical Parts List

Model No. : AG-HPG10P/E/MC

CONTENTS

CASING PARTS ASSEMBLY ..........................................................................................................MPL-1

TOP CASE & LCD PARTS ASSEMBLY ..........................................................................................MPL-3

PACKING PARTS ASSEMBLY........................................................................................................MPL-5

107

108

107

105

107 107

109

110

26 105

105

109 19

107 19

106

107

103

111

102

105 104

105

101

E10

E11

103

E14

E15

E14

E15

109

24 P only

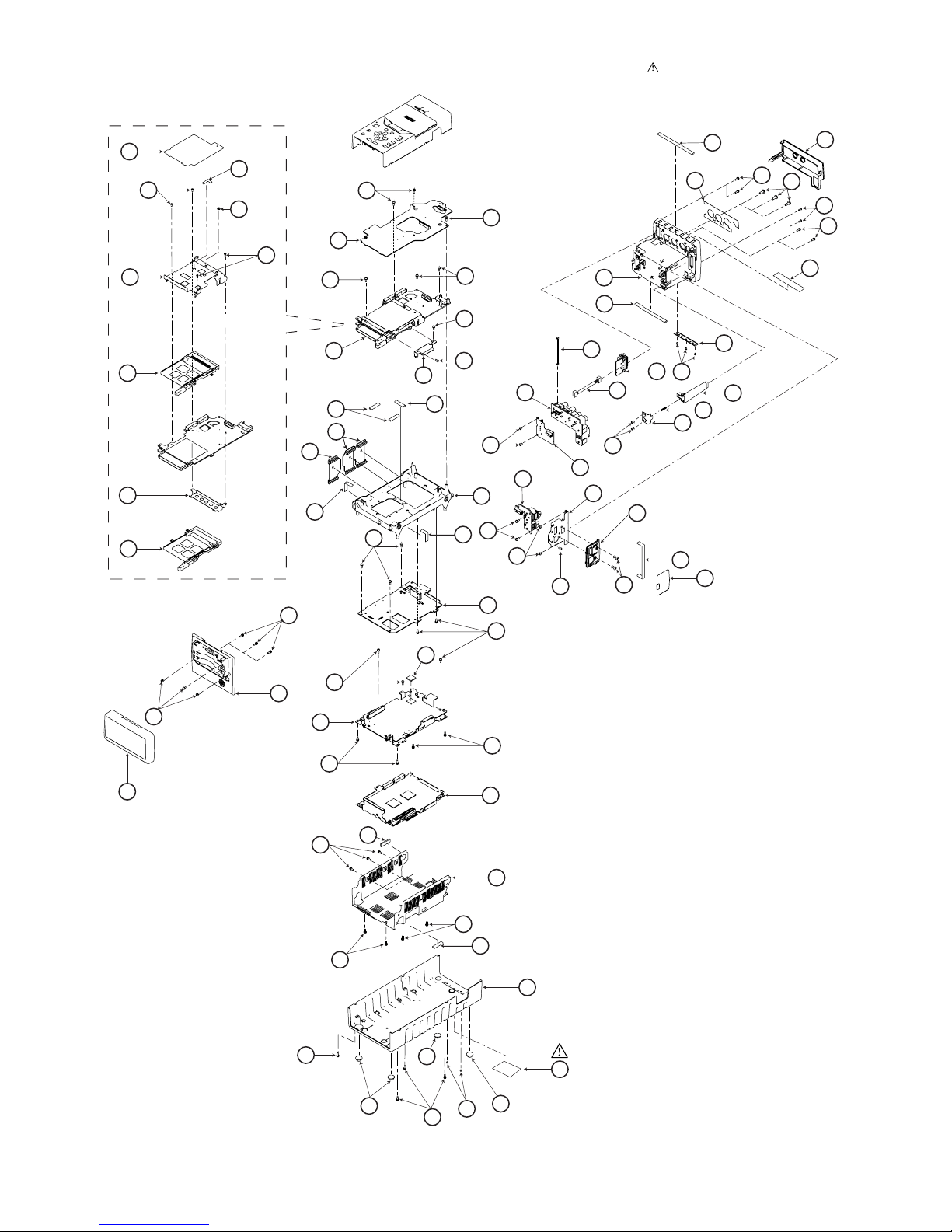

CASING PARTS ASSEMBLY

MPL-1

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

28 P only

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VGF1078 JACK COVER 1

2 VGH4966 JACK LABEL 1

3 VYK2H60 BATTERY CASE 1U 1

4 VGU0B45 BATTERY LOCK BUTTON 1

5 VMB4036 BATTERY LOCK SPRING 1

6 VMP8855 BATTERY BOTTOM PLATE 1

7 VMP8856 BATTERY LOCK PLATE 1

8 K1TZB9A00049 SDI CABLE (RED) 1

9 VEE1D85 1394 CABLE 1

10 VMT1880 EMC GASKET REAR TOP 2

11 VMT1881 EMC GASKET REAR BOTTOM 1

12 VGP6216 USB PANEL 1

13 VMP8857 USB PLATE 1

14 VMG1800 USB CAP 1

15 VYK2G18 FRONT PANEL 1U 1

16 VYK2G19 FRONT LID U 1

17 VKM7167 MAIN FRAME 1

18 VMT1857 GASKET B 3

19 VMF0578 PROTECT TAPE 2

20 VMP8959 MAIN SHIELD PLATE 1

21 VMZ3531 HEATING SHEET (DECO) 1

22 VMT1892 EMC GASKET 2

23 VMP8958 P2 EARTH PLATE R 1

24 VGN0W53 RATING LABEL 1 FOR AG-HPG10P

25 VKM7168 BOTTOM CASE 1

26 VKA0390 LEG NEW 4

28 VQL2617 SEE MANUAL LABEL 1 FOR AG-HPG10P

29 K1YYZZ000077 CARD HOLDER A 1

30 K1YYZZ000076 CARD HOLDER B 1

31 VMP8554 P2 CARD ANGLE A 1

32 VMP8555 P2 CARD ANGLE B 1

33 VMZ3718 P2 ANGLE BARRIER 1

34 VGQ8877 LCD FPC TAPE 1

35 VMZ3717 FFC CUSHION 1

101 XQN16BJ25FJK SCREW 3

102 XQN2+BJ6FJK SCREW 2

103 XTB2+4GFJ SCREW 6

104 XTB3+8GFJK SCREW 3

105 XYN2+J6FJK SCREW 14

106 XSN3+6FJK SCREW 2

107 XYN2+J6FJ SCREW 24

108 XQN2+B4FN SCREW 4

109 XQN2+B25FJ SCREW 5

110 XQN16+B2FJK SCREW 2

111 VHD1887 SCREW 1

E1 VEP03H15A V PROC C.B.A. 1

E2 VEP03H16A CODEC C.B.A. 1

E3 VEP03H17A P2 CARD C.B.A. 1

E4 VEP03H18A AV OUT C.B.A. 1

E5 VEP01991A POWER C.B.A. 1

E6 VEP01992A BATTERY C.B.A. 1

E8 VEP03H20A JACK C.B.A. 1

E10 VEP03H22A USB C.B.A. 1

E11 VEP03H26A 1394 CN C.B.A. 1

E14 VEP001S7A R INTER CN1 C.B.A. 1

E15 VEP001S8A R INTER CN2 C.B.A. 2

CASING PARTS ASSEMBLY

MPL-2

1-5

1-3

1-4

1-2

1-1

107

723

103

614

104

101

102

101

E13

102

101

E12

TOP CASE & LCD PARTS ASSEMBLY

MPL-3

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK2E76 LCD U 1

1-1 VYK2G36 LCD 1U 1

1-2 VXD0506 HINGE U 1

1-3 A4LZFE000002 LCD BACK LIGHT 1

1-4 VMZ3709 LCD BARRIER 1

1-5 VMZ3708 SHADING PLATE 1

2 VGQ6901 MONITOR KNOB 1

3 VGU0B43 RUBBER BUTTON 1

4 VGU0B44 ORERATION BUTTON 1

5 VGU9197 MONITOR LOCK KNOB 1

6 VGU9207 HANDLE S/S BUTTON 1

7 VHN0382 NYLON NUT 1

8 VKM7166 TOP CASE 1

9 VMB3659 MONITOR OPENER SPRING 1

10 VMB3996 POP UP SPRING 1

11 VMG1286 CUSHION RUBBER 2

12 VMG1799 HEADPHONE CAP 1

13 VMP7331 OPENER HOLDER ANGLE 1

14 VMS7187 LCD LOCK SHAFT 1

15 VMX0531 CLATCH SPACER 1

16 VWJ06H2033L0 FFC 1 6PIN 33MM

17 VGQ9463 LCD HINGE COVER FRONT 1

18 VMZ3711 FPC LOCK SHEET 1

19 VWJ30H2070L0 LCD IF FFC 1

20 VMZ3756 FFC BARRIER 1

21 VQL1Q78 LCD CAUTION LABEL 1

22 VGL1245 LED LENS 1

23 VMZ3757 FPC PROTECTION SHEET A 1

24 VMT1896 FPC HOLD CUSHION 1

101 XYN2+J6FJ SCREW 8

102 XQN2+B4FN SCREW 2

103 XTB2+6GFJ SCREW 2

104 XQN16+B4FJK SCREW 4

107 XYN2+J6FJ SCREW 2

E7 VEP001S5A TOP OP C.B.A. 1

E9 VEP03H21A LCD C.B.A. 1

E12 VEP001T1A LCD SENSOR C.B.A. 1

E13 VEP04928A HEADPHONE C.B.A. 1

TOP CASE & LCD PARTS ASSEMBLY

MPL-4

ACCESSORY U

15 E only

MPL-5

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

PACKING PARTS ASSEMBLY

MC only

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VPG1P66 PACKING CASE 1 FOR AG-HPG10P

1 VPG1P68 PACKING CASE 1 FOR AG-HPG10E

1 VPG1P69 PACKING CASE 1 FOR AG-HPG10MC

2 VPG1P70 PACKING CASE 1 FOR AG-HPG10MC

3 VPN6618 CUSHION F 1

4 VPN6619 CUSHION R 1

5 VPF1136 PROTECT BAG 1

6 VQT1H84 OPERATING INSTRUCTIONS 1 FOR AG-HPG10P

6 VQT1H85 OPERATING INSTRUCTIONS 1 FOR AG-HPG10E

6 VQT1H86 OPERATING INSTRUCTIONS 1 FOR AG-HPG10MC

9 DE-A20BB AC ADAPTOR U 1 FOR AG-HPG10P

9 DE-A20CC AC ADAPTOR U 1 FOR AG-HPG10E/MC

10 K2KYYYY00028 CONVERSION CABLE 1

11 K2GJ2DZ00024 DC CORD 1

12 K2RYYYYY0001 ADAPTOR PLUG 1

13 VPK0825 ACCESSORY BOX 1

14 VYC0944 AC CORD U 1 FOR AG-HPG10P

14 VYC0945 AC CORD U 1 FOR AG-HPG10E

14 VYC0947 AC CORD U 1 FOR AG-HPG10MC

15 VYC0946 AC CORD U 1 FOR AG-HPG10E

PACKING PARTS ASSEMBLY

MPL-6
