9 Operating Instructions

CHECK

TEMP

OFF

COOL

FAN

AUTO

RESET

CHECK CLOCK

MODE

FAN SPEED

OFF

CANCEL

SET

123

TIMER

OFF ON

QUIET

AIR SWING

AUTO

«QUIET»

«TIM ER»

«OXY GEN»

«POWER ON»

«»

Outdoor Unit

Indoor Unit

1.1

1.2

If Remote Control malfunctions / is misplaced...

PRODUCT OVERVIEW

Y our device can...

Air intake

Air outlet

Oxygen tube & piping, connecting cable

Filters under front panel, see page 4

Indicator & Auto operation button

Cooling Heating Dehumidifying Air Circulation

1.3

Remote Control

Direction louver

0 - 10 m

Fluorescent lights may interfere with signal transmission

see page

Memory reset!

Under front panel

]

Open

Ioniz er

DO NOT TOUCH

Switch OFF/ON of the device

Activate

« »

Select air flow direction

Select Fan Speed

Set CLOCK

Set TEMPERATURE

Activate

OXYGEN

Select MODE

Activate

QUIET

TIMER functions

Check malfunction code

Open front panel

Press to START > >

AUTO-Mode only

Press again to STOP > >

FAN

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

Press button

OPERATION

TROUBLE-

SHOOTING

Find on page

PREPARATIONS

SAFETY

PRECAUTIONS

HELPFUL

INFORMATION

START

Switch on

Automatic Internal Function

AUTO

Automatic

Based on the outdoor, indoor and setting temperature, the system automatically

chooses

Additional comfort

Set temperature

min. 1 6 °C

max. 30°C

*Automatic during dehumidifying

(DRY)

TEMP

AUTO

OFF

AUTO

FAN

AUTO

Choose the right temperature to be comfortably warm!

Heating

HEAT

min. 1 6 °C

max. 30°C

TEMP

AUTO

OFF

HEAT

FAN

AUTO

Choose the right temperature to be comfortably cool!

Cooling

COOL

min. 1 6 °C

max. 30°C

TEMP

AUTO

OFF

COOL

FAN

AUTO

V ery gentle cooling and dehumidifying operation.

Dehumidifying

DRY

min. 1 6 °C

max. 30°C

TEMP

AUTO

OFF

DRY

FAN

AUTO

COOL

DRY

HEAT

Recommended:

~ 20...24 ˚C

~ 26...28˚C

Recommended: Room temperature

–(1~ 2)˚C

Switch off

Fan operation, to circulate air in the room.

Air circulation

FAN

TEMP

AUTO

OFF

FAN

AUTO

STOP

Set temperature

FAN

Set temperature

super

low speed

Select...

Recommended:

Select...

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

Vertical direction

Air Flow

Press button

AIR SWING

Horizontal direction

AIR SWING

Fan Speed (air volume)

Direction / volume

Select automatic / manual

Timer

TIMER Operation

Select

Set time Confirm or OFF

Timer Set time Confirm or ON & OFF

Timer Set time Confirm

OFF

Cancel

ON/OFF Timers:

Active every day

Air still cold

Air heated

OF F

QUIET Operation

Current time OK? –> Setting: page 56

Activate / Deactivate

Provide quiet operation Air flow sound

Air flow sound will reduce during operation

OF F

Activate / Deactivate

Produce negative ion for fresh air

Provide negative ion

during operation

OF F

Provide negative ion

with FAN operation

Air-conditioner

If Blinking

press twice

Still Blinking - Call

Service

OXYGEN Operation

OF F

Activate / Deactivate

Enriches oxygen content

during operation

OF F

Enriches oxygen with

FAN operation

Air-conditioner

Oxygen enrichment membrane

Oxygen = 21%

Normal Air

Oxygen ~30%

Oxygen Enrich Air

Start before «ON»time

Max 35 Min

For your comfort

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

Max.

20°

Soaps Neutral household

detergents

( ~ pH7 )

3 - 4 Min.

TIMER

DIRTY FILTERS cause: unpurified air, low cooling/heating capacity, more unpleasant smells, higher energy consumption!

Benzine / Thinner Scouring powder

Automatic Operation

If remote control malfunctions / is misplaced see page 52

Random restart automatically

Restored

Deleted -> set again!

Close Vacuum *Better

performance

see page 54

Save cost Power Failure

When power resume...

every 6 months

Damaged –> replace!

Indoor unit

Wipe gently

Filter cleaning see below

HELPFUL INFORMATION

CARE & CLEANING

Front panel

Decorative Panel

Purifying filter

Thunder / Lightning

Built-in surge protection, BUT UNPLUG in case of very strong lightning!

MODE

Filters

Release holder from rear side

Max.

20°

Dry Cloth

AUTO

~ -10%

COOL + (1°C)

HEAT - (2°C)

Use....

TIMER!QUIET!

Remove ReinstallWash + Dry

Beware of dropping Insert decorative panel

Part No : CZ-SF70P

Vacuum

refresh

Remove

every 2 weeks

Air filters

Vacuum Wash Dry

Remove Reinstall

REPLACE every 3

years!

Reinstall

Open manually

Ionizer

every 6

months

Damaged –> replace!

Part No : CWD001053

Part No : CWD001054

<<FRONT>>

“Catechin”filter

Clean with

cotton bud

Insert holder

Slide in

Remove

slowly

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

After several seasons and due to operational conditions, performance may be reduced by dust or there may be

unpleasant smells.

Recommended

Inspections Consult an authorized distributor for inspection!

Same type!

OPEN front panel

Insert batteries /

Set clock

Pre-season

inspection

PREPARATIONS Installation: see enclosed installation instruction!

Press button

Plug/breaker

2-3[h]

For extended

non-operation dry internal parts

START Unplug Remove batteries

OFF

Remove AIR filters Place PURIFYING filter Place AIR filters CLOSE front panel Plug in

Call Service

ервиз

Καλέστε τον αντιπρσωπο

вызовите сервис

~15

Min.

Open / remove

Rechargeable Insert batteries / close

–

Check

Use Year

Press Set time Set current time immediately Confirm

Check 1. Fans obstructed?

OK?

2. Batteries

START cooling or heating Check performance

–

~8˚C (COOL)

~14˚C (HEAT)

Call Service

refer page 59

Indoor unit

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

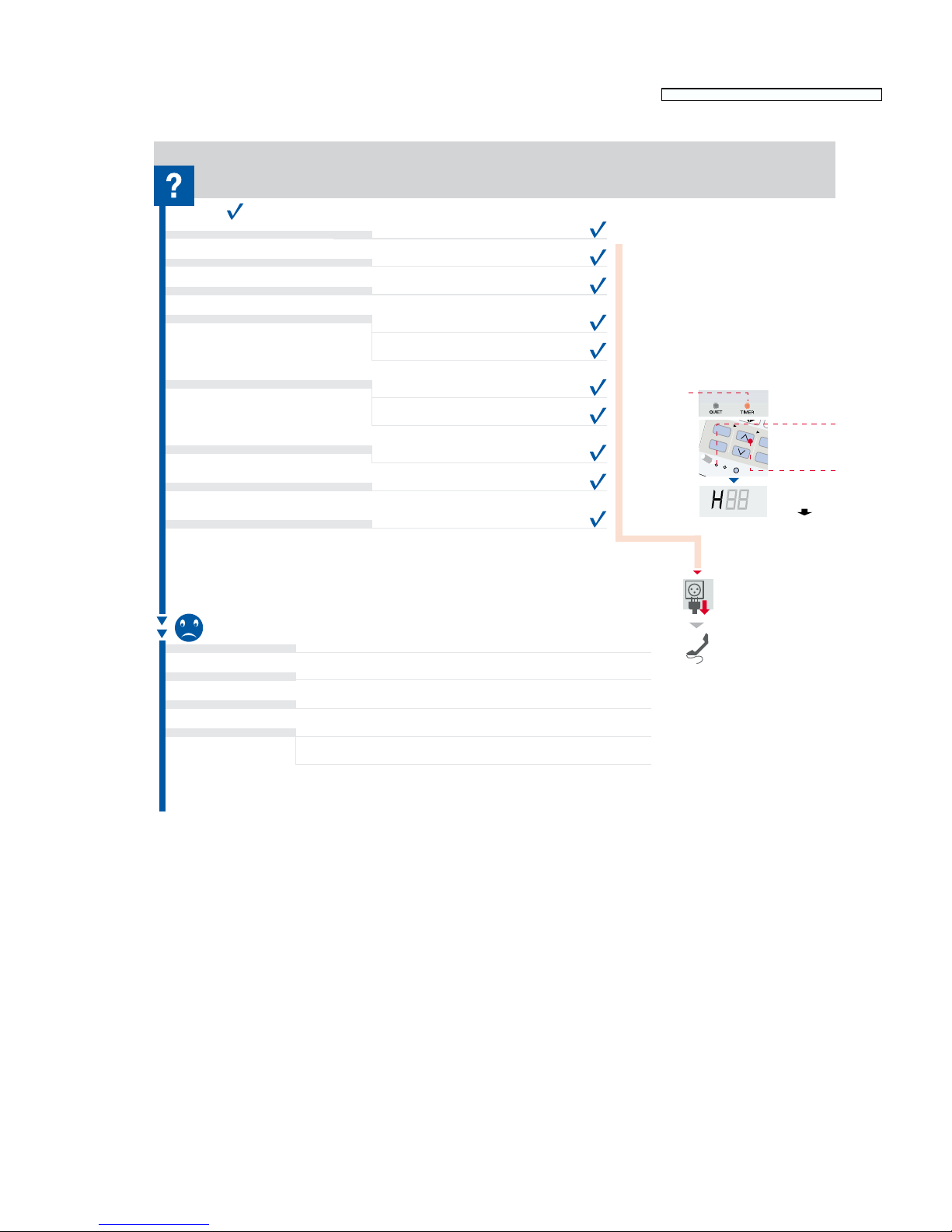

TROUBLESHOOTING

OK?

No problem

In case of...

•Abnormal noise during operation

•Water/foreign particles have entered the Remote Control

•Water leak from Indoor unit

•Switches/buttons do not operate properly

•Circuit breaker switches off frequently

•Power plug/cord become unnaturally warm

• «TIMER»flashes

No Operation 3Circuit breaker tripped? 3Power plug OK? 3TIMER used correctly?

Remote control/display doesn’t work 3Batteries empty? 3Batteries correctly inserted? See page 56

Noise too loud 3Installation work slanted? 3Front grille/panel closed properly?

Cooling/heating efficiency low 3Temperature set correctly? 3Windows/doors closed? 3Filters cleaned/replaced?

3Outdoor unit obstructed? 3Intake/outlet ventilators obstructed?

It sounds like water flowing... 3Caused by refrigerant flow inside

Mist seems to emerge from the indoor unit 3Condensation effect due to cooling

Outdoor unit emits water/steam 3Condensed moisture due to cooling

Delayed air discharging 3At COOL, SOFT DRY (Auto Fan Speed): Prevent odours

from blowing out

3At HEAT (POWER LED flashes): Prevent cold air from

blowing out

Function stops suddenly 3At COOL, SOFT DRY (Auto Fan Speed): Function

interruptions to the internal temp. measurement

3At HEAT (POWER LED flashes): Iced up outer device is

defrosted (approx. 10min.)

Smell during oxygen operation 3Oxygen brought in from the outside air may contain odour.

Remove source of odour around the outdoor unit.

Soft splashing sound from indoor unit during oxygen operation 3Sound emitted by high humidity airflow from oxygen tube

Slight increase in sound level from outdoor unit 3Sound increased cause by oxygen operation

press

CHECK RESET

CHECK CL

OCK

OFF

CANC

TIMER



5 sec.

search code

if 4x beep

=Code

(H23/H26/H27/H28)

*Emergency operation (limited function)

TURN OFF / UNPLUG

CALL authorized distributor

*1. Press MODE - 2. Select COOL/HEAT - 3. Press OFF/ON

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

SAFETY PRECAUTIONS

Immediately isolate from the mains supply (e.g. if there is a smell of burning)

EMERGENCY!

NEVER use this unit for purposes other than those listed in these

Operating Instructions. In particular, do not use it for the

preservation of food.

Installation

Engage dealer/specialist for mains connection including...

Mains connection

Before operating, read the safety precautions thoroughly!

Engage dealer/specialist

Connect drain hose properly

NEVER use the plug to switch on/off

Do NOT stay long in the stream of cold air

Do NOT operate with wet hands

Ventilate the room periodically

NEVER modify / damage mains cables / connectors

Do NOT pull out the plug by the cable

Place nothing on the unit -> covered openings may cause overheating

Do NOT insert finger or other objects into the unit! -> especially dangerous for children!

Unused for a long time? –> OFF/unplug

NEVER install, remove or reinstall yourself

NOT in potentially explosive atmosphere

Australia (AS) Standard

The appliance is not intended for use by young children or infirm person without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

United Kingdom (GB) Standard

Replacement or installation of power plugs shall be performed by authorized/qualified personnel

only. The wires in this mains lead are coloured in accordance with the following code:

If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard

Used connectors/breakers easy reachable!

Connect protective earth!

NEVER shared

Plug in properly

Use only for...

Air circulation

Operation

Cooling

Heating

Dehumidifying

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

Cooling

Heating

[°C]

11 23

11 26

- -

-6 18

16 32

16 43

16 30

-5 24

Defects

Waste disposal

OFF and unplug (connector or breaker)

Defect/suspicion of defect? -> Attend defects before use!

Do NOT repair by yourself

Engage dealer / specialist

Indoor Unit

Outdoor Unit Wet Bulb

Temperature

Dry Bulb

refer page

Do NOT wash!

SAFETY PRECAUTIONS & FEATURES

Uninstalling and disposal of the unit ONLY by dealer / specialist

Packaging recyclable

Cleaning

Operational Condition

TEMP

OFF ON

Luminous buttons: convenient in the dark!

AUTO

min max min max

Automatic Operation: indoor temp. is gauged to select the optimum mode

Ionizer Mode: produce negative ion for fresh air

Oxygen Mode: enriches oxygen content in fresh air

Quiet Mode: to provide quiet operation

Auto Restart Control: after power failure, restart automatically when power resume

Removable Front Panel: for quick and easy cleaning, washable

Decorative Panel: for quick and easy cleaning, washable

55/56

Catechin Filter: Trapping dust, tobacco, smoke/tiny particles, it inhibits the growth of

bacteria/viruses

Environmental friendly (Refrigerant R410A model): Zero ozone depleting and low

global warming potential

CS-XE9CKR CU-XE9CKR / CS-XE12CKR CU-XE12CKR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CW-XN921JA Manual de usuario

Panasonic

Panasonic CS-LU12UKYRN Series Manual de usuario

Panasonic

Panasonic Urban Multi Series Manual de usuario

Panasonic

Panasonic U-8ME2E8 Manual de usuario

Panasonic

Panasonic CS-C9NKV Manual de usuario

Panasonic

Panasonic CW-C141NU Manual de usuario

Panasonic

Panasonic S-20YM3HPQ Manual de usuario

Panasonic

Panasonic CS-Z35UD3RAW Manual de usuario

Panasonic

Panasonic CU-E28QKE Manual de usuario

Panasonic

Panasonic PAPAMY1604017CE Manual de usuario

Panasonic

Panasonic CS-C12CKP Manual de usuario

Panasonic

Panasonic PAW560MAH2L Manual de usuario

Panasonic

Panasonic CS-Z35UFEAW Manual de usuario

Panasonic

Panasonic CS-S9JKQ Manual de usuario

Panasonic

Panasonic CS-E12QB4RW Manual de usuario

Panasonic

Panasonic CS-MKS7NKU Guía de instalación y uso

Panasonic

Panasonic CSA18CKPG - SPLIT A/C IN DOOR Manual de usuario

Panasonic

Panasonic CS-PC36JKV Manual de usuario

Panasonic

Panasonic S-12MT2U6 Manual de usuario

Panasonic

Panasonic CS-TU18WKY-5 Series Manual de usuario

Panasonic

Panasonic CS-W14BB4P Manual de usuario

Panasonic

Panasonic CU-E7GKE Manual de usuario

Panasonic

Panasonic CS-D34DTQ Manual de usuario

Panasonic

Panasonic CS-D34DTH5 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
